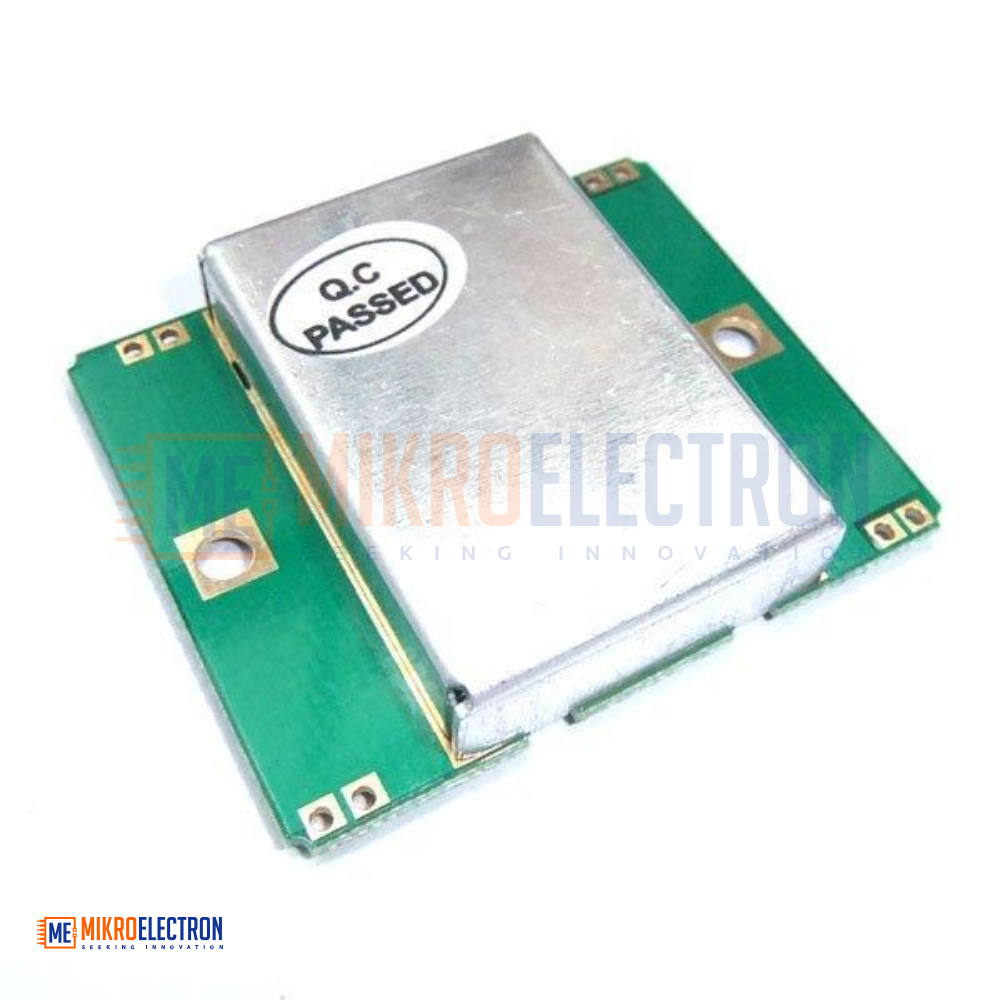

Microwave Doppler Radar Detector HB100

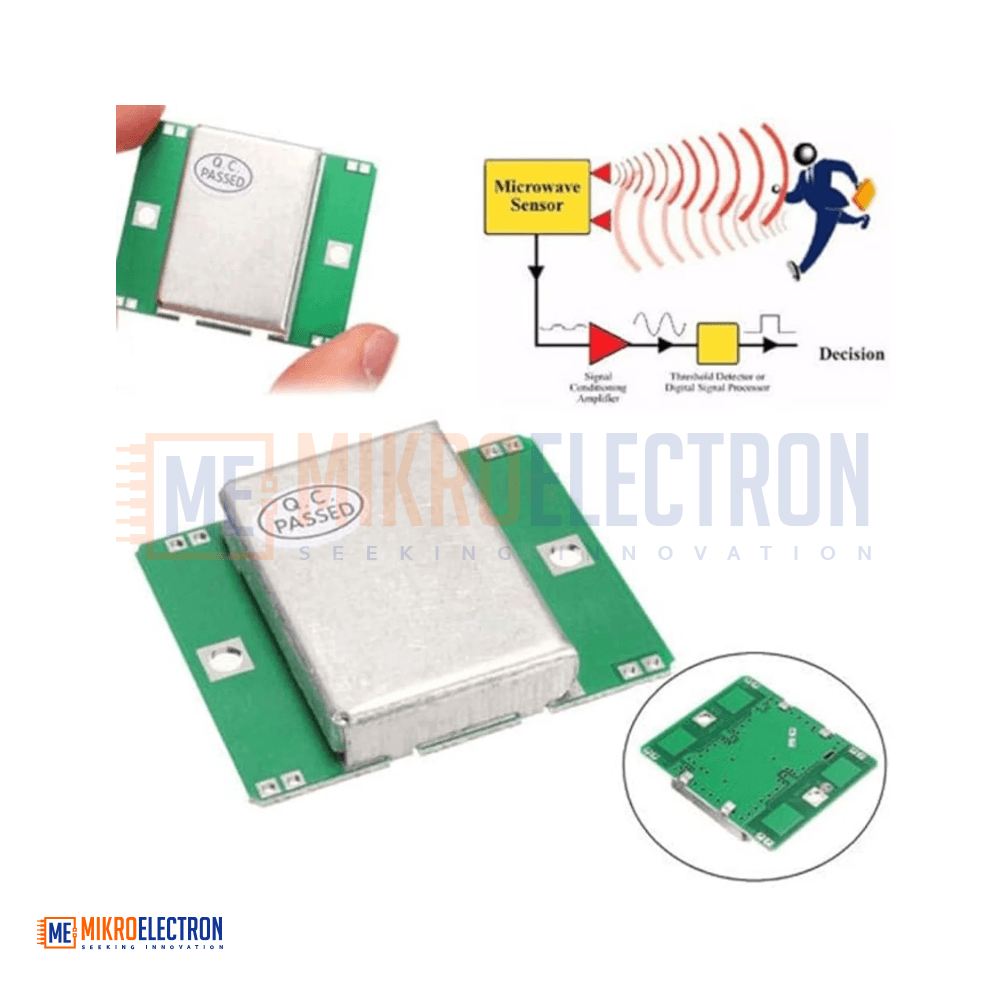

The HB100 Microwave Doppler Radar Motion Sensor is an advanced wireless motion detection module that uses microwave Doppler radar technology to accurately detect moving objects. The sensor transmits microwave signals and analyzes the Doppler frequency shift of reflected waves to identify motion within its detection range.

Operating at a frequency of 10.525GHz, the HB100 sensor offers high sensitivity and reliable performance in various environmental conditions. It can detect even small movements and provides an analog output signal proportional to the speed of motion, making it suitable for intelligent motion analysis and automation systems.

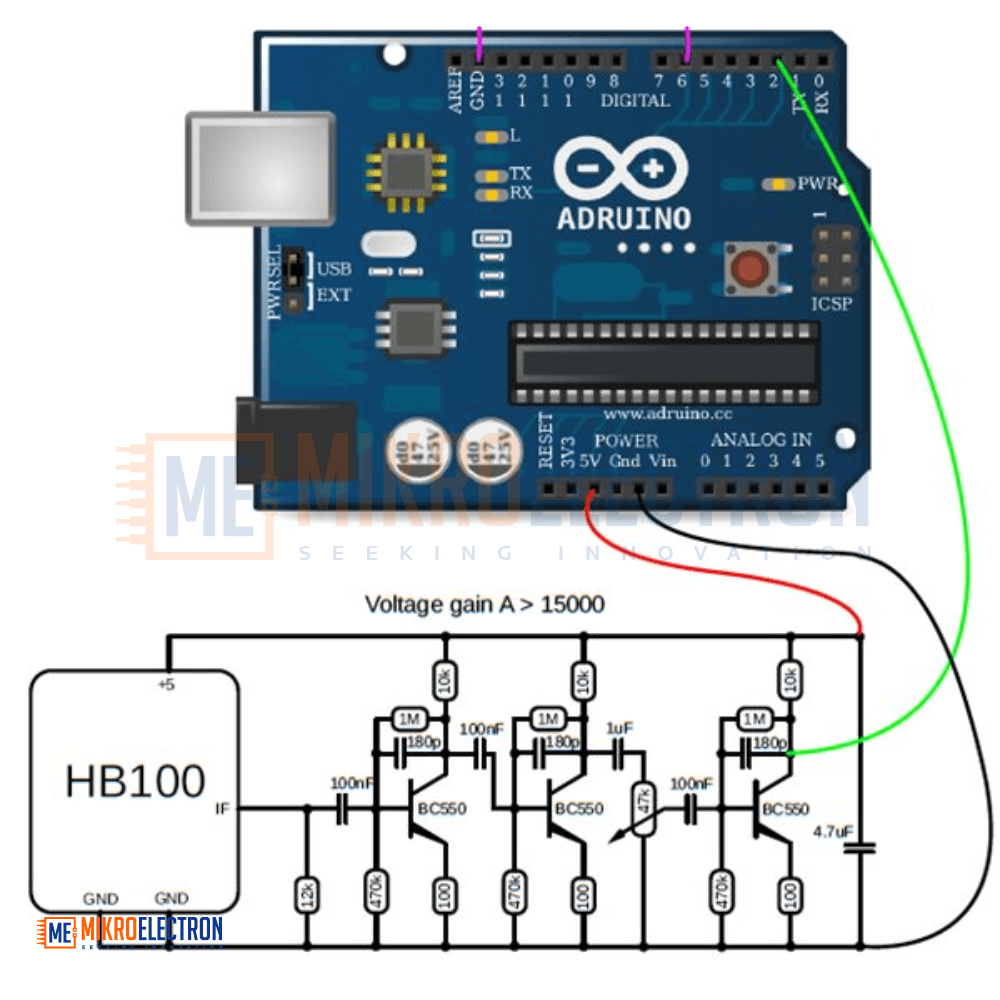

The module is designed for easy integration with Arduino, microcontrollers, and embedded systems. With low power consumption and compact dimensions, it is ideal for continuous monitoring applications, battery-powered systems, and smart electronic projects.

Its stable operation and accurate detection capabilities make it a popular choice for security systems, automatic lighting, industrial sensing, and home automation solutions.

Specifications

• Product Type: Microwave Doppler Radar Motion Sensor
• Model / Chip: HB100
• Operating Frequency: 10.525GHz
• Operating Voltage: DC 5V ±0.25V
• Current Consumption: 40mA
• Power Output: 13 dBm EIRP
• Output Type: Analog signal output
• Detection Technology: Microwave Doppler Radar

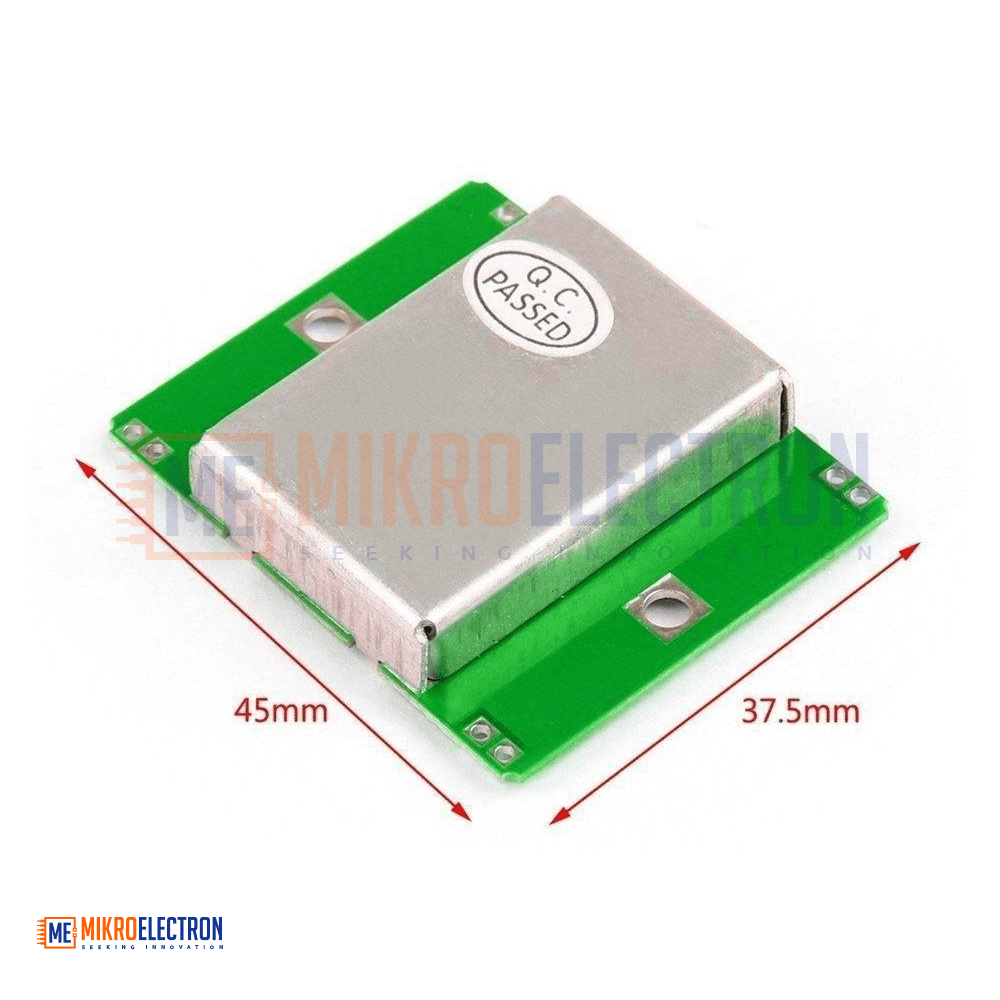

• Module Dimensions:
  • Length: 37mm
  • Width: 45mm
  • Height: 8mm

Applications

• Motion detection systems
• Security and alarm systems
• Smart home automation
• Automatic lighting control
• Occupancy sensing systems
• Industrial automation
• Speed detection applications
• Arduino and embedded projects
• Wireless monitoring systems
• Battery-powered motion sensors
