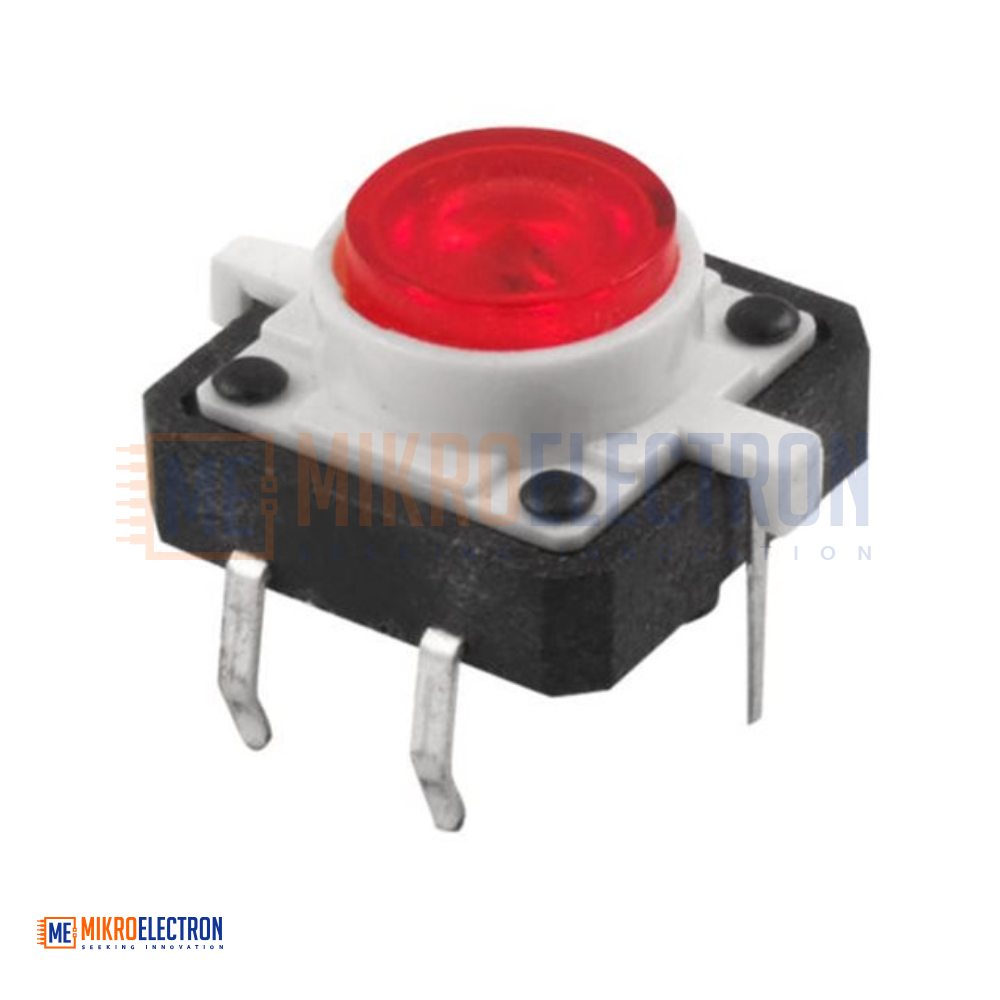

Red Tactile Push Button Switch

The Red Tactile Push Button Switch is a high-quality momentary tactile switch designed for electronic control systems, embedded devices, and industrial applications. Featuring a compact 12×12mm body with integrated LED illumination, this switch provides excellent tactile feedback and reliable operation.

The switch uses a 4-pin DIP through-hole mounting design, making it easy to install on PCBs and prototype boards. It supports operation at DC 12V / 50mA and offers stable electrical performance with low contact resistance and strong insulation properties.

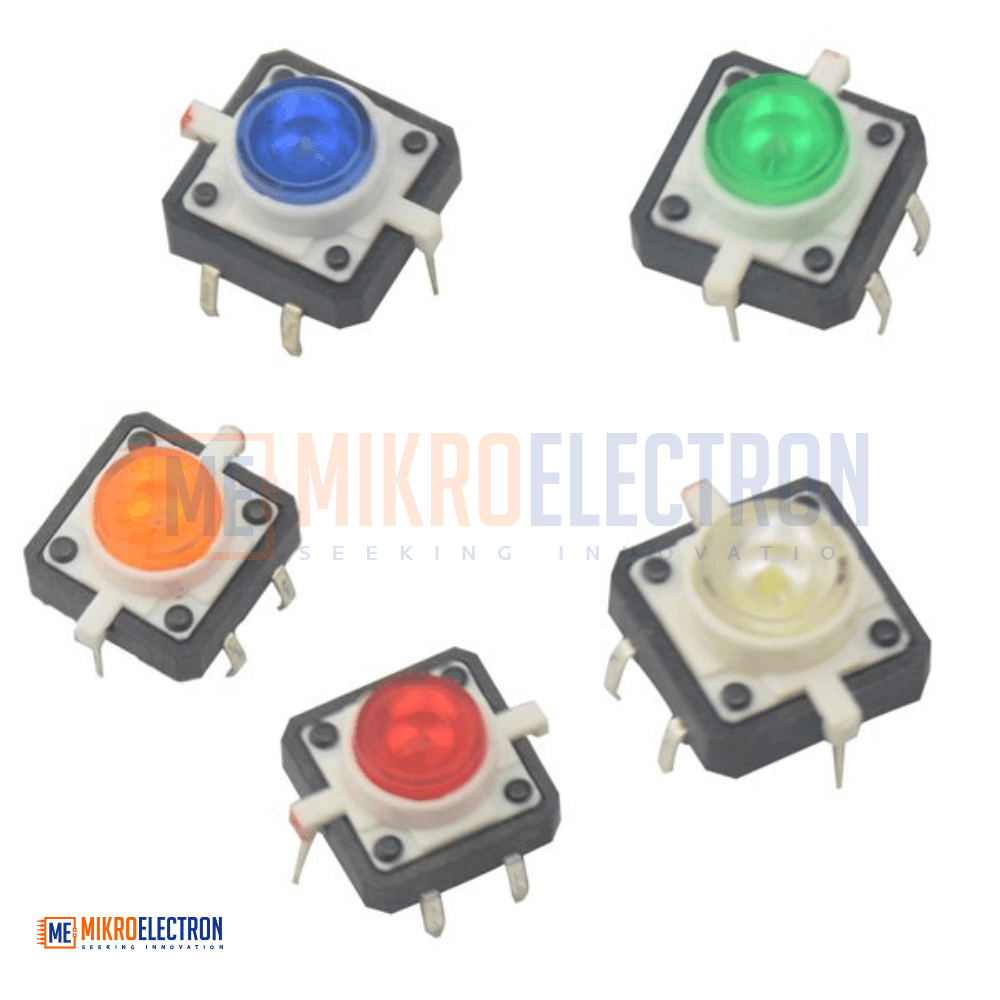

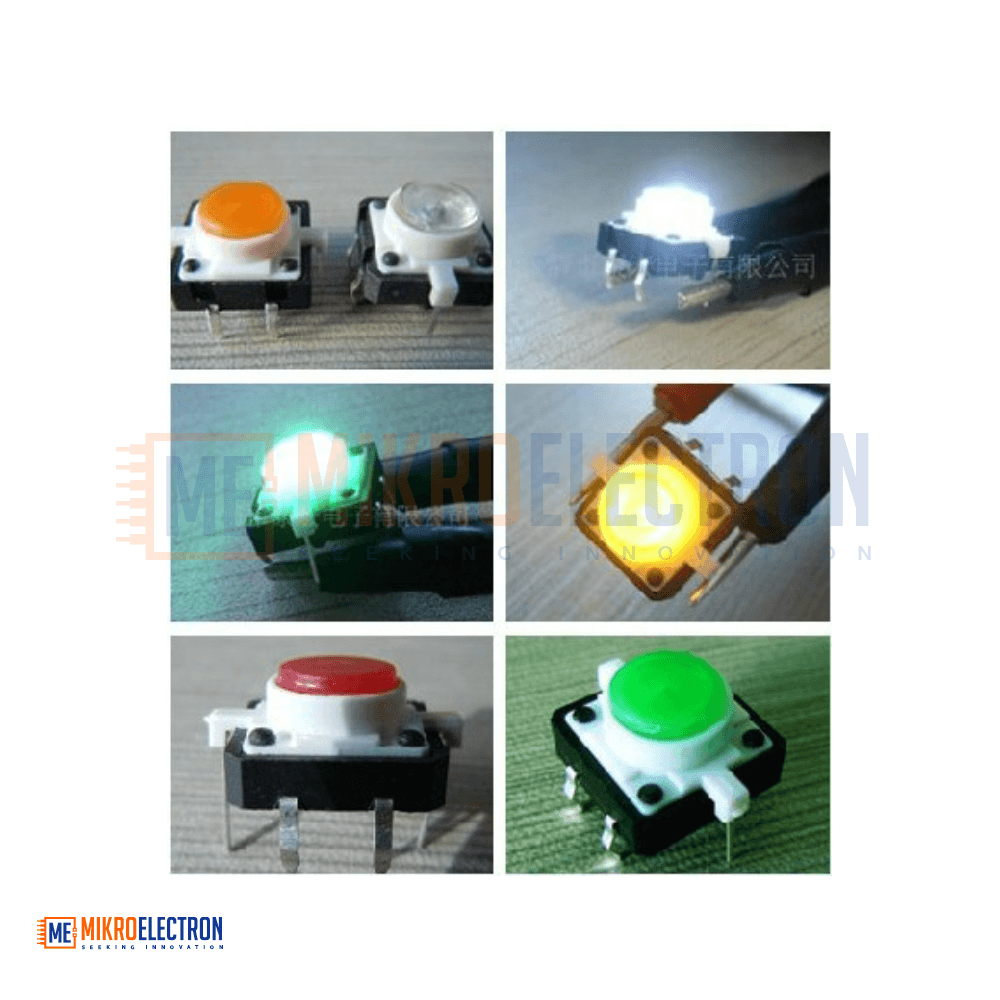

Designed for durability, the switch supports up to 100,000 electrical and mechanical cycles, ensuring long service life in demanding applications. Different LED colors are available to suit various indicator and interface requirements.

Its compact size and responsive touch action make it ideal for consumer electronics, industrial controls, communication systems, medical devices, and DIY electronics projects.

Specifications

• Product Type: LED Tactile Push Button Switch
• Switch Type: Momentary Normally Open
• Color: Red LED

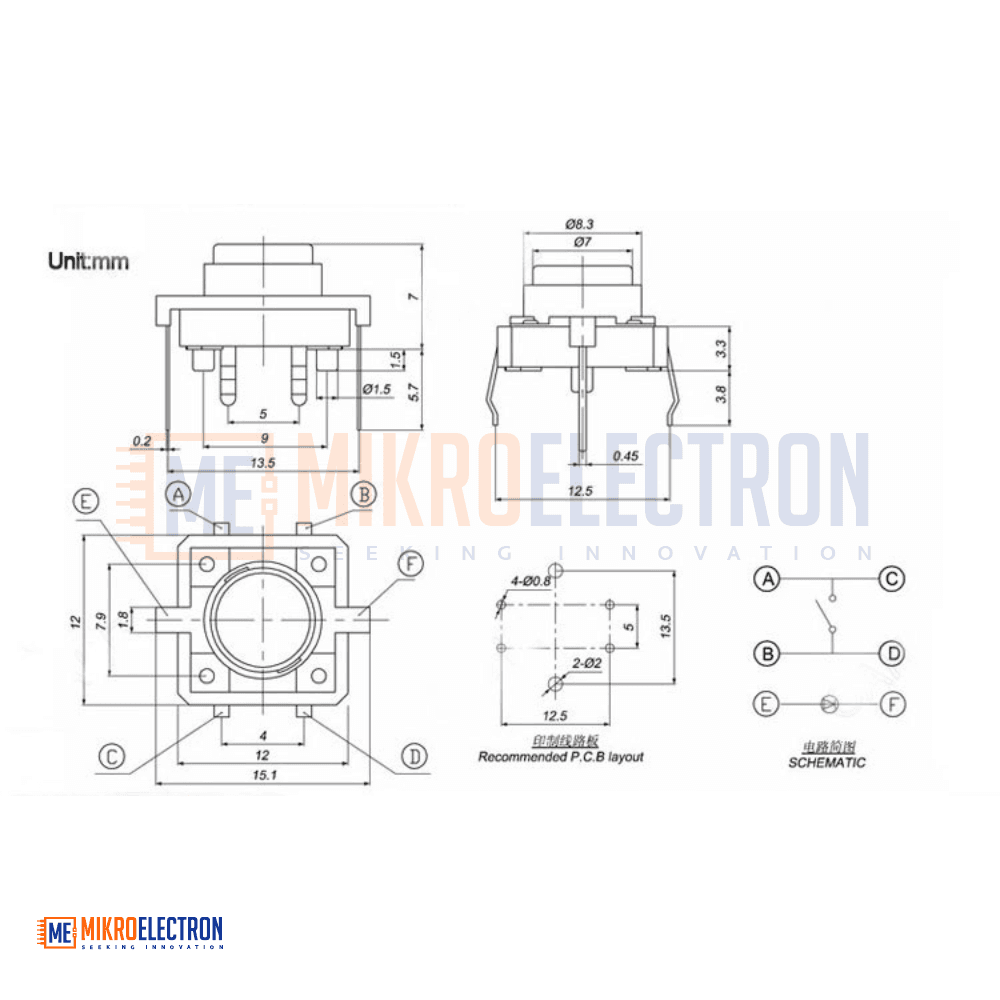

• Size: 12mm × 12mm
• Mounting Type: 4-Pin DIP Through-Hole
• Operating Voltage: DC 12V
• Current Rating: 50mA
• Travel Distance: 0.25 ±0.1mm
• Operating Force: 160±50GF
• Contact Resistance: ≤100mΩ
• Insulation Resistance: ≥100MΩ DC 250V / 1 Minute
• Dielectric Strength: AC250V (50Hz for 1 minute)
• Operating Temperature: -25°C to +85°C
• Relative Humidity: ≤80% at 40°C
• Electrical Life: 100,000 cycles
• Mechanical Life: 100,000 cycles

Applications

• Arduino and DIY electronics projects
• Digital cameras and recorders
• Industrial control equipment
• Consumer electronic devices
• Communication systems
• Medical instruments
• TV and remote-control systems
• Small appliances
• Computer peripherals
• Instrumentation and control panels
• High-end toys and smart devices
