Aluminum Profile Corner Bracket 20*20

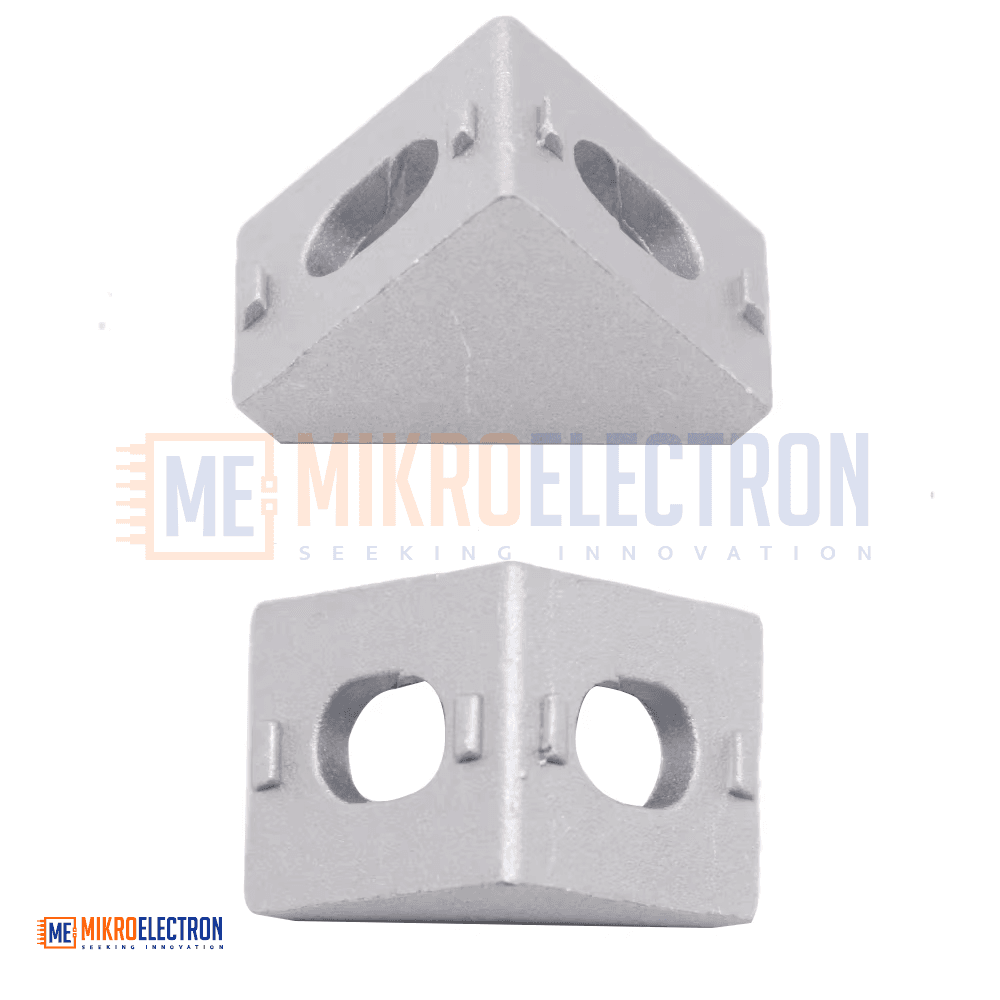

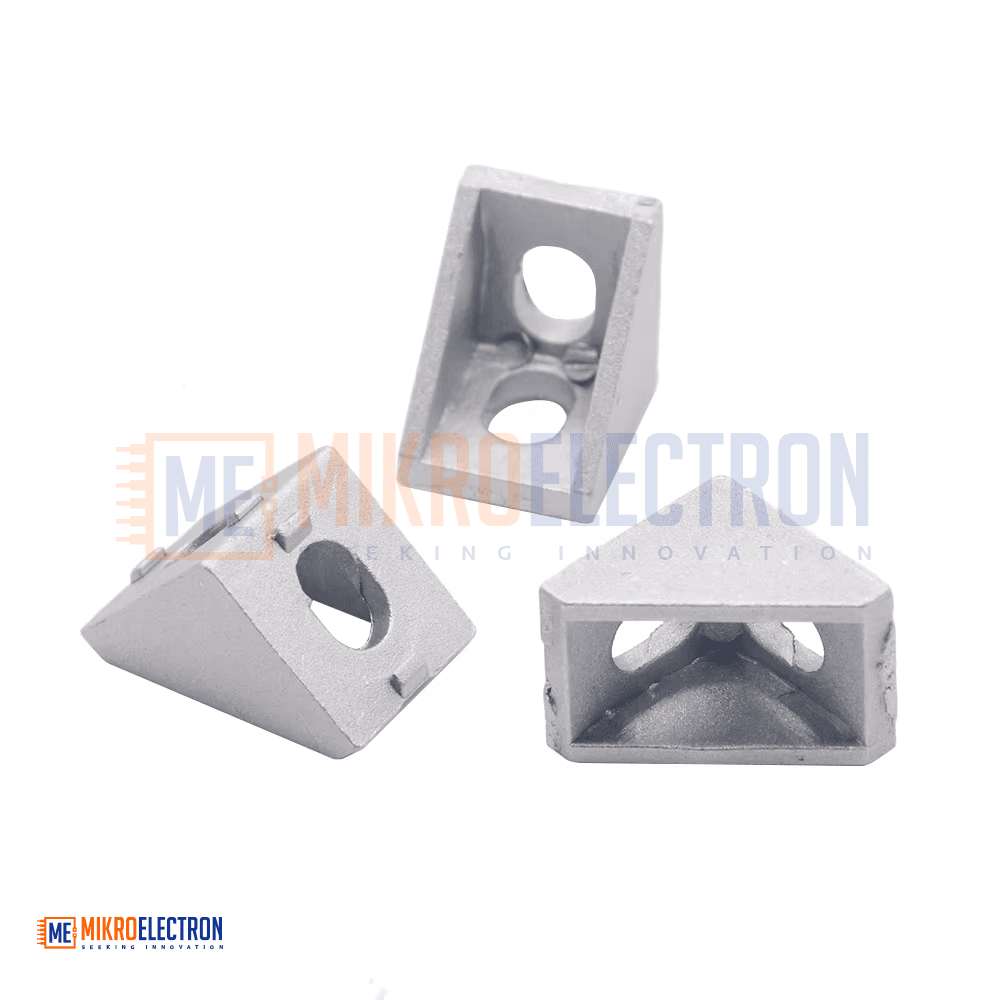

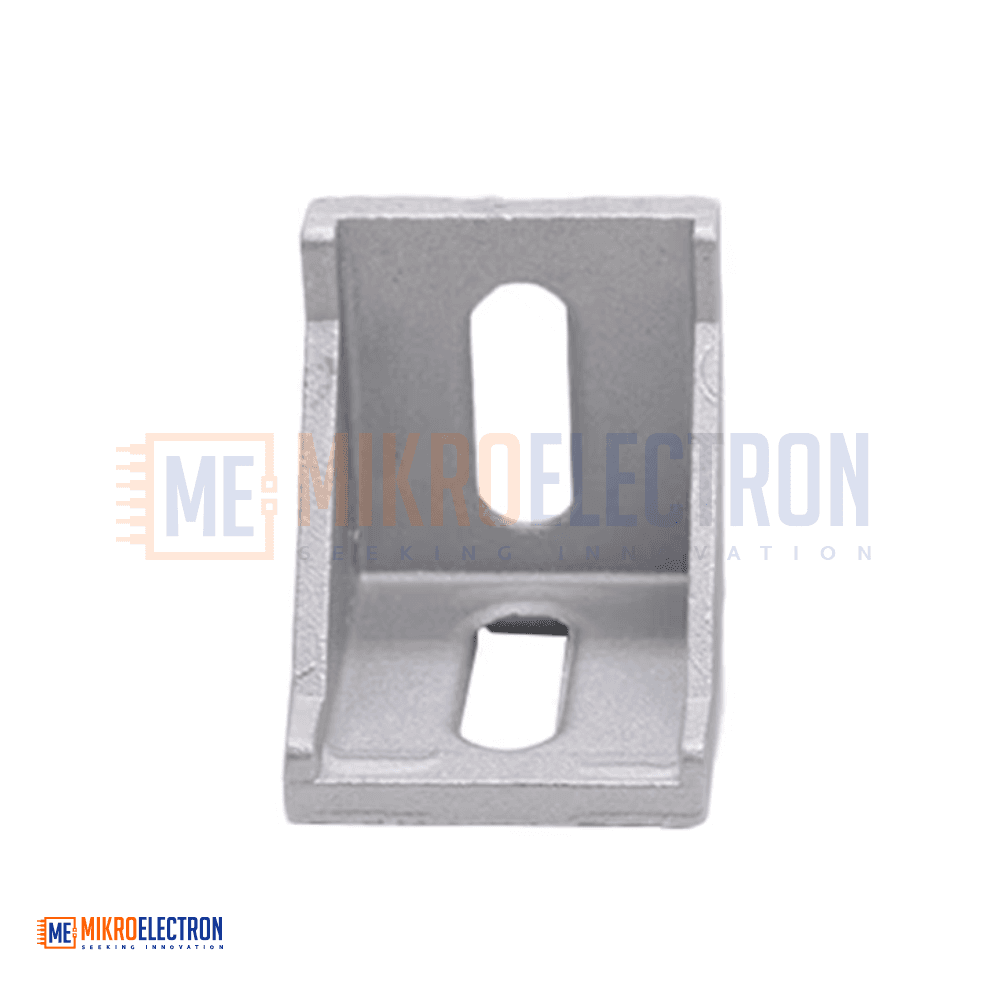

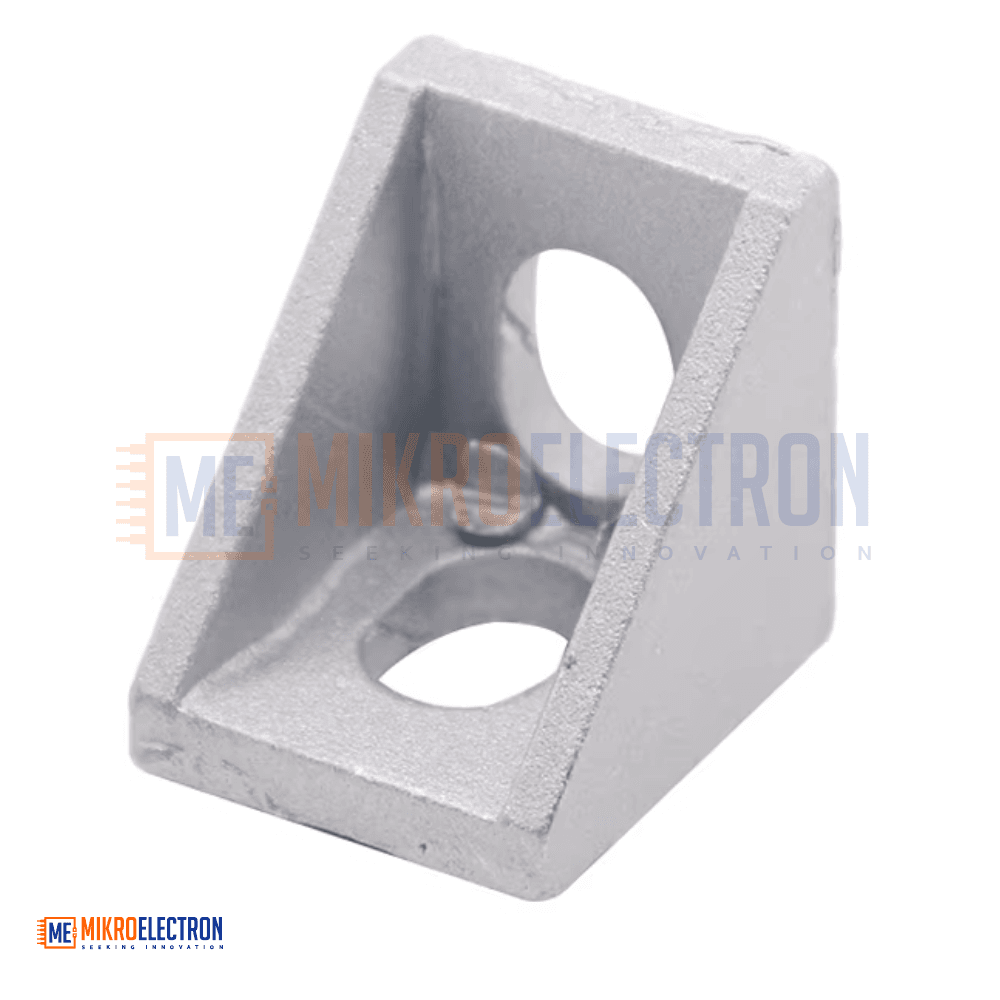

The Aluminum Profile Corner Bracket 20×20 is a durable right-angle connector designed for 20-series T-slot aluminum extrusions. Made from high-quality die-cast aluminum alloy, it provides strong and stable 90-degree joints for structural assemblies. Its compact design ensures a flush fit inside profile slots, offering clean and professional installations. The bracket features two mounting holes compatible with M5 screws and T-nuts for secure fastening. Ideal for 3D printers, CNC machines, robotics, frames, and enclosures, this bracket improves structural rigidity while simplifying assembly in both DIY and industrial applications.
حامل الزاوية Aluminum Profile Corner Bracket 20×20 هو موصل زاوية متين مصمم للاستخدام مع مقاطع الألمنيوم T-slot من سلسلة 20. مصنوع من سبائك الألمنيوم المصبوبة بالقوالب عالية الجودة، ويوفر تثبيتًا قويًا بزوايا 90 درجة للهياكل المختلفة. يتميز بتصميم مدمج يضمن تركيبًا متناسقًا داخل مجاري المقاطع، مما يمنح مظهرًا احترافيًا ونظيفًا. يحتوي على فتحتين للتثبيت متوافقتين مع براغي M5 وصواميل T-nut. مناسب للطابعات ثلاثية الأبعاد، ماكينات CNC، الروبوتات، الإطارات، والحاويات الصناعية.
The 20×20 Aluminum Profile Corner Bracket is a precision-engineered connector designed to create strong and accurate 90-degree joints in aluminum extrusion frameworks. It is specifically built for 2020 T-slot aluminum profiles and other compatible 20mm extrusion systems.
Manufactured from durable die-cast aluminum alloy, the bracket offers excellent strength, corrosion resistance, and long-term durability. Its rigid construction enhances structural stability, making it suitable for both lightweight and medium-duty applications.

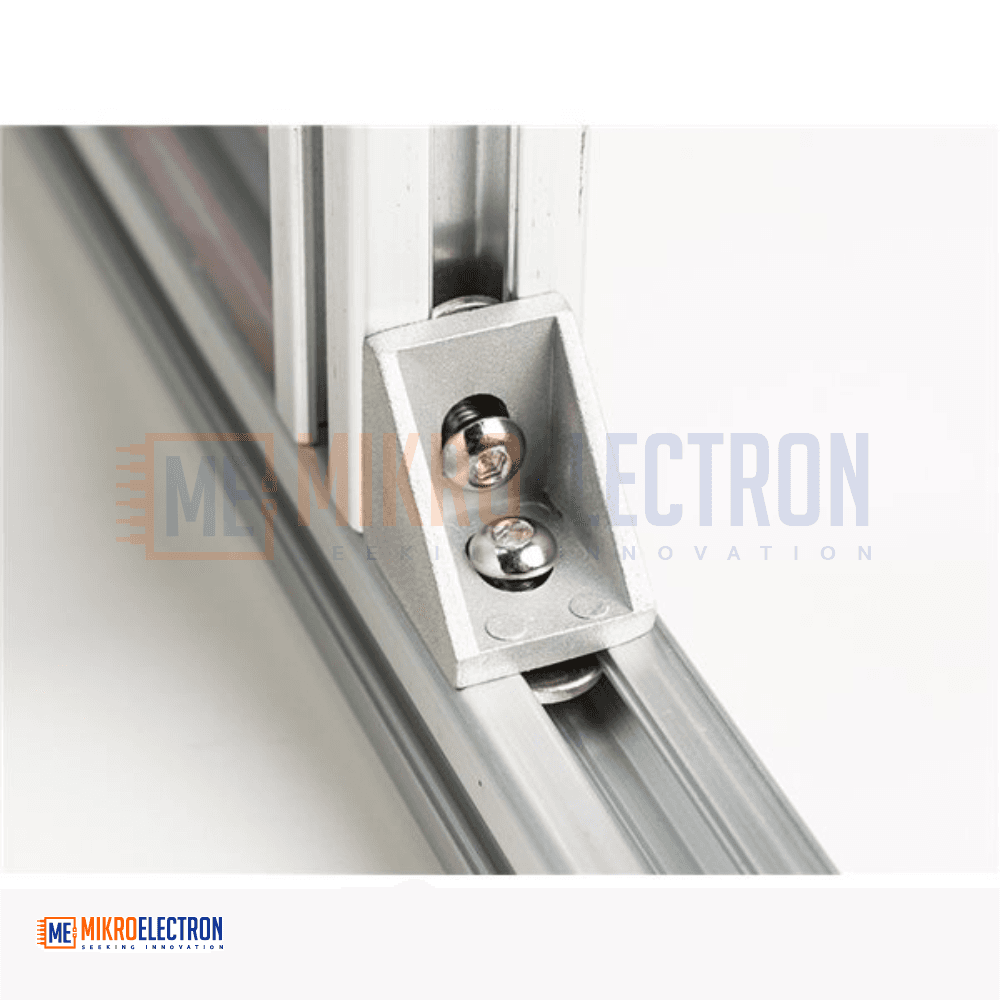

The bracket’s compact form allows it to fit neatly within the profile grooves, creating a clean and professional appearance while maximizing usable frame space. Two pre-drilled mounting holes allow secure fastening using standard M5 screws and T-nuts (sold separately), enabling quick assembly and easy adjustments.
This bracket is widely used in industrial automation systems, machine frames, and DIY engineering projects where reliable corner reinforcement is essential.

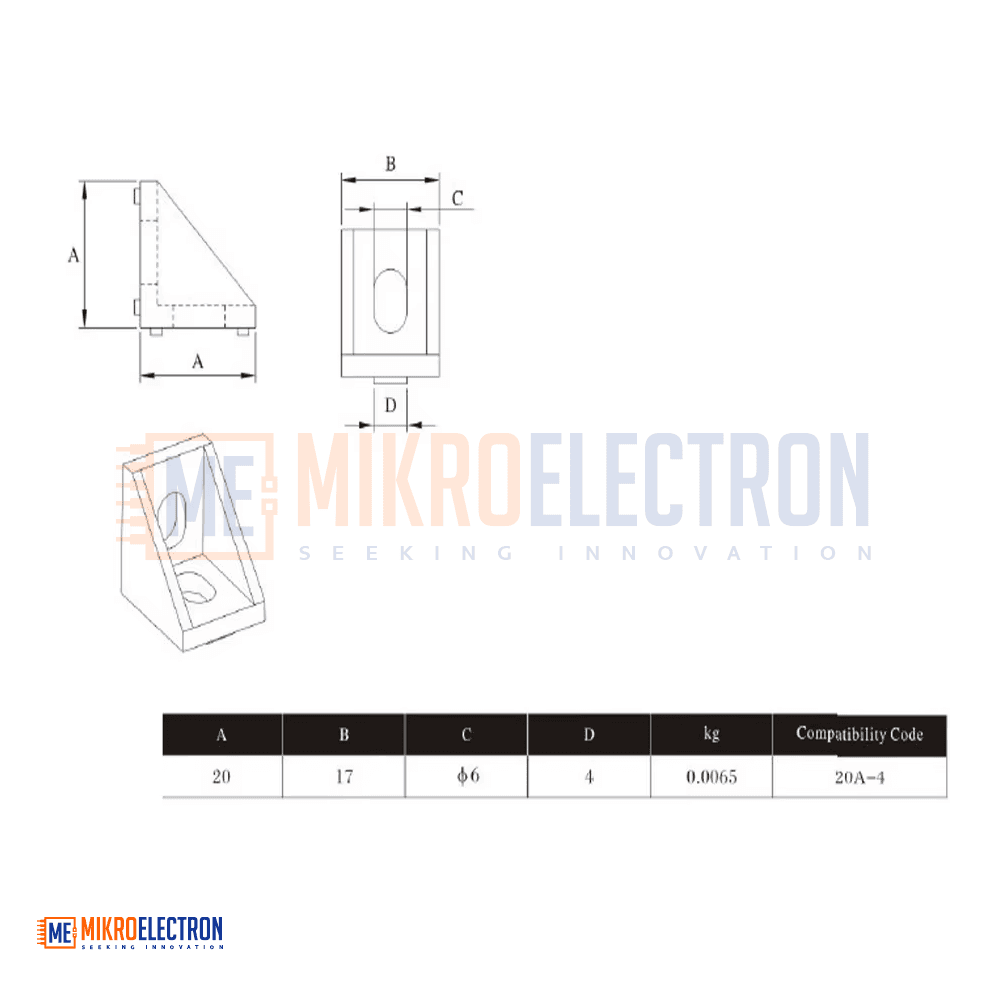

Specifications
| Specification | Details |
|---|---|
| Material | Die-cast Aluminum Alloy |
| Size | 20 × 20 × 17 mm |
| Hole Diameter | ~5 mm |
| Compatible Profile | 2020 / 20mm T-slot Aluminum Extrusions |
| Fastener Compatibility | M5 Screws & T-nuts |
| Weight | Approximately 5–10 g |
| Color | Silver (Raw Aluminum Finish) |

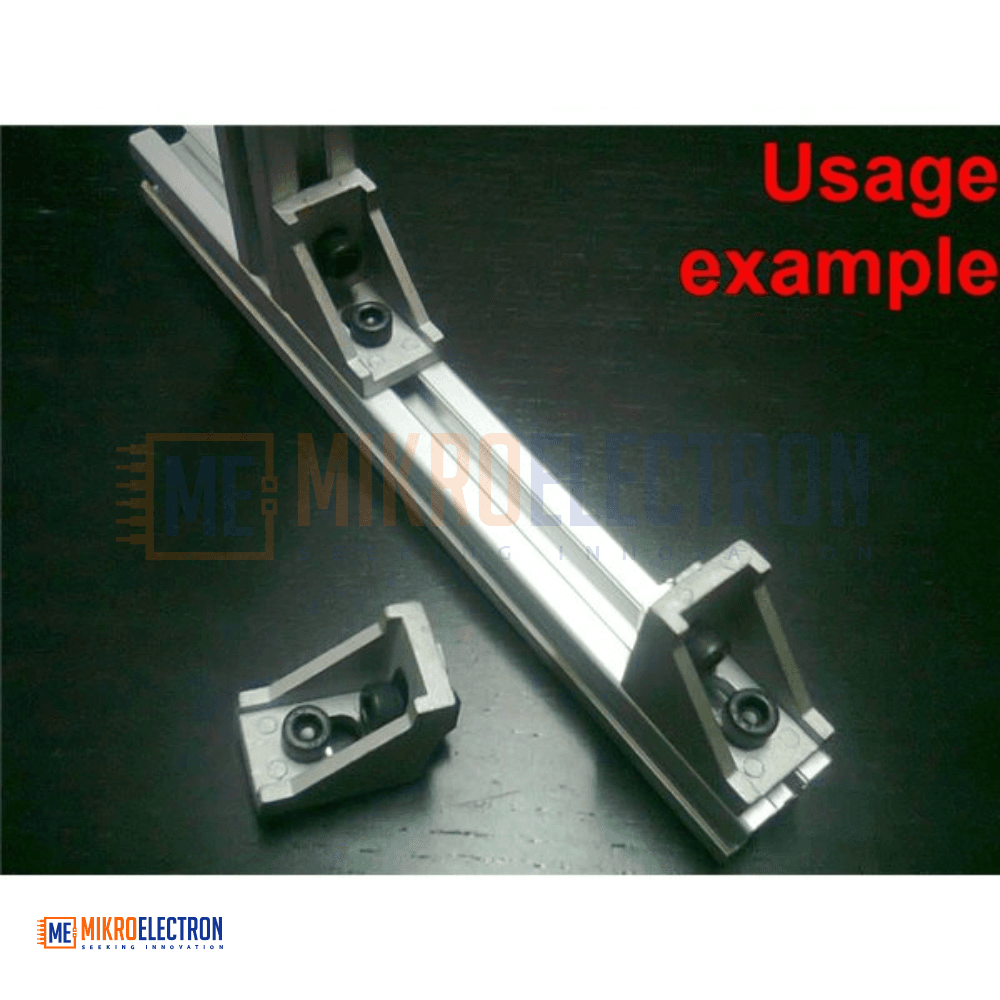

Applications
- 3D printer frame assembly
- CNC machine structures
- Robotics frameworks
- Industrial automation systems
- Protective enclosures
- DIY engineering projects
- Modular aluminum structures
