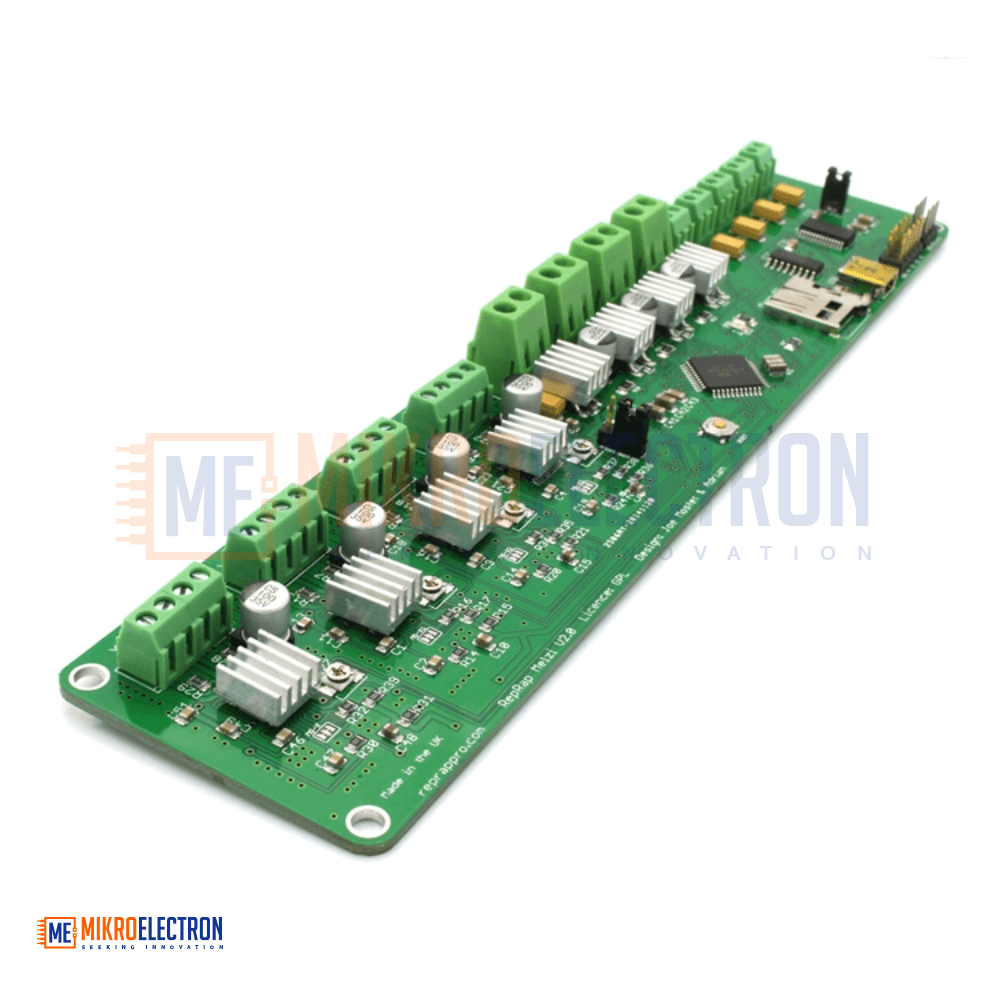

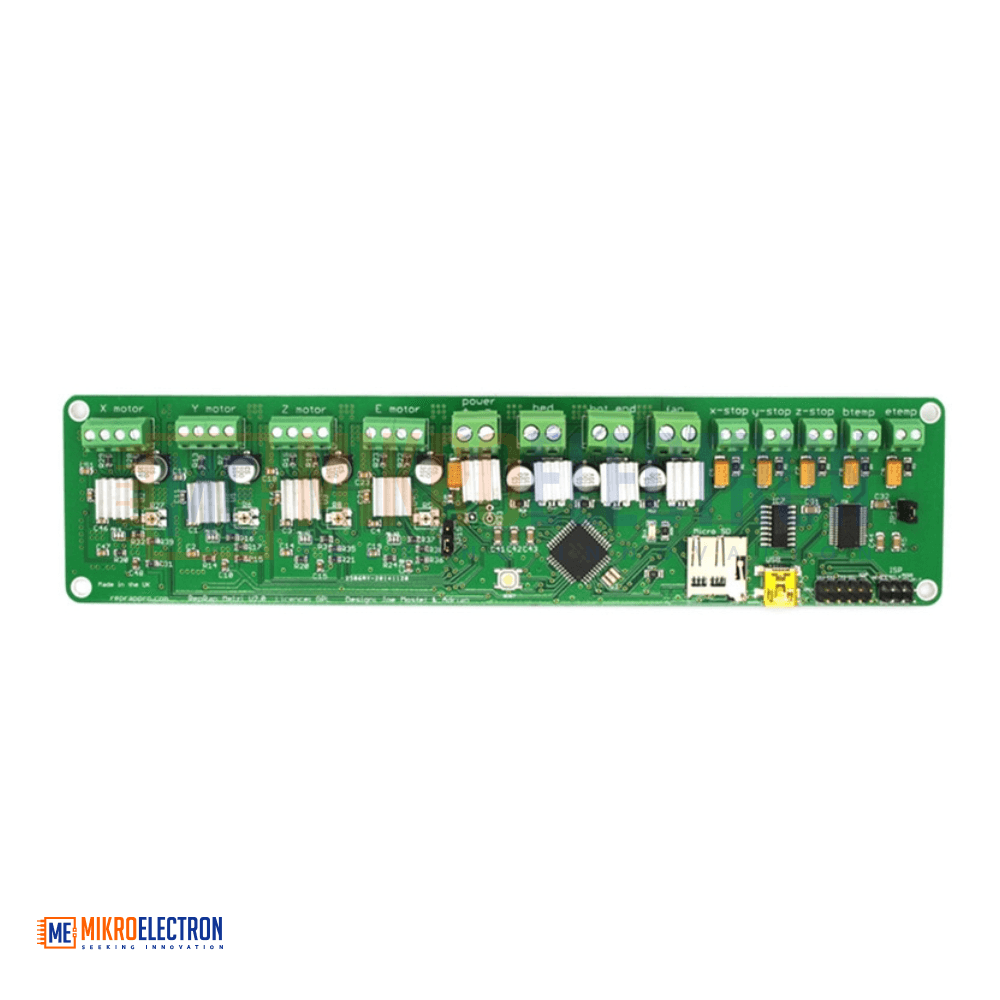

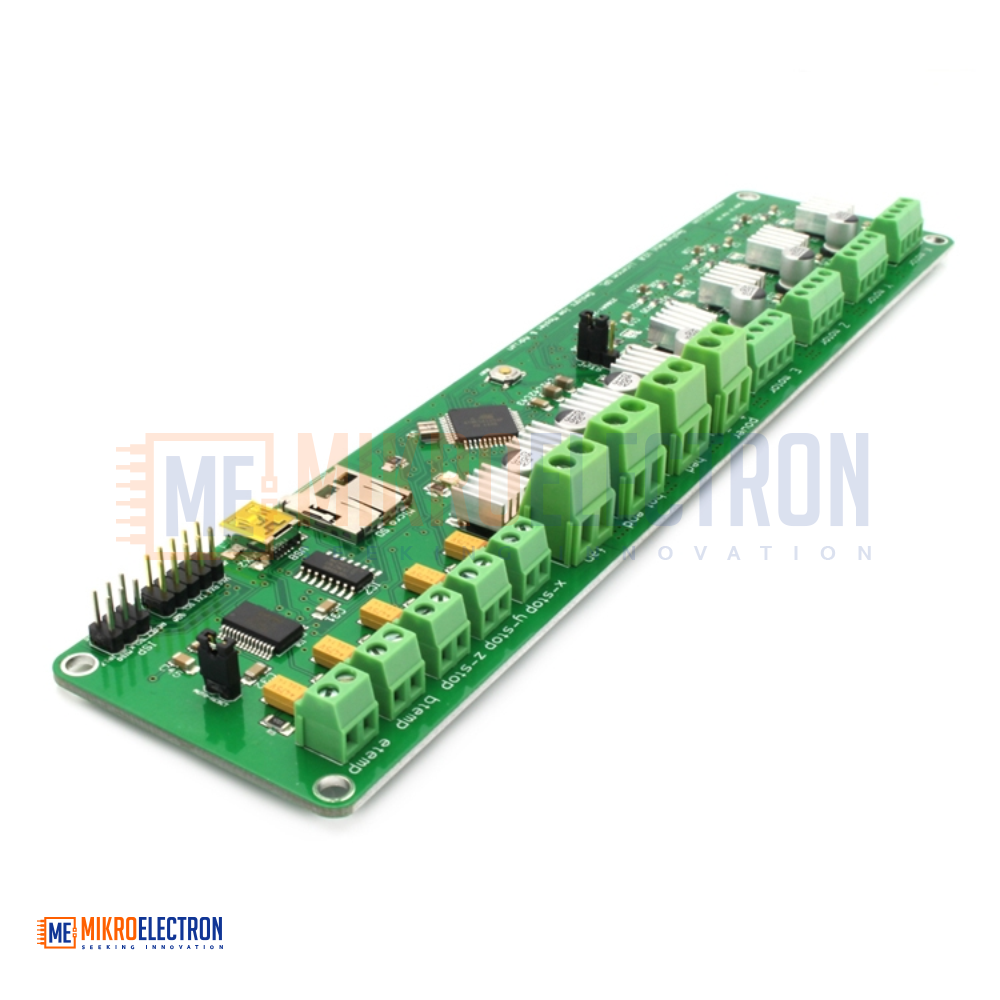

3D Printer Control Board Melzi V.2
Out Of Stock
The Melzi V2 3D Printer Control Board is an integrated all-in-one controller designed for reliable and efficient 3D printer operation. Powered by the ATMEGA1284P microcontroller, it supports heated beds, hotends, cooling fans, and up to 4 stepper motors using built-in A4988 drivers. Featuring onboard USB communication, Mini SD card offline printing, and integrated MOSFET outputs, the Melzi V2 board is ideal for RepRap, DIY, and compact 3D printer control systems.
لوحة التحكم Melzi V2 للطابعات ثلاثية الأبعاد هي وحدة تحكم متكاملة مصممة لتشغيل الطابعات بكفاءة واستقرار عاليين. تعتمد على المتحكم ATMEGA1284P وتدعم السرير الحراري والهوت إند والمراوح وحتى 4 محركات خطوة عبر تعريفات A4988 المدمجة. تحتوي على منفذ USB للاتصال بالحاسوب وإمكانية الطباعة بدون اتصال عبر بطاقة Mini SD، بالإضافة إلى مخارج MOSFET مدمجة، مما يجعلها مناسبة لطابعات RepRap والمشاريع الاحترافية وDIY.
The 3D Printer Control Board Melzi V2 is a compact and fully integrated controller board developed for reliable control of RepRap and DIY 3D printers. Built around the powerful ATMEL ATMEGA1284P microcontroller, this board combines motion control, heater management, communication interfaces, and stepper motor drivers into a single compact solution.

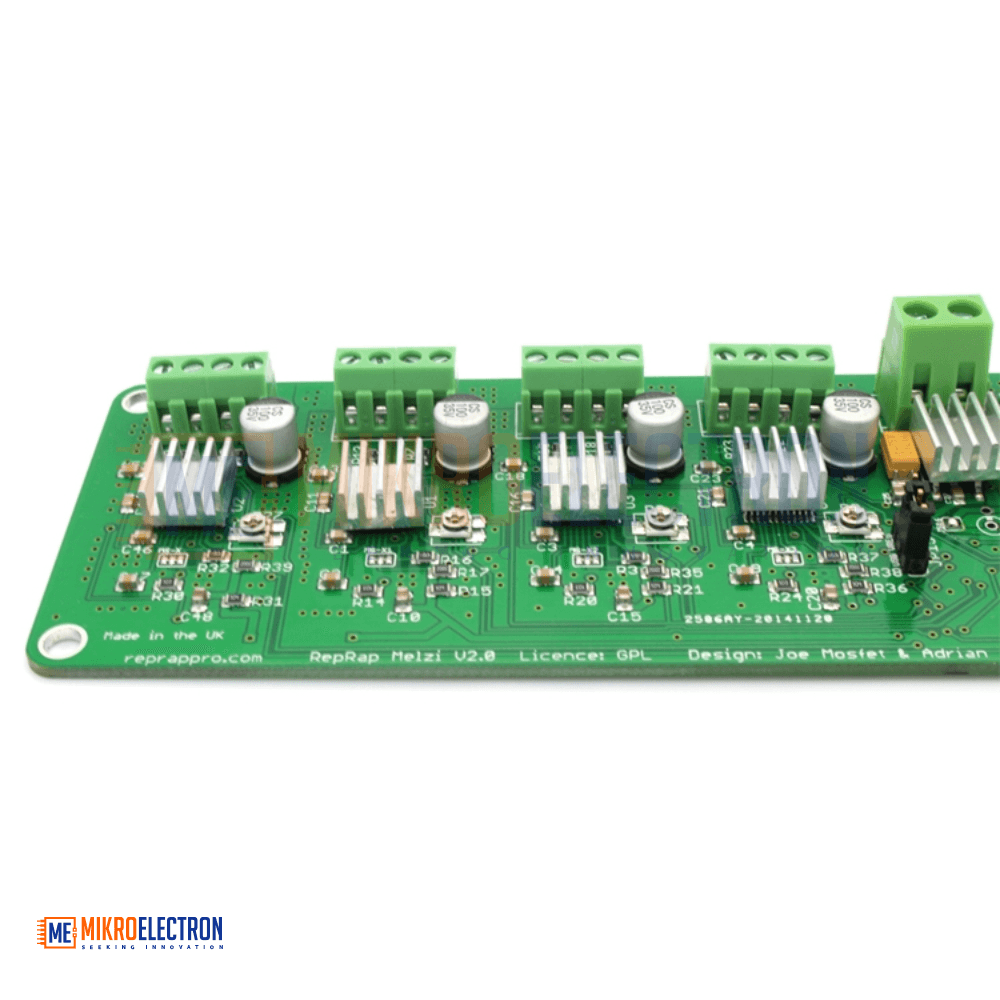

The board operates at 12V and includes four integrated A4988 stepper motor drivers, allowing precise control of X, Y, Z, and extruder motors. It also supports various heated bed models including MK1, MK2A, MK2B, and MK3, making it suitable for a wide range of 3D printer configurations.
An onboard FT232RL USB interface chip enables stable communication with computers for firmware uploading, printer control, and real-time data transmission. Additionally, the integrated Mini SD card slot supports offline printing using G-code files without requiring continuous computer connection.
The board includes three integrated MOSFET outputs for controlling the hotend, heated bed, and cooling fan efficiently. Its compact design, simplified wiring, and all-in-one architecture make installation easier while reducing external components and overall system complexity.
The Melzi V2 board is widely used in compact 3D printers, educational systems, DIY fabrication machines, and custom automation projects requiring reliable motion and temperature control.
Specifications
- Product Type: 3D Printer Control Board
- Model: Melzi V2.0
- Working Voltage: 12V
- Main Microcontroller: ATMEL ATMEGA1284P
- Stepper Motor Drivers: 4 × Integrated A4988 Drivers
- Supported Heated Beds: MK1 / MK2A / MK2B / MK3
- USB Interface Chip: FT232RL
- Communication Interface: USB Data Communication & Firmware Upload
- Offline Printing Support: Mini SD Card (G-code Printing)
- MOSFET Outputs: 3 Outputs (Hotend, Hotbed, Fan)
- Dimensions: 21 × 5 cm
- Weight: 70g
Applications
- RepRap 3D Printers
- DIY 3D Printer Projects
- Compact 3D Printing Systems
- Educational 3D Printer Kits
- Custom CNC and Motion Systems
- Offline 3D Printing Applications
- Automation and Embedded Control Projects
- Prototype Manufacturing Systems
- Heated Bed Control Systems
- Multi-Stepper Motor Applications
