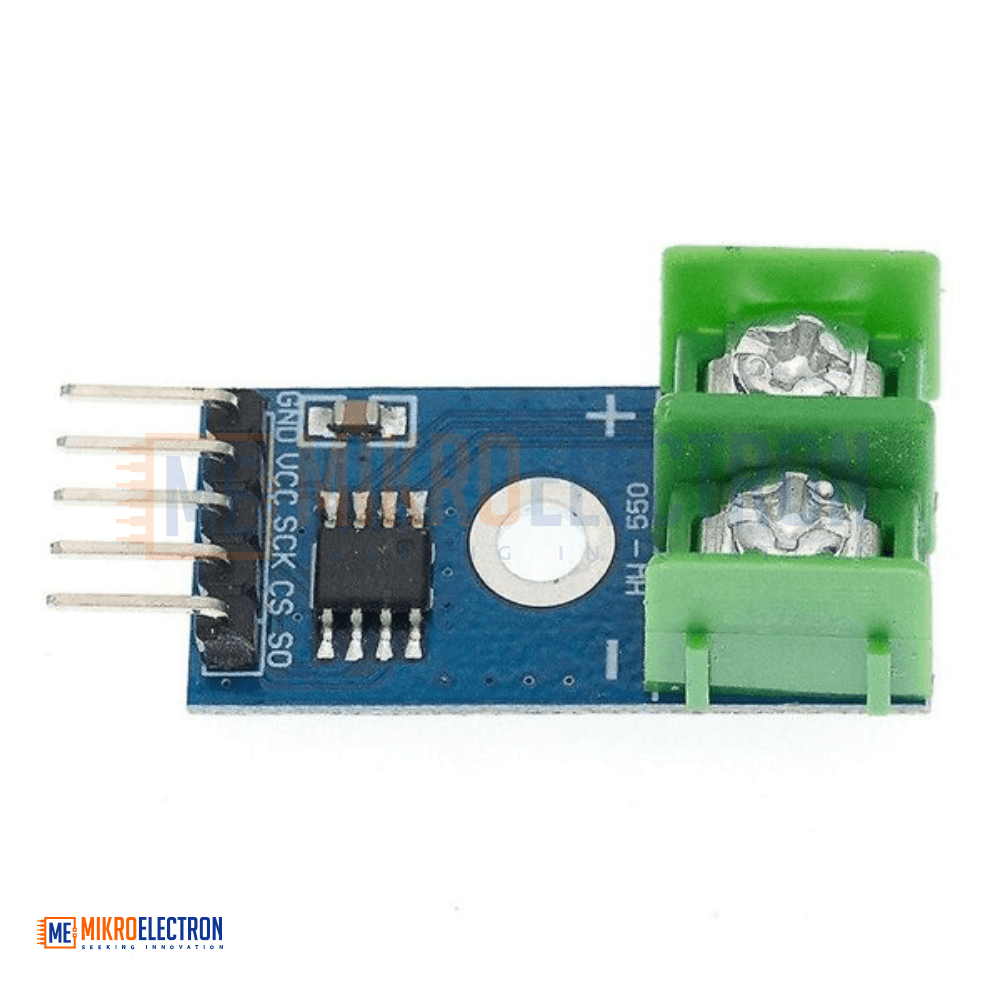

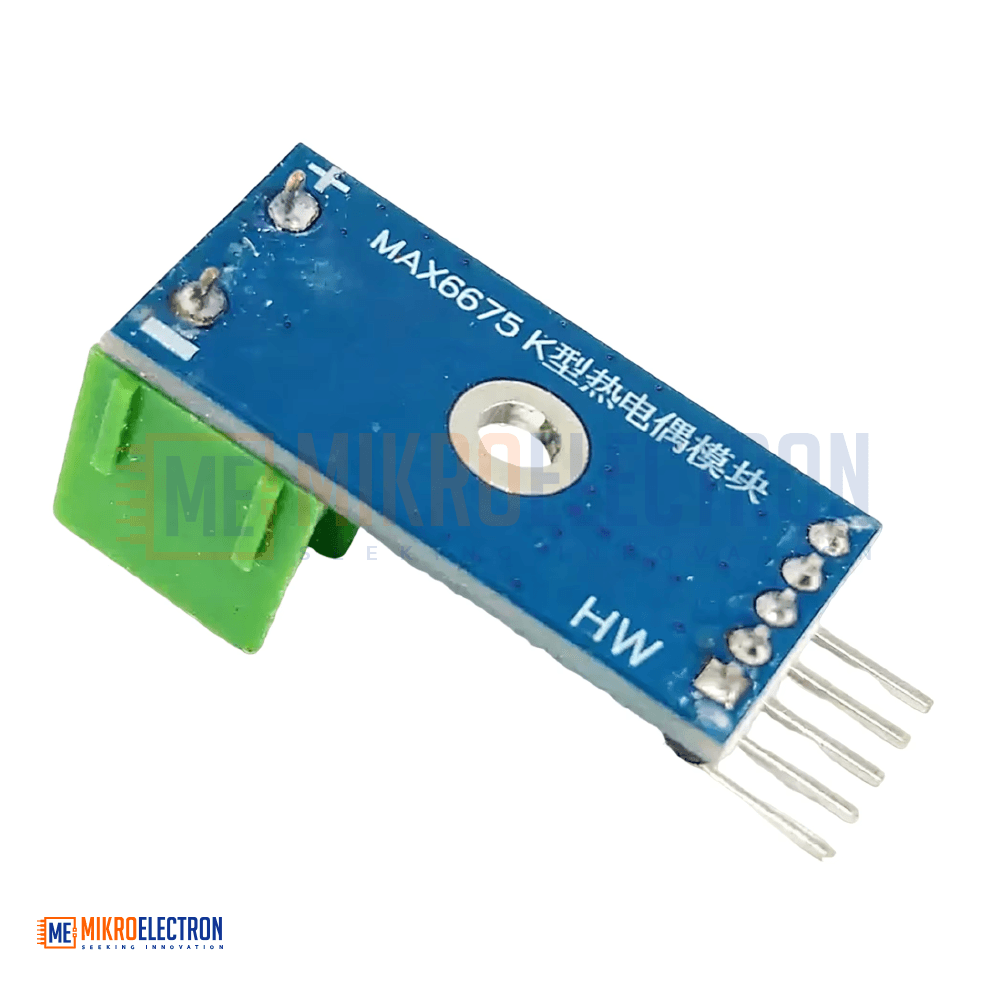

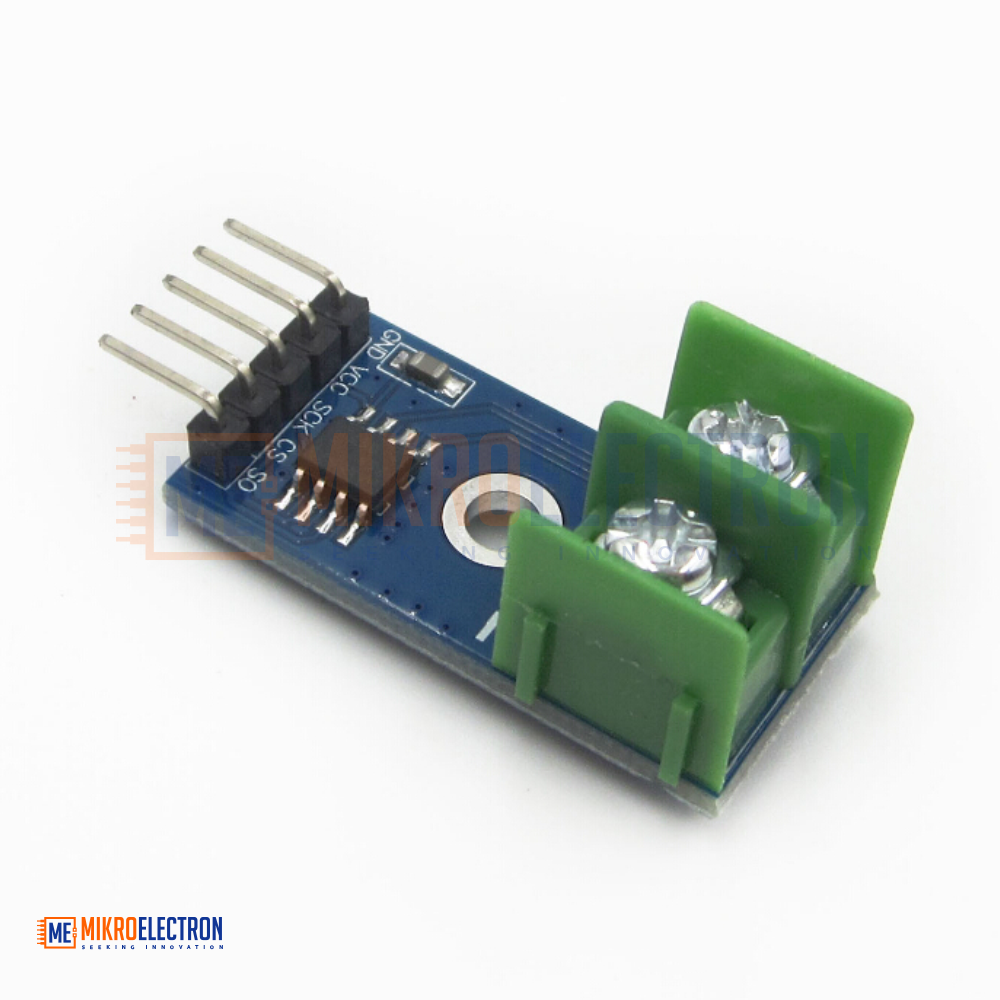

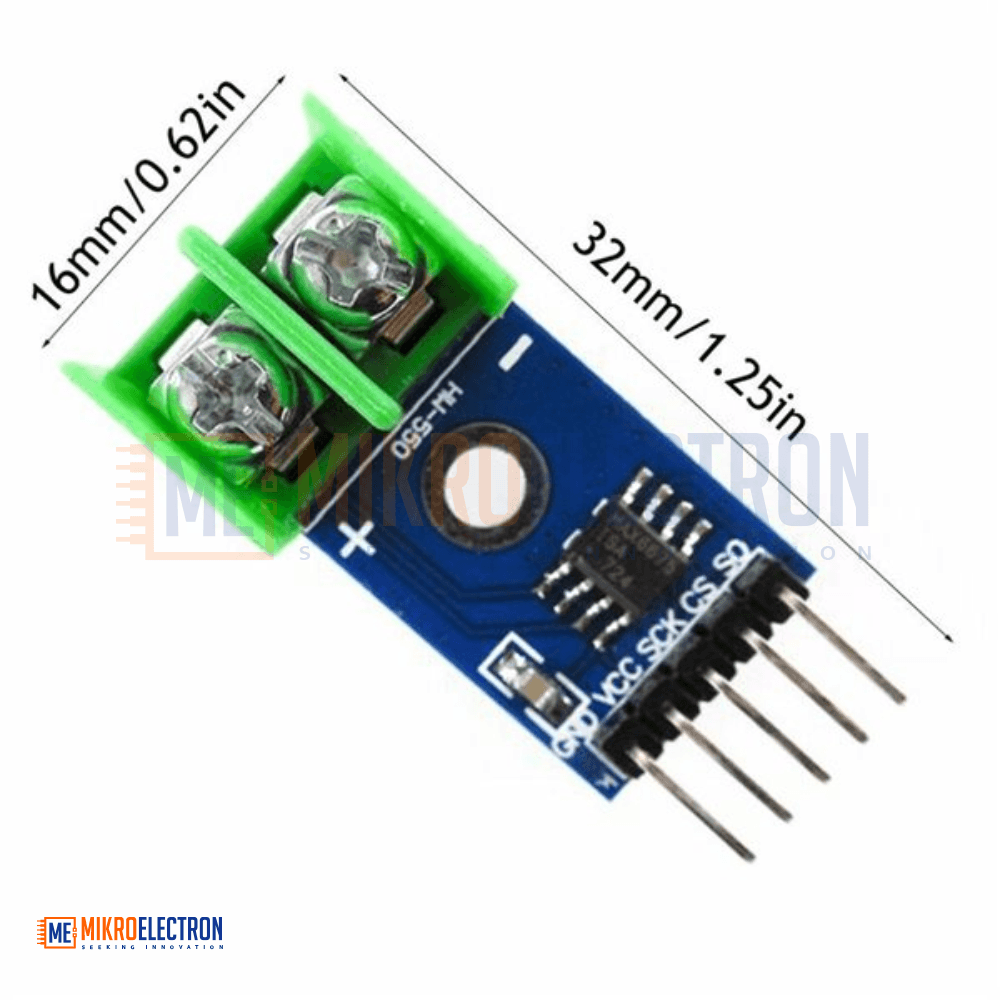

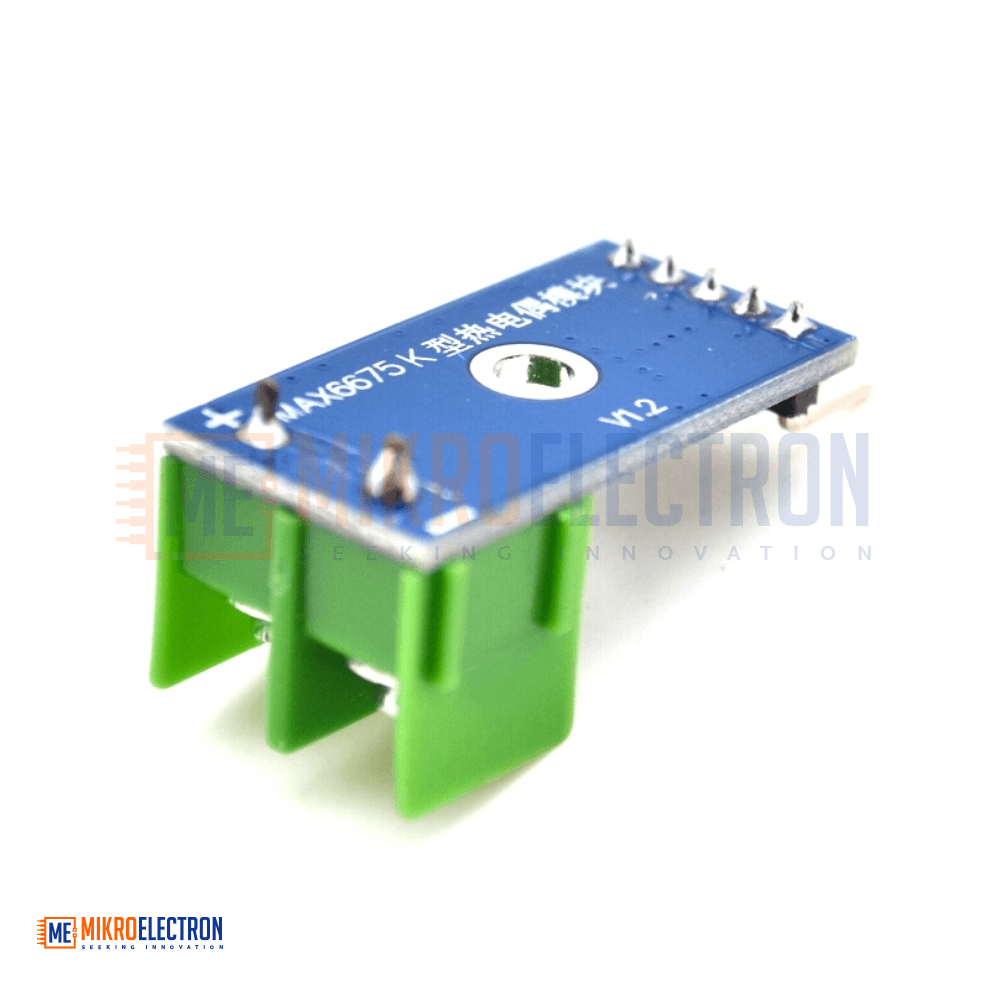

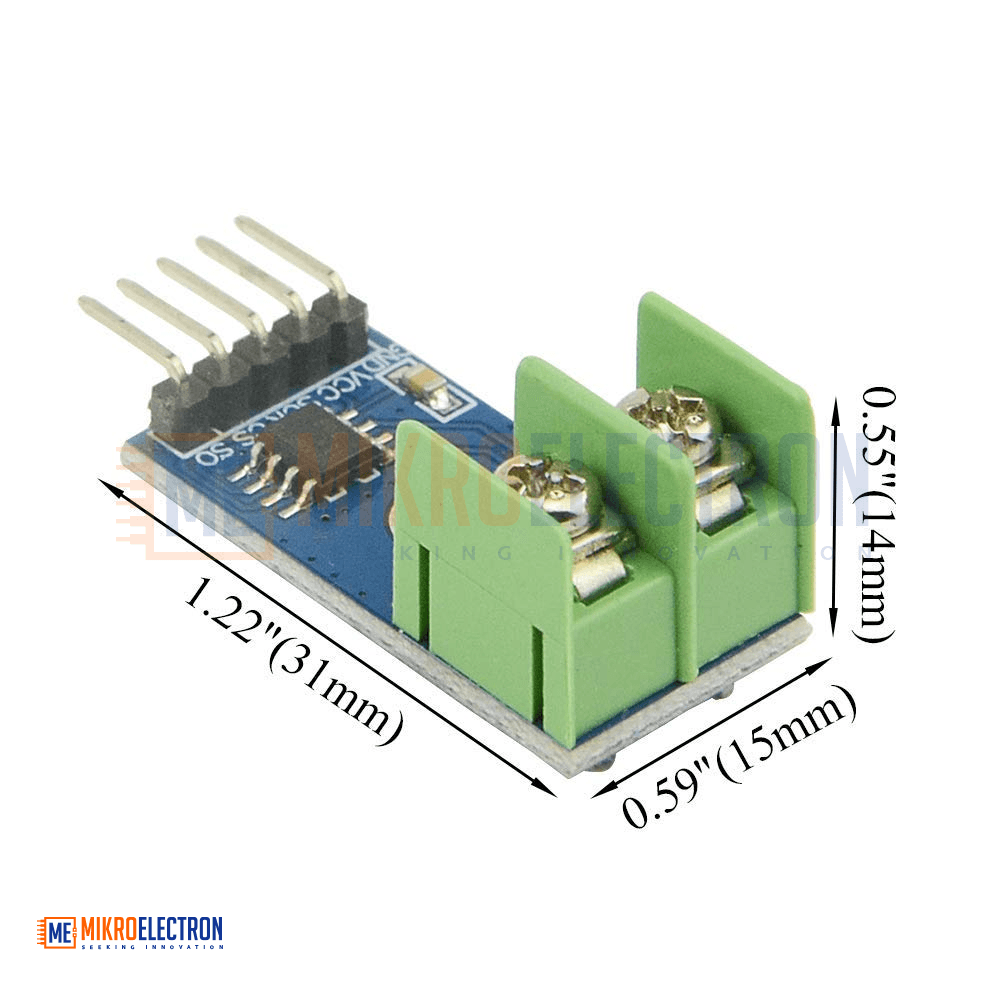

MAX6675 K type Module(ThermoCouple ADC)
The MAX6675 K-Type Thermocouple Module is a high-precision temperature measurement module designed for reading K-type thermocouples using SPI communication. It features 12-bit ADC conversion, built-in cold junction compensation, and thermocouple break detection for accurate and reliable temperature monitoring. Operating from 3.0V to 5.5V, the module provides 0.25°C resolution and supports temperature measurement from 0°C to 800°C, making it ideal for industrial control, automation, and embedded electronics projects.
وحدة MAX6675 K-Type Thermocouple Module هي وحدة عالية الدقة لقياس درجات الحرارة باستخدام حساس الحرارة K-Type عبر واجهة SPI. تحتوي على محول ADC بدقة 12 بت مع تعويض تلقائي للوصلة الباردة واكتشاف انقطاع الحساس لضمان قياسات دقيقة وموثوقة. تعمل بجهد 3.0V إلى 5.5V وتوفر دقة قياس 0.25°C مع نطاق حرارة من 0°C إلى 800°C، مما يجعلها مناسبة للتطبيقات الصناعية وأنظمة التحكم والمشاريع الإلكترونية المدمجة.
The MAX6675 K-Type Thermocouple ADC Module is a specialized temperature sensing module designed for accurate temperature measurement using K-type thermocouples. Based on the reliable MAXIM MAX6675 integrated circuit, the module converts thermocouple analog signals into a stable 12-bit digital output for easy interfacing with microcontrollers and embedded systems.
The module includes an internal cold junction compensation circuit and linearity correction, ensuring precise temperature readings even under varying environmental conditions. It also features built-in thermocouple break detection, allowing the system to identify disconnected or faulty probes during operation.
Supporting a wide operating voltage range of 3.0V to 5.5V, the module is compatible with popular development platforms such as Arduino, ESP32, Raspberry Pi, STM32, and other SPI-enabled controllers. Communication is handled through a simple 3-wire SPI interface, making integration straightforward and efficient.
With a measurement resolution of 0.25°C and support for temperatures ranging from 0°C to 800°C, the MAX6675 module is ideal for industrial temperature monitoring, heating systems, laboratory equipment, CNC machines, 3D printers, and automation applications requiring accurate high-temperature sensing.
Specifications
- Module Type: Thermocouple ADC Module
- Chipset: MAX6675
- Sensor Type: K-Type Thermocouple
- Operating Voltage: 3.0V – 5.5V
- Communication Interface: SPI 3-Wire Serial Interface
- ADC Resolution: 12-bit
- Temperature Resolution: 0.25°C
- Cold Junction Compensation Range: -20°C to +80°C
- Temperature Measurement Range: 0°C to 800°C
- Integrated Features: Cold Junction Compensation, Linearity Correction, Thermocouple Break Detection
- Output Type: Digital Temperature Data
Applications
- Industrial Temperature Monitoring
- 3D Printers
- CNC Machines
- Heating Control Systems
- Laboratory Equipment
- Automation Systems
- Embedded Electronics Projects
- Furnace and Oven Temperature Measurement
- Arduino and ESP32 Projects
- High-Temperature Monitoring Systems
