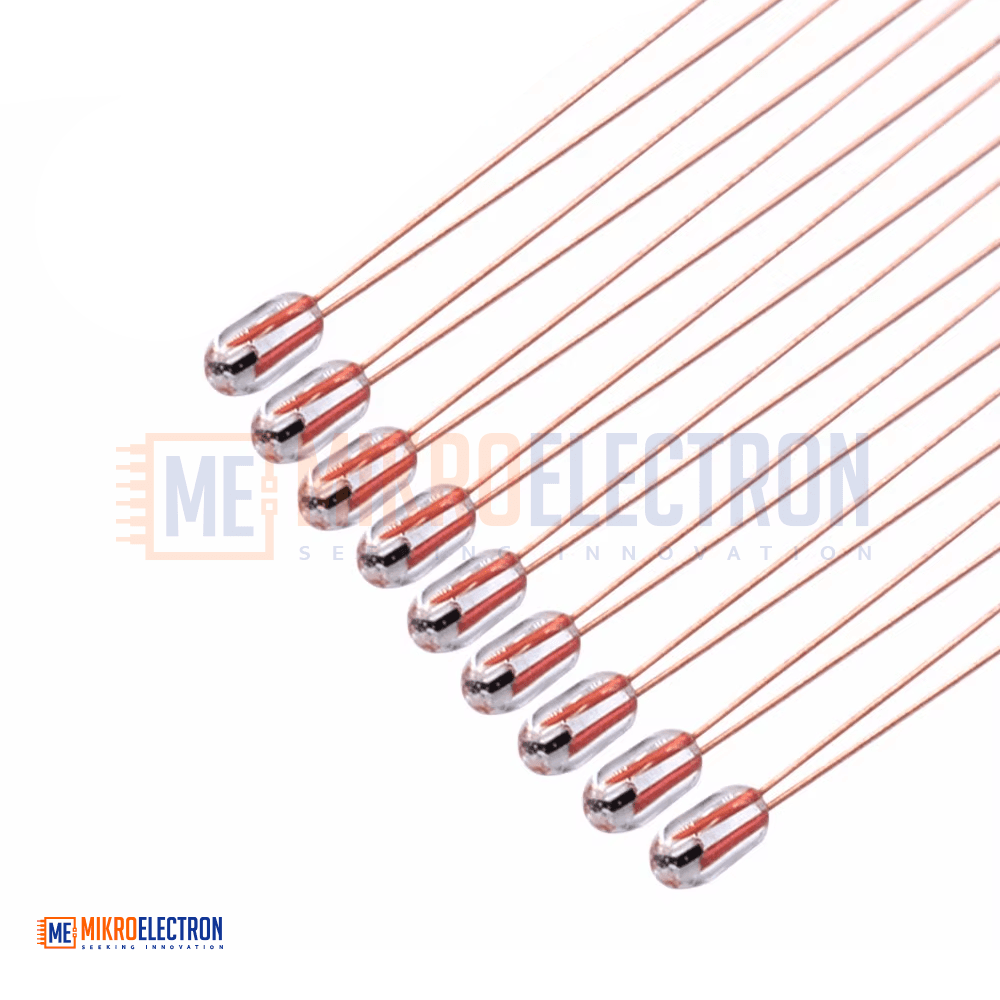

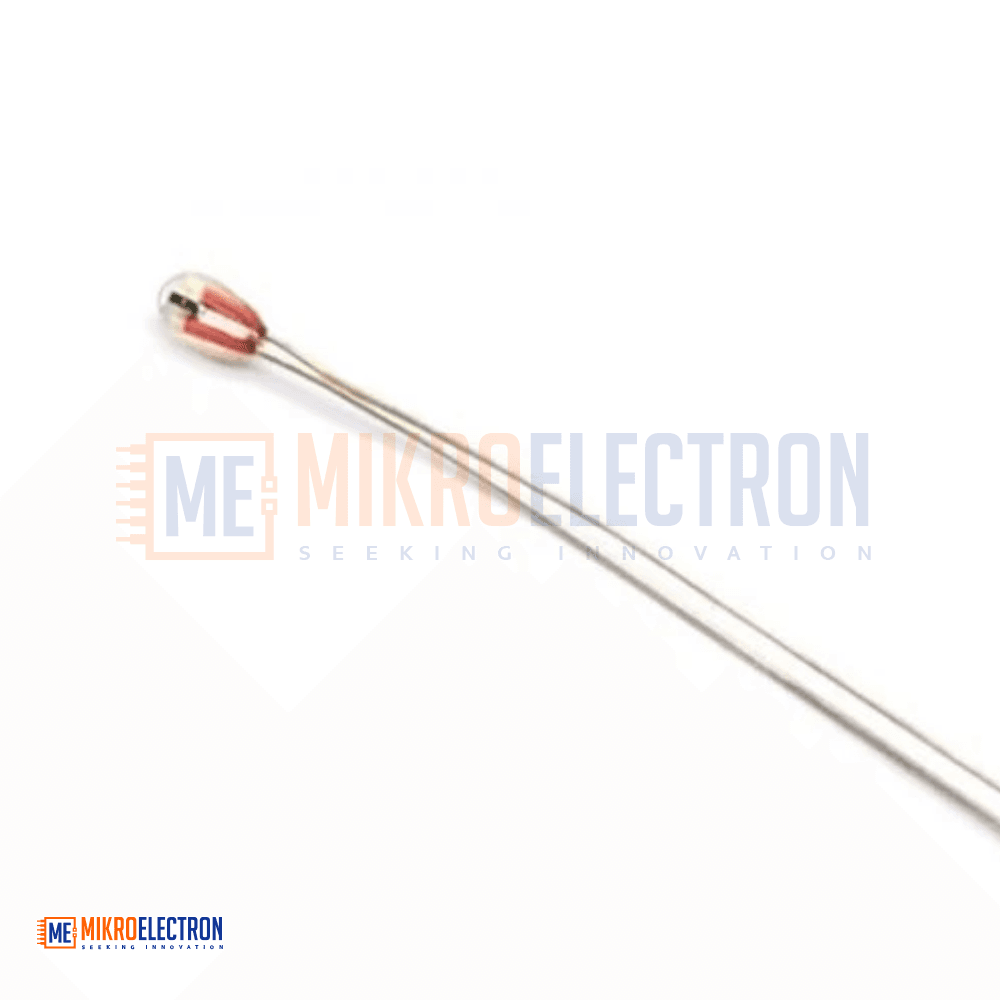

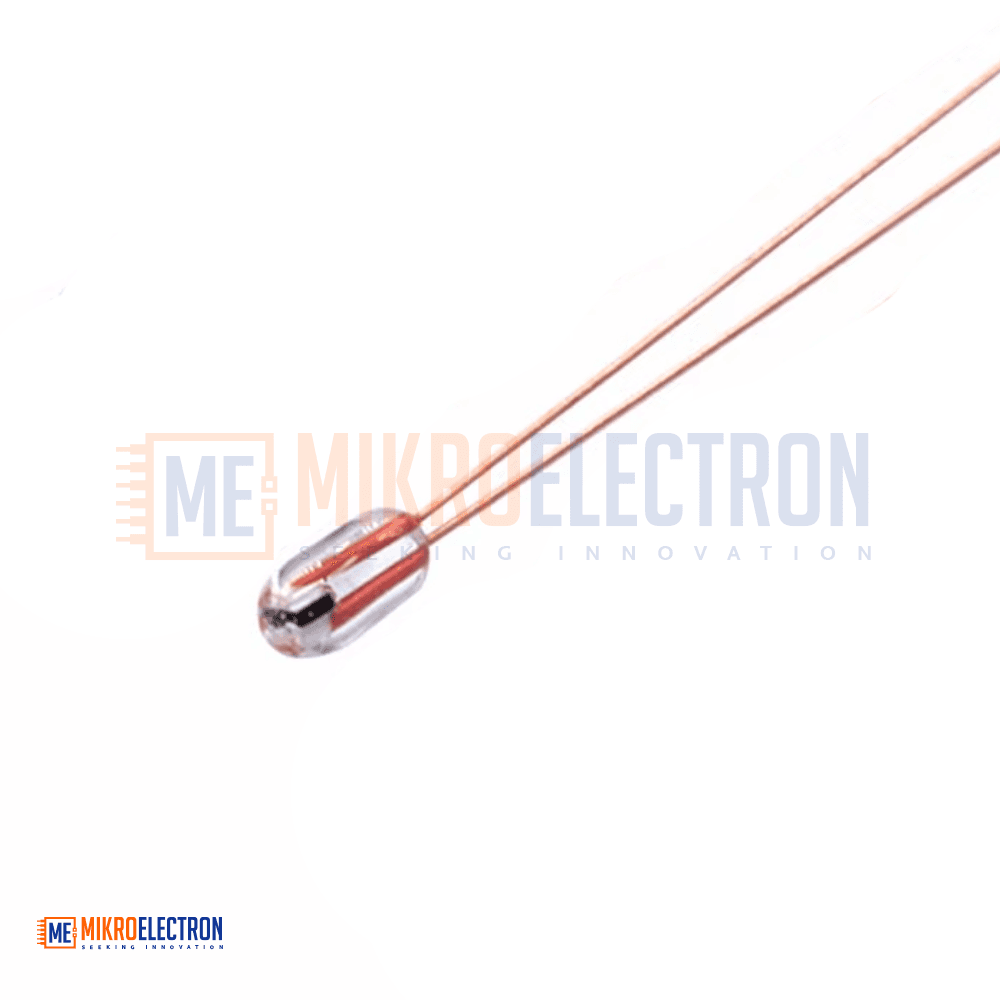

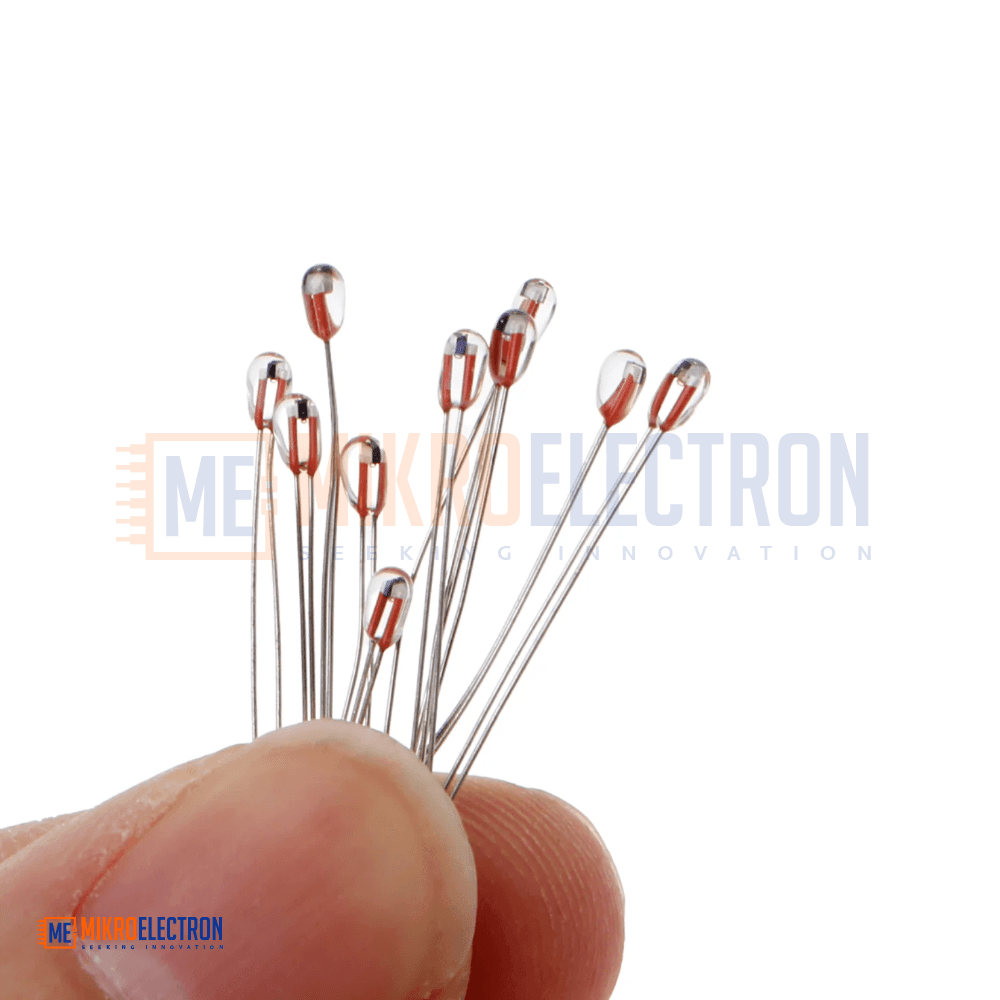

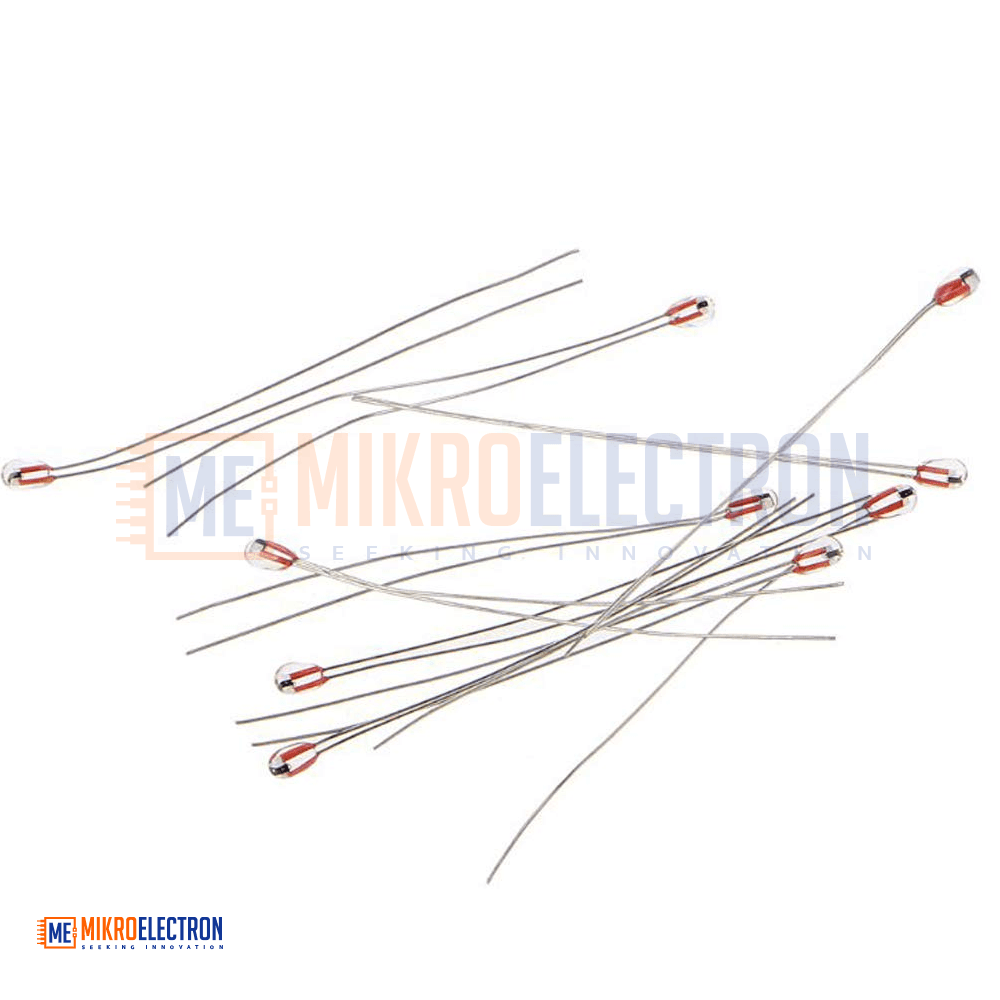

3D printer NTC Thermistor 100k
The 100K NTC thermistor is a high-precision temperature sensor designed for 3D printers. With excellent accuracy and fast thermal response, it ensures stable and reliable temperature measurement. Ideal for extruders and heated beds, it operates over a wide temperature range and features a compact, durable glass package suitable for tight installation spaces.
حساس حرارة NTC بقيمة 100KΩ مخصص لطابعات ثلاثية الأبعاد، يتميز بدقة عالية واستجابة حرارية سريعة. يعمل ضمن مدى حراري واسع من -50 إلى +260°C، ومناسب للاستخدام في الإكسترودر والأسِرّة الحرارية. تصميم زجاجي متين بحجم صغير يضمن ثباتًا وأداءً موثوقًا للتحكم الدقيق في الحرارة.
The 3D Printer NTC Thermistor 100K is a high-accuracy temperature sensing component widely used in 3D printers and RepRap systems. Designed for precise thermal control, it delivers stable performance across extreme temperatures. Its compact glass-encapsulated design allows easy installation in extruders and heated beds, ensuring reliable temperature feedback for consistent print quality.
Specifications:
Type: NTC Thermistor
Nominal Resistance: 100KΩ ±1%
B Value: 3950 ±1%
Accuracy: ±1%
Glass Package Diameter: 2.0 ±0.2mm
Lead Length: 32 ±5mm
Operating Temperature Range: -50°C to +260°C
Thermal Time Constant (τ): 10–17 seconds (in still air)
Thermal Dissipation Constant (δ): 1.1–1.6 mW/°C
Insulation Resistance: ≥50MΩ at DC 500V (between glass and lead wire)
Applications
3D printer extruders
Heated beds in 3D printers
RepRap printer models
Temperature monitoring systems
Industrial and DIY thermal control projects
Embedded electronics requiring precise temperature sensing
