1 Set JST XH 2.54mm 5Pin Single-headed Connect Wire 1007 26AWG 20cm
This JST XH 2.54mm 5-pin connector wire set features single-headed 20cm leads using 1007 26AWG wire. Ideal for power delivery and signal connections in Arduino, robotics, and electronic module projects.
مجموعة أسلاك موصل JST XH بمسافة 2.54 مم و5 دبابيس، مزودة برأس واحد (single-headed) بطول 20 سم وباستخدام سلك 1007 26AWG. مثالية لتوصيل الطاقة والإشارات في مشاريع أردوينو، والروبوتات، والوحدات الإلكترونية.

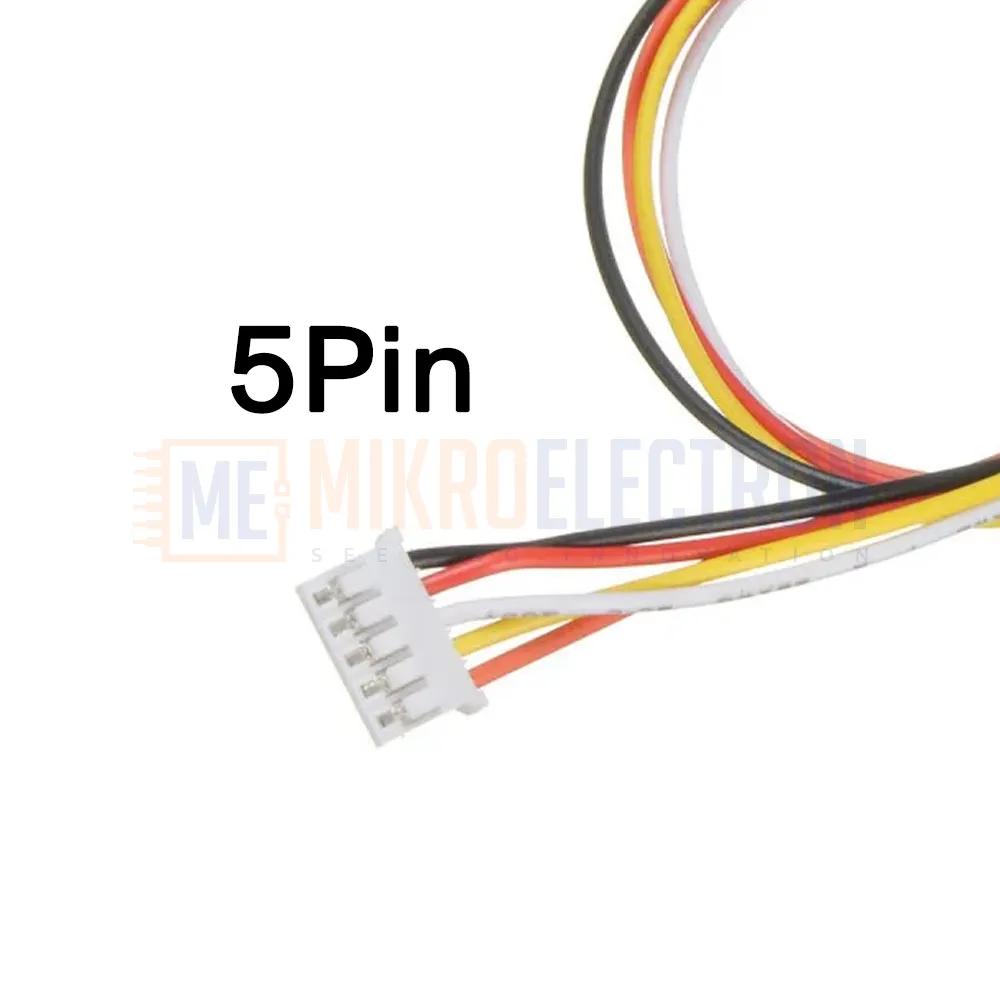

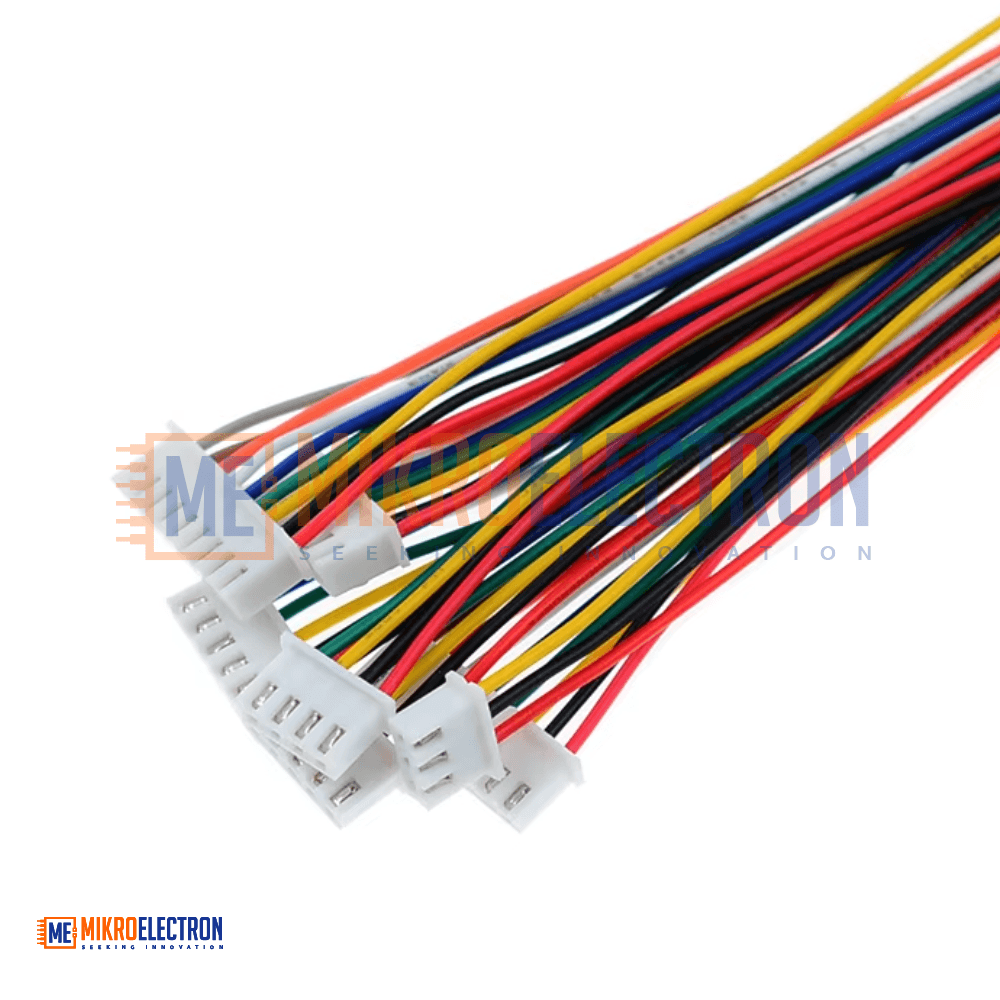

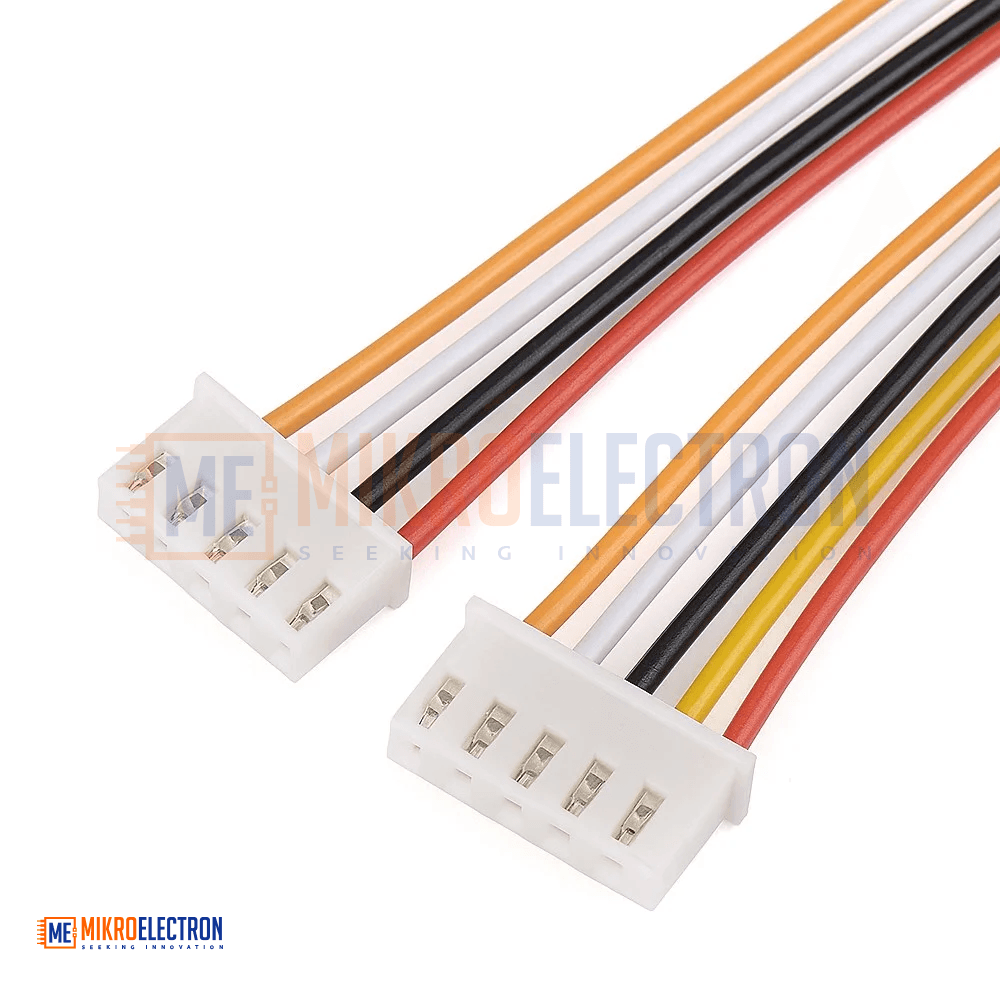

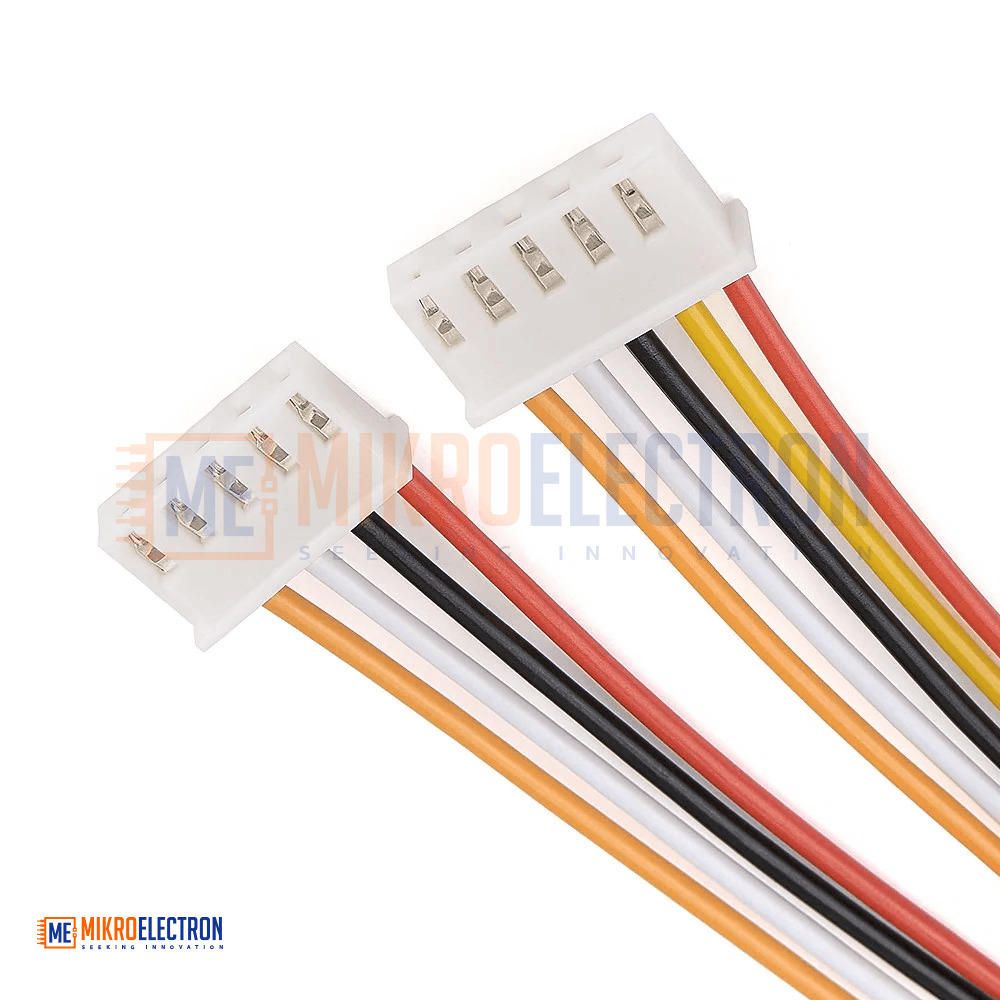

The JST XH 2.54mm 5-Pin Single-Headed Connector Wire Set includes a pre-crimped wire assembly designed for easy, reliable connections between circuit boards, sensors, modules, and power sources. This set features a 5-pin JST XH connector on one end and stripped/tinned wire ends on the other, perfect for prototyping and embedded systems.
Made with 1007 26AWG stranded wire, each lead offers a balance of flexibility and current capacity suitable for low-voltage electronics. The 20cm length provides enough reach for common wiring needs in compact enclosures or breadboard setups.
Specifications:
Connector Type: JST XH
Pin Count: 5-pin (single-headed)
Pitch: 2.54mm
Wire Length: 20cm
Wire Gauge: 26AWG (1007 standard)
Wire Type: Stranded, single-ended with JST connector
Color Coding: Typically Red (VCC), Black (GND), White/Yellow (Signal)
Operating Voltage: Up to 250V
Current Rating: ~2A (depending on application and insulation)
Temperature Range: –20°C to +80°C
Applications:
Arduino and Raspberry Pi projects
3D printers and CNC machines
Robotics and DIY electronics
Module-to-board or power connections
Sensor integration and signal transmission
Low-current power lines in embedded systems
