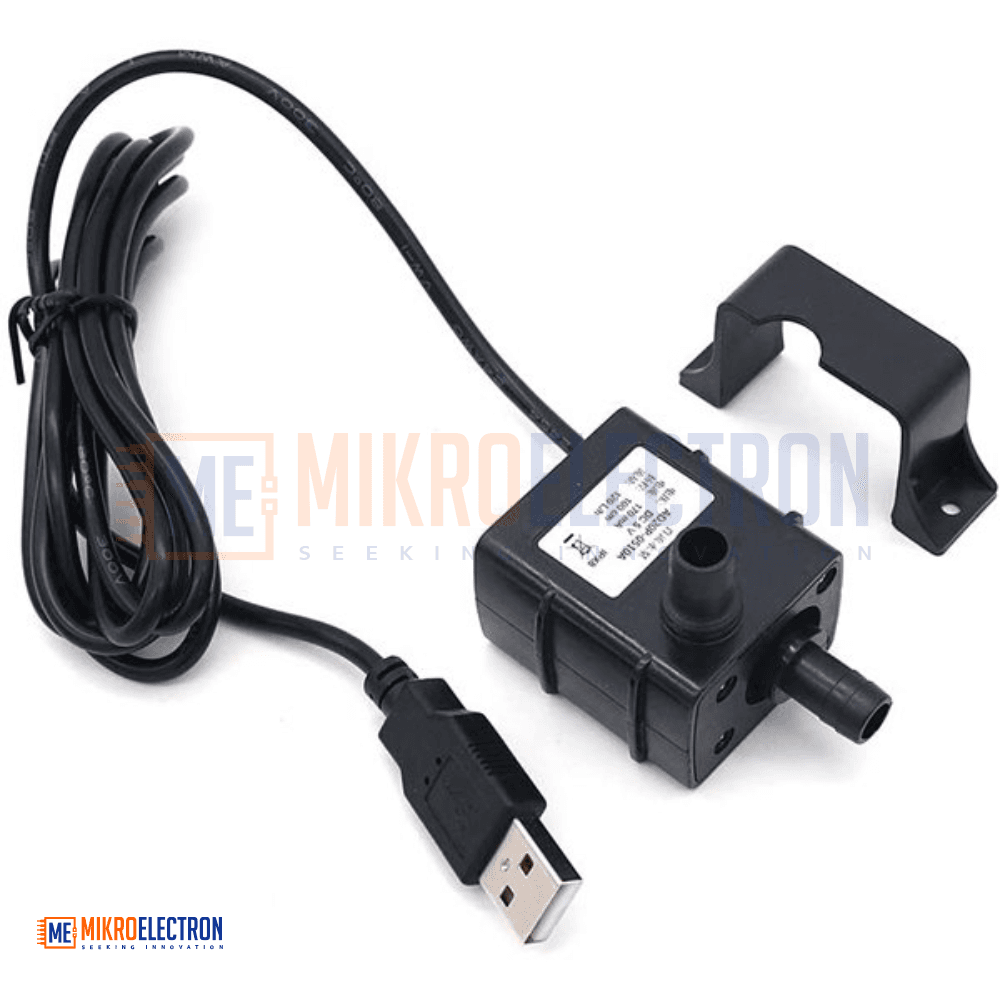

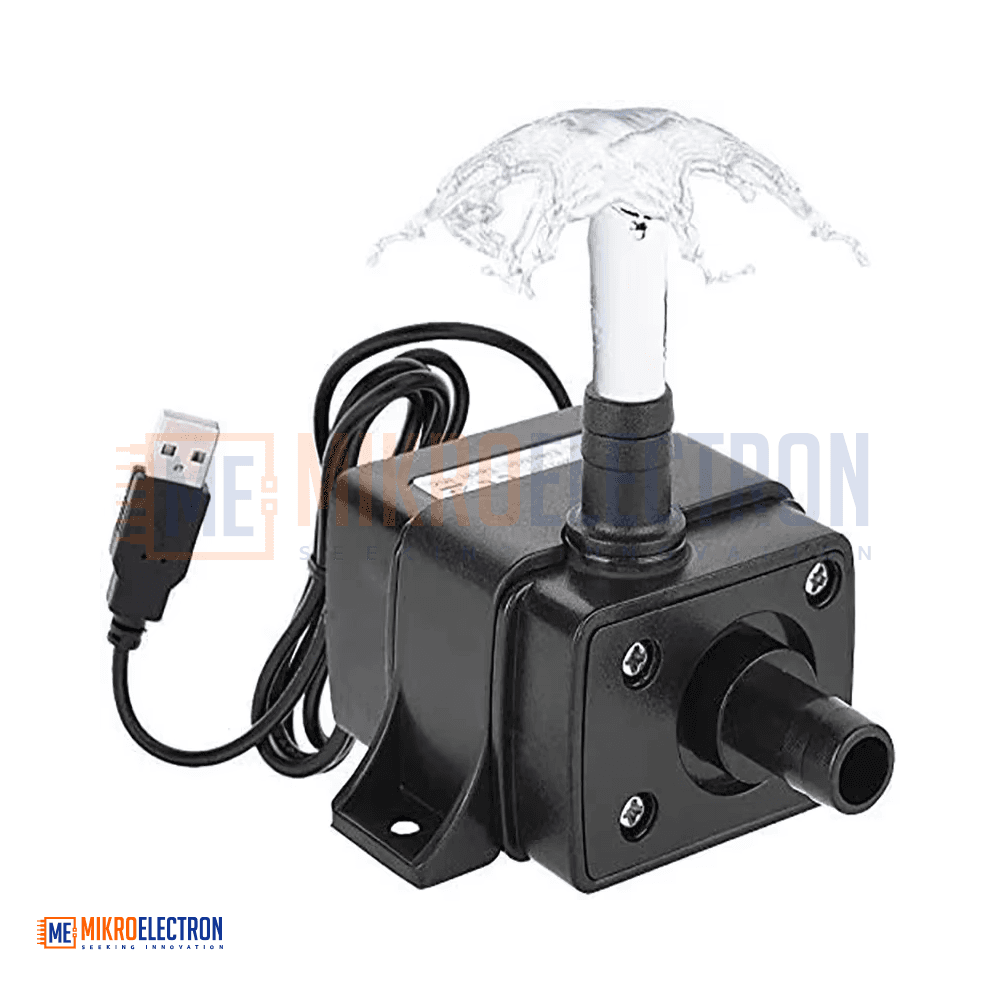

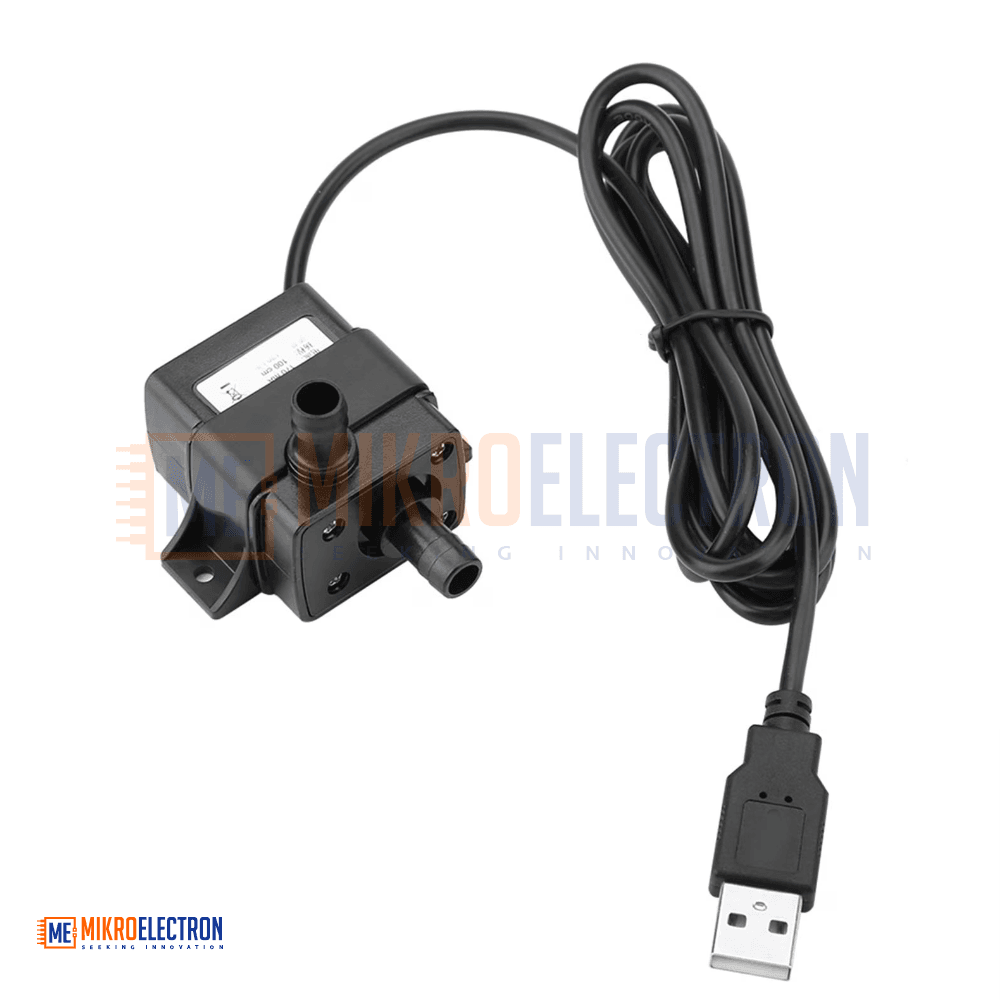

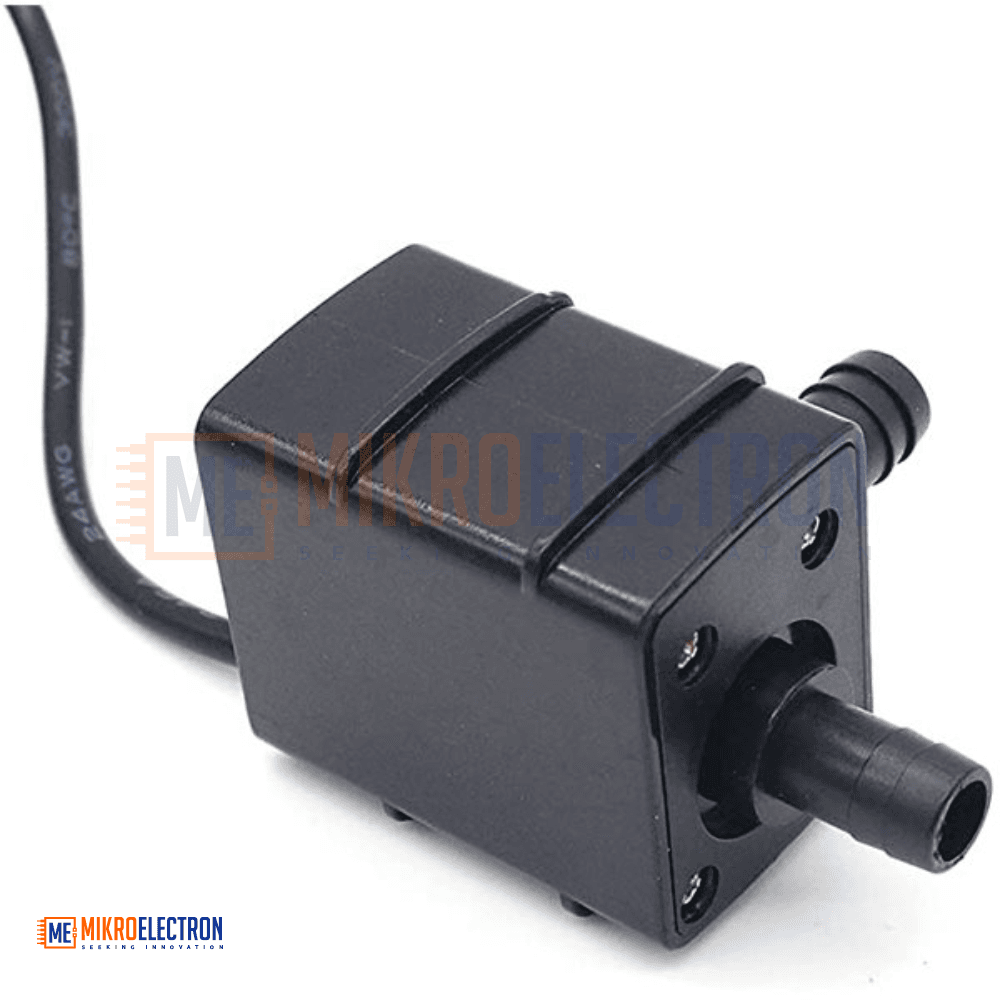

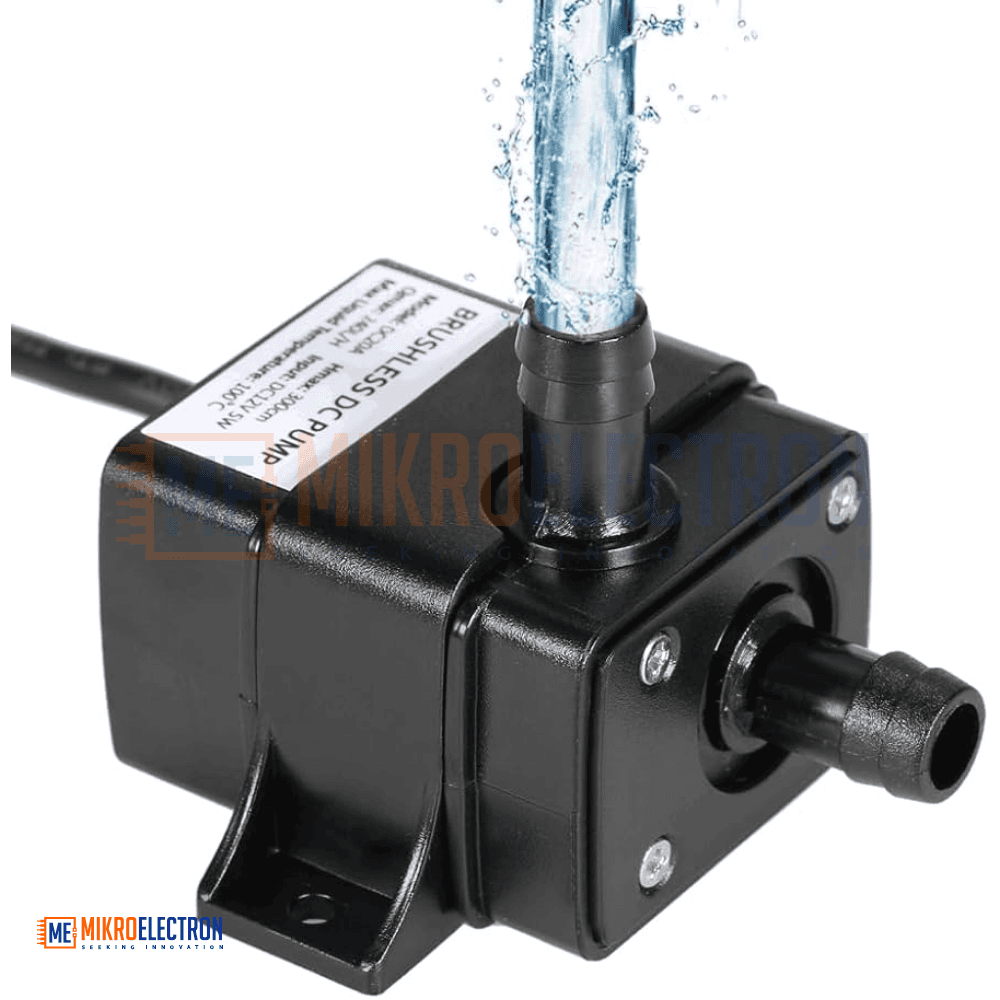

Submersible Water Pump AD20P-0510A DC5V 1M 240L/H Brushless with Cable 1.5M USB
The AD20P-0510A Submersible Water Pump is a compact DC 5V brushless water pump designed for quiet and efficient water circulation. With a maximum flow rate of 240 L/H and a lifting height of 1 meter, it delivers reliable performance for small-scale water applications. Powered through a USB connection with a 1.5 m cable, it can operate using power banks, phone chargers, laptops, or USB adapters. Its brushless motor with magnetic isolation ensures low noise, long service life, and minimal electromagnetic interference, making it ideal for fish tanks, fountains, cooling systems, and decorative water features.
مضخة المياه الغاطسة AD20P-0510A هي مضخة مدمجة تعمل بجهد DC 5V ومزودة بمحرك Brushless لتدوير المياه بكفاءة وهدوء. توفر معدل تدفق يصل إلى 240 لتر/ساعة مع ارتفاع ضخ أقصى يبلغ 1 متر، مما يجعلها مناسبة للتطبيقات المائية الصغيرة. تعمل عبر منفذ USB مع كابل بطول 1.5 متر ويمكن تشغيلها باستخدام شواحن الهواتف أو الباور بانك أو الحاسوب. يضمن المحرك عديم الفُرش مع العزل المغناطيسي تشغيلًا هادئًا وعمرًا طويلًا مع تقليل التداخل الكهرومغناطيسي، مما يجعلها مثالية لأحواض السمك والنوافير وأنظمة التبريد.
The AD20P-0510A Brushless DC Submersible Water Pump is a high-efficiency mini water pump engineered for continuous water circulation in compact systems. Designed with a brushless motor and magnetic isolation technology, it provides reliable operation with lower wear compared to traditional brushed pumps, resulting in a significantly longer lifespan and quieter performance.
Operating at DC 5V, the pump can be conveniently powered through USB sources such as mobile chargers, power banks, laptops, desktop computers, and USB adapters, making it highly portable and versatile. Its low power consumption of only 0.85W ensures energy-efficient operation.
The pump provides a maximum flow rate of 240 liters per hour and a maximum head of 100 cm, enabling sufficient pressure for small fountains, aquariums, desktop waterfalls, and cooling loops. The durable ABS housing offers good resistance to moisture and mechanical wear.
With noise levels below 40–45 dB, the pump is suitable for quiet indoor environments where silent operation is important. Its brushless design also eliminates sparking and reduces electromagnetic interference.
Specifications
| Parameter | Specification |
|---|---|

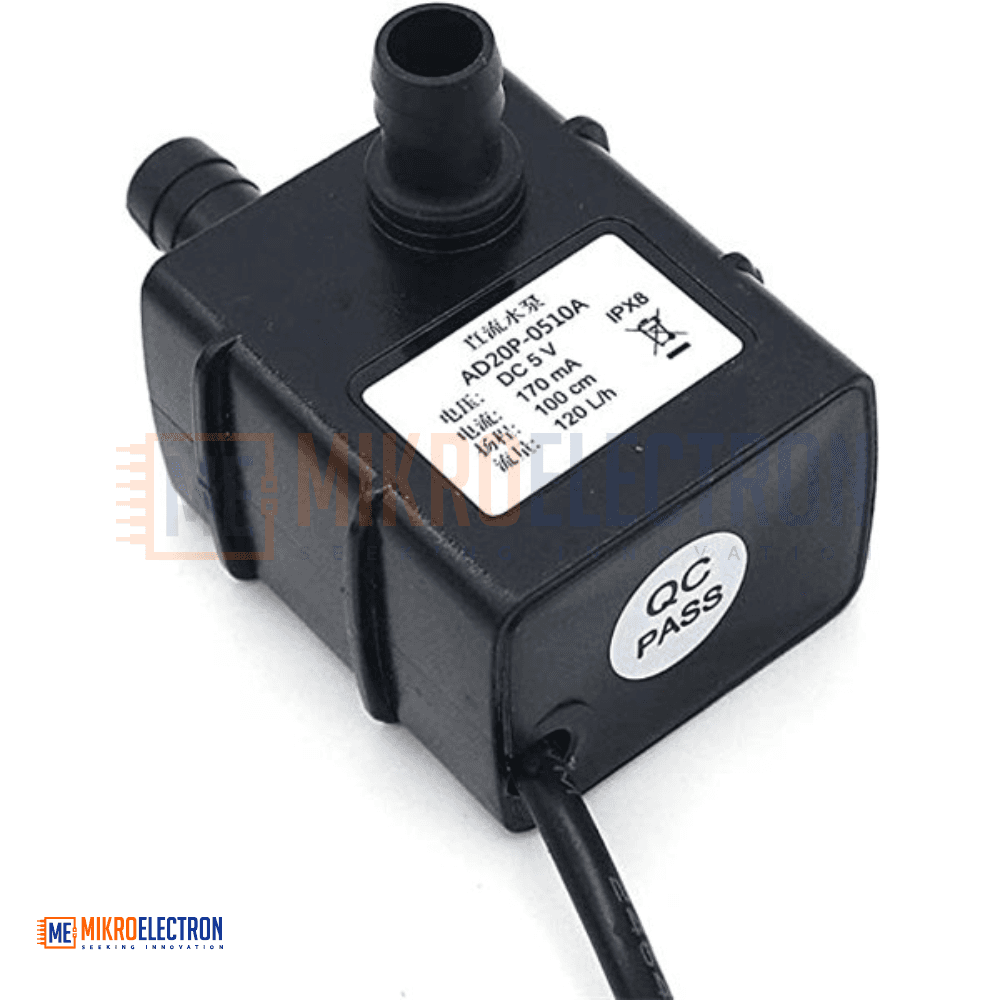

| Model | AD20P-0510A |
| Pump Type | Submersible Water Pump |
| Motor Type | Brushless DC Motor |
| Rated Voltage | DC 5V |
| Power Consumption | 0.85 W |
| Operating Current | 170 mA |
| Maximum Flow Rate | 240 L/H |
| Maximum Head (Lift) | 100 cm (1 m) |
| Cable Length | 1.5 m USB Cable |
| Pump Life | > 20,000 Hours |
| Noise Level | < 40–45 dB |
| Housing Material | ABS Plastic |

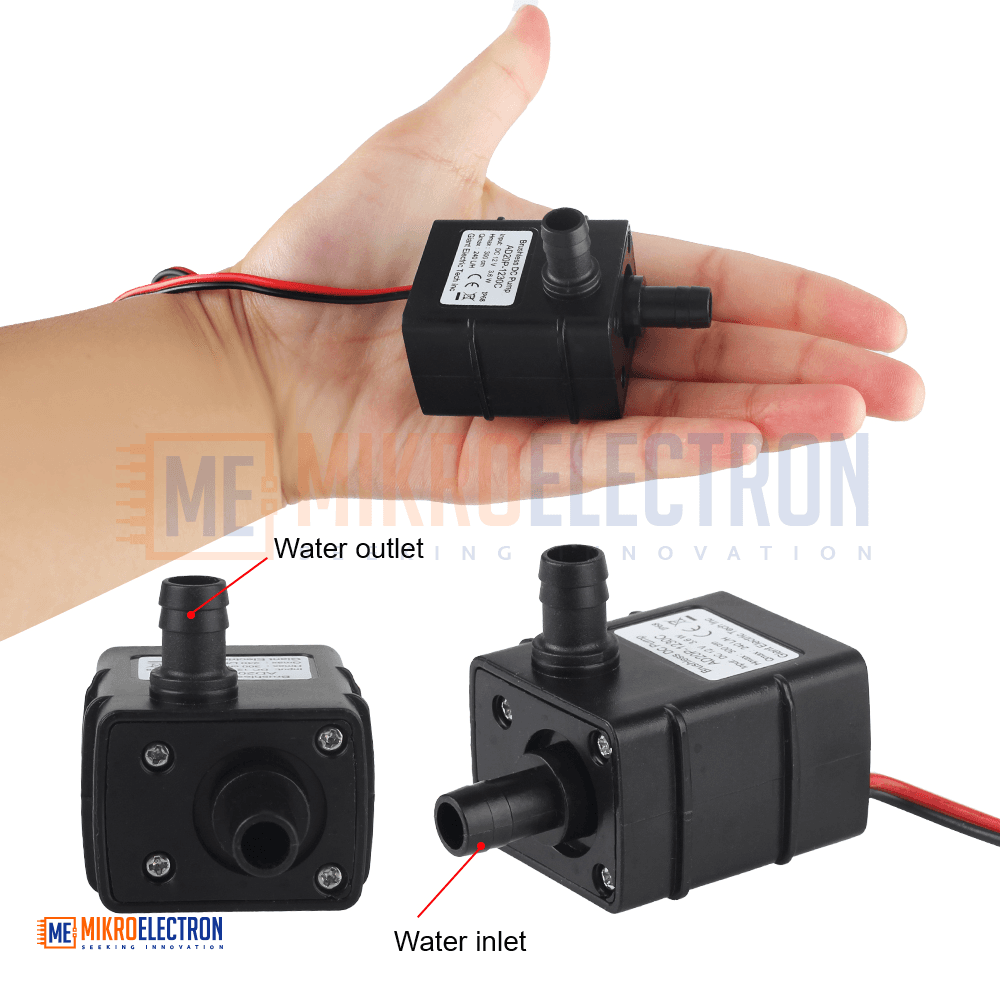

| Inlet Diameter | 8.5 mm |
| Outlet Diameter | 8.5 mm |
| Maximum Water Temperature | 60°C |
| Operating Temperature | Up to 60°C |

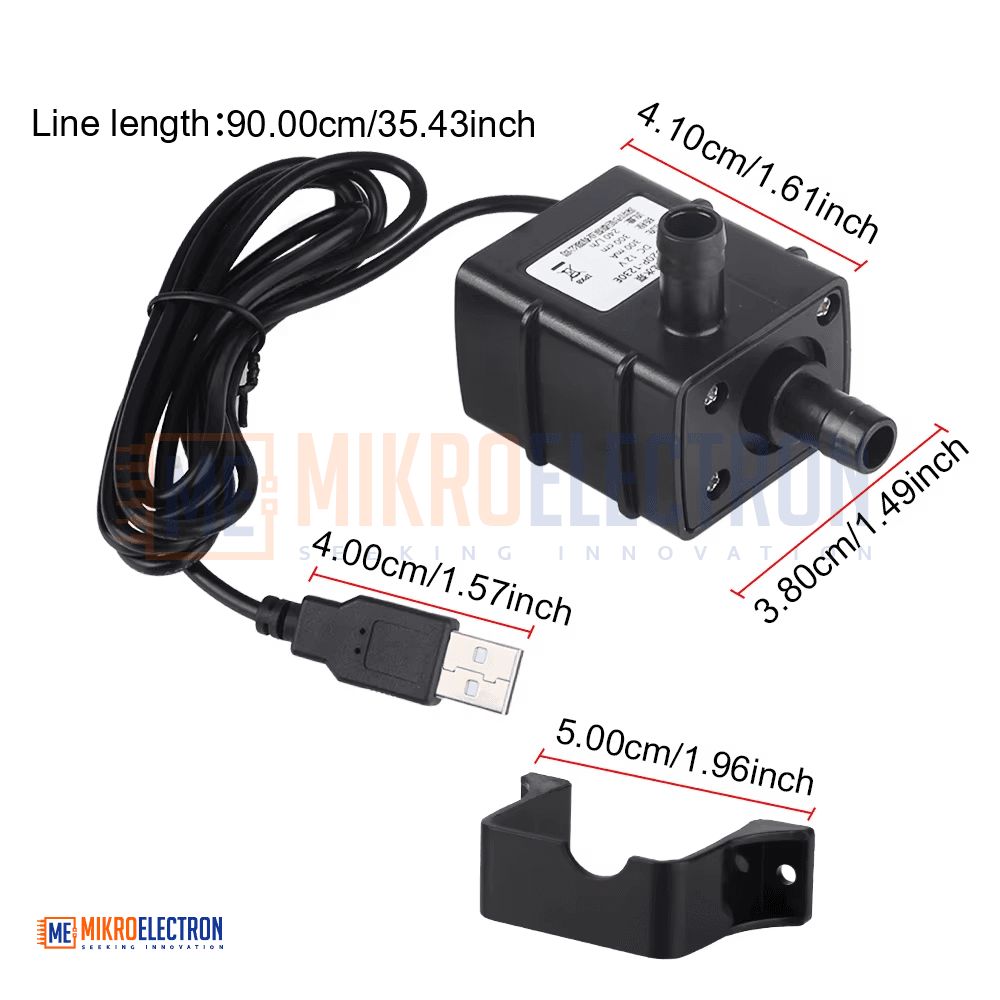

| Pump Size | 55 × 52 × 40.5 mm |
| Drive Mode | Brushless, Magnetically Isolated |
Applications
The AD20P-0510A Water Pump is commonly used in:
- Fish tanks and aquariums
- Desktop fountains
- Water circulation systems
- Water cooling systems
- Decorative waterfalls
- Hydroponic systems
- Small irrigation systems
- Resin fountain projects
- Laboratory liquid transfer
- DIY cooling projects
