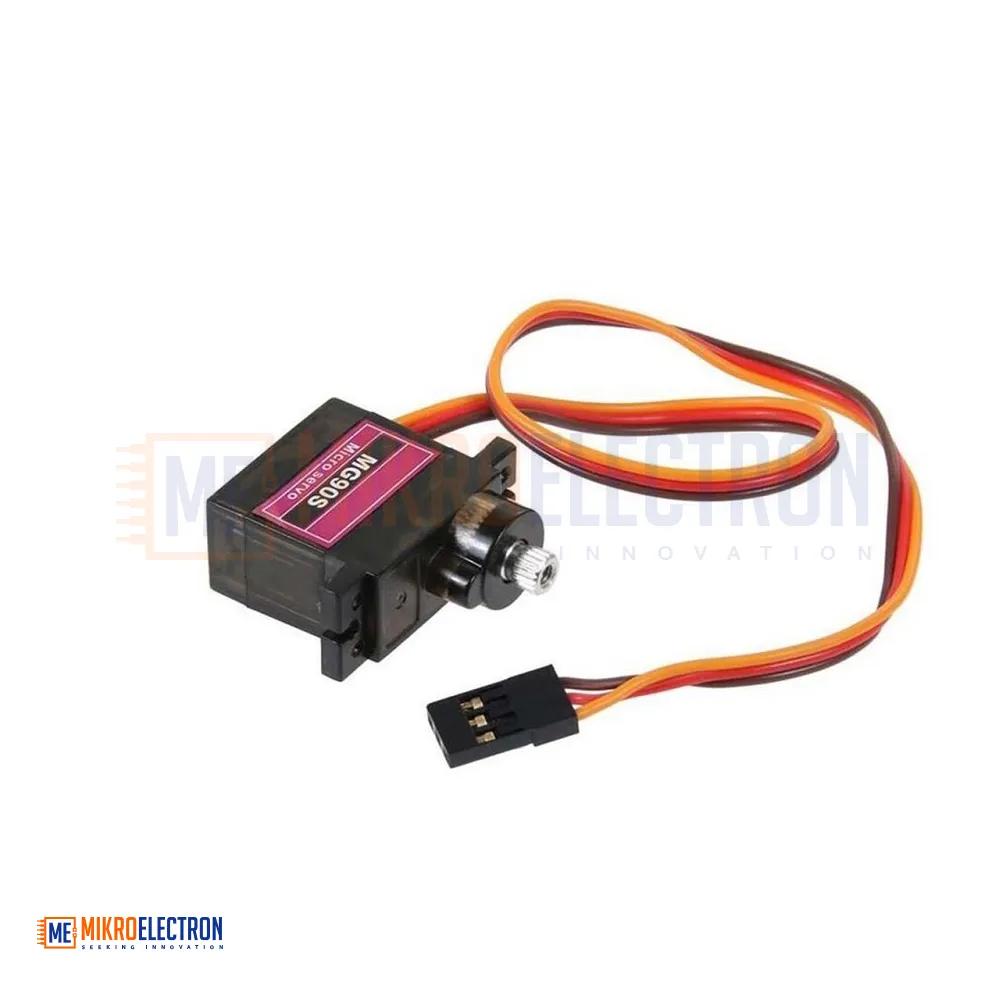

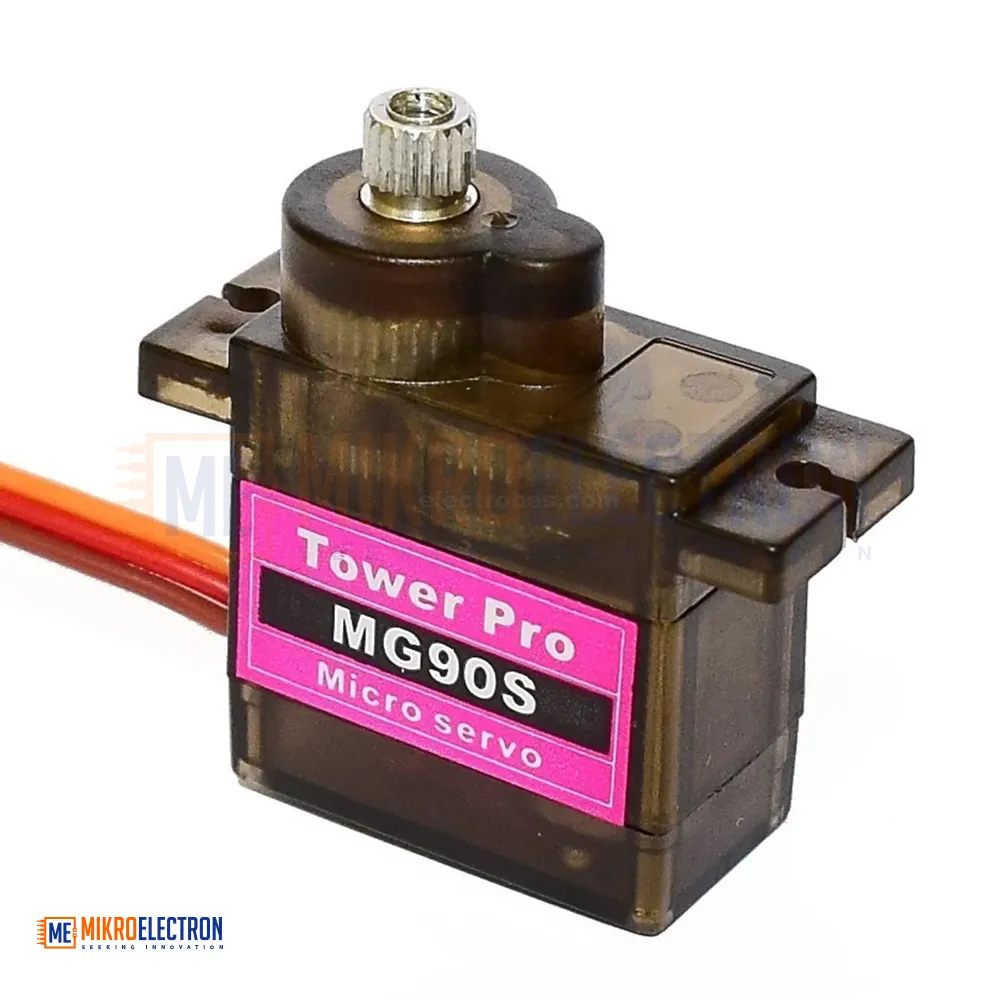

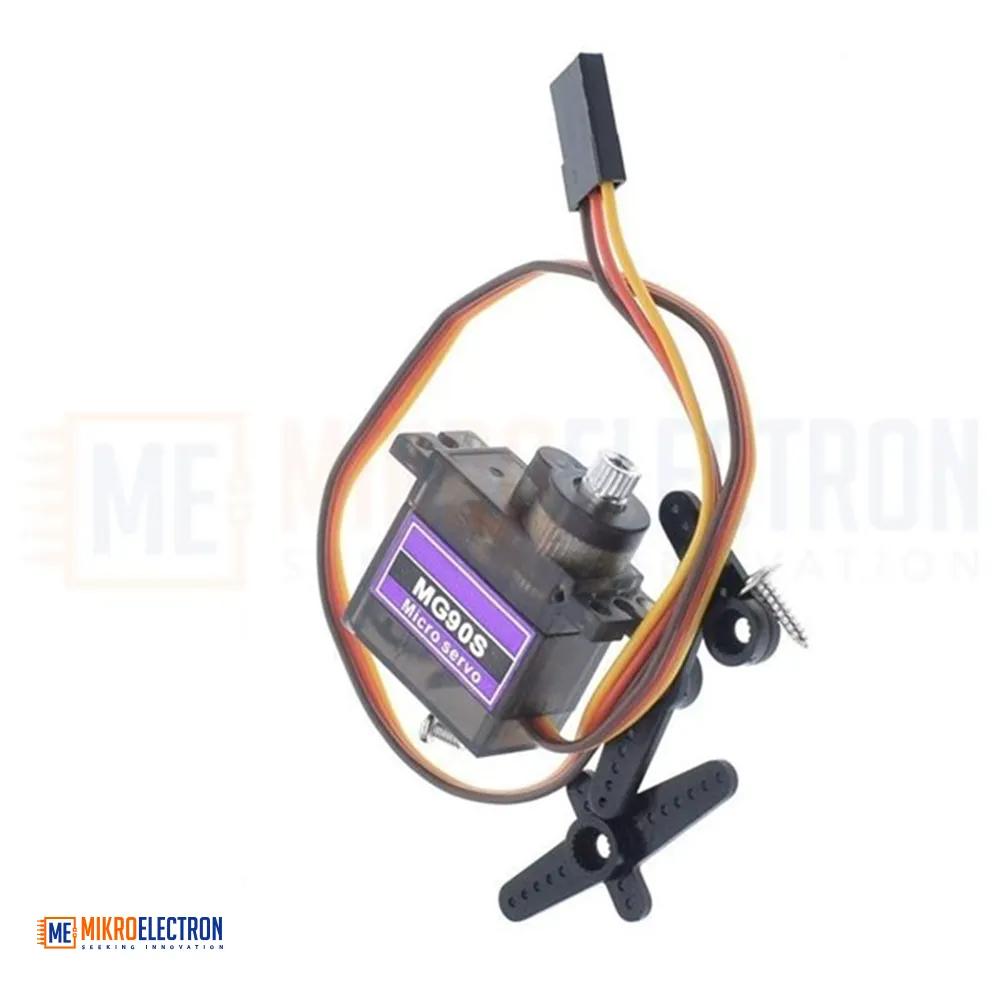

MG90 MG90S Micro Servo Motor - 180 degree (High Quality)
The TowerPro MG90S Micro Servo Motor is a high-quality 180° analog servo featuring durable full metal gears for improved strength, precision, and long-term reliability. Operating between 4.8V and 6V, it delivers smooth motion, fast response, and higher torque compared to standard plastic gear servos. Its compact size and lightweight design make it ideal for robotics, RC vehicles, pan-tilt systems, robotic arms, drones, and educational electronics projects requiring accurate position control.
يُعتبر محرك السيرفو TowerPro MG90S سيرفو عالي الجودة بزاوية دوران 180° ويتميز بتروس معدنية كاملة توفر قوة ودقة وعمر تشغيل أطول مقارنة بالسيرفو التقليدي ذو التروس البلاستيكية. يعمل بجهد 4.8V إلى 6V ويقدم حركة سلسة واستجابة سريعة وعزم دوران أعلى. بفضل حجمه الصغير ووزنه الخفيف، يُستخدم في الروبوتات، والطائرات والسيارات اللاسلكية، وأنظمة Pan-Tilt، والأذرع الروبوتية، والمشاريع التعليمية الإلكترونية.
The TowerPro MG90S Micro Servo Motor is a compact and durable high-performance servo motor designed for robotics, RC models, automation systems, and embedded electronics projects. Unlike standard micro servos with plastic gears, the MG90S features a full metal gear mechanism that provides increased durability, improved torque handling, and more accurate positioning performance.
The servo supports a 180-degree rotation range and operates using standard PWM control signals, making it fully compatible with Arduino, Raspberry Pi, ESP32, STM32, and most RC control systems. Its coreless motor and double ball-bearing structure ensure smoother movement, faster response time, and reduced mechanical wear.
Operating within a voltage range of 4.8V to 6V, the MG90S provides reliable speed and torque performance for robotic arms, pan-tilt mechanisms, RC airplanes, mini vehicles, and small automation systems. The compact design and lightweight construction make it suitable for applications where space and weight are important factors.

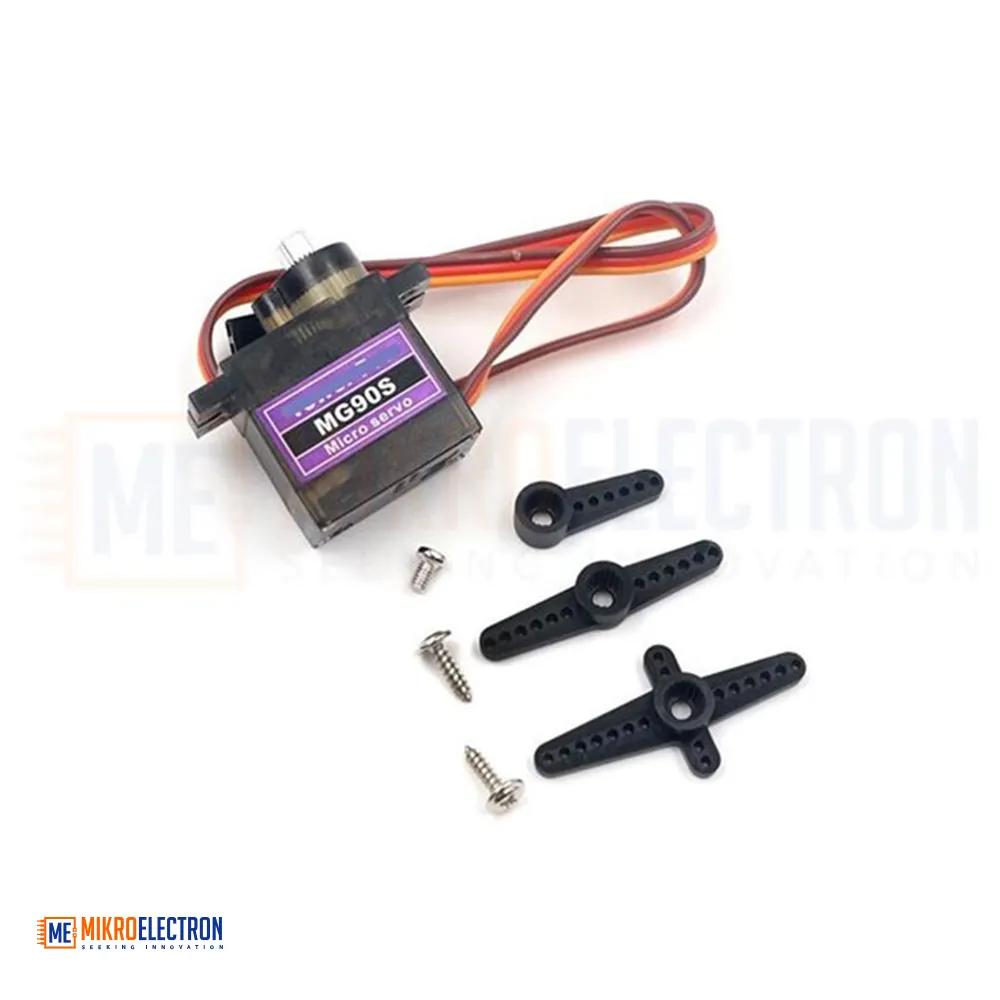

The package typically includes servo horns, fixing screws, and a connection cable for easy installation and integration.
Specifications
- Model: TowerPro MG90S
- Servo Type: Analog Micro Servo
- Rotation Angle: 180°
- Gear Type: Full Metal Gear
- Operating Voltage: 4.8V – 6.0V DC
- Torque: 2 KG/cm
- Speed at 4.8V: 0.10 sec / 60°
- Speed at 6V: 0.09 sec / 60°
- Motor Type: Coreless Motor
- Bearing Type: Double Ball Bearing
- Dead Band Width: 5 microseconds
- Pulse Response Time: 5 µsec
- Cable Length: 250 mm
- Dimensions: 22.8 × 12.2 × 28.5 mm
- Weight: Approximately 13.4g – 13.6g
Wiring Connection
- Brown Wire: Ground (GND)
- Red Wire: Power Input (VCC 4.8V–6V)
- Orange Wire: PWM Signal Input
Applications
- Robotic arms
- Pan and tilt camera systems
- RC airplanes and helicopters
- Mini RC cars and boats
- Educational robotics projects
- Smart automation systems
- DIY Arduino projects
- Motion control applications
- Small robotic mechanisms
