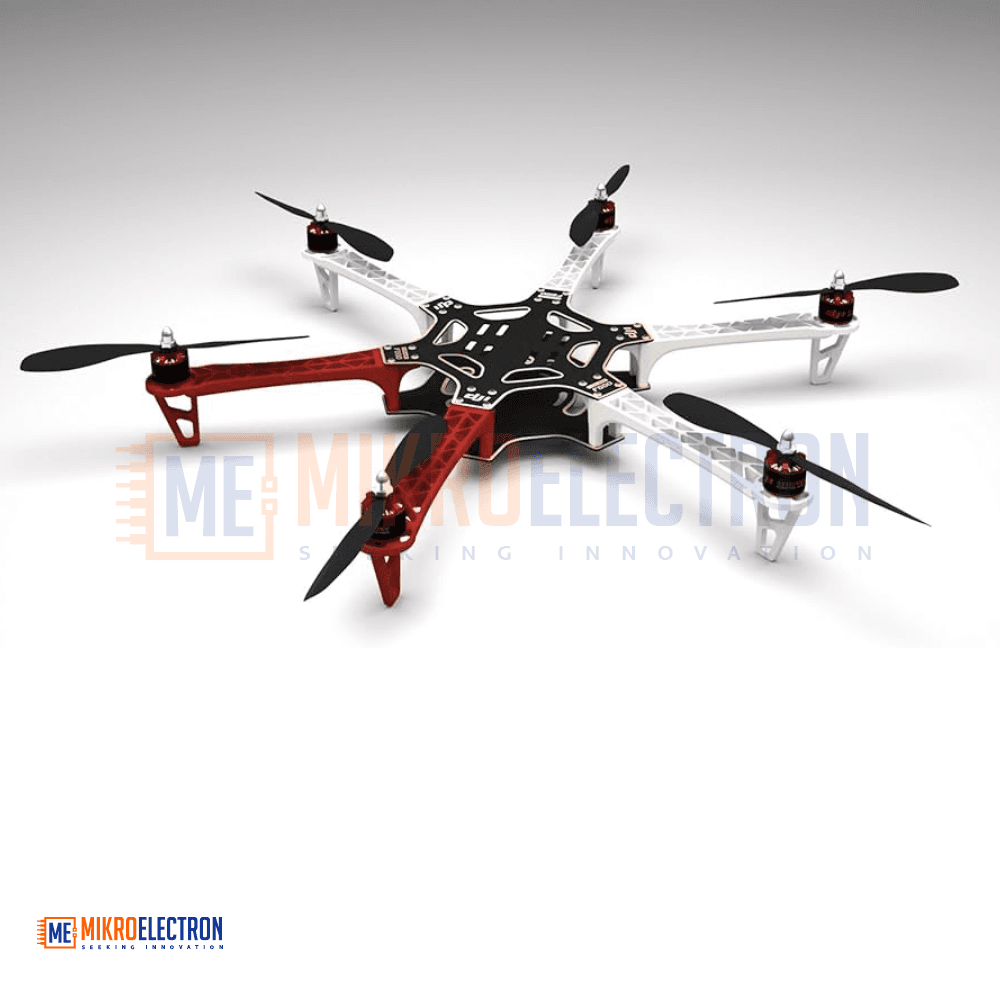

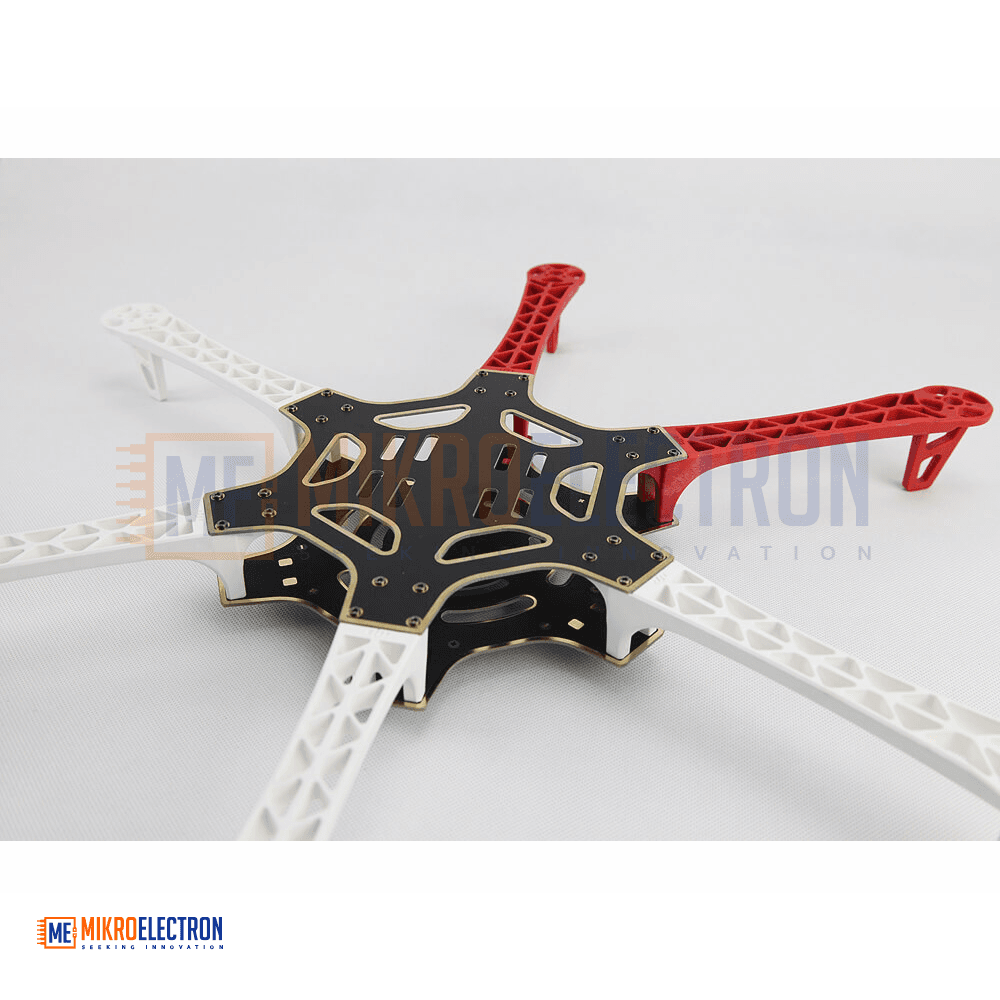

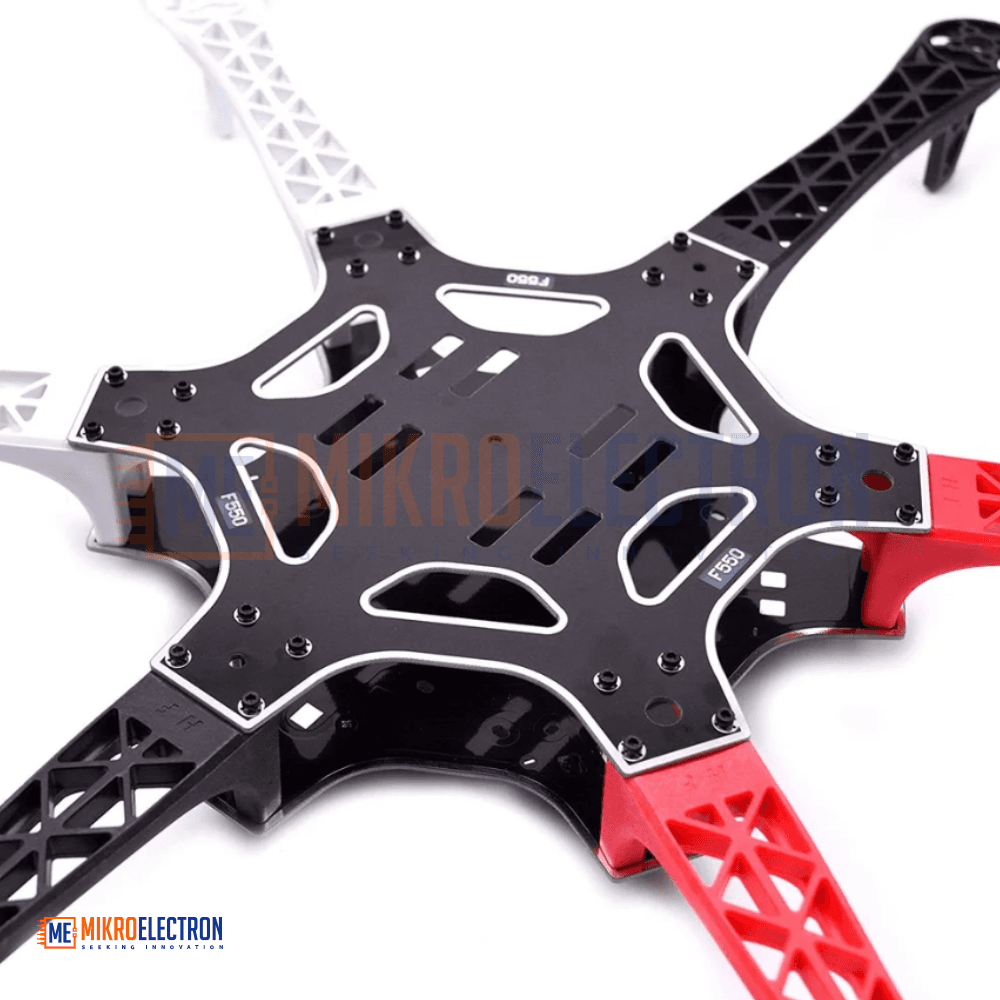

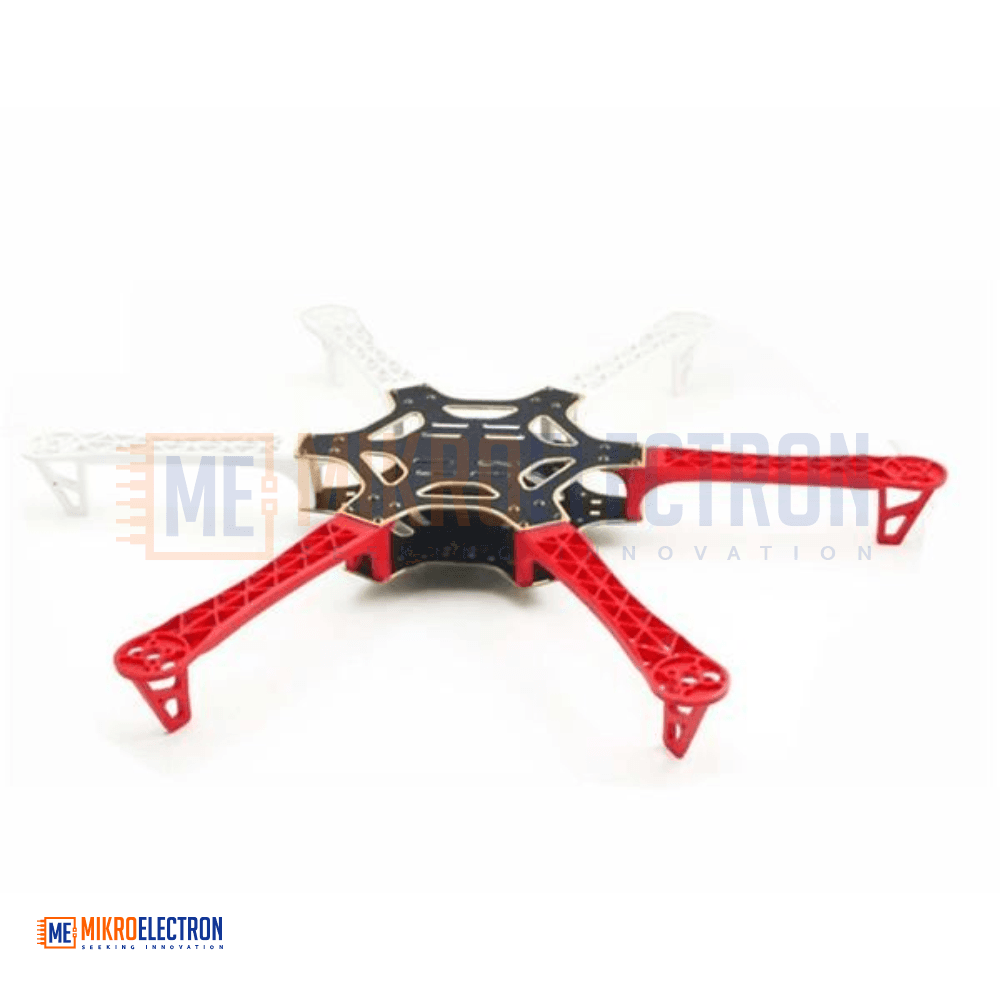

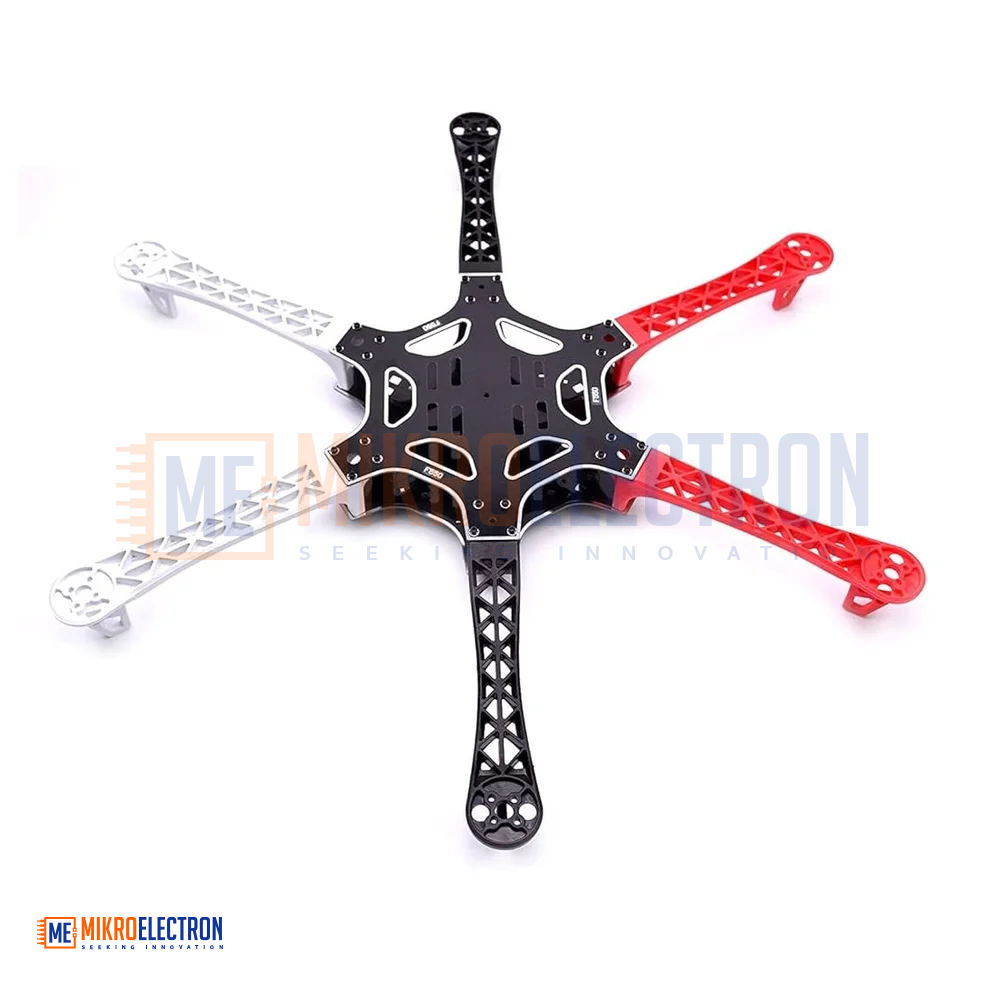

F550 6-Axis Multi-rotor Hexacopter Frame
Out Of Stock
The F550 6-Axis Hexacopter Frame is a durable multi-rotor drone platform designed for aerial photography, FPV, and hobby flight applications. Built with strong engineering materials and a PCB integrated board, it supports stable and reliable flight performance. With a 550mm wheelbase and lightweight structure, it is compatible with common flight controllers such as NAZA and KK systems. Ideal for DIY drone builders seeking a stable and customizable hexacopter frame.
هيكل الطائرة بدون طيار F550 Hexacopter هو منصة متعددة المراوح مكونة من 6 محركات، مصممة للتصوير الجوي والطيران الترفيهي وFPV. يتميز بمواد هندسية قوية ولوحة PCB مدمجة لتوفير ثبات عالي أثناء الطيران. يأتي بقاعدة قطرها 550mm وهيكل خفيف الوزن، ومتوافق مع أنظمة تحكم مثل NAZA وKK. يعتبر مناسباً لهواة بناء الطائرات بدون طيار والمشاريع التعليمية والتطبيقات الاحترافية الخفيفة.
The F550 6-Axis Multi-rotor Hexacopter Frame is a versatile and widely used drone frame designed for both hobby and professional applications. It provides a stable and balanced platform for aerial photography, FPV flying, and general UAV experimentation.
Constructed from high-strength engineering materials, the frame ensures durability while maintaining a lightweight structure. The integrated PCB distribution board simplifies wiring and enhances power distribution efficiency, reducing assembly complexity and improving reliability.
With a 550mm diagonal wheelbase, the F550 supports a wide range of flight controllers such as DJI NAZA, KK, WKM, and other compatible autopilot systems, enabling stable hovering, smooth cruising, and agile flight maneuvers.
This hexacopter frame is optimized for DIY assembly and customization, making it ideal for drone enthusiasts and developers. Its modular design allows easy installation of motors, ESCs, batteries, and flight controllers, offering flexibility for different configurations.
The F550 is commonly used in aerial imaging, FPV racing practice, research projects, and educational UAV systems, providing a strong balance between stability, payload capacity, and ease of use.
Specifications
- Model: F550
- Type: 6-Axis Hexacopter Drone Frame
- Wheelbase (Diagonal): 550 mm
- Frame Weight: 478 g
- Takeoff Weight Range: 1200 g – 2400 g
- Material: High-strength engineering plastic composite
- PCB Board: Integrated power distribution board
- Assembly Type: DIY (Requires assembly)
Recommended Components:
- Propellers: 8×4.5 inch / 10×4.5 inch
- Battery: 3S – 4S LiPo
- Motors: 22×12 mm stator size
- ESC: 20A – 30A
Applications
- Aerial Photography Drones
- FPV Flight Systems
- DIY Drone Projects
- Educational UAV Platforms
- Research and Development
- Hobby Drone Flying
- Autopilot System Testing
- Surveillance and Mapping (light payload)
- Drone Training Systems
- Robotics and Aerospace Learning Projects
