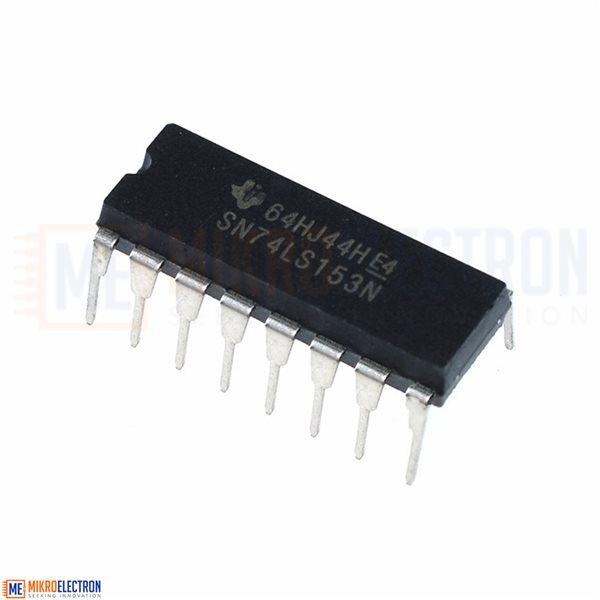

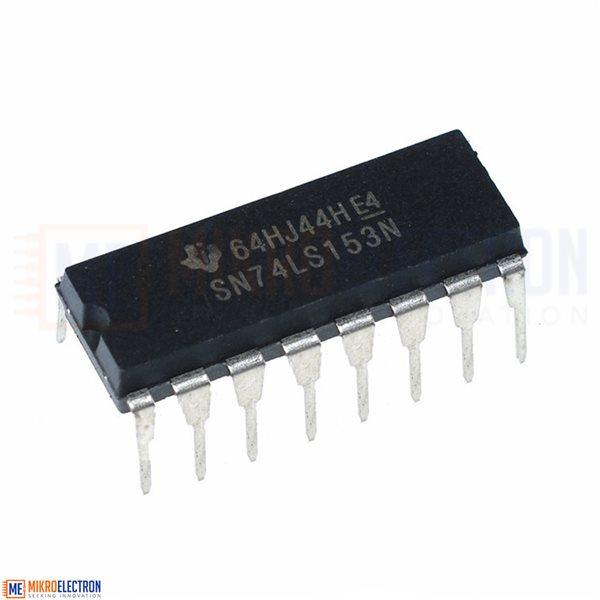

SN74LS153N Data Selector / Multiplexer
The SN74LS153N is a dual 4-to-1 data selector/multiplexer IC used in digital logic circuits. It allows selection of one input from four for each channel, controlled by select lines. With high-speed switching and reliable operation, it is widely applied in data routing, signal processing, and digital system design projects.
إن SN74LS153N عبارة عن دائرة متكاملة تعمل كمحدد بيانات/مضاعف مزدوج 4 إلى 1، مخصصة للدوائر المنطقية الرقمية. تتيح اختيار مدخل واحد من بين أربعة لكل قناة بواسطة خطوط التحكم. تتميز بسرعة تبديل عالية وتشغيل موثوق، وتُستخدم على نطاق واسع في توجيه البيانات، معالجة الإشارات، وتصميم الأنظمة الرقمية.
The LSTTL/MSI SN74LS153 is a very high speed Dual 4-Input Multiplexer with common select inputs and individual enable inputs for each section. SN74LS153N can select two bits of data from four sources. The two buffered outputs present data in the true (non-inverted) form. In addition to multiplexer operation, the LS153 can generate any two functions of three variables. The LS153 is fabricated with the Schottky barrier diode process for high speed and is completely compatible with all ON Semiconductor TTL families.
Packaging: Tube
Description
Product : Selector / Multiplexer
Packaging : Tube
Mounting Style : Through Hole
Package / Case : PDIP-16
Supply Voltage - Max : 5.25 V
Supply Voltage - Min : 4.75 V
Maximum Operating Temperature : + 70 C
Number of Lines (Input / Output) : 4 / 1
Logic Family : LS
Propagation Delay Time : 26 ns at 5 V
