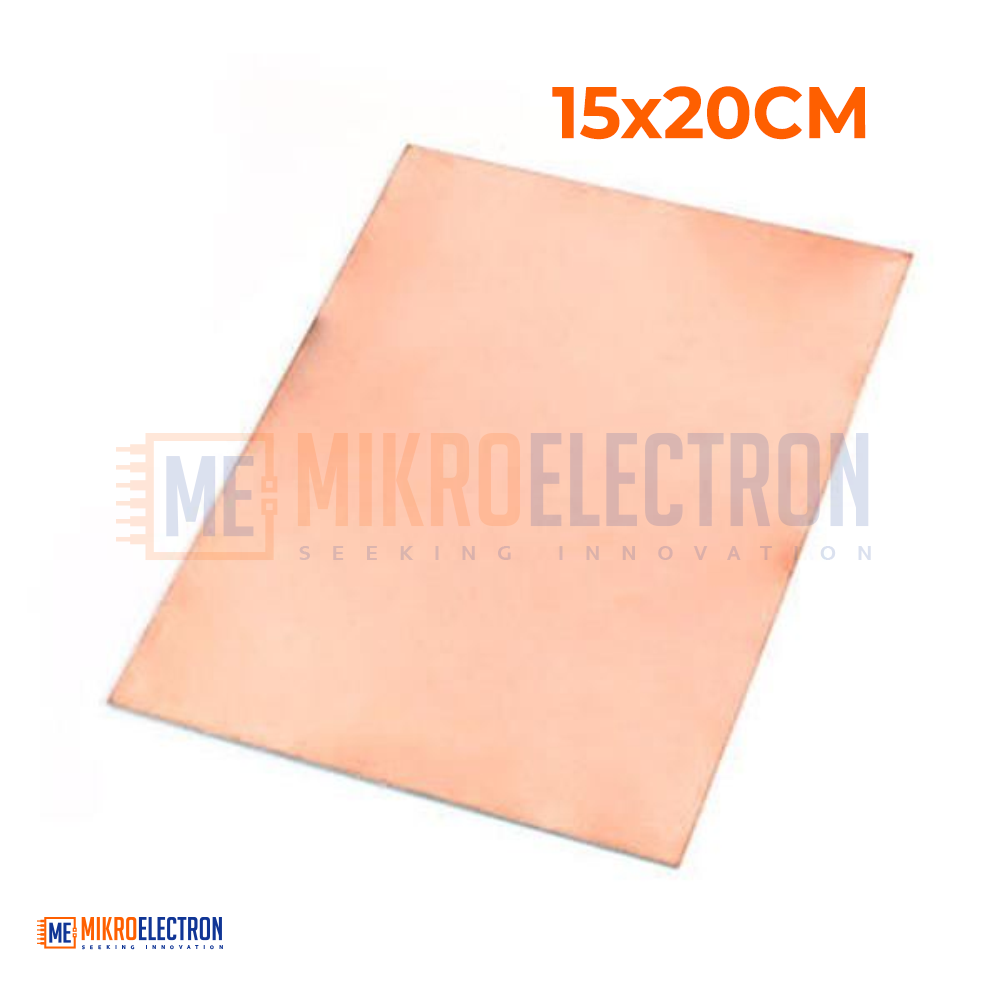

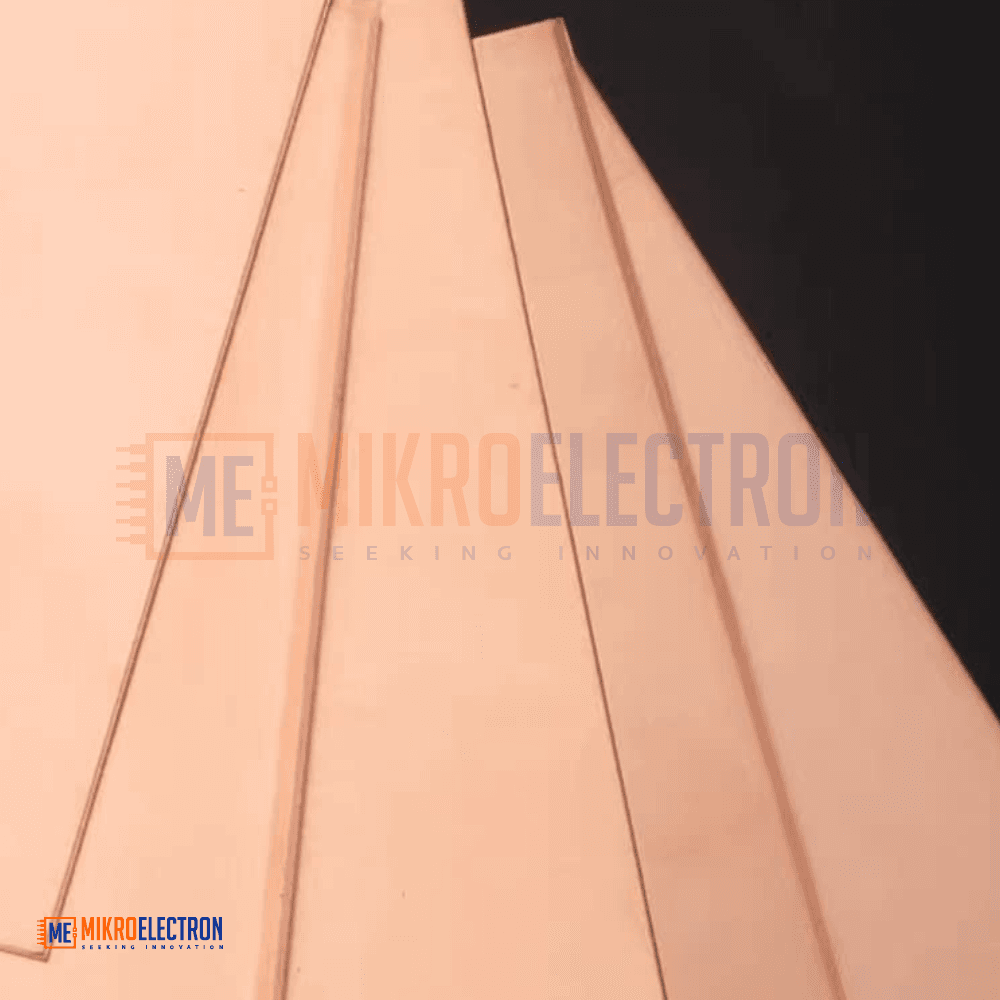

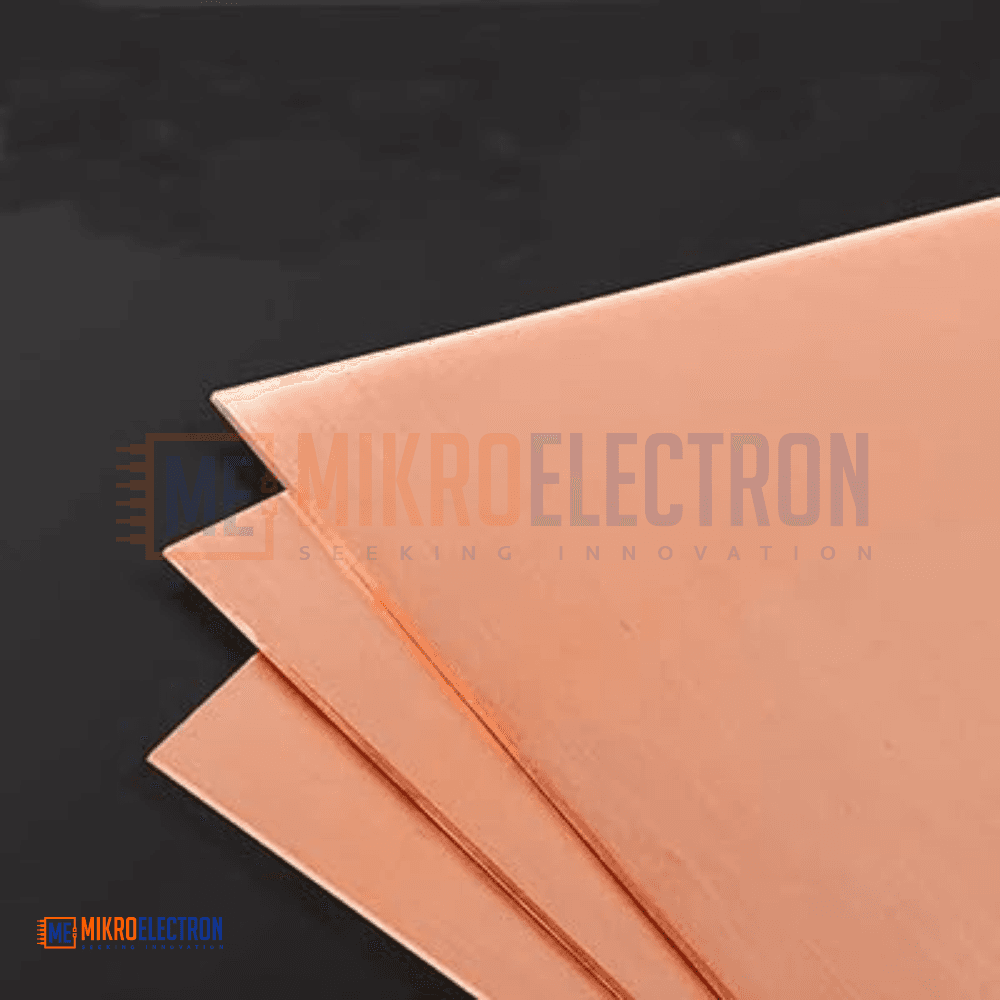

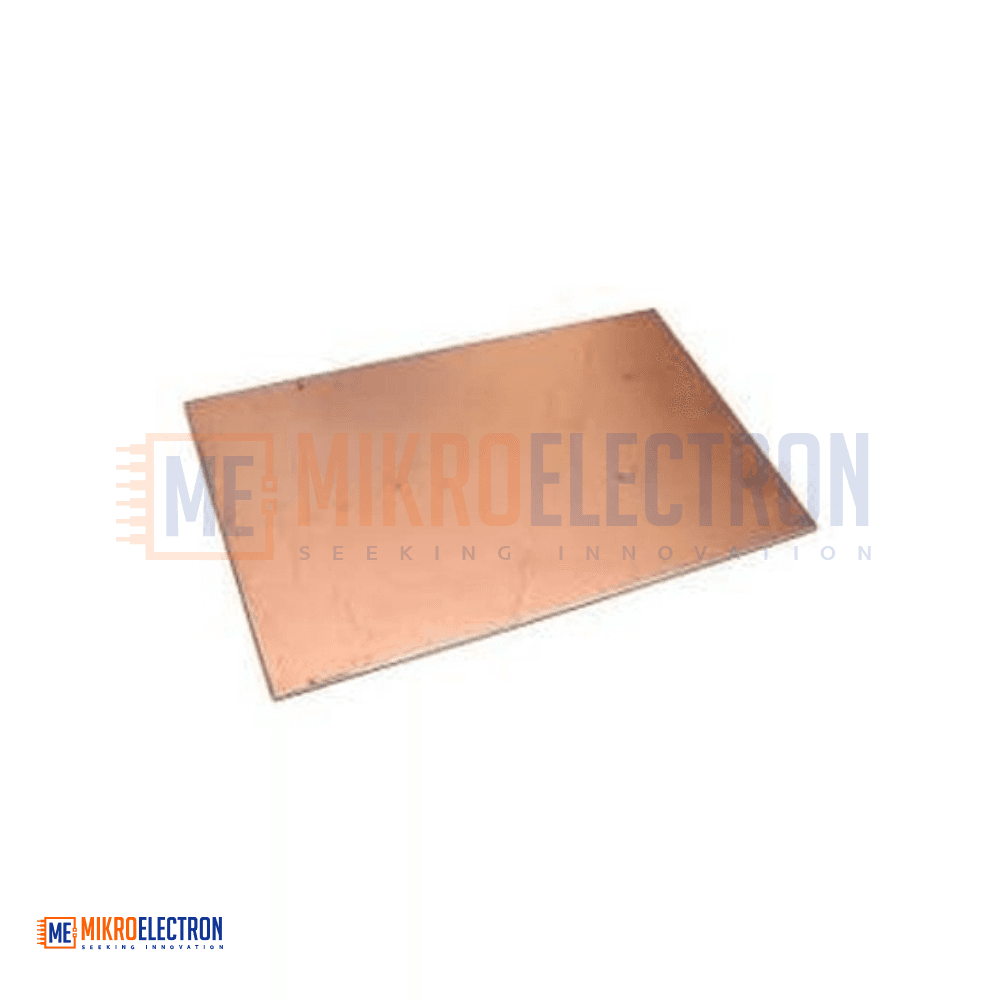

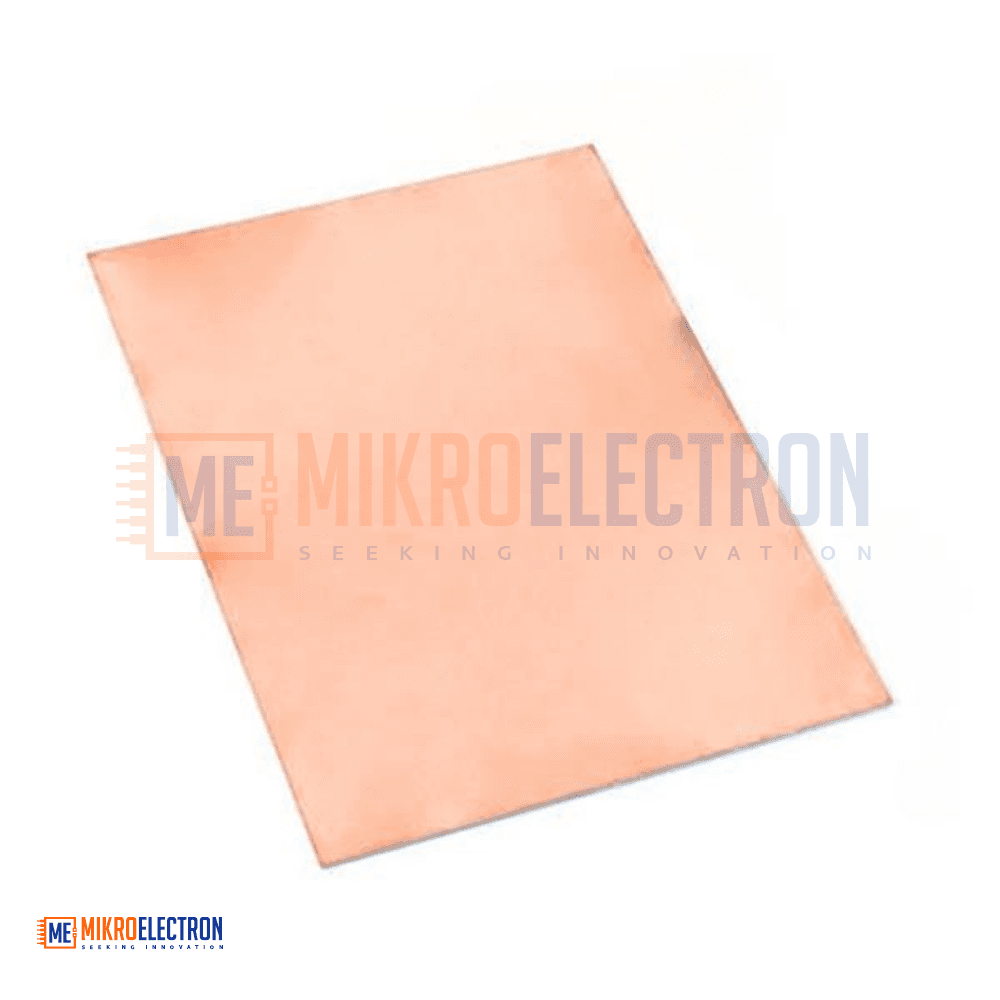

SINGLE LAYER FIBER PCB A5 15x20 CM
The Single Layer Fiber PCB A5 15×20 CM is a durable prototype circuit board designed for electronic development, DIY projects, and PCB fabrication. Made from high-quality fiber material, it is suitable for CNC engraving, etching, dry film, and screen-printing processes. Its 15×20 cm A5 size provides enough workspace for creating custom electronic circuits, testing prototypes, and repairing electronic devices with reliable performance and easy processing.
لوحة Single Layer Fiber PCB A5 بحجم 15×20 سم هي لوحة دوائر إلكترونية مخصصة لتطوير وتصنيع النماذج الأولية والمشاريع الإلكترونية. مصنوعة من ألياف عالية الجودة وتدعم عمليات الحفر باستخدام CNC والطباعة الحريرية والـ Dry Film وعمليات الحفر الكيميائي المختلفة. يوفر حجم 15×20 سم مساحة مناسبة لتصميم وتجربة الدوائر الإلكترونية وصيانة الأجهزة مع أداء موثوق وسهولة في التصنيع.
The Single Layer Fiber PCB Prototype Board is a high-quality printed circuit board material designed for electronics development, prototyping, and repair applications. Manufactured from durable fiber substrate material, the board provides excellent mechanical strength and reliable support for custom electronic circuit creation.
With an A5 size of 15×20 cm, this PCB board offers sufficient working area for designing and testing circuits for educational, industrial, and DIY electronic projects. The single-layer copper structure makes it ideal for simple and medium-complexity circuit designs.
The board supports multiple PCB manufacturing techniques including CNC engraving, chemical etching, dry film processing, and screen printing, making it highly versatile for hobbyists, students, engineers, and repair technicians.
Its easy machinability and compatibility with common PCB fabrication methods make it suitable for rapid prototyping and custom electronics production.
Specifications
- Product Type: Single Layer Fiber PCB Board
- Board Type: Prototype PCB
- Layer Configuration: Single Layer
- Board Size: 15 × 20 cm (A5)
- Material: Fiber PCB substrate
- Compatibility:
- CNC engraving
- Dry film process
- Screen printing
- Chemical etching methods
Applications
- Electronic prototyping
- DIY electronics projects
- PCB circuit fabrication
- Educational electronics training
- Arduino and microcontroller projects
- Electronic repair work
- Custom circuit development
- Hobby electronics projects
- Small-scale PCB production
