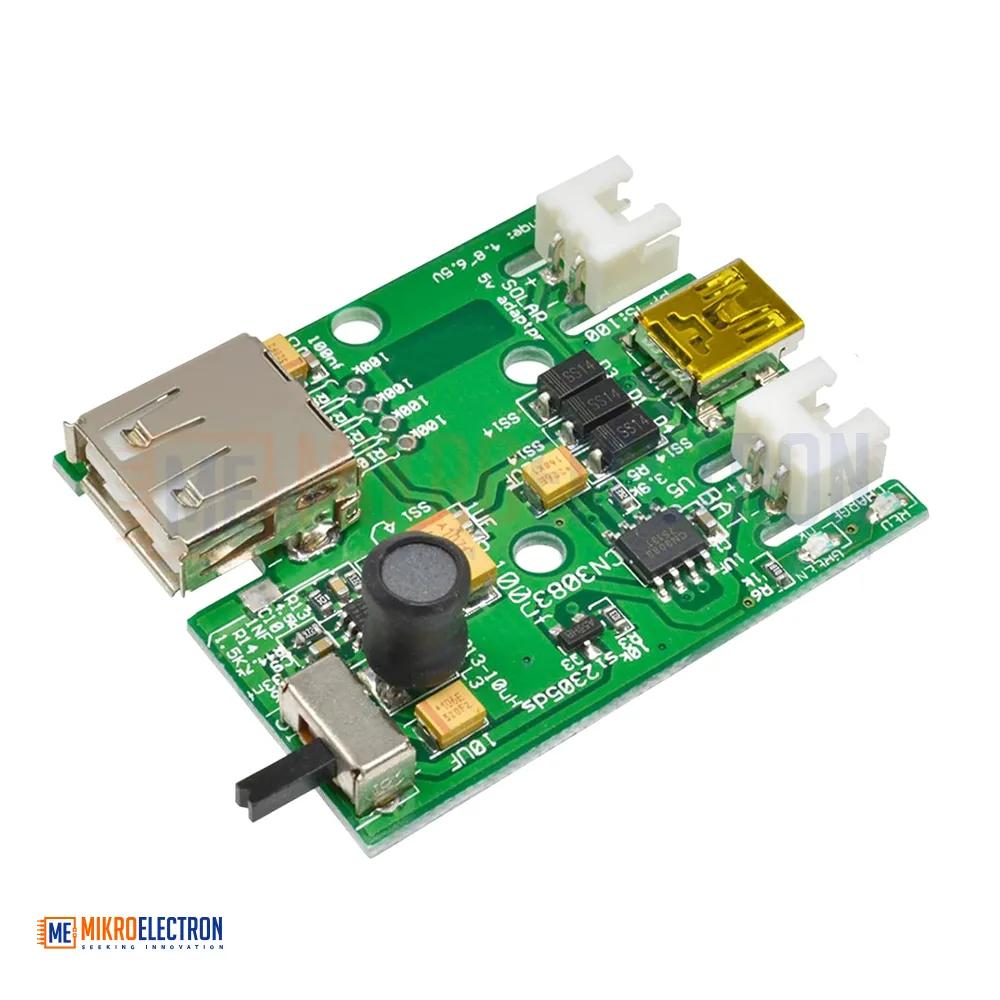

Solar Charger Controller - LiPo
Out Of Stock
The Solar Charger Controller – LiPo is a compact power management module designed for safe charging of single-cell LiPo batteries using solar panels. It regulates voltage and current from 4.8V–6.5V solar input to ensure efficient and protected charging at 4.2V and 200mA output. With built-in protection and USB output support, it is ideal for low-power solar systems, DIY electronics, sensors, and off-grid portable devices requiring stable and sustainable energy.
وحدة Solar Charger Controller – LiPo هي متحكم شحن مدمج مصمم لشحن بطاريات LiPo أحادية الخلية بأمان باستخدام الألواح الشمسية. تقوم بتنظيم الجهد والتيار الداخل من الألواح (4.8–6.5 فولت) لضمان شحن مستقر عند 4.2 فولت و200 ملي أمبير. تتميز بحماية داخلية ودعم منفذ USB، مما يجعلها مناسبة لمشاريع الطاقة الشمسية منخفضة الاستهلاك والأجهزة المحمولة والمشاريع الإلكترونية ذاتية التشغيل.
The Solar Charger Controller – LiPo is an efficient and compact charging module designed specifically for managing the safe charging of single-cell Lithium Polymer (LiPo) batteries using solar energy. It ensures stable energy conversion from solar panels while protecting the battery from overcharging, overcurrent, and voltage fluctuations.
The module accepts a solar panel input voltage range of 4.8V to 6.5V, making it suitable for small solar charging systems. It regulates the output charging voltage to a constant 4.2V with a charging current of approximately 200mA, which is ideal for standard single-cell LiPo batteries.
An onboard indicator system shows charging status, where the CHARGE LED remains on during charging and changes state once the battery is fully charged. Additionally, the module supports a 5V USB output (up to 100mA) when the toggle switch is enabled, allowing it to power small electronic devices directly.
This controller is ideal for DIY solar systems, portable embedded devices, IoT sensors, and low-power off-grid applications where energy efficiency and battery safety are essential.
Specifications
- Product Type: Solar LiPo Charging Controller
- Battery Type: Single-cell LiPo (3.7V nominal)
- Solar Input Voltage: 4.8V – 6.5V
- Charging Voltage: 4.2V
- Charging Current: 200mA
- USB Output Voltage: 5V
- USB Output Current: 100mA

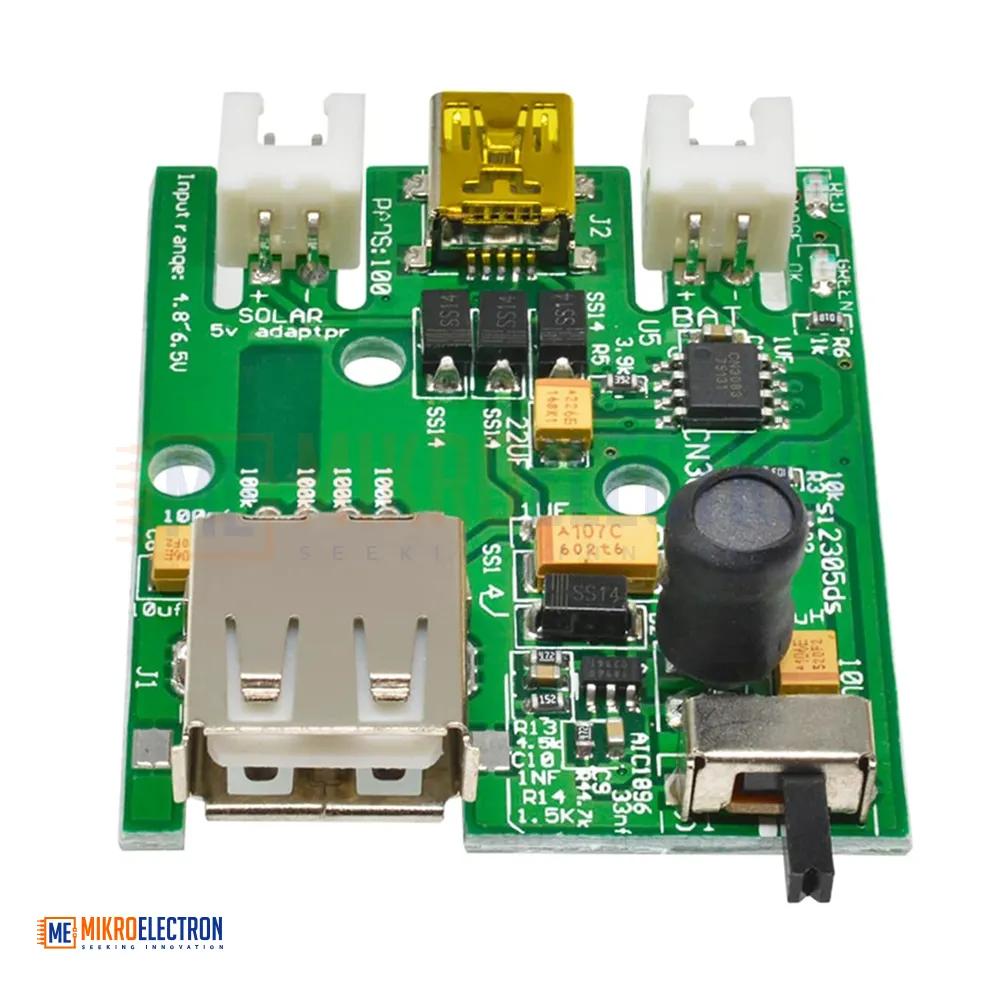

- Interface Ports: Solar input, BAT (battery), USB output
- Indicator: Charging status LED
- Protection: Overcharge and voltage regulation built-in
- Switch Function: Enables/disables USB output
Applications
- Solar-powered IoT devices
- Wireless sensor nodes
- DIY solar charging systems
- Portable embedded electronics
- Off-grid low-power projects
- Environmental monitoring systems
- Educational renewable energy projects
- Battery-powered outdoor devices
