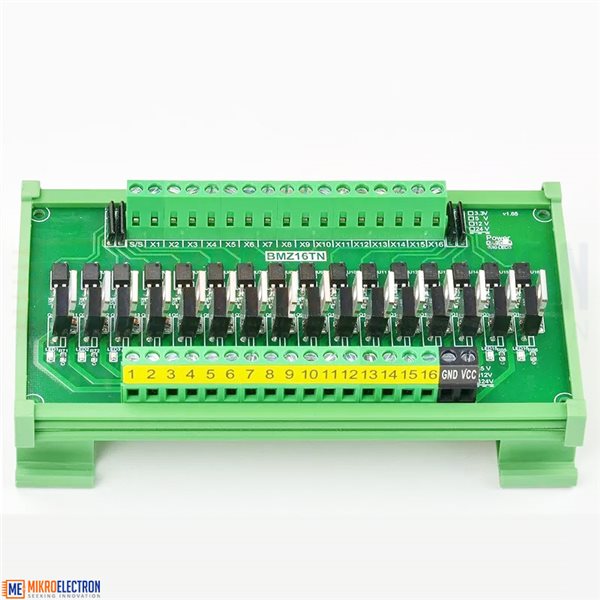

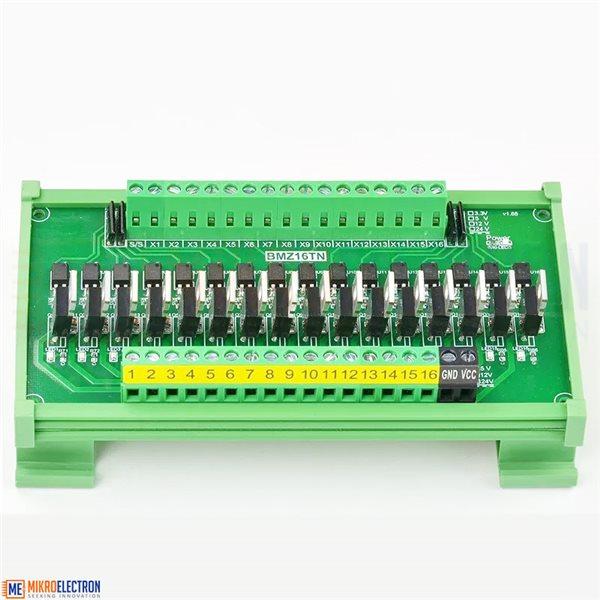

IO PLC card SCM DC amplifier PNP to NPN optical coupling isolation solid state relay 24V - high/low level - BMZ16TN
Technical Parameters:Tigger signal Input voltage: 24VOutput type: non-contact typeDrive component: P/N channel FETMaximum output current: 3AOutput voltage: DC5-12V-24VOperating time: 1ms or lessReset time: 1ms or lessMaximum switching frequency: 2000HzHorizontal group installation: standard rail mountingInstructions:X1~X7 are the access terminals of the trigger signal.S/S is the selection terminal...
Technical Parameters:
Tigger signal Input voltage: 24V
Output type: non-contact type
Drive component: P/N channel FET
Maximum output current: 3A
Output voltage: DC5-12V-24V
Operating time: 1ms or less
Reset time: 1ms or less
Maximum switching frequency: 2000Hz

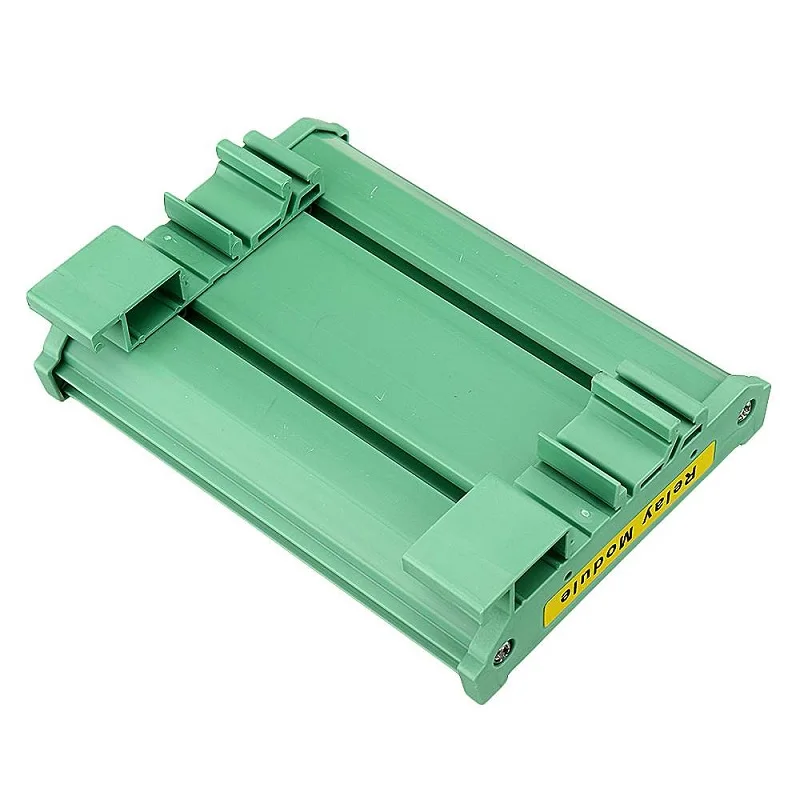

Horizontal group installation: standard rail mounting
Instructions:

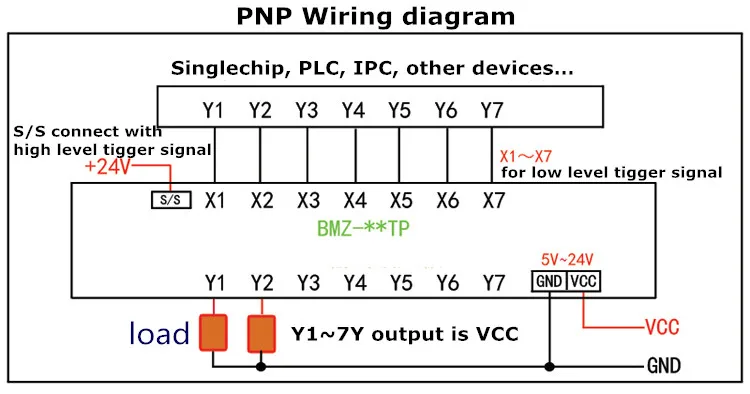

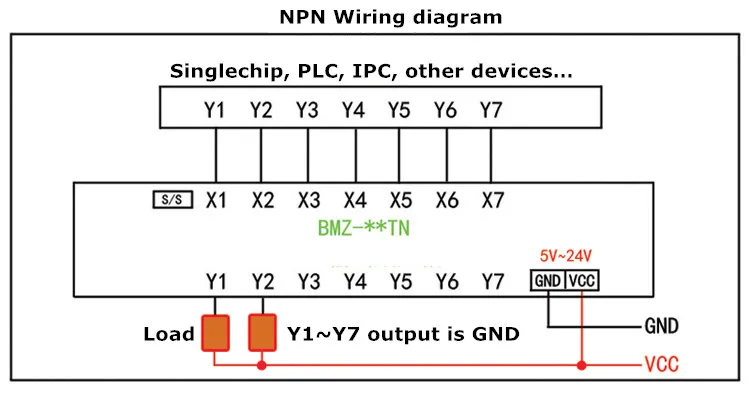

X1~X7 are the access terminals of the trigger signal.
S/S is the selection terminal for the high and low levels of the trigger signal.
E.g:
When the trigger signal is high, then the S/S terminal should be connected to the negative terminal corresponding to the trigger signal.
Conversely, when the trigger signal is low, the S/S terminal should be connected to the positive pole corresponding to the trigger signal.
Size:

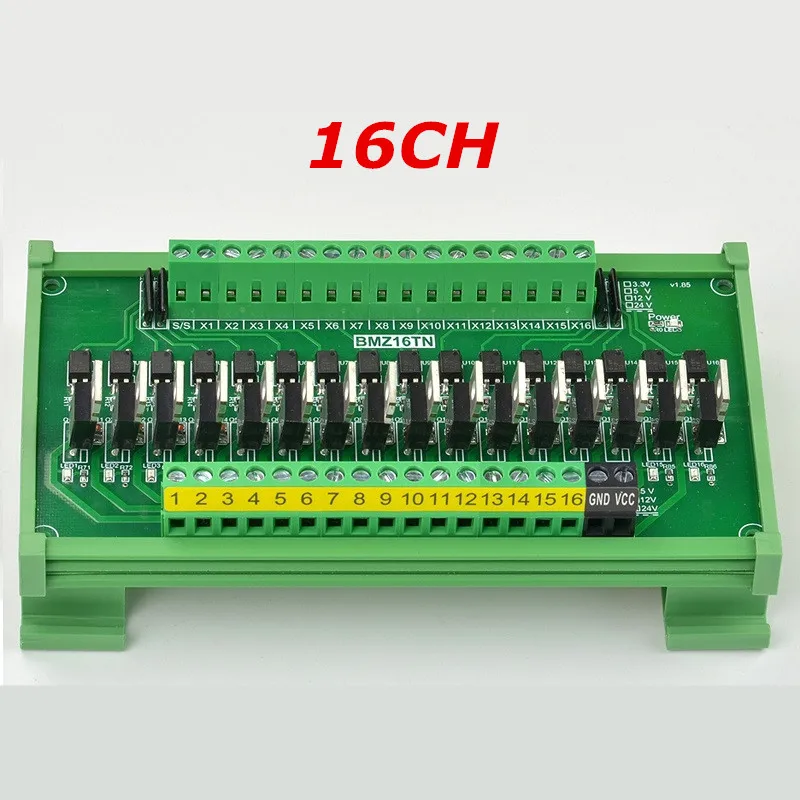

16CH: 145mm*80mm*40mm
