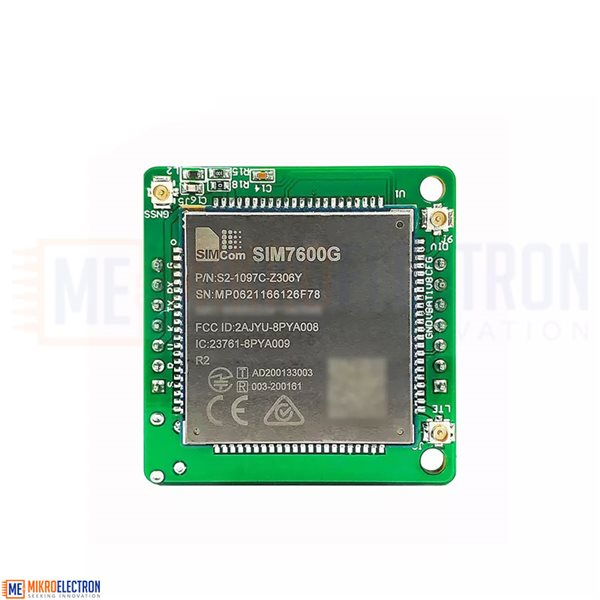

SIM7600G Board Multi-Band LTE CAT1 HSPA+ GSM/GPRS/EDGE IoT Development Board

The SIM7600G Development Board is a versatile, high-performance communication module designed for IoT (Internet of Things) and M2M (Machine-to-Machine) applications. Powered by the SIMCom SIM7600G chipset, it supports a wide range of wireless communication standards including LTE CAT1, HSPA+, GSM, GPRS, and EDGE, ensuring broad global network compatibility.

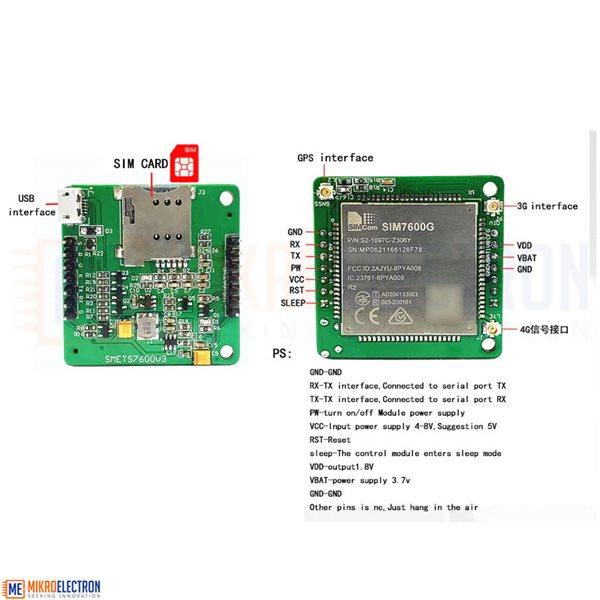

This board features multiple interfaces including UART, USB, I2C, GPIOs, and ADC, making it easy to integrate with microcontrollers such as Arduino, Raspberry Pi, ESP32, and other embedded systems. It also supports GNSS (GPS, GLONASS, BeiDou, Galileo) for precise positioning.

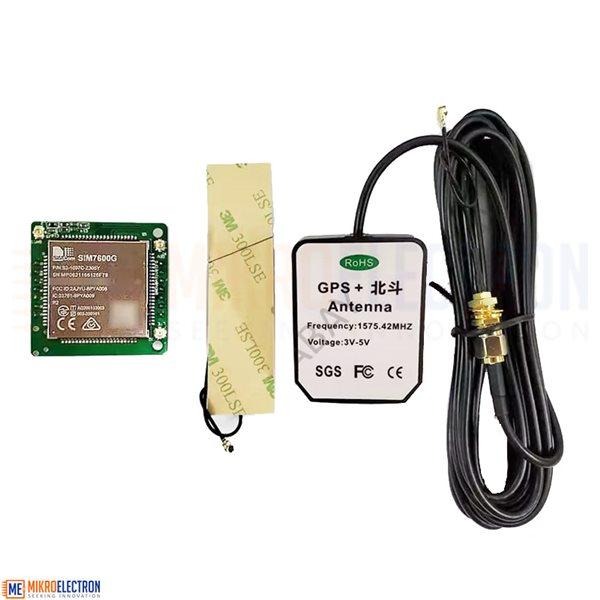

The SIM7600G module provides reliable and secure data transmission suitable for mobile devices, remote monitoring, smart metering, vehicle tracking, industrial automation, and other IoT solutions. The board is compact and comes with onboard network indicators, SIM card slot, and antenna connectors for LTE and GNSS.

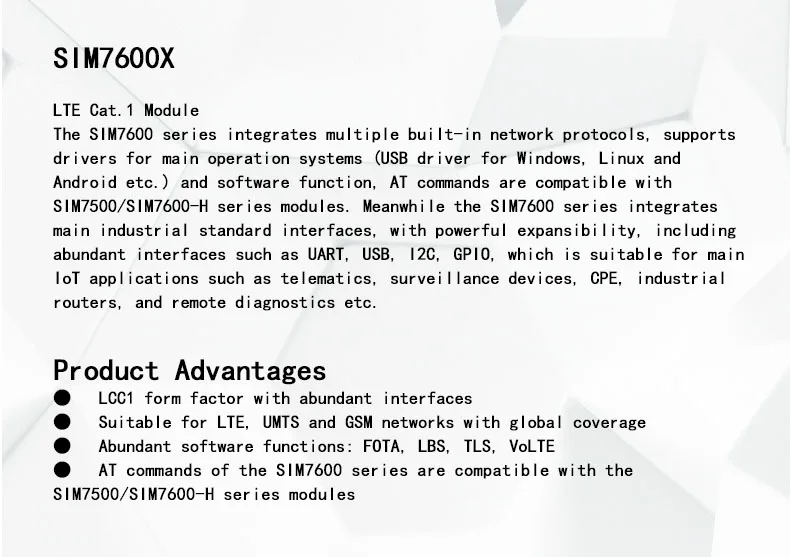

The SIM7600G is Multi-Band LTE-FDD/LTE-TDD/HSPA+ and GSM/GPRS/EDGE module solution in a SMT type which supports LTE CAT1 up to 10Mbps data transfer.
It has strong extension capability with rich interfaces including UART,USB2.0, GPIO etc. The module provides much flexibility and ease of integration for customer's application.
The package of SIM7600G is LCC+LGA. The package (LCC part) of SIM7600G is compatible with SIM7600x (LTE CAT1 Variants module with LCC package). AT commands of SIM7600G are mostly compatible with SIM7500/SIM7600 Series modules. This also minimize the investments of customers, and enables a short time-to-market.
It is designed for applications that need high throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for many applications.
