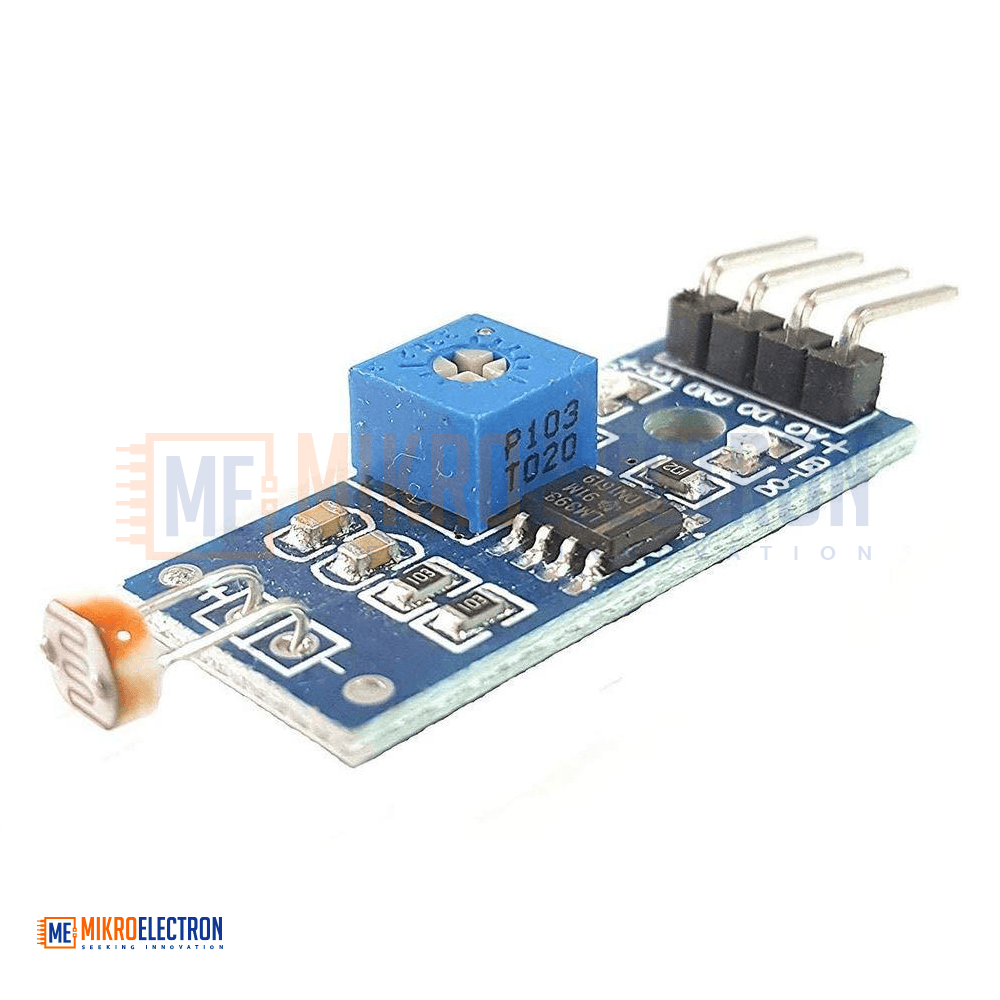

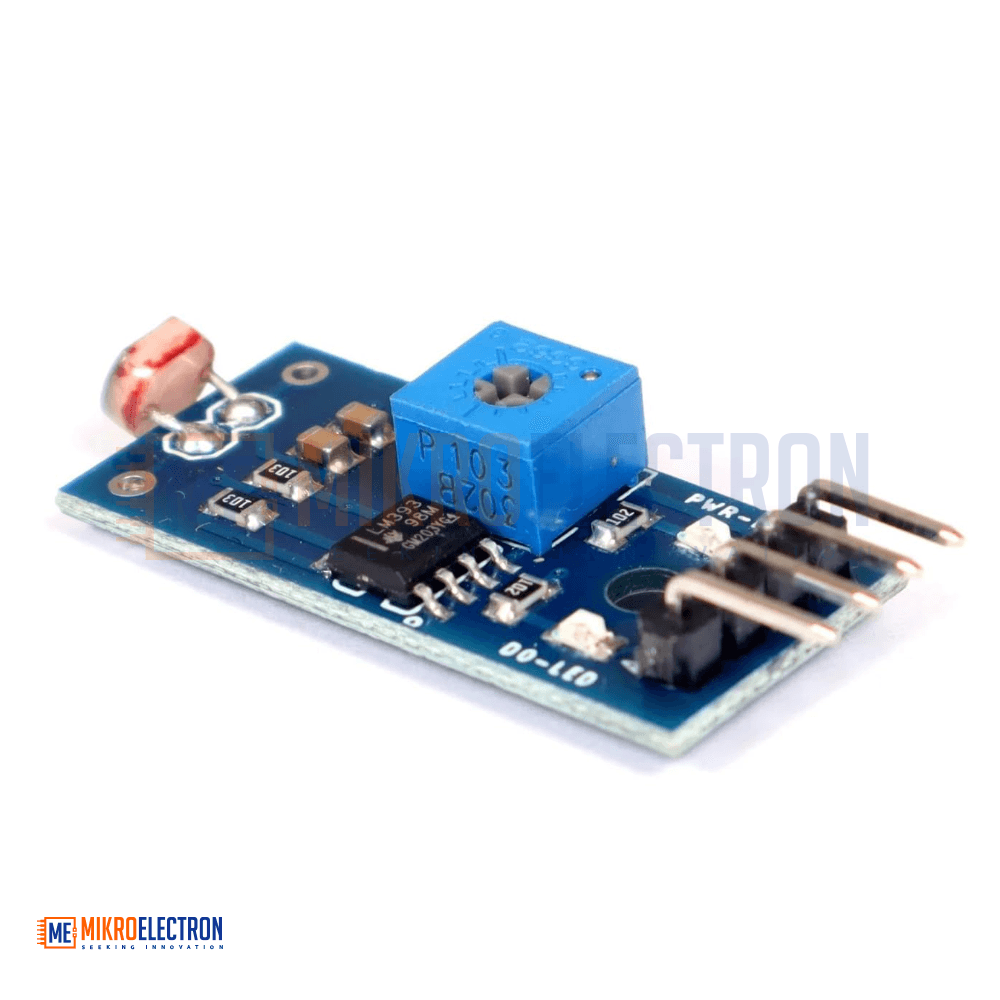

LDR Light Sensor Module

The LDR (Light Dependent Resistor) Light Sensor Module is a versatile electronic component designed to detect changes in ambient light intensity and brightness. It uses a photoresistor (LDR) whose resistance decreases when exposed to light, paired with a stable LM393 voltage comparator IC to provide accurate and reliable readings. This makes it one of the most popular sensors for light-detection projects in robotics, automation, and IoT applications.

The module offers two output types, giving users maximum flexibility. The digital output (D0) delivers a clean HIGH/LOW signal based on a user-defined light threshold, which can be adjusted using the onboard blue potentiometer. This output can directly drive a relay module, creating an effective photoelectric switch for automatic lighting or alarm systems. The analog output (A0) provides a continuous voltage proportional to the light intensity, which when connected to an ADC pin on a microcontroller, allows precise measurement of ambient light levels.

Operating on a wide 3.3V to 5V supply, this module is fully compatible with Arduino, Raspberry Pi, ESP32, ESP8266, STM32, PIC, and most other microcontroller platforms. It features a red power indicator LED and a green digital output indicator LED, providing instant visual feedback during testing and operation. Two fixed bolt holes make installation simple on enclosures, panels, or robotics frames.

With its compact PCB size of just 3 × 1.6 cm, the LDR Light Sensor Module is perfect for automatic street lights, day/night detection systems, smart home lighting, plant monitoring, line-following robots, security alarms, and educational STEM projects. Whether you are a hobbyist or a professional engineer, this module is an essential tool for any light-sensitive electronic design.

Specifications

• Sensor Type: LDR (Light Dependent Resistor) Light Sensor Module
• Main IC: LM393 Voltage Comparator
• Operating Voltage: 3.3V – 5V DC
• Output Types:
  • Digital Output (D0): HIGH / LOW (0 or 1) TTL signal
  • Analog Output (A0): Variable voltage proportional to light intensity
• Sensitivity Adjustment: Onboard blue digital potentiometer
• Indicators:
  • Red LED: Power Indicator
  • Green LED: Digital Output Indicator

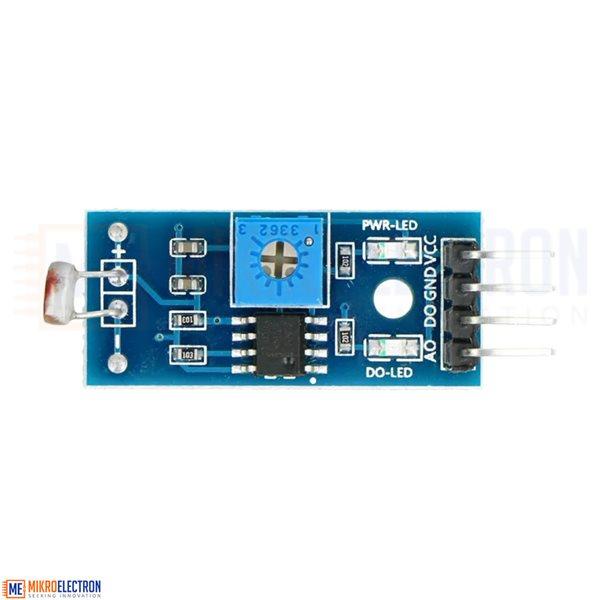

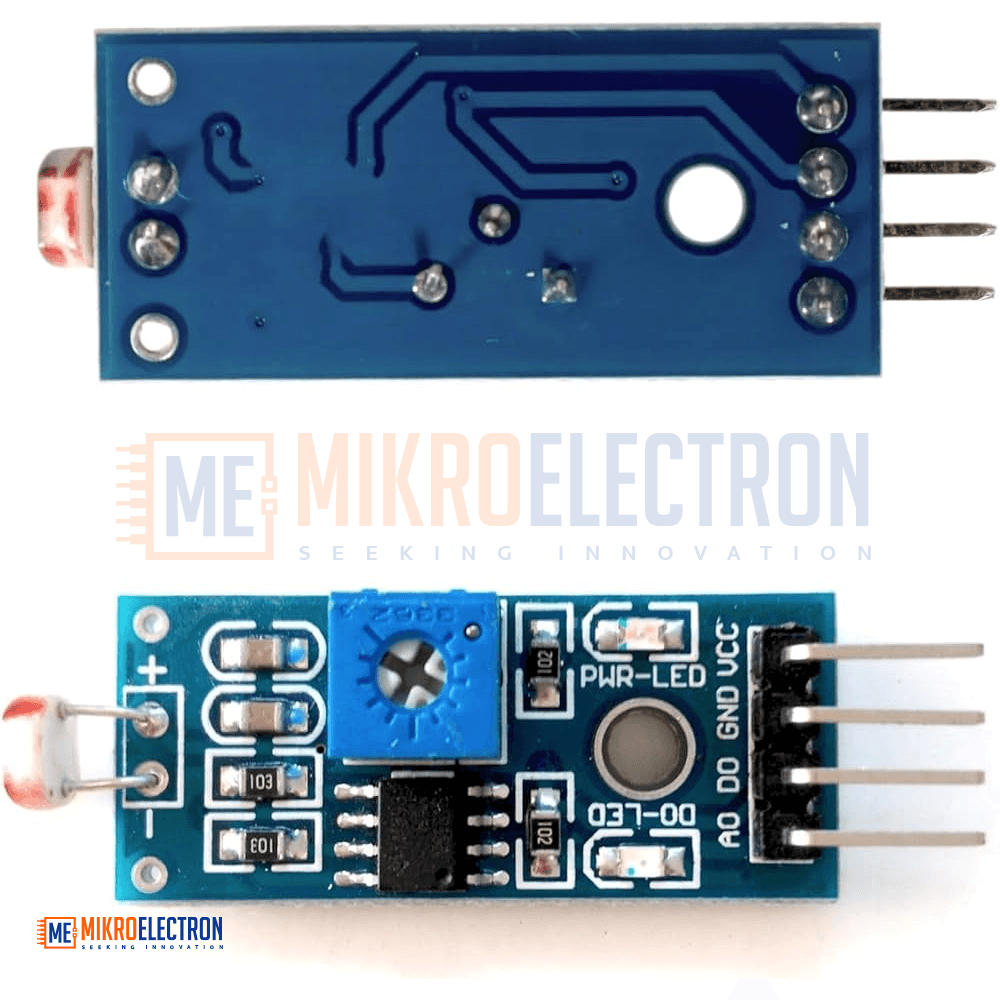

• PCB Size: 3 cm × 1.6 cm
• Mounting: Fixed bolt holes for easy installation

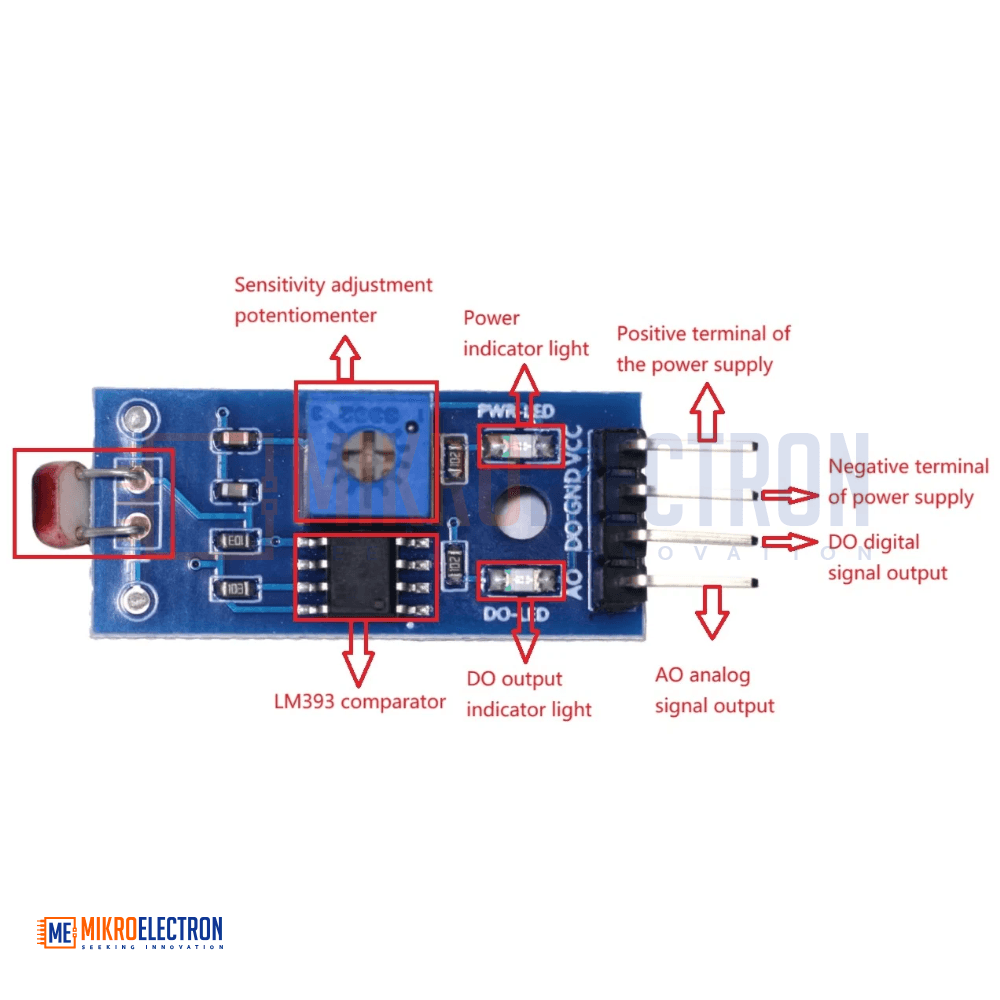

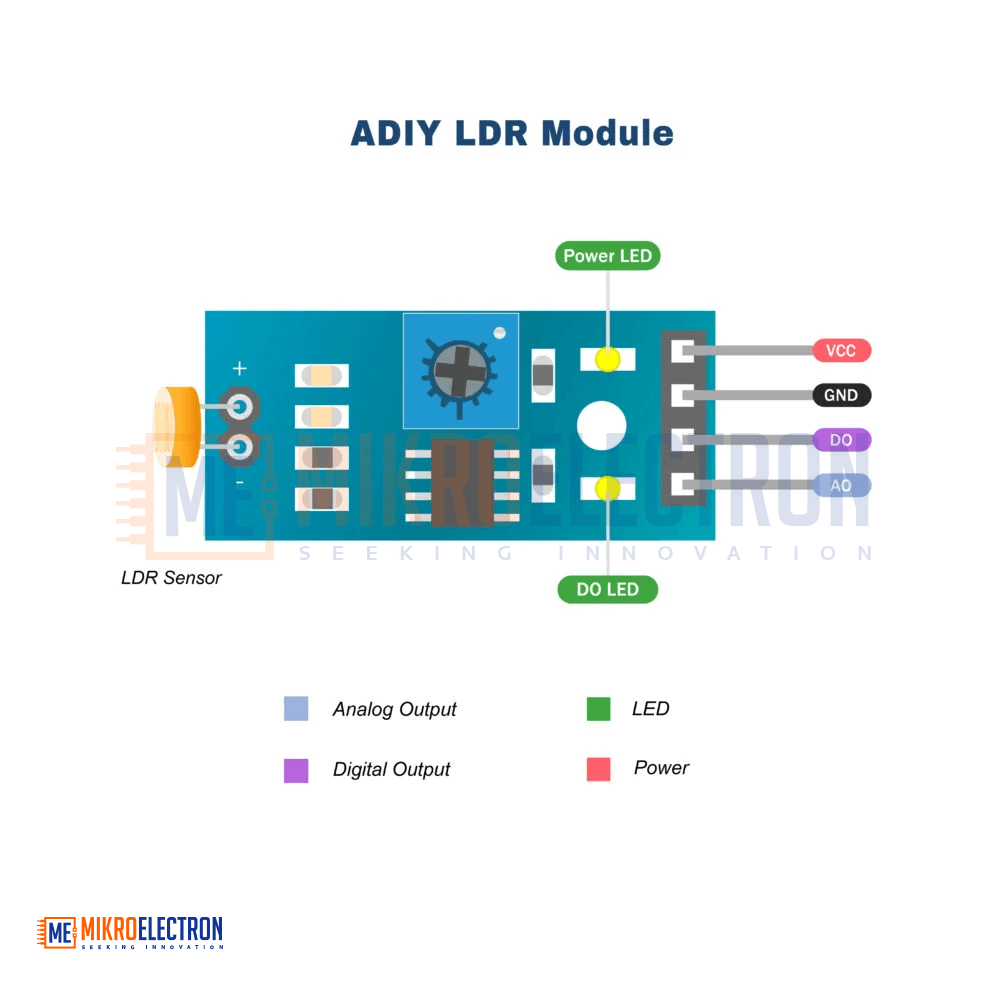

• Pin Configuration: VCC, GND, D0 (Digital Output), A0 (Analog Output)
• Comparator Output: Can directly drive a relay module
• Compatibility: Arduino, Raspberry Pi, ESP32, ESP8266, STM32, PIC, and more

Applications

• Automatic Street Lighting Systems – turn lights ON at night, OFF in daytime
• Day / Night Detection – ambient light-based switching
• Smart Home Lighting – automatic indoor lighting control
• Light-Following Robots – build robots that move toward or away from light
• Solar Tracking Systems – detect light direction for solar panels
• Plant and Greenhouse Monitoring – measure light exposure for crops
• Security Alarm Systems – detect light changes to trigger alarms
• Photoelectric Switches – combine with a relay for light-activated devices
• IoT and Smart Sensors – integrate ambient light data into IoT projects
• Educational STEM Projects – ideal for learning sensors and electronics
• Camera and Display Brightness Control – automatic backlight adjustment
