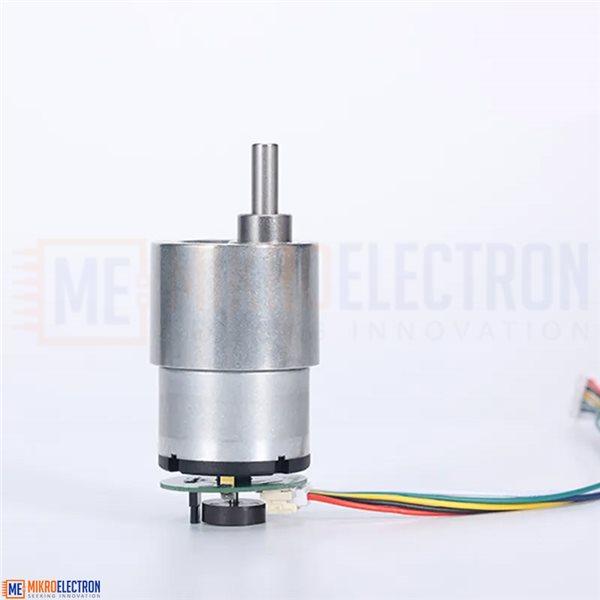

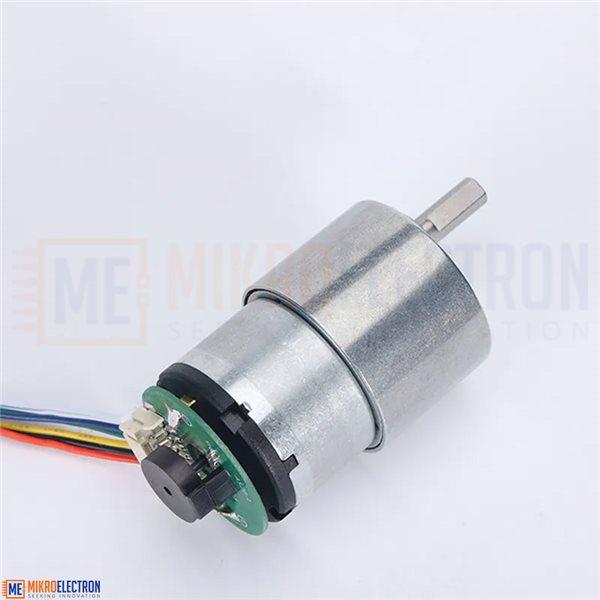

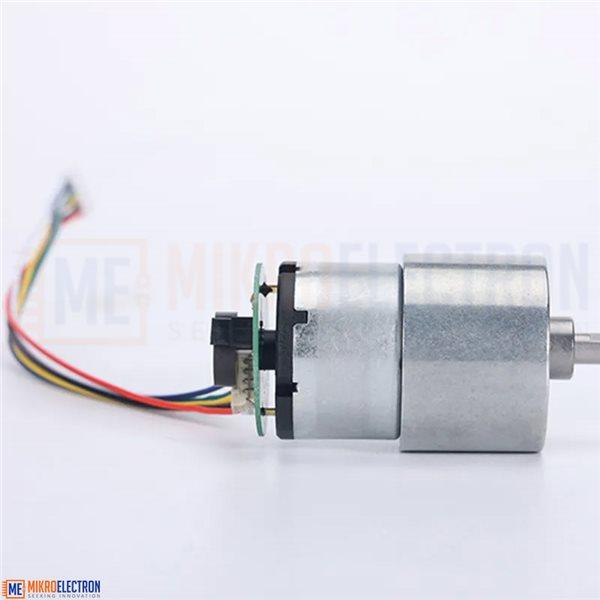

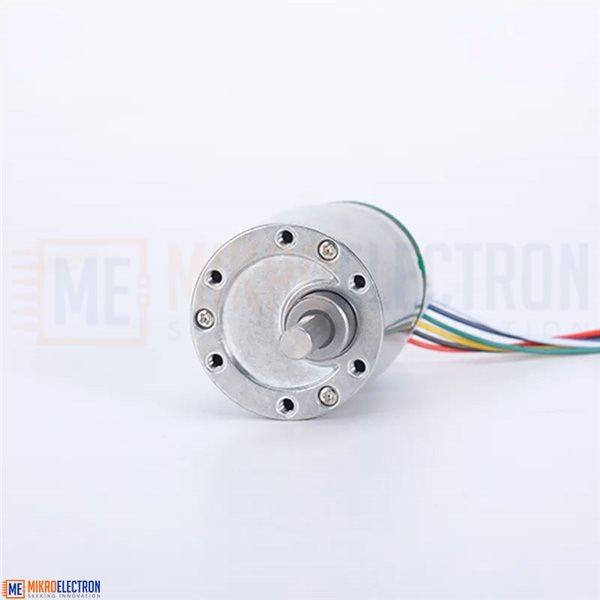

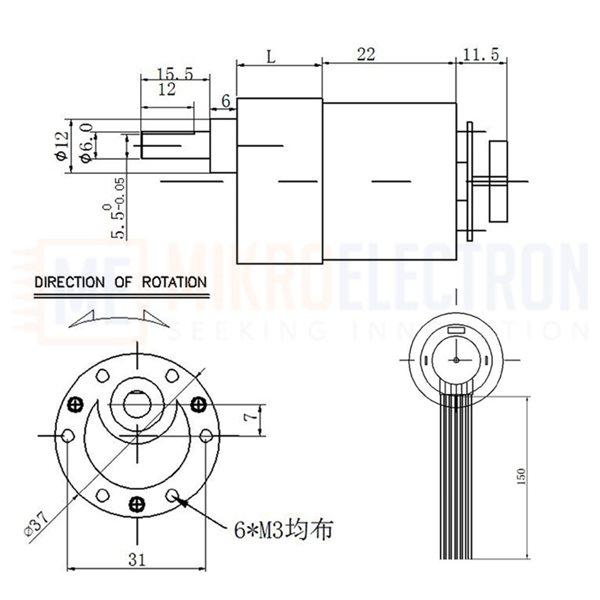

JGB37-520 12V 530RPM DC Gear Motor With Hall Encoder

DIY JGB37-520 12V 530RPM Encoder Motor Smart Car Kit

1) Red wire : power +

2) Black wire : encoder -

3) Yellow wire : signal line one

4) Green wire : encoder +

5) Blue wire : motor -

6) White wire : signal line two

7) Positive rotation of the motor connection method: red wire and green wire connected to the power supply positive, black wire and blue wire connected to the power supply negative, yellow wire and white wire are signal wire.

8) Motor reverse rotation connection method: red wire and green wire connected to the power supply negative, black wire and blue wire connected to the power supply positive, yellow wire and white wire are signal wire

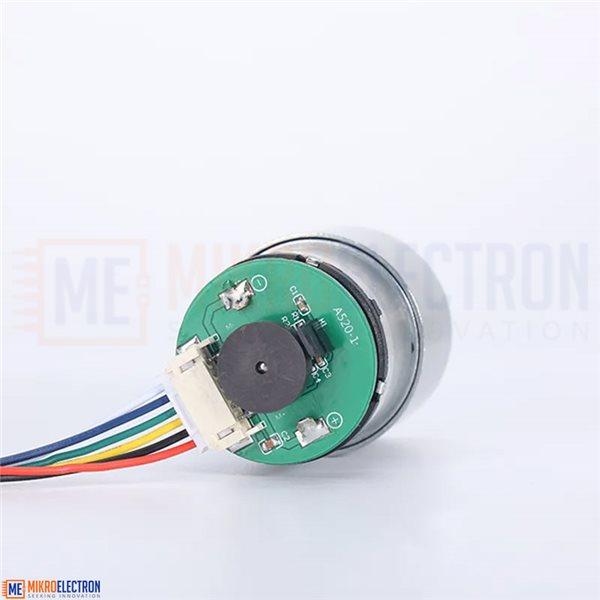

9) Only connected to the black wire, green wire, encoder lights up

10) The red wire is connected to the power supply positive, the black wire is connected to the power supply negative, the motor is rotating in the forward direction
