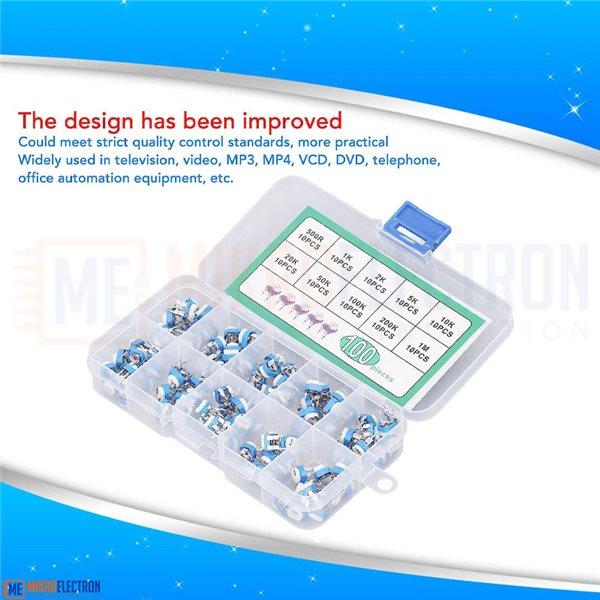

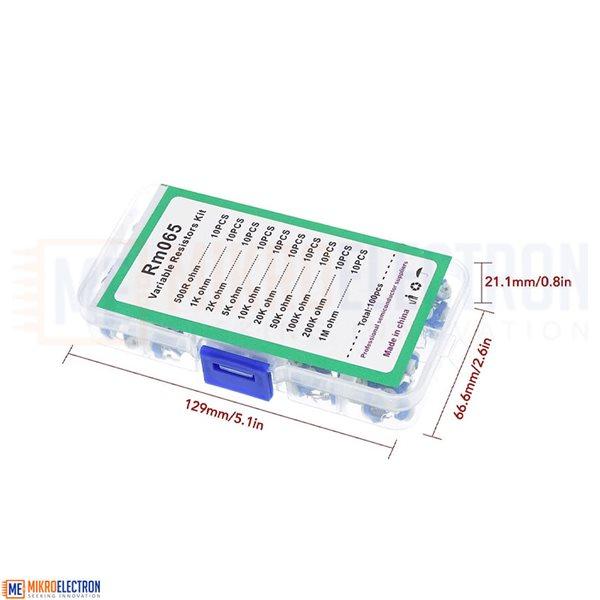

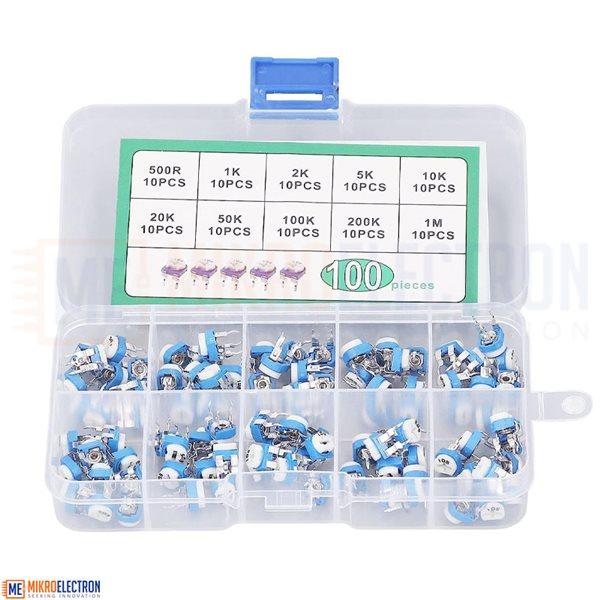

100PCS RM065 Variable Resistors Kit Trimming Potentiometers (Plastic Box）

Name: 100PCS RM065 Variable Resistors Kit Trimming Potentiometers (Plastic Box） | 100PCS, RM065, Variable, Resistors, Kit, Trimming, Potentiometers, Plastic, Box
Brand: Mikroelectron
SKU: me-9400
Price: 9.00 JOD
Availability: InStock
Rating: 5.0 (1 reviews)

5.0(1 review)

SKU: ME-9400

JD9.00

100PCS RM065 Variable Resistors Kit 500R/1K/2K/5K/10K/20K/50K/100K/200K/1MItem Type: Variable ResistorMaterial: Carbon CompositeColor: Blue WhiteRotation Angle: 200°±20°Rotation Torsion: 60-150g.cmStop Strength: >500g.cmMechanical Strength: The resistor can withstand a pressure of 1kg without breakageResistance Range (Ohms): 100R-1MResistance Deviation: ±20%Resistance Change Characteristic: BMa...

Resistors

Component Kits

100PCS RM065 Variable Resistors Kit 500R/1K/2K/5K/10K/20K/50K/100K/200K/1M

Item Type: Variable Resistor

Material: Carbon Composite

Color: Blue White

Rotation Angle: 200°±20°

Rotation Torsion: 60-150g.cm

Stop Strength: >500g.cm

Mechanical Strength: The resistor can withstand a pressure of 1kg without breakage

Resistance Range (Ohms): 100R-1M

Resistance Deviation: ±20%

Resistance Change Characteristic: B

Maximum Operating Voltage: 50V

Rated: 0.1W

Residual Resistance Value: Not exceeding 5% of the nominal resistance value, maximum not exceeding 30Ω

Rotation Life: After 100 cycles of no load rotation, the maximum change in resistance value is ±15%

Load Life: Load rated power for 3 hours, with a maximum resistance change of ±5%
