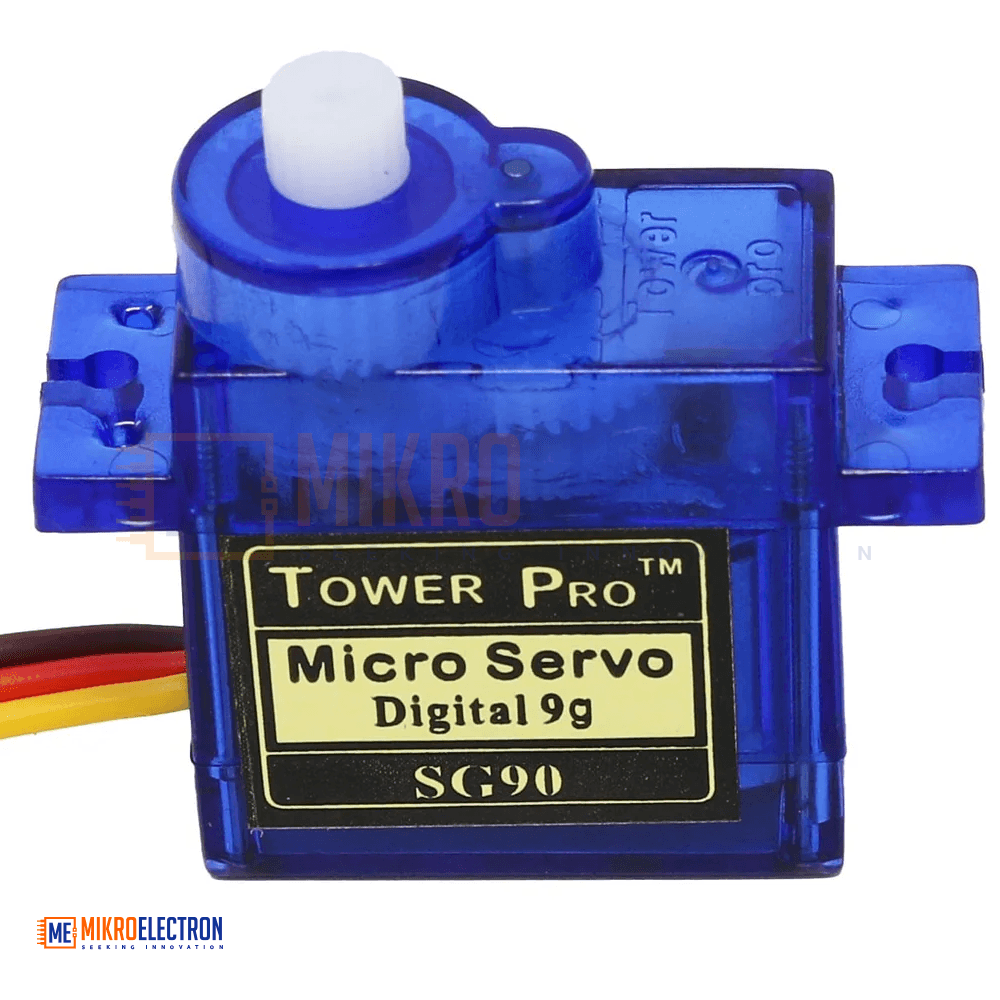

Mini Servo Motor SG90 9g Servo 360 Degree (Original Chip}
The SG90 9g Mini Servo Motor is a compact and lightweight servo designed for precise position control in robotics, RC models, and DIY electronics projects. Operating at 4.8V, it delivers a torque of 1.6 kg·cm and provides smooth rotation up to 180 degrees with a fast response time of 0.12–0.13 seconds per 60°. The servo features durable nylon gears, a universal 3-pin connector, and PWM-based control for easy interfacing with microcontrollers such as Arduino and ESP32. Its small size, low weight, and reliable performance make it ideal for applications requiring accurate angular movement.
يعد محرك السيرفو المصغر SG90 بوزن 9 جم محركًا صغير الحجم وخفيف الوزن مصممًا للتحكم الدقيق في الزوايا ضمن مشاريع الروبوتات والطائرات اللاسلكية والمشاريع الإلكترونية المختلفة. يعمل بجهد 4.8 فولت ويولد عزم دوران يصل إلى 1.6 كجم·سم، مع قدرة دوران تصل إلى 180 درجة وسرعة استجابة تتراوح بين 0.12 إلى 0.13 ثانية لكل 60 درجة. يتميز بتروس من النايلون وموصل عالمي ثلاثي الأطراف، ويعتمد على إشارات PWM للتحكم، مما يجعله سهل الاستخدام مع متحكمات مثل Arduino وESP32. يوفر أداءً موثوقًا وحجمًا صغيرًا يناسب التطبيقات التي تتطلب حركة زاوية دقيقة.
The SG90 9g Mini Servo Motor is a small and versatile actuator widely used in robotics, RC vehicles, aircraft, and educational electronics projects. It is designed to provide accurate angular positioning using a standard PWM (Pulse Width Modulation) control signal.
This servo operates at 4.8V and delivers a maximum torque of 1.6 kg·cm, making it suitable for lightweight mechanical systems. The motor uses durable nylon gears that provide smooth and reliable operation while keeping the overall weight to only 9 grams.
The SG90 responds to control pulses with a period of approximately 20 ms (50 Hz). The pulse width determines the output angle, typically ranging from 0.5 ms to 2.5 ms, corresponding to positions between 0° and 180°. This simple control method allows the servo to be easily interfaced with microcontrollers such as Arduino, ESP32, STM32, and other development platforms.
Its compact dimensions and universal connector make it easy to integrate into a wide range of applications including robotic arms, line-following robots, RC airplanes, pan-tilt camera systems, and small automation projects.
Specifications
| Parameter | Value |
|---|---|
| Product Name | SG90 Mini Servo Motor |
| Model | SG90 |
| Weight | 9 g |

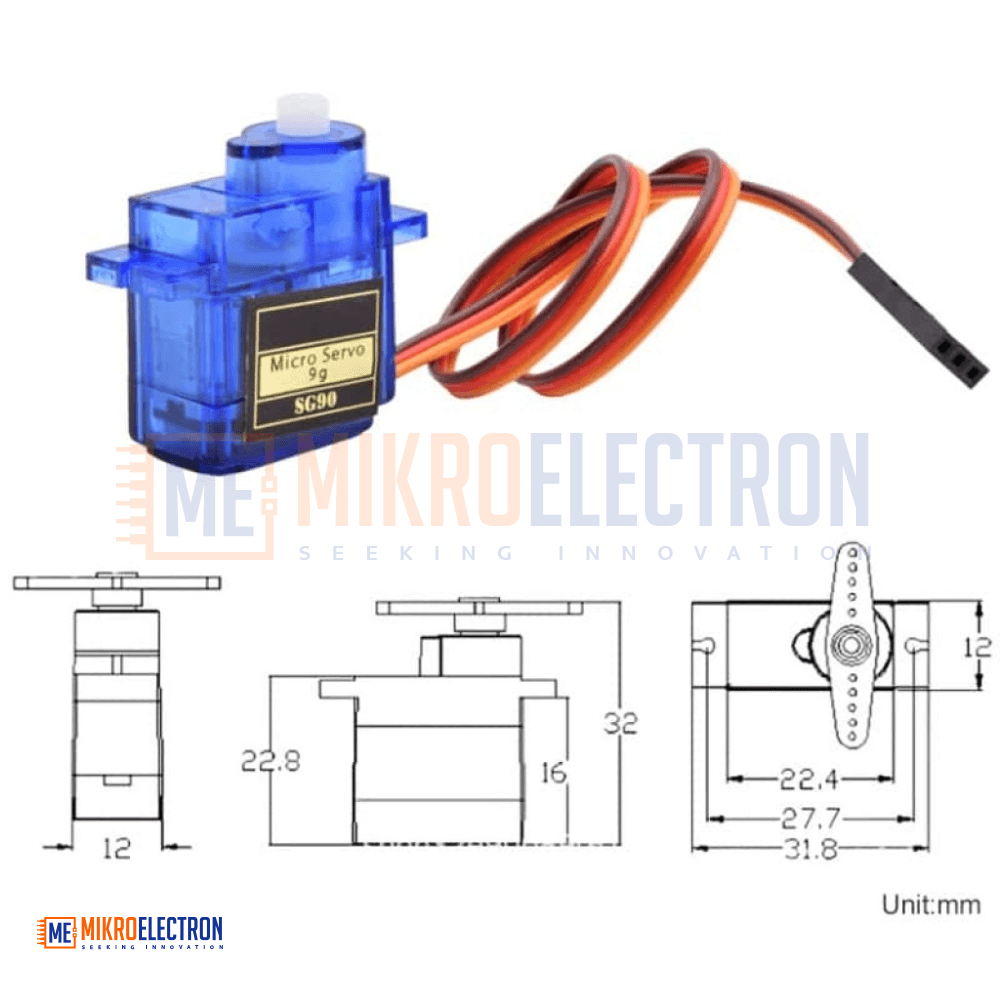

| Dimensions | 23 × 12.2 × 29 mm |
| Operating Voltage | 4.8 V DC |
| Maximum Torque | 1.6 kg·cm @ 4.8V |
| Rotation Angle | Up to 180° |
| Speed | 0.12–0.13 s / 60° @ 4.8V |
| Control Method | PWM (Pulse Width Modulation) |
| PWM Period | Approximately 20 ms (50 Hz) |
| Pulse Width Range | 0.5 ms – 2.5 ms |
| Gear Material | Nylon |
| Working Mode | Analog |
| Dead Band Width | 5 µs |
| Connector Type | Universal 3-Pin Connector |
| Operating Temperature | -30°C to +60°C |
Applications
- Robotic arms and grippers
- Line-following and obstacle-avoidance robots
- RC airplanes and helicopters
- Fixed-wing aircraft models
- Small mobile robots
- Pan-tilt camera systems
- Educational robotics kits
- DIY automation projects
- Mechanical linkages and actuators
- Model cars and boats
