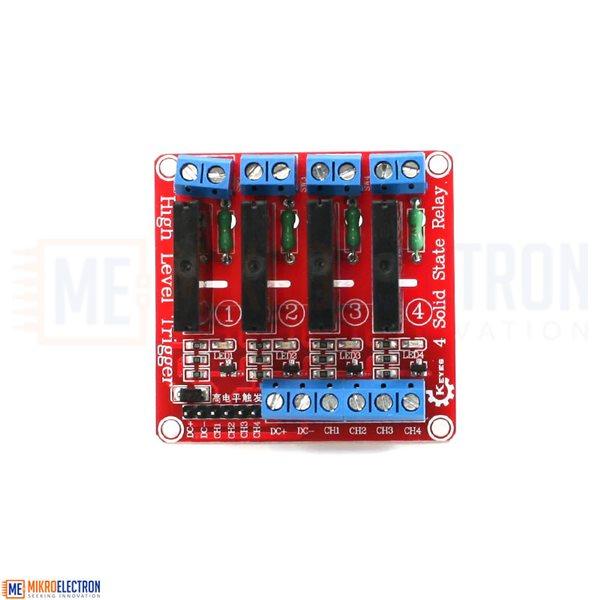

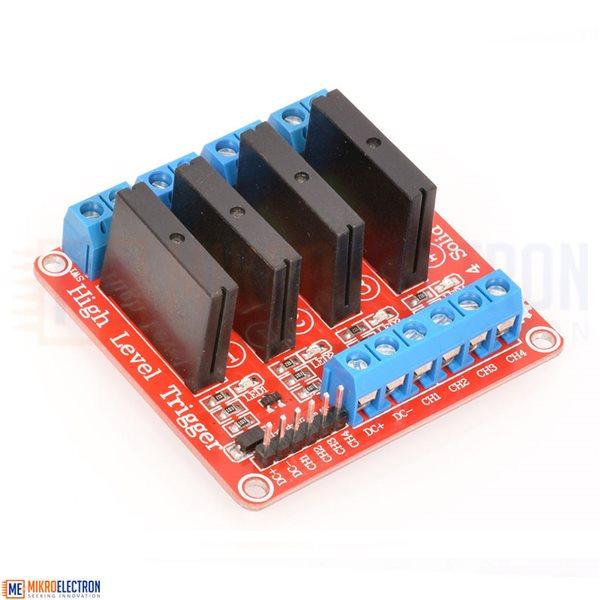

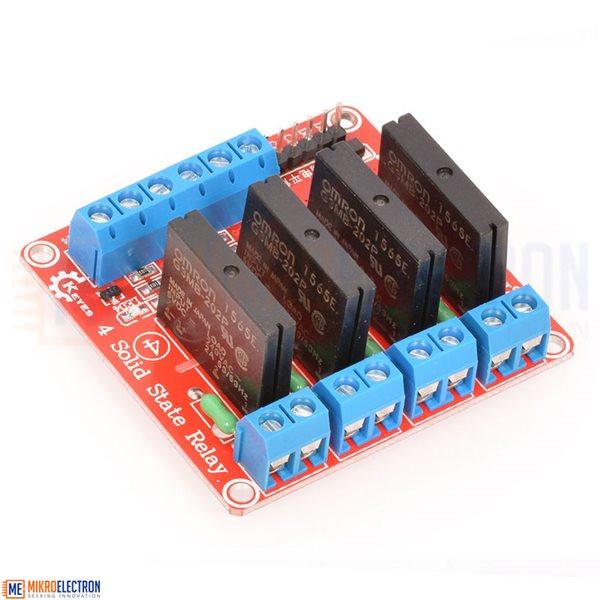

Solid State Relay Module 5v 4-Channel High Level Trigger

This module is ideally suited to controlling larger voltages with project. This is a 4 channel relay module which can be used to activate up to 240V AC. This allows you to build in device control, operating lighting or triggering systems when the module is triggered.

With the labeled screw terminals it's easy to connect.

Pin Definitions

DC+ : 5V DC Input

DC- : Ground

CH1 : Pull high to trigger relay

CH2 : Pull high to trigger relay

CH3 : Pull high to trigger relay

CH4 : Pull high to trigger relay

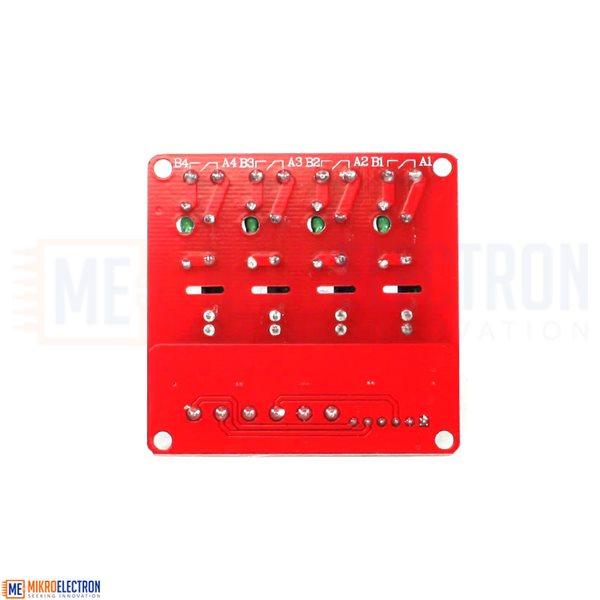

A1 : Output

B1 : Output

A2 : Output

B2 : Output

A3 : Output

B3 : Output

A4 : Output

B5 : Output
