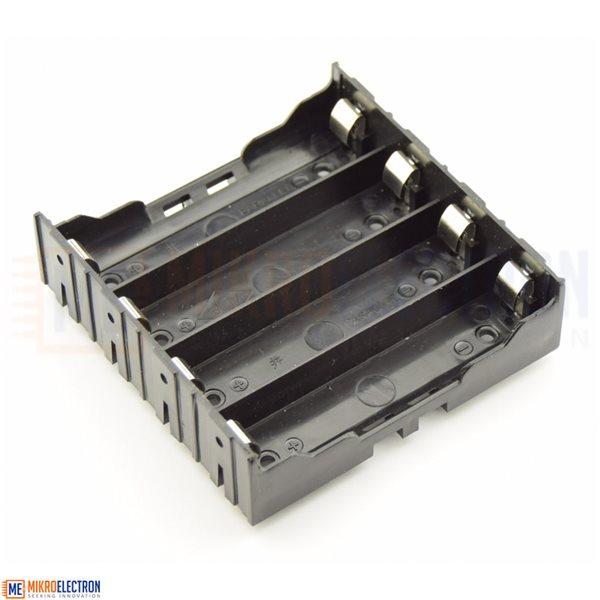

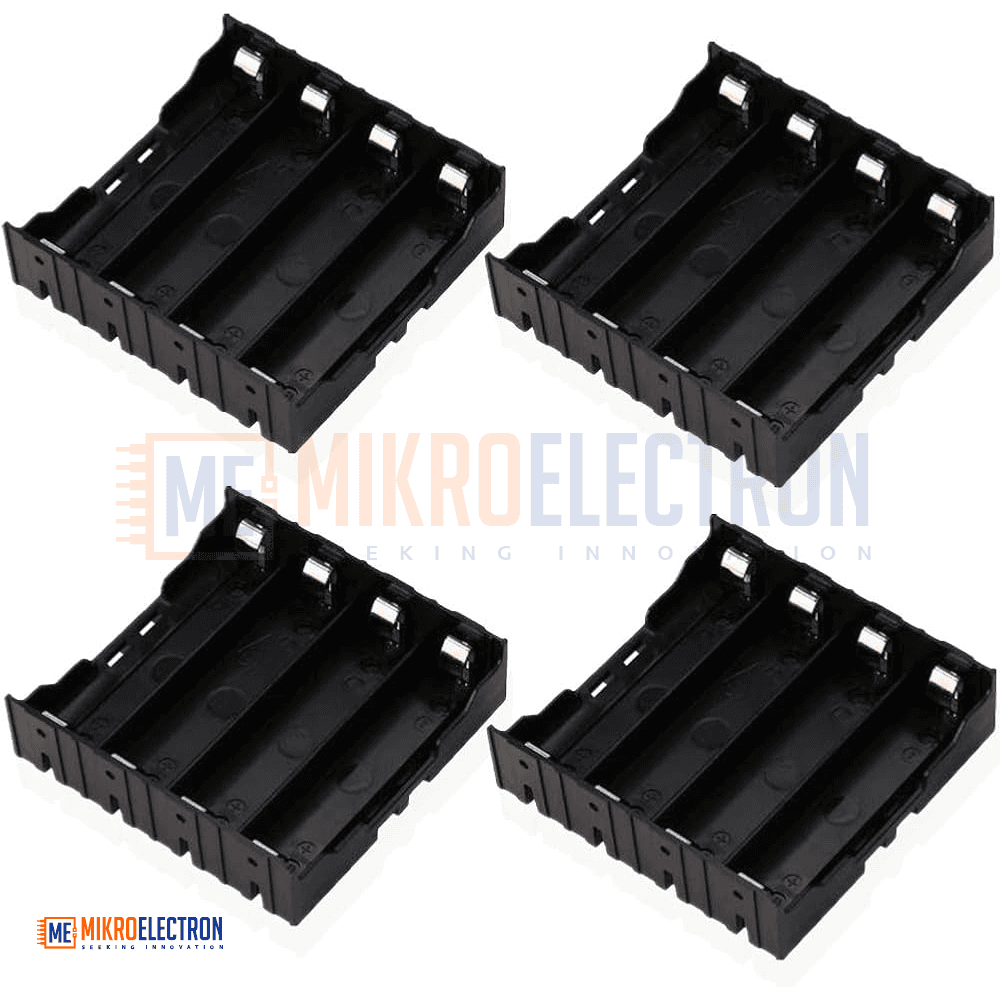

DIP PCB Battery Holder 4X18650 3.7V
DIP PCB Battery Holder 4×18650 3.7V is a durable battery holder designed to securely accommodate four 18650 lithium-ion batteries. Featuring a PCB-mountable DIP design, it enables easy integration into electronic circuits, power systems, robotics, and portable devices. The holder includes clearly marked polarity indicators for correct battery installation, sturdy steel spring contacts for reliable electrical connections, and M2.5 mounting holes for secure attachment. Its robust construction ensures stable battery retention while simplifying battery replacement and maintenance in various electronic and embedded system applications.
حامل بطاريات DIP PCB لـ 4 بطاريات 18650 بجهد 3.7 فولت هو حامل بطاريات متين مصمم لتثبيت أربع بطاريات ليثيوم 18650 بشكل آمن داخل الدوائر الإلكترونية والمشاريع المختلفة. يتميز بتصميم قابل للتركيب مباشرة على لوحة الدوائر المطبوعة (PCB)، مع علامات واضحة للأقطاب الموجبة والسالبة لضمان التركيب الصحيح. كما يحتوي على نوابض فولاذية قوية لتثبيت البطاريات بإحكام وتوفير اتصال كهربائي موثوق، بالإضافة إلى فتحات تثبيت M2.5 لسهولة التركيب في المشاريع الإلكترونية وأنظمة الطاقة المحمولة والروبوتات.
DIP PCB Battery Holder 4×18650 3.7V is a high-quality battery mounting solution designed for applications requiring multiple 18650 lithium-ion cells. The holder accommodates four batteries and provides a convenient method for integrating rechargeable power sources into electronic circuits and devices.
The DIP-style PCB mounting design allows direct installation onto printed circuit boards, reducing wiring complexity and improving assembly efficiency. Clearly marked polarity indicators help prevent incorrect battery insertion, enhancing safety and reliability during operation.
The holder utilizes durable steel spring contacts that maintain secure pressure on the batteries, ensuring stable electrical conductivity even in applications subject to vibration or movement. Integrated M2.5 mounting holes provide additional mechanical support, allowing the holder to be securely attached to enclosures, chassis, or custom assemblies.
This battery holder is ideal for portable electronics, robotics, DIY power packs, embedded systems, IoT devices, battery-powered instruments, and renewable energy projects where removable and replaceable battery configurations are required.
Specifications
Product Type
- PCB Mount Battery Holder
Battery Type
- 18650 Lithium-Ion Battery
Number of Cells
- 4 Cells
Nominal Battery Voltage
- 3.7V per Cell
Mounting Style
- DIP PCB Mount

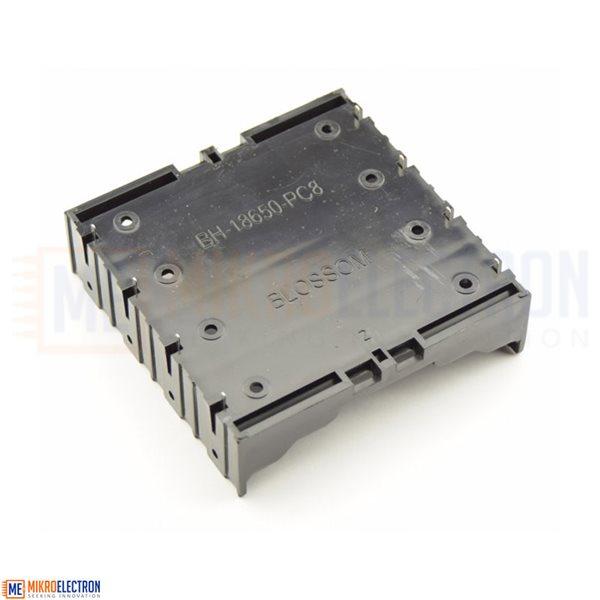

Mounting Holes
- M2.5 Screw Mounting Holes
Contact Material
- Steel Spring Contacts
Color
- Black
Polarity Marking
- Clearly Indicated Positive and Negative Terminals
Battery Retention
- Spring-Loaded Secure Holding Mechanism
Applications
- Lithium-ion battery packs
- Arduino and microcontroller projects
- Robotics systems
- Portable electronic devices
- Embedded systems
- IoT applications
- Battery-powered sensors
- DIY power banks
- Test and measurement equipment
- Renewable energy projects
- Backup power systems
- Electronic prototypes
- Educational electronics projects
- Custom battery-powered products
