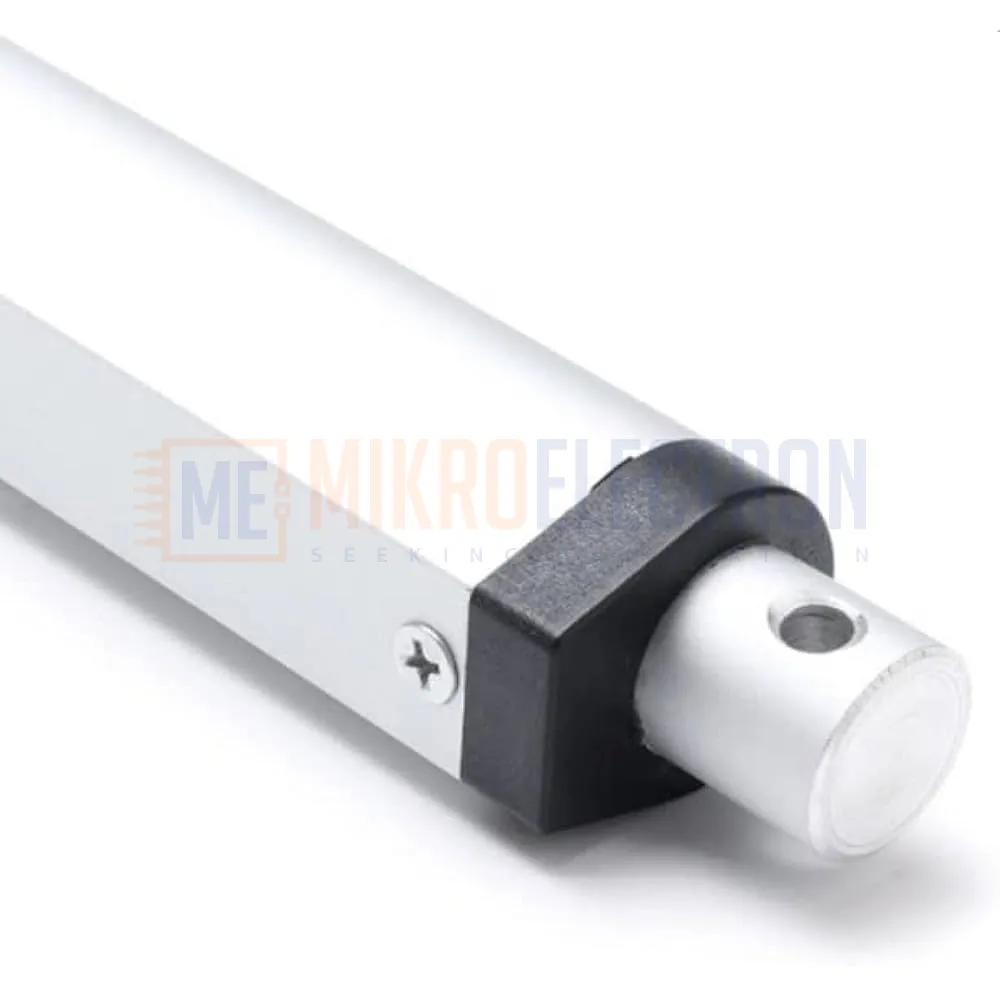

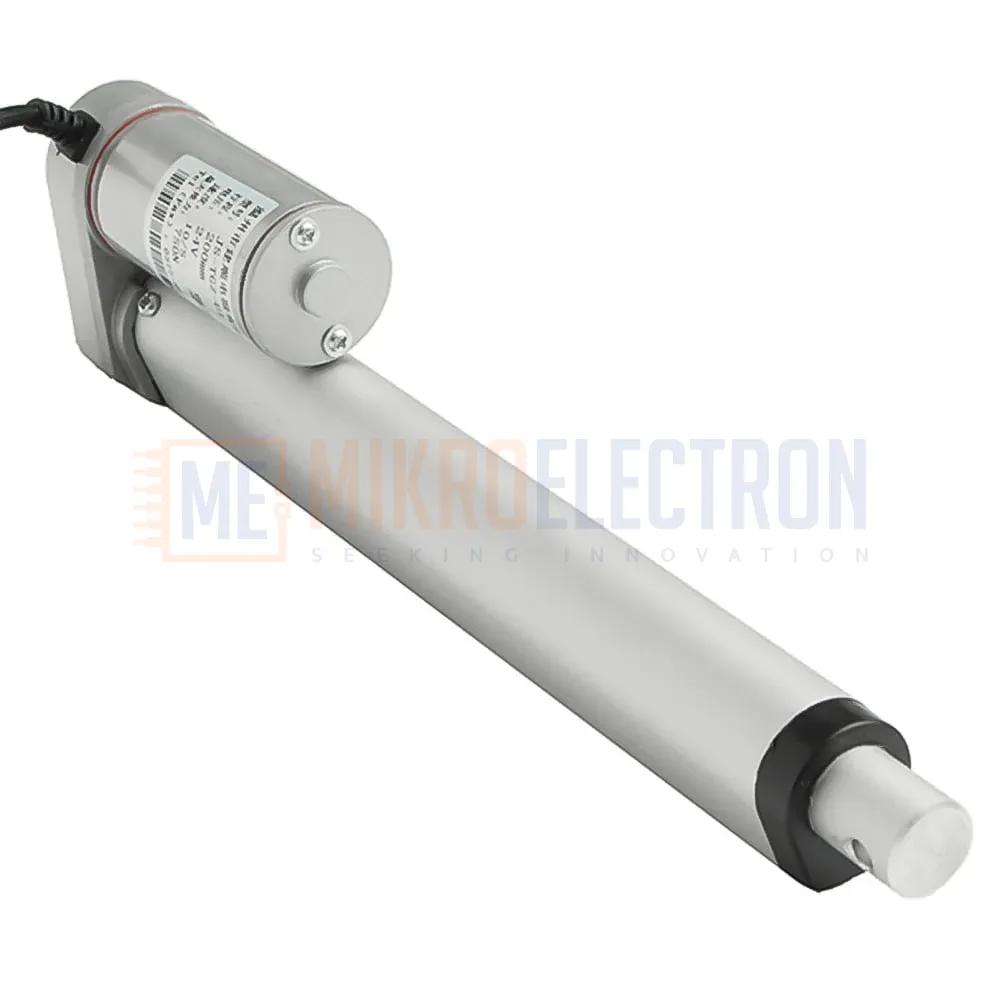

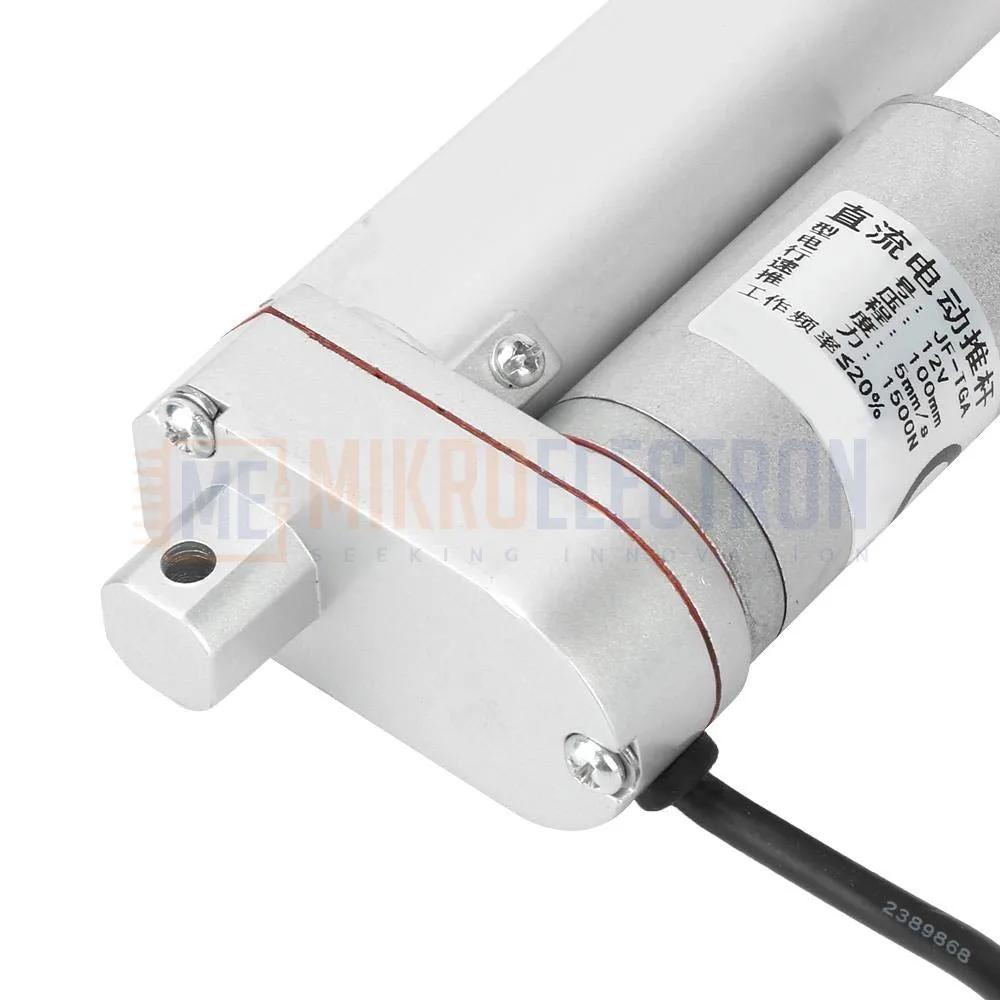

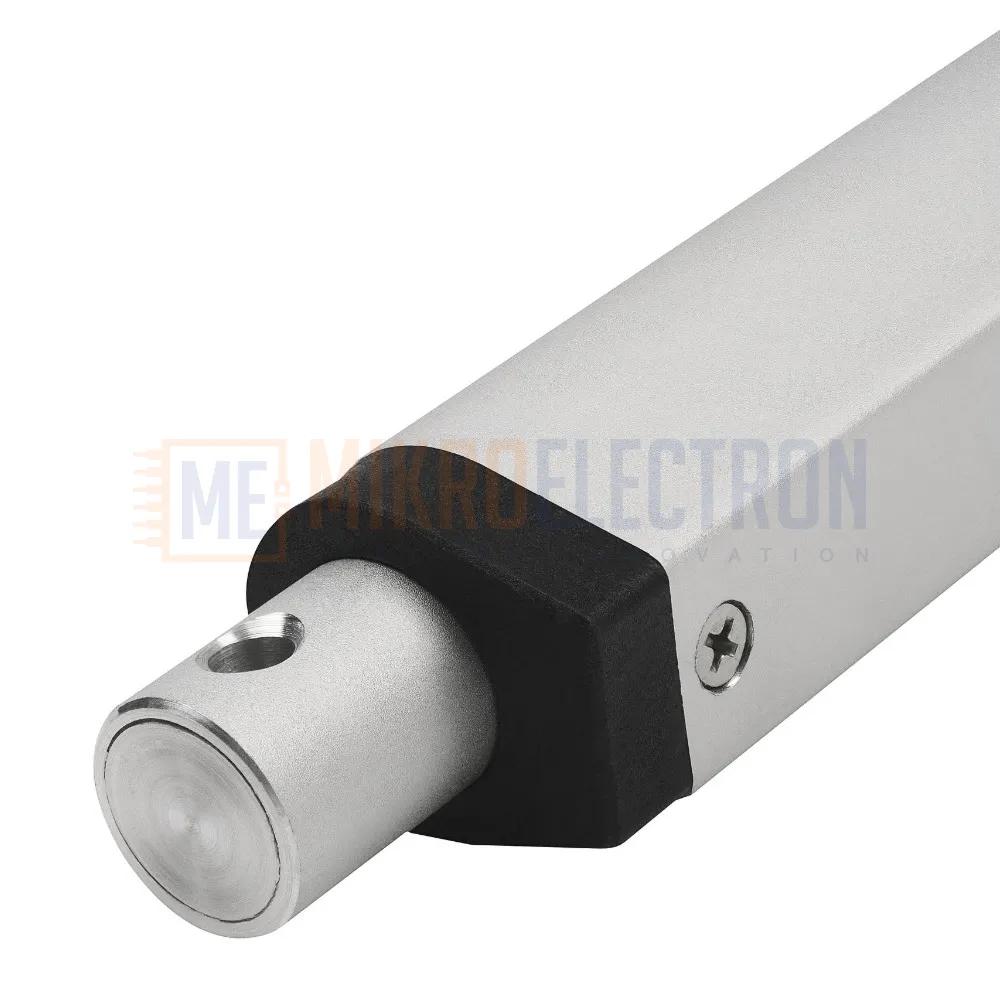

Stroke Length 100MM 7mm/S 1500N DC12V Electric Putter Electric Linear Actuator Putter for Doors /Windows
This DC12V electric linear actuator offers 100mm stroke and 7mm/s speed with a powerful 1500N thrust. Ideal for automated doors, windows, and adjustable furniture. Durable, compact, and easy to install for smooth, reliable linear motion control.
The DC12V Electric Linear Actuator with a 100mm stroke length is designed for precise and powerful linear movement in automation applications such as automatic doors, windows, adjustable furniture, and industrial equipment.
Delivering a maximum force of 1500 Newtons (N) and a movement speed of 7mm per second, this actuator ensures smooth, reliable operation with enough strength for heavy-duty tasks. It operates on a 12V DC power supply, making it compatible with a wide range of control systems, including Arduino, Raspberry Pi, and other microcontrollers.
Built with durable materials and a compact design, this actuator features easy mounting options and a weather-resistant casing, suitable for indoor and outdoor use. It is perfect for enhancing comfort, convenience, and automation in smart home projects, robotics, and industrial machinery.
Specifications:
Model: Electric Linear Actuator Putter
Stroke Length: 100mm
Speed: 7mm/s (no load)
Maximum Load/Thrust: 1500N (approx. 150 kg)
Operating Voltage: 12V DC
Current: Approx. 2.5A (load dependent)
Duty Cycle: 25% (typically 1 min ON / 3 min OFF)
Noise Level: ≤ 50dB
Protection: IP54 (dust and splash resistant)
Operating Temperature: –10°C to +50°C
Mounting: Standard brackets (included or sold separately)
Dimensions: Varies by model, approx. 300mm total length (retracted)
Weight: ~1.2 kg
