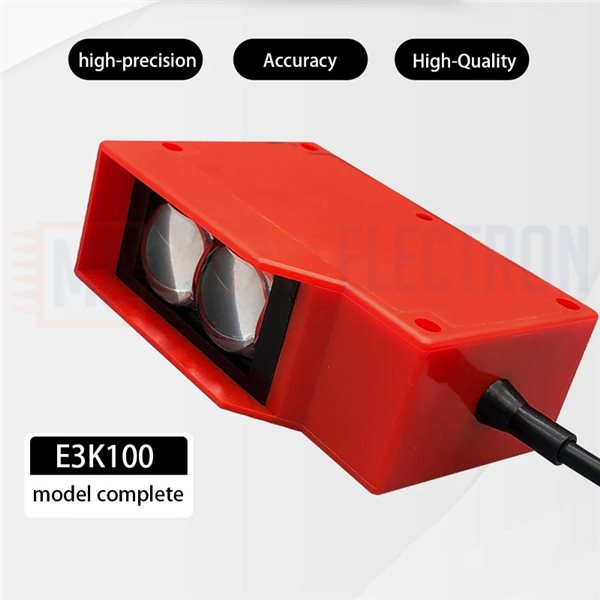

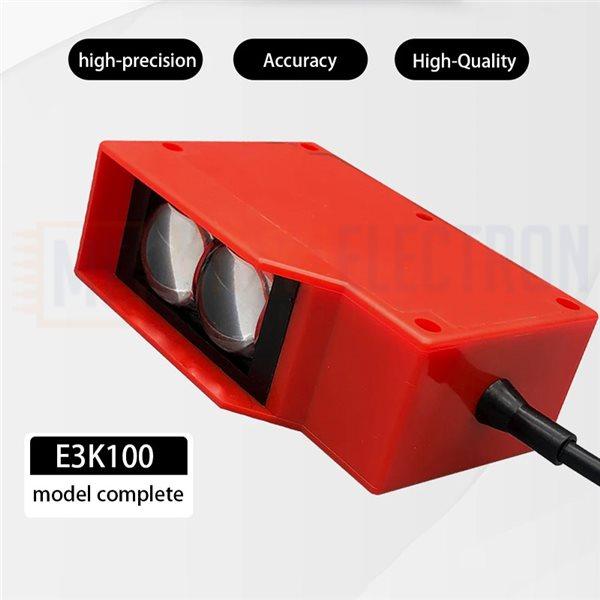

Waterproof Infrared Diffuse Reflection Adjustable Photoelectric Switch Sensor (1-7M, 24-220V)
E3K100-DS700M1 is a photoelectric switch sensor with a 7 m detection range, using diffuse reflection for object detection. It operates on 24–240 V AC/DC, offers NPN/PNP output options, and features IP65 protection. Ideal for industrial automation, packaging, and conveyor systems requiring reliable non-contact object sensing.
E3K100-DS700M1 حساس ضوئي بمدى كشف 7 م، يعمل بطريقة الانعكاس المنتشر للكشف عن الأجسام. يعمل بجهد 24–240 فولت تيار متردد أو مستمر، ويتميز بمخرجات NPN/PNP وحماية IP65. مثالي للأتمتة الصناعية وأنظمة التعبئة والنقل للكشف غير التلامسي عن الأجسام.
Waterproof Infrared Adjustable Photoelectric Switch Sensor (1-7M, 24-220V)
Overview: The Waterproof Infrared Adjustable Photoelectric Switch Sensor is a versatile and reliable sensor designed for various industrial and automation applications. This sensor utilizes infrared diffuse reflection technology to detect objects within a distance range of 1 to 7 meters, making it ideal for environments requiring precise and adjustable object detection. With its waterproof design and wide operating voltage range, it is suitable for use in challenging and diverse settings.
Key Features:

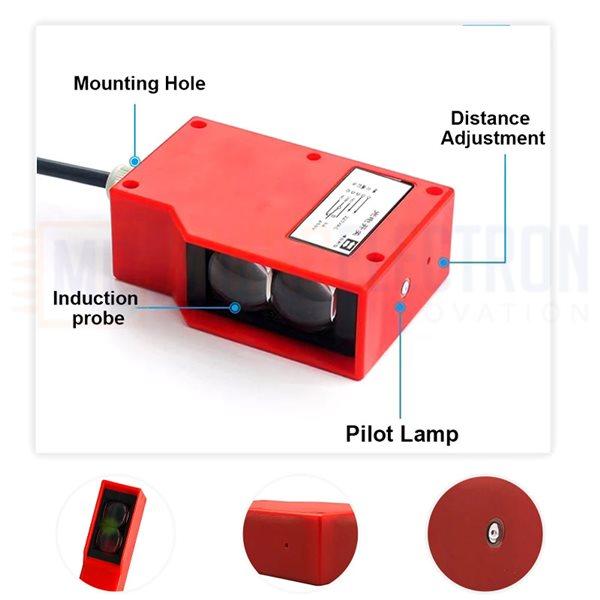

Infrared Diffuse Reflection Technology:
- Utilizes infrared light to detect objects, ensuring accurate and reliable detection.
- Adjustable detection distance from 1 to 7 meters, allowing for customization based on application requirements.
Wide Operating Voltage Range:
- Supports a broad voltage range of 24-220V, making it compatible with various power supplies.
- Ensures flexibility and ease of integration into different electrical systems.
Waterproof Design:
- IP65-rated waterproof construction, providing protection against dust and water ingress.
- Suitable for use in outdoor and harsh industrial environments.

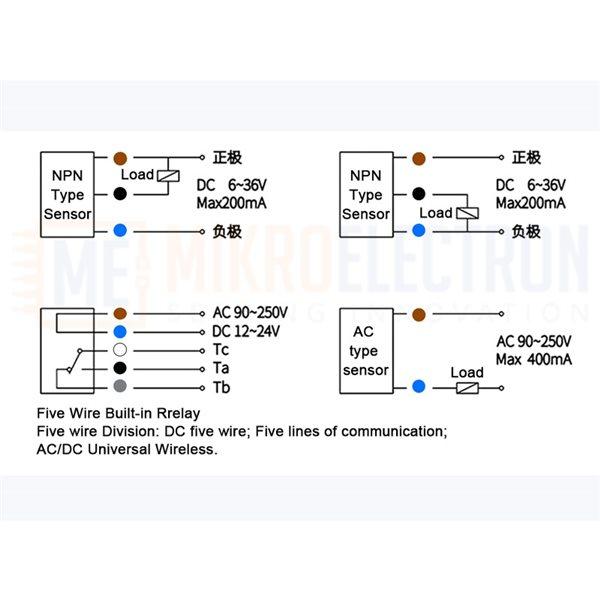

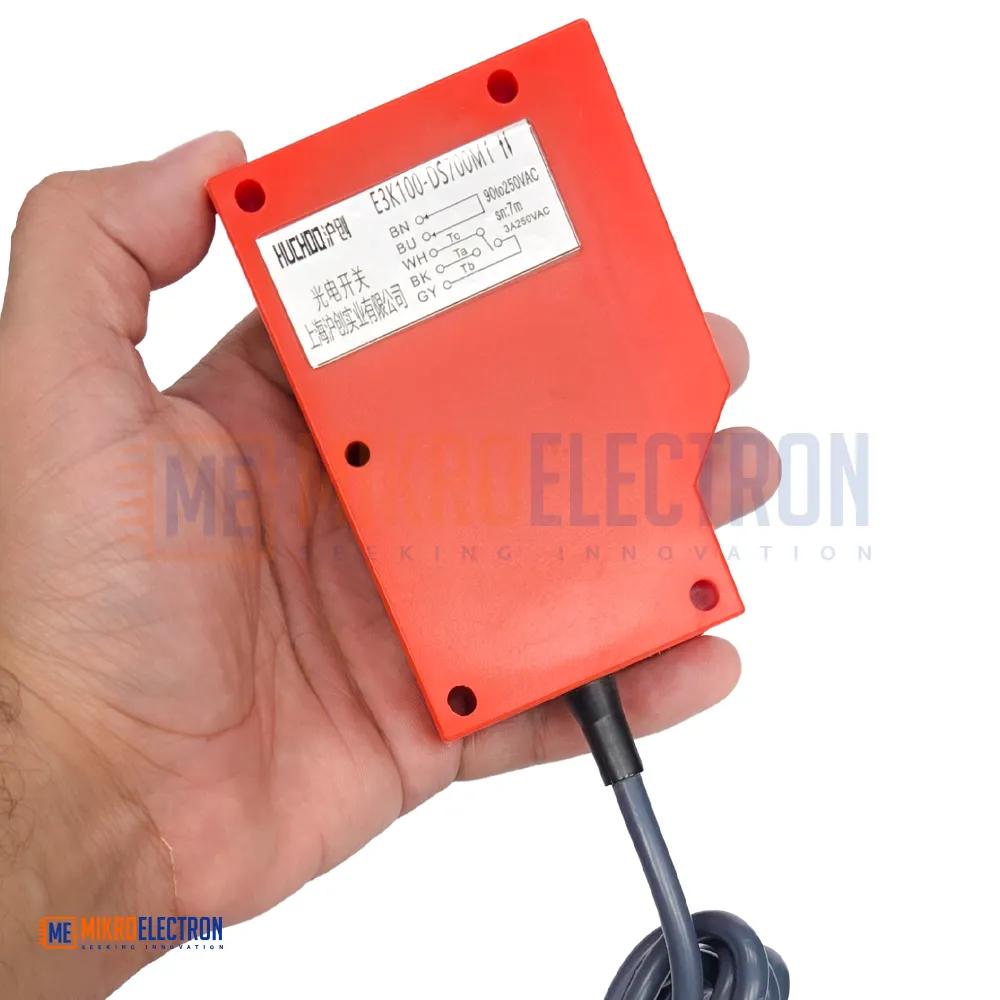

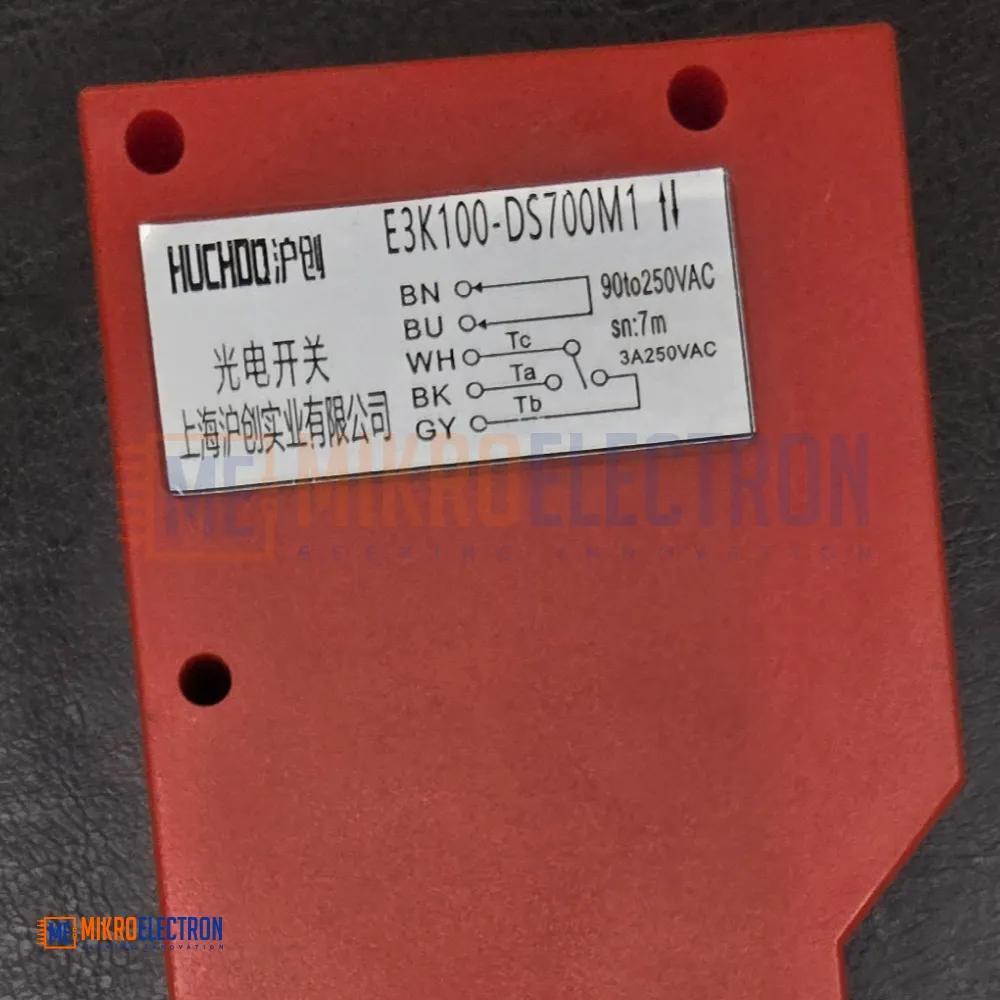

5-Wire Relay Output:
- Features a 5-wire relay output for easy connection and integration with other devices.
- Provides reliable switching and control capabilities for connected equipment.
Durable and Reliable:
- Built with high-quality materials to ensure long-lasting performance.
- Designed to withstand continuous operation in demanding conditions.
Specifications:
- Detection Method: Infrared diffuse reflection
- Detection Distance: Adjustable from 1 to 7 meters
- Operating Voltage: 24-220V AC/DC
- Output Type: Relay output (5-wire)
- Waterproof Rating: IP65

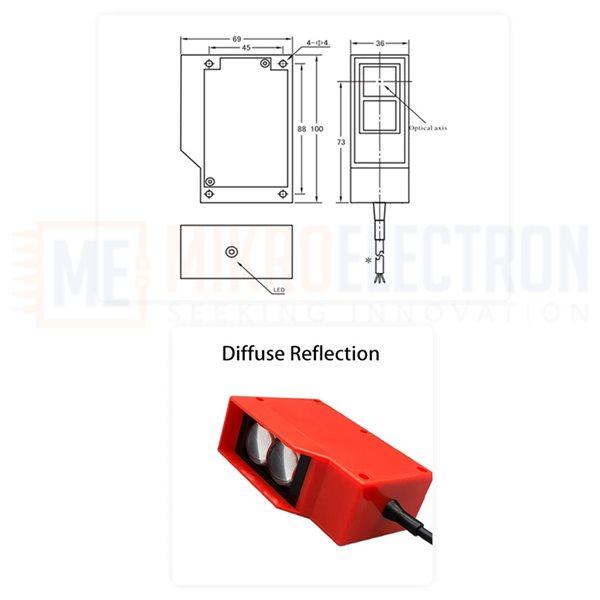

- Dimensions: Compact design for easy installation (refer to specific product dimensions)
- Cable Length: Standard length suitable for most installations (refer to specific product details)
Applications:
- Ideal for industrial automation, conveyor systems, and production line monitoring.
- Suitable for use in outdoor environments, including security systems and gate control.
- Perfect for applications requiring adjustable detection distances and reliable feedback.
- Can be used in various DIY and hobbyist projects involving object detection and control.
Parameter:
|
Model |
Diffuse Reflection |
Feedback Reflex |
Opposite Type |
|
|
Sense Distance |
E3K100-3M |
E3K100-7M |
E3K100-10M |
E3K100-15M |
|
3M |
7M |
10M |
15M |
|
|
Detected Object |
Transparent/Opaque Objects |
|||
|
Detection Range |
Adjustable Sensing Distance |
|||
|
Input Method |
Relay (can freely switch NPN, PNP, normally open, normally
closed) |
|||
|
Supply Voltage |
DC 12-24V DC | AC 24-240v AC - AC DC universal |
|||
|
Withstanding Voltage |
Within ± 15% of the rated power supply voltage range and
within ± 10%of the detection distance at rated power supply |
|||
|
Consumption Current |
Type A: below 1.7MA |
|||
|
control output |
Type A: Within 3A |
|||
|
Circuit Protection |
N. P.D type: reverse connection protection, surge
absorption, load short circuit protection, A type: surge absorption |
|||
|
Environmental Temperature/humidity |
Protection during operation: -30-+65 ℃each
(no |
|||
|
Insulation Impedance |
Above 50MQ (DC500 Megohmmeter) between |
|||
|
Shell Material |
ABS |
|||
|
Detection Surface |
PMMA |
|||
|
Protection Grade |
IP67 (IEC specification) |
|||
Conclusion: The Waterproof Infrared Adjustable Photoelectric Switch Sensor offers a reliable and versatile solution for object detection in a wide range of applications. With its adjustable detection distance, wide operating voltage range, and durable waterproof design, this sensor is ideal for both industrial and outdoor use. Whether you need precise object detection for automation systems or reliable feedback for security applications, this sensor provides the performance and flexibility you need.
