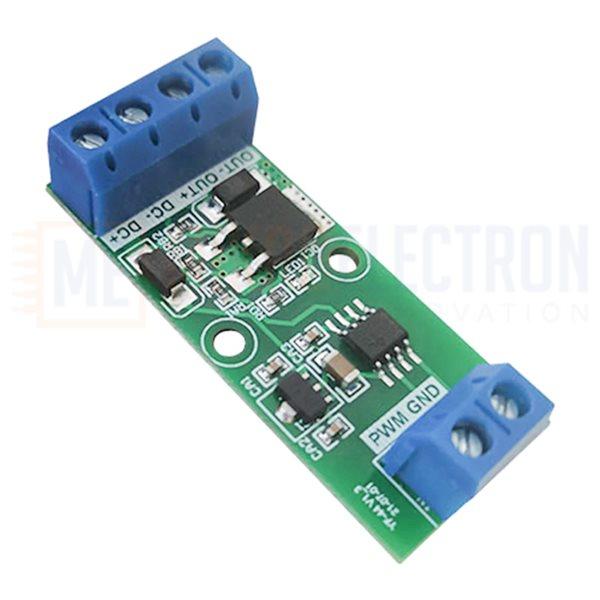

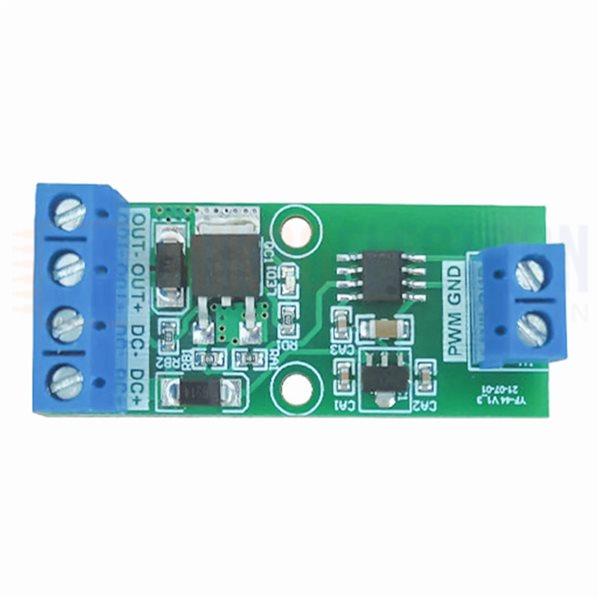

DC 5V 12V 24V PWM Signal Amplifier Module MOS Driver Board 0-30KHz Adjustable Frequency 2A YF-44 Motor Speed Control

Name: DC 5V 12V 24V PWM Signal Amplifier Module MOS Driver Board 0-30KHz Adjustable Frequency 2A YF-44 Motor Speed Control | DC speed motor driver
Brand: Mikroelectron
SKU: me-9965
Price: 10.00 JOD
Availability: InStock
Rating: 5.0 (1 reviews)

5.0(1 review)

SKU: ME-9965

JD10.00

It is a DC 5V 12V 24V PWM Signal Amplifier Module MOS Driver 0-30KHz Adjustable Frequency, mainly used in high frequency work, the weak PWM signal, amplify voltage and current.Parameter:Product name: PWM Signal Amplifier ModuleModel: YF-44Input voltage: DC 5-27VInput current: 2ASignal voltage: 3-5VPWM frequency: within 30K (limit is 150K)Work Temperature: -25℃~85℃Work Humidity: 5%~95%RHSize:50*21m...

Drivers & Control Boards

Controllers

Interface Modules

It is a DC 5V 12V 24V PWM Signal Amplifier Module MOS Driver 0-30KHz Adjustable Frequency, mainly used in high frequency work, the weak PWM signal, amplify voltage and current.

Parameter:

Product name: PWM Signal Amplifier Module

Model: YF-44

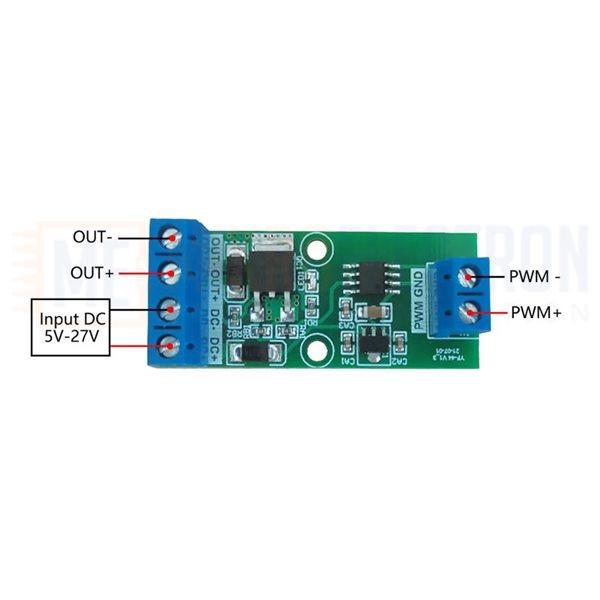

Input voltage: DC 5-27V

Input current: 2A

Signal voltage: 3-5V

PWM frequency: within 30K (limit is 150K)

Work Temperature: -25℃~85℃

Work Humidity: 5%~95%RH

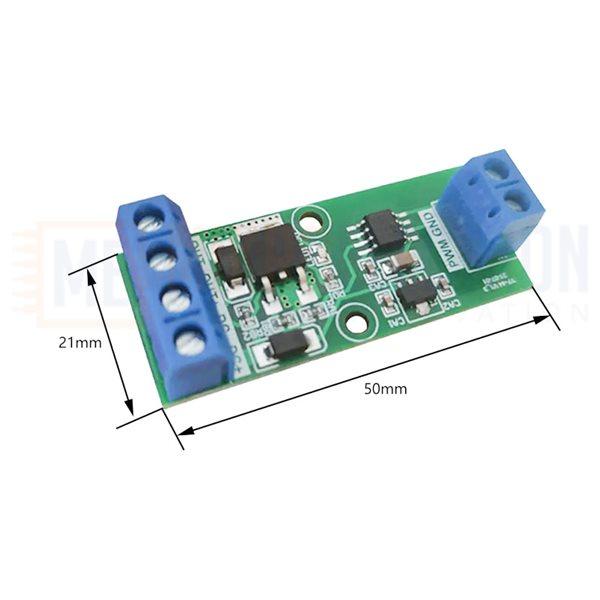

Size:50*21mm

Application:

Apply teaching equipment and Internet industry, electronic engineering, vehicle maintenance and repair test, etc. The output terminal can control high power devices, motors, light bulbs, LED lamp belt, DC motor, micro pump, solenoid valve, etc, and can input PWM, control motor speed, the brightness of the lamp, etc.
