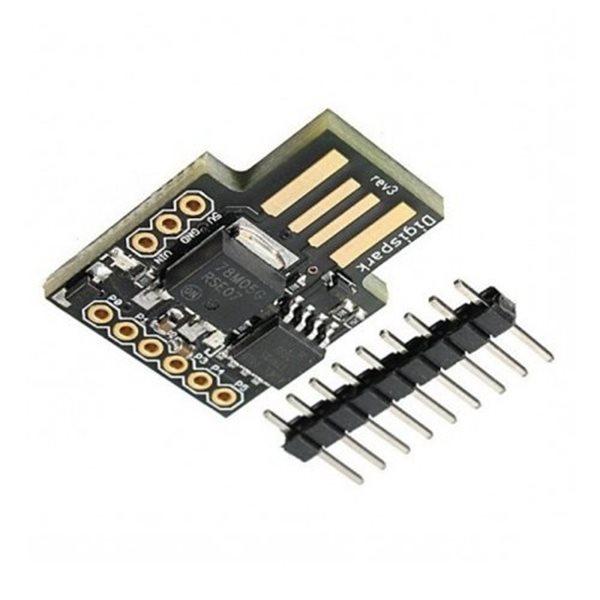

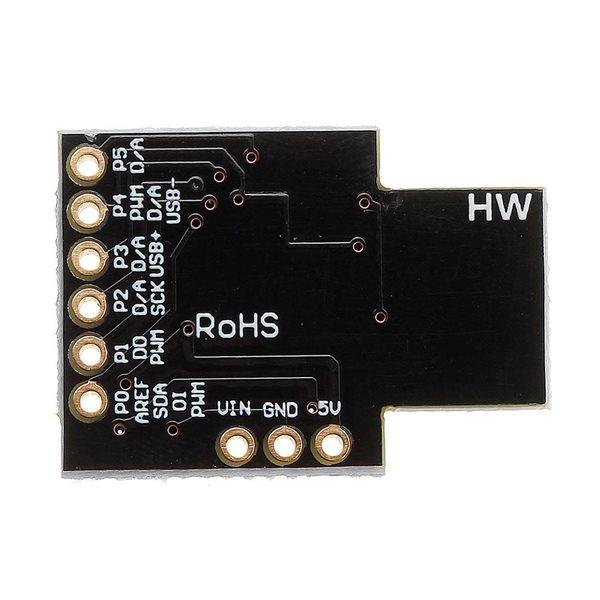

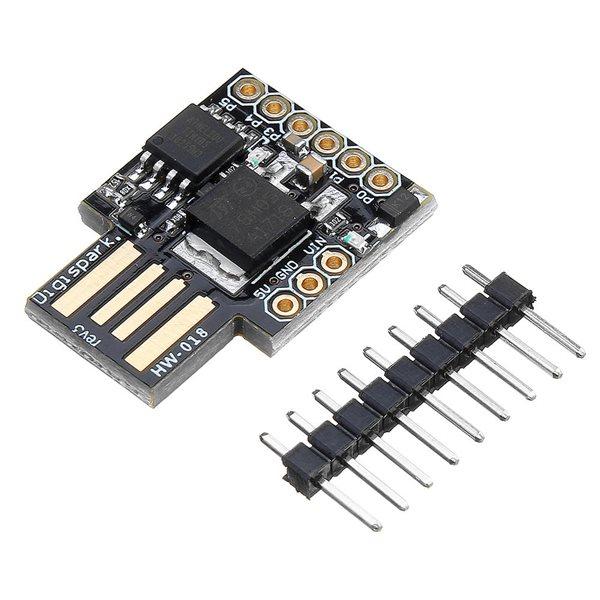

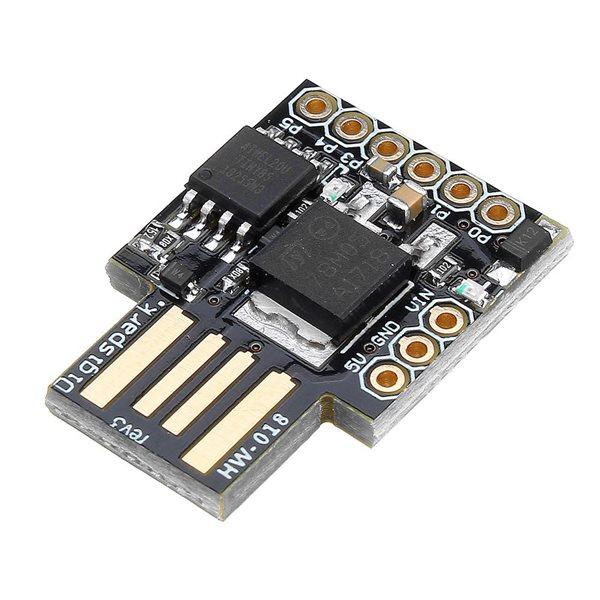

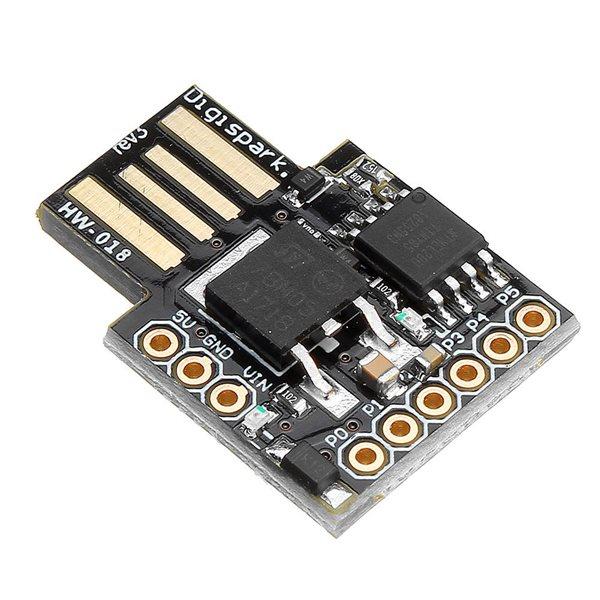

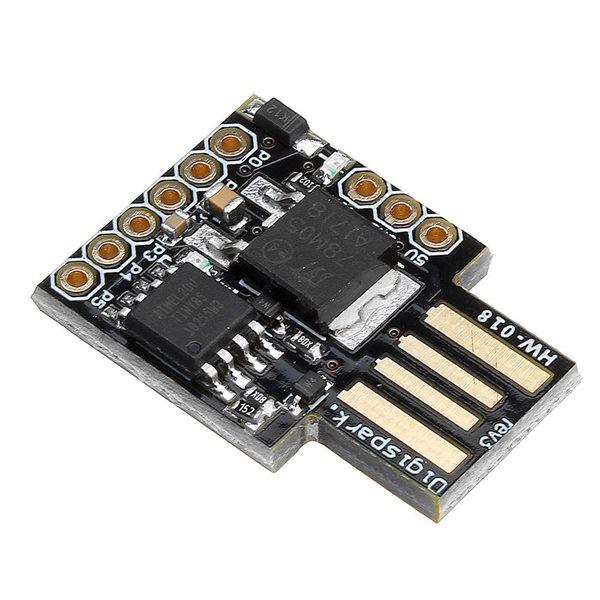

Micro Usb Development Board For ATTINY85

Name: Micro Usb Development Board For ATTINY85 | Micro, Usb, Development, Board, For, ATTINY85
Brand: Mikroelectron
SKU: me-5844
Price: 6.00 JOD
Availability: InStock
Rating: 5.0 (1 reviews)

5.0(1 review)

SKU: ME-5844

JD6.00JD7.00

Support for the IDE 1.0+ (OSX / Win / Linux)Power via USB or External Source - 5V or 7 -35V (automatic selection)On-board 500ma 5V RegulatorBuilt-in USB(and serial debugging)6 I/O Pins (2 are used for USB only if your program actively communicates over USB otherwise you can use all 6 even if you are programming via USB)8k Flash Memory (about 6K after bootloader)I2C and SPI(vis USI)PWM on 3 pins (m...

Arduino Integrated Boards

Atmel

Support for the IDE 1.0+ (OSX / Win / Linux)

Power via USB or External Source - 5V or 7 -35V (automatic selection)

On-board 500ma 5V Regulator

Built-in USB(and serial debugging)

6 I/O Pins (2 are used for USB only if your program actively communicates over USB otherwise you can use all 6 even if you are programming via USB)

8k Flash Memory (about 6K after bootloader)

I2C and SPI(vis USI)

PWM on 3 pins (more possible with Software PWM)

ADC on 4 pins

Power LED and Test/ Status LED (on Pin0)

Weight: 4g
