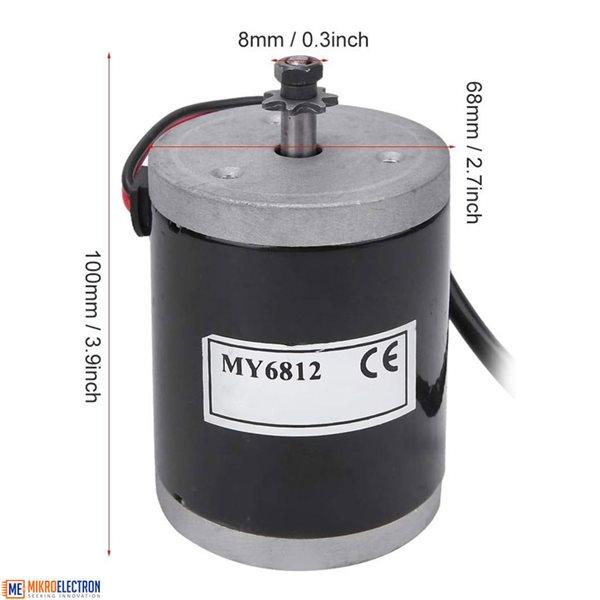

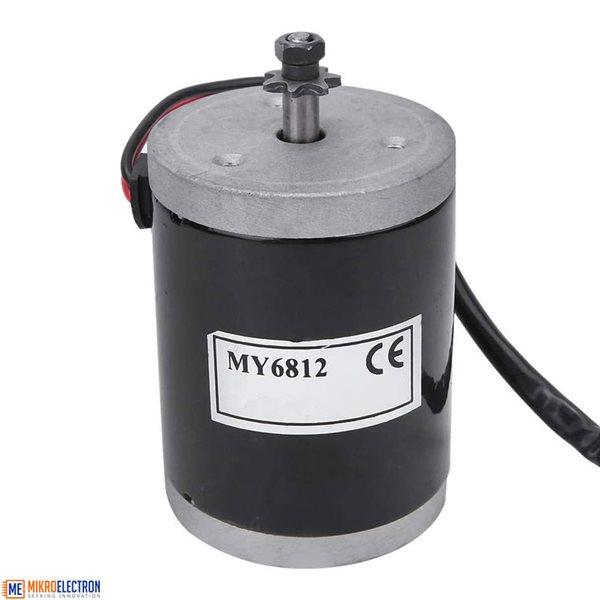

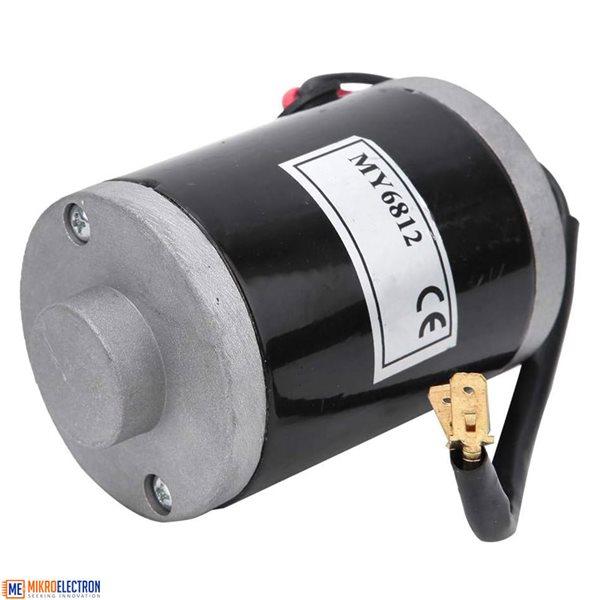

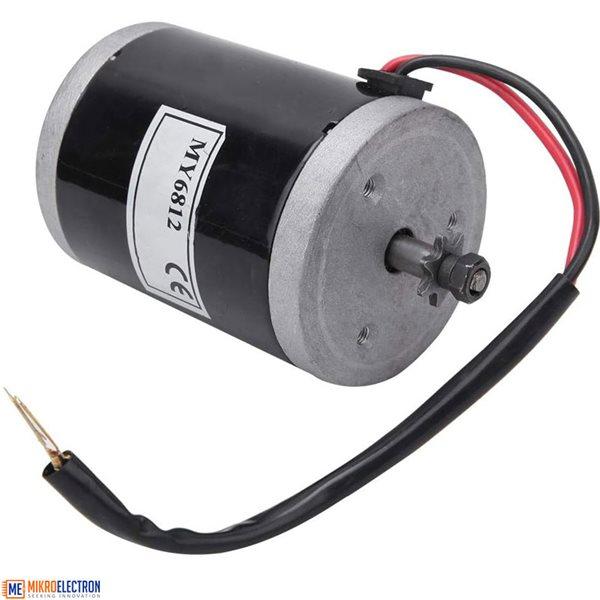

MY6812 150W 24V DC Brushed Motor Support Chain
5.0(1 review)
JD33.00
MY6812 150W DC high speed brush motor for electric tricycle, Electric Scooter motor, gear/pulley optional Performance data:power output :150 W / 24 Vrated current : < 8,5 Arated speed (rpm) :2500 +/- 5 %max. speed (rpm) :3500 +/- 5 %current without load : < 0,9 Arated torque :0,56 Nmtransmission :belt pulley , metalshaft diameter :8 mm (m...
MY6812 150W DC high speed brush motor for electric tricycle, Electric Scooter motor, gear/pulley optional
Performance data:
power output :150 W / 24 V
rated current : < 8,5 A
rated speed (rpm) :2500 +/- 5 %
max. speed (rpm) :3500 +/- 5 %
current without load : < 0,9 A
rated torque :0,56 Nm
transmission :belt pulley , metal

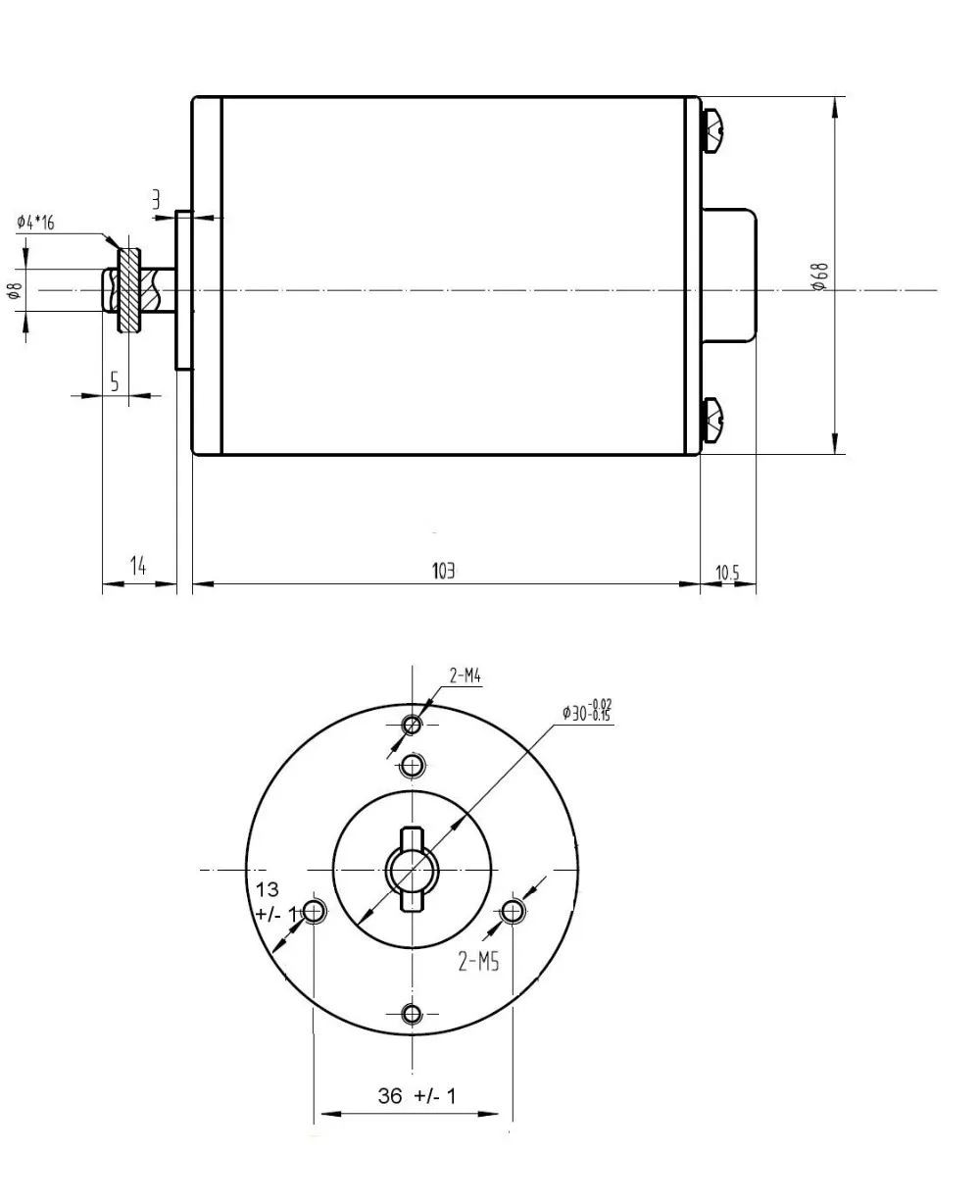

shaft diameter :8 mm (milled groove one-sided 1 mm)
efficiency : > 68%
