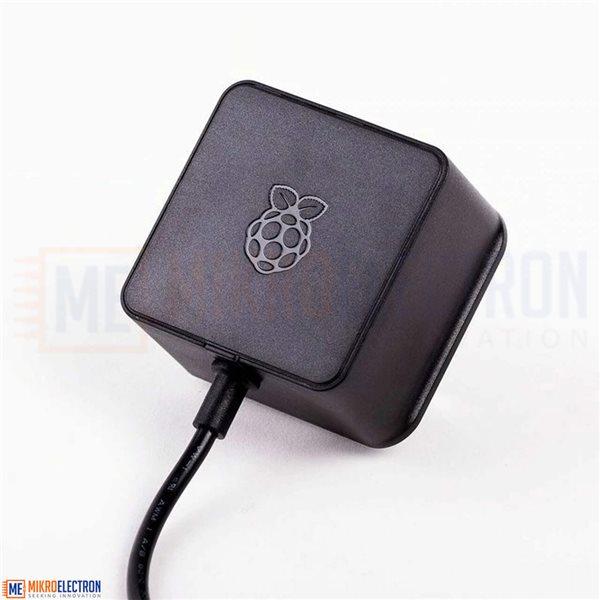

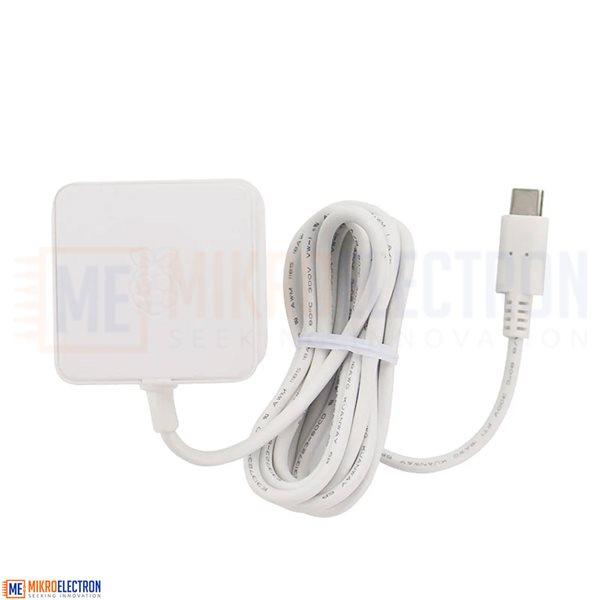

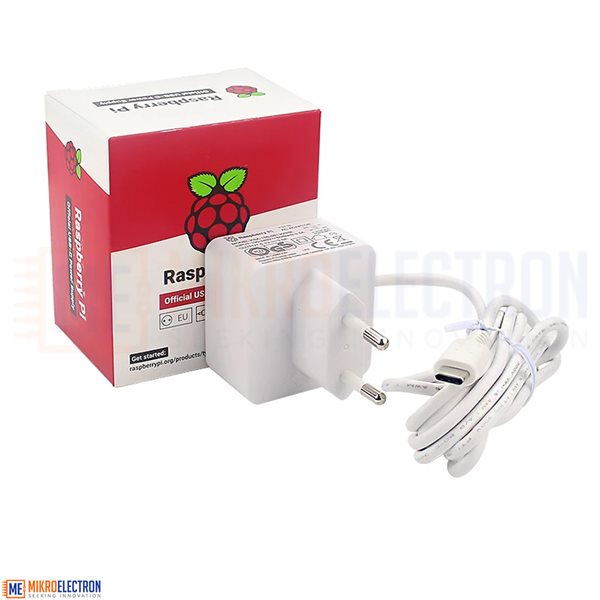

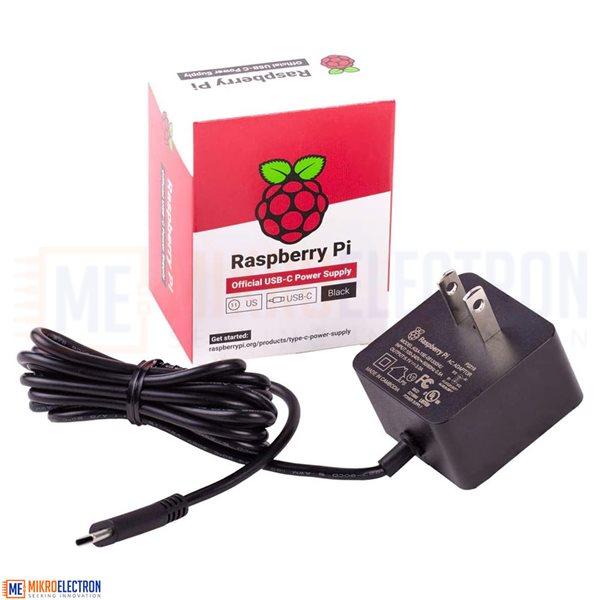

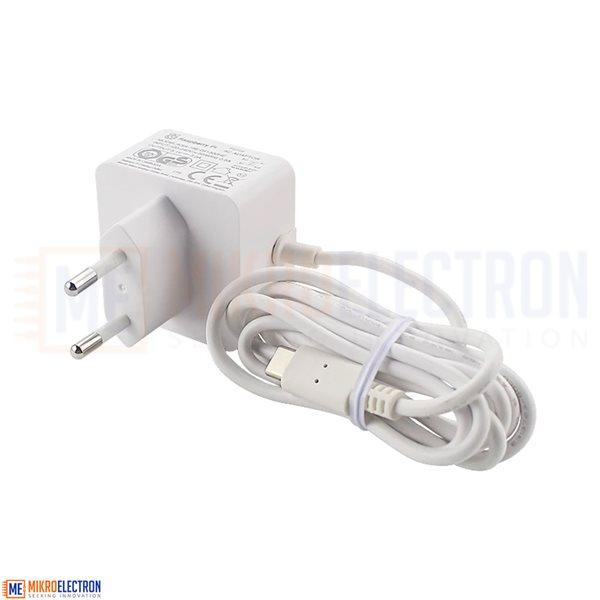

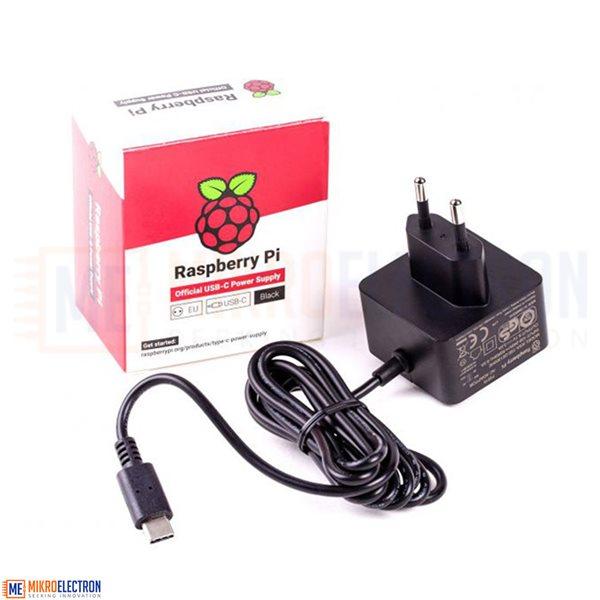

Official Raspberry Pi 4 model B Adapter - 5V/3A Black/ White

5.0(1 review)
SKU: ME-5870
JD14.00

This is the Official Raspberry Pi Foundation USB-C Power Supply for the Raspberry Pi 4 Specifications:Output:Output voltage: +5.1V DC Minimum load current: 0A Nominal load current: 3.0A Maximum power: 15.3W Load regulation: ±5%Line regulation: ±2%Protection: Short circuit protectionOvercurrent protectionOver temperature protectionEfficiency: 81% minimum (output current from 100%,75%, 50%...

Power & Adapters

This is the Official Raspberry Pi Foundation USB-C Power Supply for the Raspberry Pi 4 Specifications:

Output:

Output voltage: +5.1V DC Minimum load current:
0A Nominal load current: 3.0A Maximum power:
15.3W Load regulation: ±5%
Line regulation: ±2%


Protection: Short circuit protection
Overcurrent protection
Over temperature protection

Efficiency: 81% minimum (output current from 100%,
75%, 50%, 25%)

72% minimum at 10% load

Output cable: 1.5m 18AWG Output connector:
USB Type-C


Input:
Voltage range: 100-240Vac (rated)

96-264Vac (operating) Frequency: 50/60Hz ±3Hz
Current: 0.5A maximum

Power consumption (no load): 0.075W maximum

Inrush current: No damage shall occur and the input fuse
shall not blow
