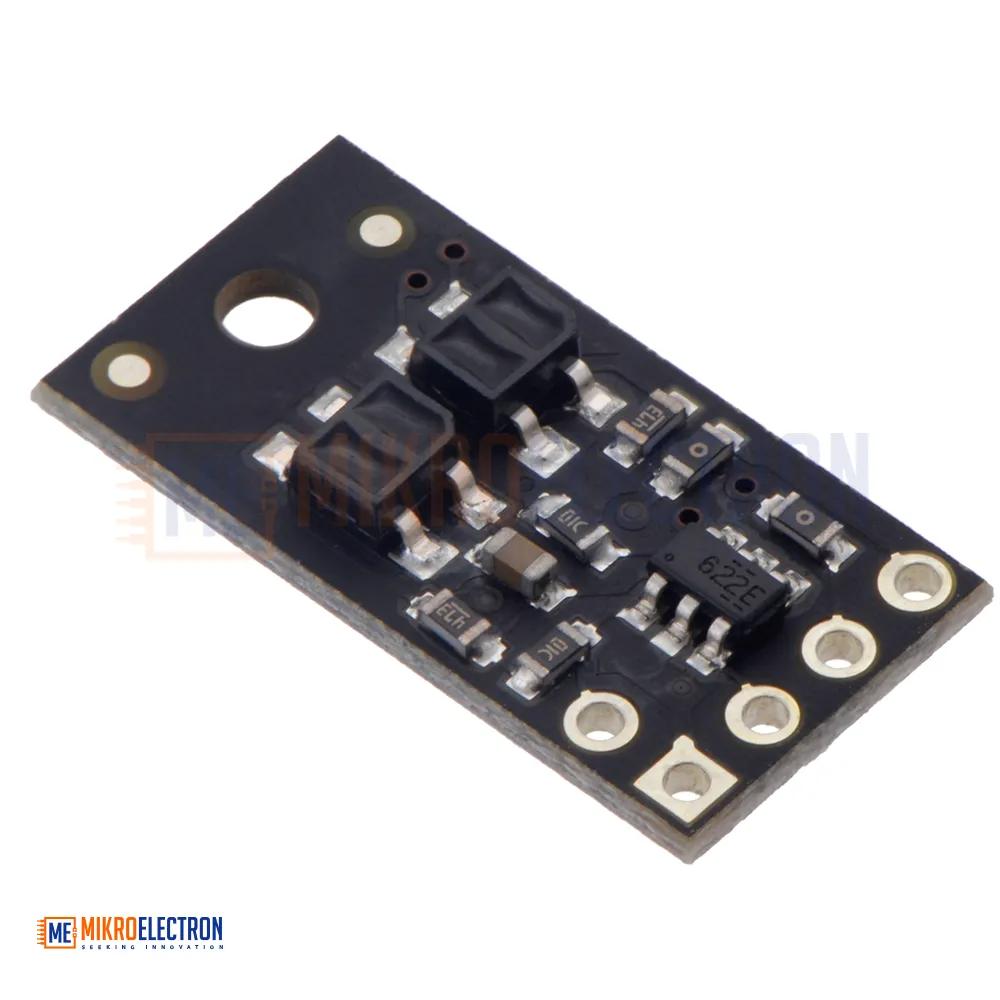

Pololu QTR-HD-02A Reflectance Sensor Array: 2-Channel, 4mm Pitch, Analog Output

5.0(1 review)
SKU: ME-13431
JD9.00
This array of IR LED/phototransistor pairs is great for precisely identifying changes in reflectance (like line detection). It operates from 2.9 V to 5.5 V and offers dimmable brightness control independent of the supply voltage. In general, the closer the object, the higher the contrast between light and dark readings, but high-reflectance objects are generally detectable out to around 30 mm. This version features the traditional-style QTR sensors without lenses.
Pololu

Specifications

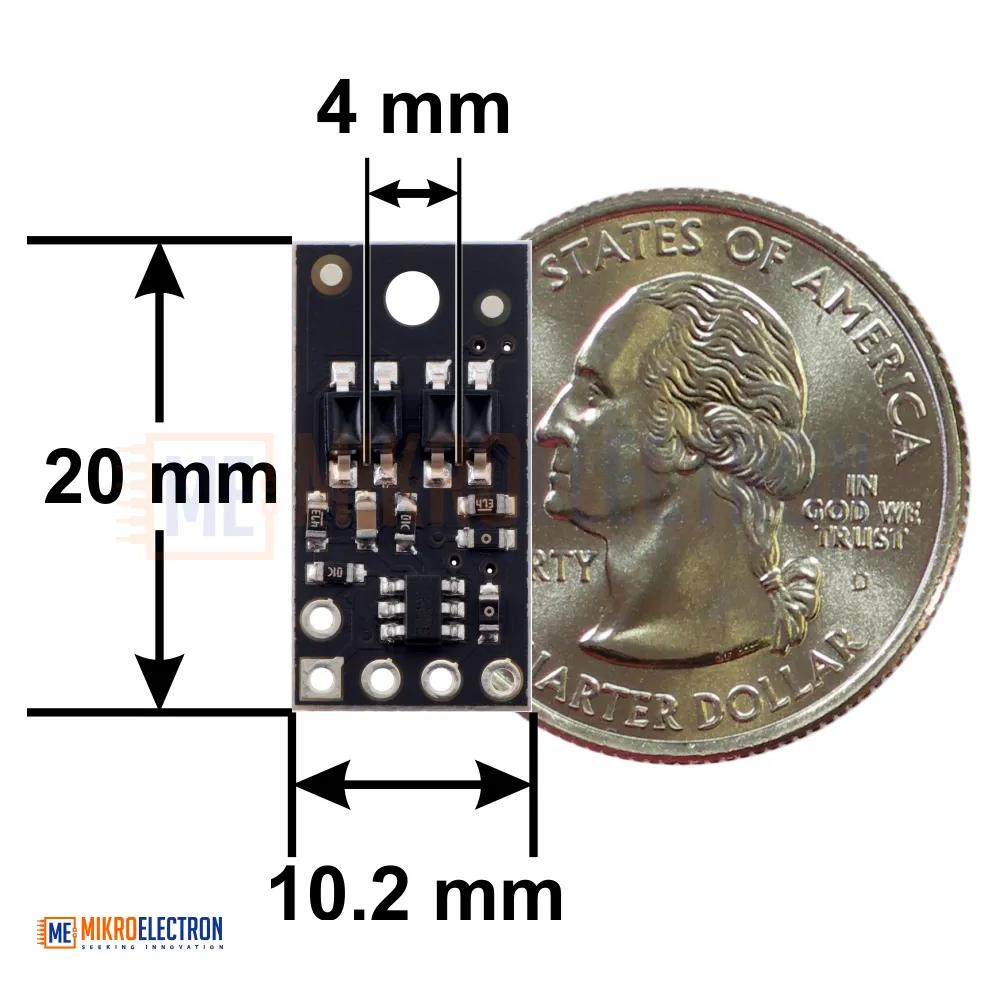

  • Dimensions: 10.2 × 20.0 × 2.5 mm (see the dimension diagram (1MB pdf) for more details)
  • Operating voltage: 2.9 V to 5.5 V
  • Sensor type: QTR
  • Sensor count: 2
  • Sensor pitch: 4 mm
  • Full-brightness LED current: 30 mA (independent of supply voltage)
  • Max board current: 32 mA
  • Output format: analog voltages (0 V to VCC)
  • Optimal sensing distance: 5 mm
  • Maximum recommended sensing distance: 30 mm
  • Weight: 0.6 g
