Rotary 3806 Encoder 600RPM AB 2 Phase NPN DC5-24V
Encoder 600 P/R 5V-24V Rotary 6mm Shaft NPN , This industrial incremental photoelectric rotary encoder is constructed with aluminum material, featuring a metal shell and stainless steel shaft. It generates AB two-phase orthogonal pulse signals through the rotation of the grating disk and optocoupler.Parameter:Electrical parametersMechanical parametersNumber of pulsesMaximum 1000P/RStarting force cabinet≤2x10-³N.mCurrent consumption≤150MA≤60MA...
Encoder 600 P / R 5V-24V Incremental Rotary AB 2 Phase 6mm Shaft

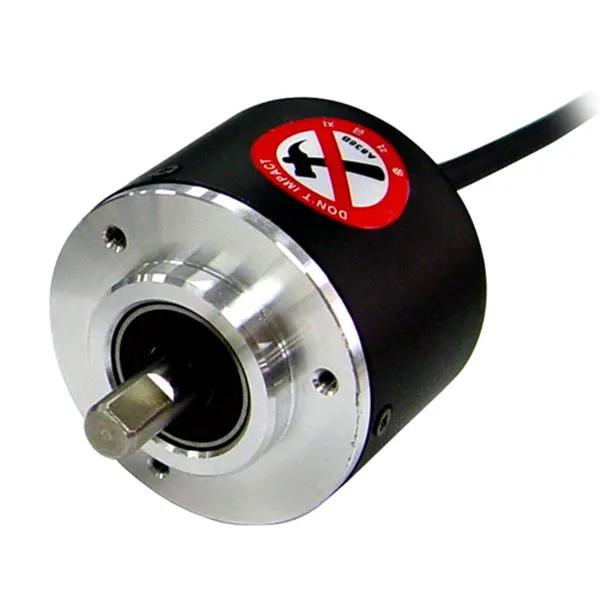

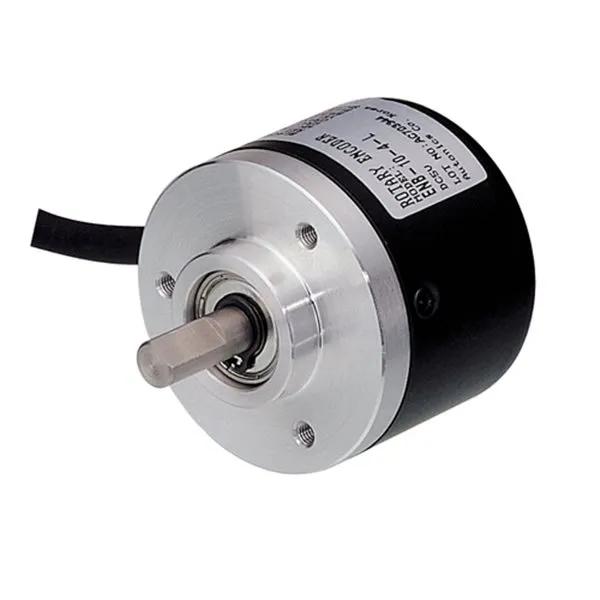

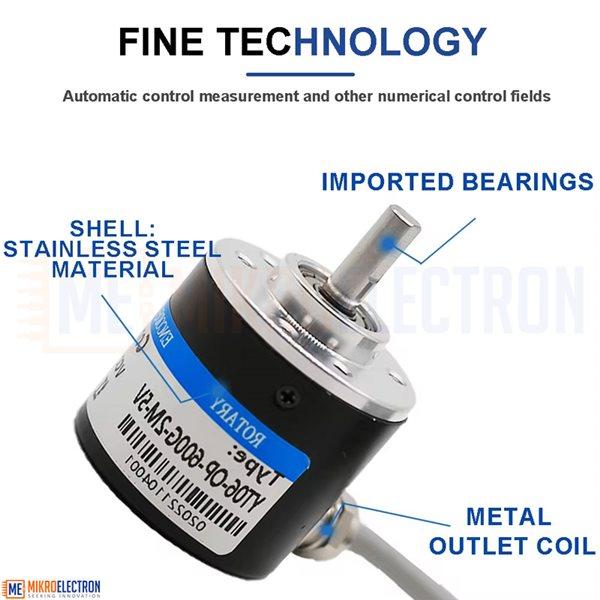

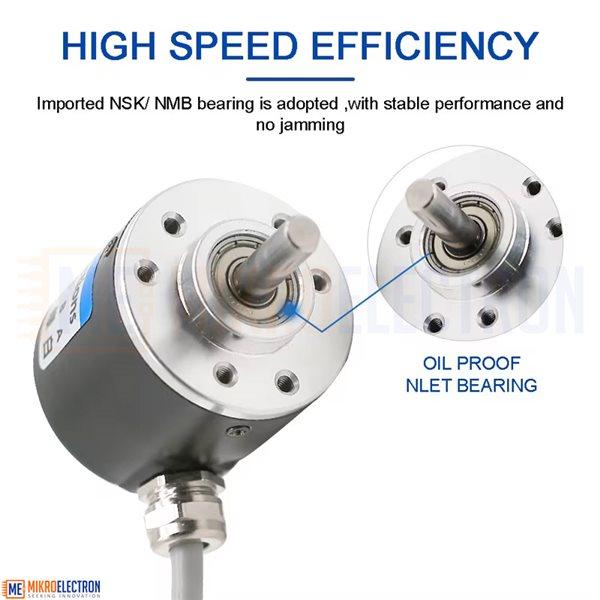

This industrial incremental photoelectric rotary encoder is constructed with aluminum material, featuring a metal shell and stainless steel shaft. It generates AB two-phase orthogonal pulse signals through the rotation of the grating disk and optocoupler.
Parameter:
| Electrical parameters | Mechanical parameters | |||
| Number of pulses | Maximum 1000P/R | Starting force cabinet | ≤2x10-³N.m | |
| Current consumption | ≤150MA ≤60MA ≤150MA | Allowable load of shaft | Axial 9.8N, radial 9.8N | |
| Response frequency | 50~150KHZ | Moment of inertia | 20g/cm² | |
| Working temperature | -10℃~+70℃ | Maximum revolutions | 5000r/min | |
| Storage temperature | -20℃~+80℃ | Protection level | IP50 | |
| Relative temperature | ≤RH85% No frost | Anti-vibration | 1000m/S.10~200Hz | |
| Signal high | ≥2.5V | Weight | 160g | |
| ≥VCC*70% | ||||
Technical Parameter:
| YT | 38 | 6 | O | P | / | PULSE | 2 | M | □ | □ |
| ① | ② | ③ | ④ | ⑤ | ⑥ | ⑦ | ⑧ | ⑨ | ⑩ | |
| ①Model: (Z: incremental S: solid shaft C: Magnetic type) | ||||||||||
| ②Outer diameter: 38mm | ||||||||||
| ③Shaft diameter: 06mm | ||||||||||
| ④Outgoing mode: ( E: Cable rear outgoing) | ||||||||||
| ⑤Model output mode: | ||||||||||
| (C: open collector output E: voltage output ) | ||||||||||
| ⑥Pulse number: 50,100,200,360,400,500,600,800,1000 | ||||||||||
| (special specifications can be customized) | ||||||||||
| ⑦Working phase number: Z: ABZ three phase | ||||||||||
| ⑧Working voltage:8-24V | ||||||||||
| ⑨Positive and negative zero position: (blank: positive zero position F: negative zero position) | ||||||||||
| ⑩Cable length: Standard 2m (other sizes can be customized) | ||||||||||
- 600 p/r (Single-phase 600 pulses /R,Two phase 4 frequency doubling to 2400 pulses)
- Power source: DC5-24V

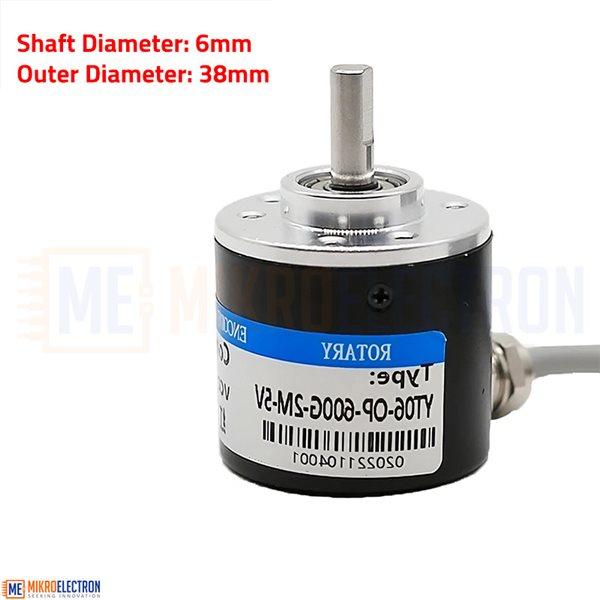

- Shaft: 6*13mm/0.23*0.51"
- Size: 38*35.5mm/1.49*1.39"
- Output :AB 2phase output rectangular orthogonal pulse circuit, the output for the NPN open collector output type
- Maximum mechanical speed: 5000 R / min
- Response frequency: 0-20KHz
- Cable length: 1.5 meter
- Notice:AB 2phase output must not be directly connected with VCC, otherwise, will burn the output triode, because different batches, and may not have the terminal

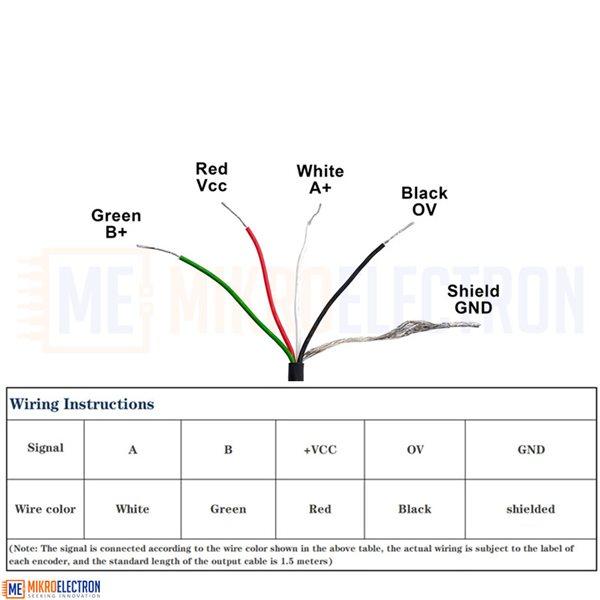

- connection:
Green = A phase, white = B phase, red = Vcc power +, black = V0 - Application:
- Is used to measure the rotational speed, Angle and acceleration of the object and the length measurement
- Suitable for intelligent control of various displacement measurement, automatic fixed-length leather automatic guillotine machines, steel cut length control, civil measured height human scale, Students racing robots
