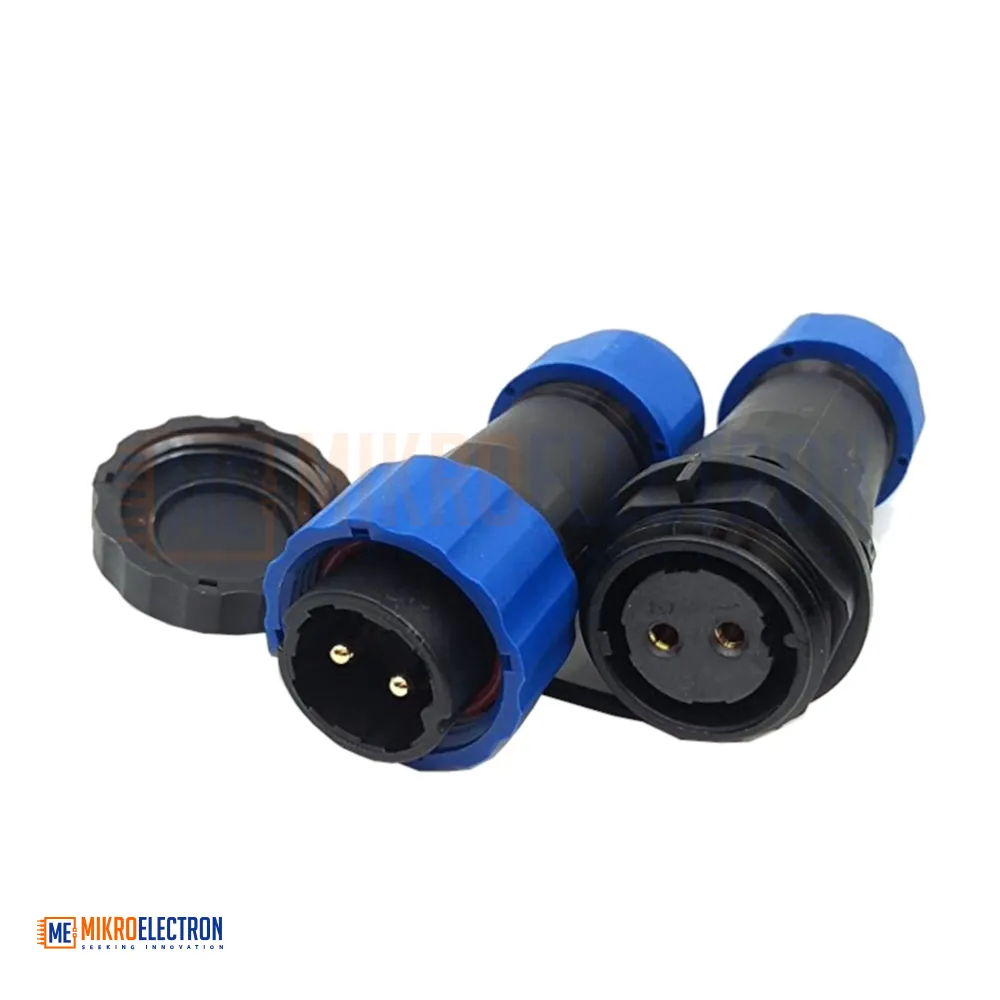

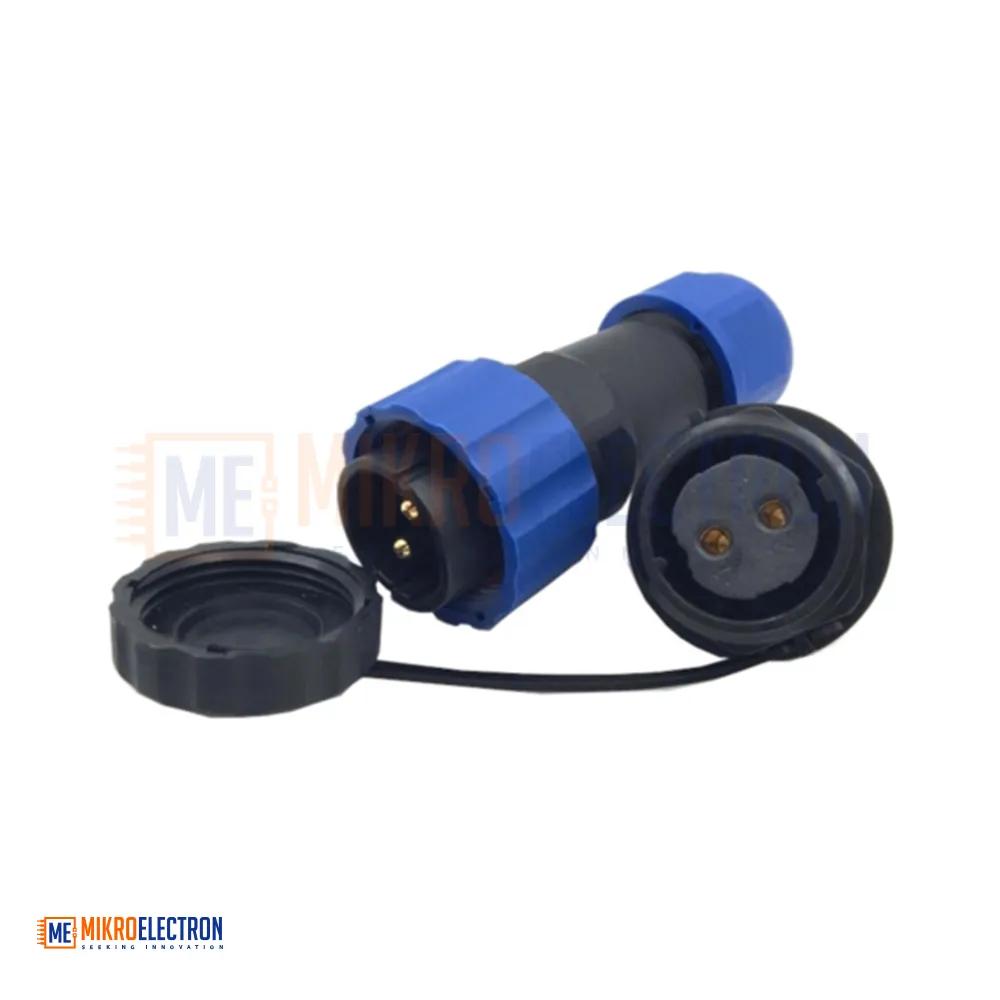

SD20-2PIN 25A Waterproof Docking Aviation Male Plug+Female Socket IP68
SD20-2PIN Waterproof Aviation Connector (25A) – high-current, IP68-rated 2-pin male and female connector set designed for harsh outdoor environments and secure electrical connections in industrial, automotive, and marine applications.
موصل طيران مقاوم للماء SD20-2PIN بقدرة 25 أمبير – طقم مكوّن من قابس ذكر وأنثى، مصمم لتحمل الظروف الخارجية القاسية بتصنيف IP68. يوفر اتصالًا كهربائيًا آمنًا وموثوقًا في التطبيقات الصناعية، والسيارات، والبحرية.
The SD20-2PIN 25A Waterproof Docking Aviation Connector is a robust and reliable two-pin plug and socket pair engineered for secure, high-current electrical connections in demanding conditions. With a 25A current rating, this connector is suitable for power-intensive equipment while its IP68 waterproof rating ensures complete protection against dust, water, and moisture.
Constructed with high-quality flame-retardant nylon and brass contacts, the connector offers excellent mechanical strength and corrosion resistance, making it ideal for long-term outdoor use or in harsh industrial settings. The twist-lock bayonet coupling mechanism ensures a tight, vibration-resistant connection that won’t loosen unintentionally.
This connector is frequently used in LED lighting systems, electric vehicles, solar power systems, marine electronics, automation equipment, and other outdoor or mobile installations that require reliable, waterproof connections.
Specifications:
Model: SD20-2PIN
Type: Male Plug + Female Socket
Pin Count: 2
Rated Current: 25A
Rated Voltage: 500V AC/DC
Contact Material: Brass with silver plating
Insulation Material: Flame-retardant PA66
Ingress Protection: IP68 (waterproof and dustproof)
Wire Gauge Supported: Up to 4.0mm² (12AWG)
Operating Temperature: -40°C to +85°C
Mounting Type: Panel mount (female socket) and inline (male plug)
Coupling Type: Threaded or bayonet lock (depending on version)
