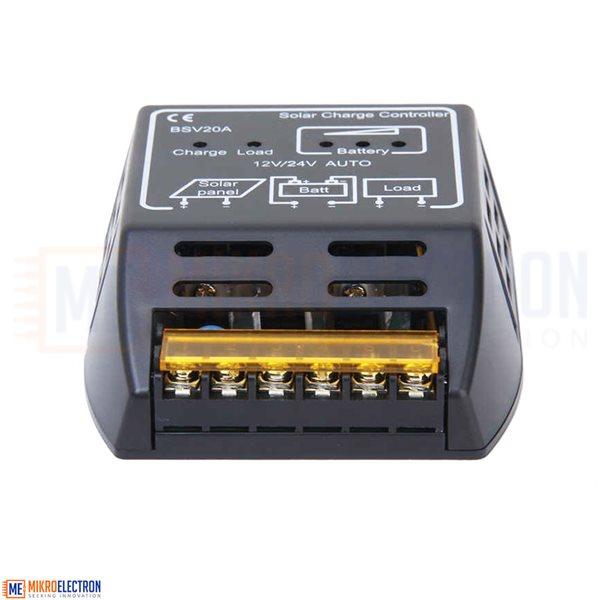

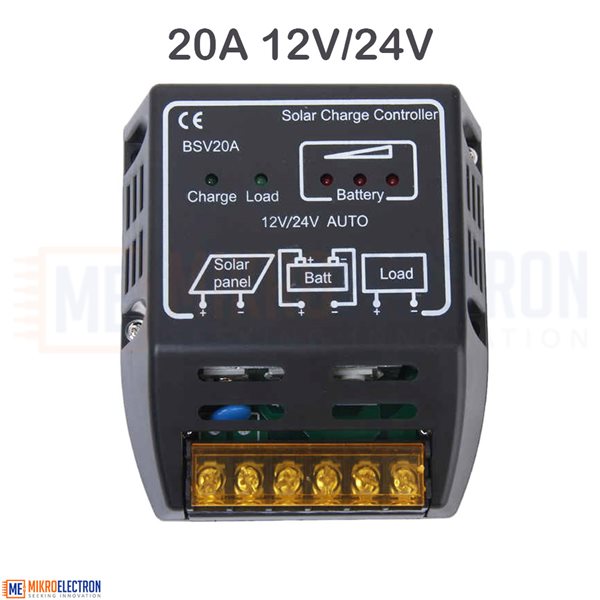

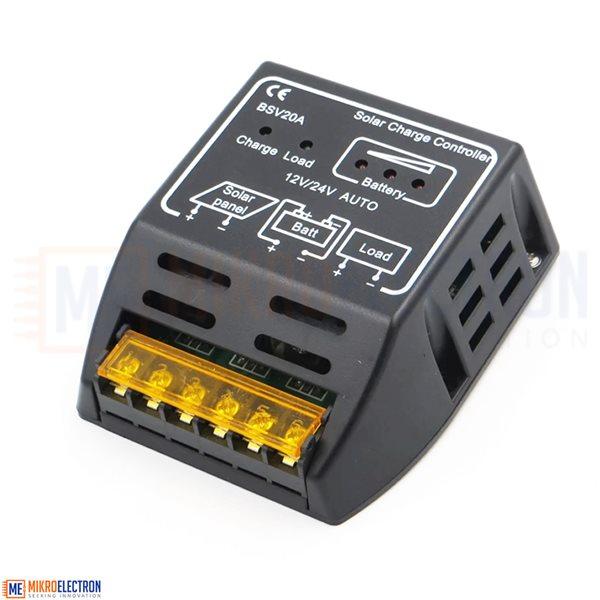

solar charge controller regulator BSV20A
The BSV20A Solar Charge Controller Regulator is a reliable 20A solar power management device designed for 12V and 24V solar systems. It protects batteries and connected loads from overcharging, over-discharging, overloads, short circuits, and lightning surges. The controller features automatic charging regulation, LED status indicators, and stable performance in harsh environments. With compact dimensions and multiple safety protections, the BSV20A is ideal for solar lighting systems, battery charging setups, and off-grid renewable energy applications.
يعد منظم شحن الطاقة الشمسية BSV20A جهازاً عملياً لإدارة أنظمة الطاقة الشمسية بقدرة 20 أمبير لأنظمة 12V و24V. يوفر حماية متكاملة للبطاريات والأحمال ضد الشحن الزائد، التفريغ الزائد، الحمل الزائد، القصر الكهربائي، والصواعق الكهربائية. يتميز بمؤشرات LED لمتابعة حالة التشغيل والشحن، إضافة إلى أداء مستقر في الظروف البيئية المختلفة. يعتبر مناسباً لأنظمة الإنارة الشمسية، شحن البطاريات، ومشاريع الطاقة الشمسية خارج الشبكة الكهربائية.
The BSV20A Solar Charge Controller Regulator is a compact and efficient controller designed to regulate charging and discharging in solar energy systems. It supports both 12V and 24V battery systems and provides a maximum charging and load current of 20A, making it suitable for small and medium-sized solar installations.
The controller protects batteries from common electrical issues such as overcharging, over-discharging, overload conditions, short circuits, under-voltage, and lightning surges. These protection features help improve battery lifespan and maintain stable system performance.
The BSV20A includes LED indicators that display charging and load status. The Charge LED indicates charging conditions, while the Load LED shows whether output power is available for connected loads.
Its durable design allows operation in temperatures ranging from −20°C to +60°C, making it suitable for outdoor and industrial environments. The compact enclosure also enables easy installation in solar lighting systems, portable solar projects, battery charging stations, and off-grid renewable energy systems.
Specifications
| Parameter | Value |
|---|---|
| Model | BSV20A |
| Controller Type | Solar Charge Controller |
| Rated System Voltage | 12V / 24V |
| Rated Charging Current | 20A |
| Rated Load Current | 20A |
| Overcharge Protection Voltage | 14.4V / 28.8V |
| Over-Discharge Protection Voltage | 10.8V / 21.6V |
| Maximum Operating Voltage | 25V / 36V |
| Operating Temperature | −20°C to +60°C |
| Protection Functions | Overload, Short Circuit, Lightning, Under-Voltage, Overcharge |
| Dimensions (L × W × H) | 103 × 95 × 40 mm |
| Indicators | Charge LED, Load LED |
Applications
- Solar Lighting Systems
- Battery Charging Systems
- Off-Grid Solar Installations
- Portable Solar Power Projects
- Solar Street Lights
- Small Renewable Energy Systems
- Camping and Outdoor Solar Systems
- Backup Power Systems
- Solar-Powered Electronic Devices
- DIY Solar Energy Projects
