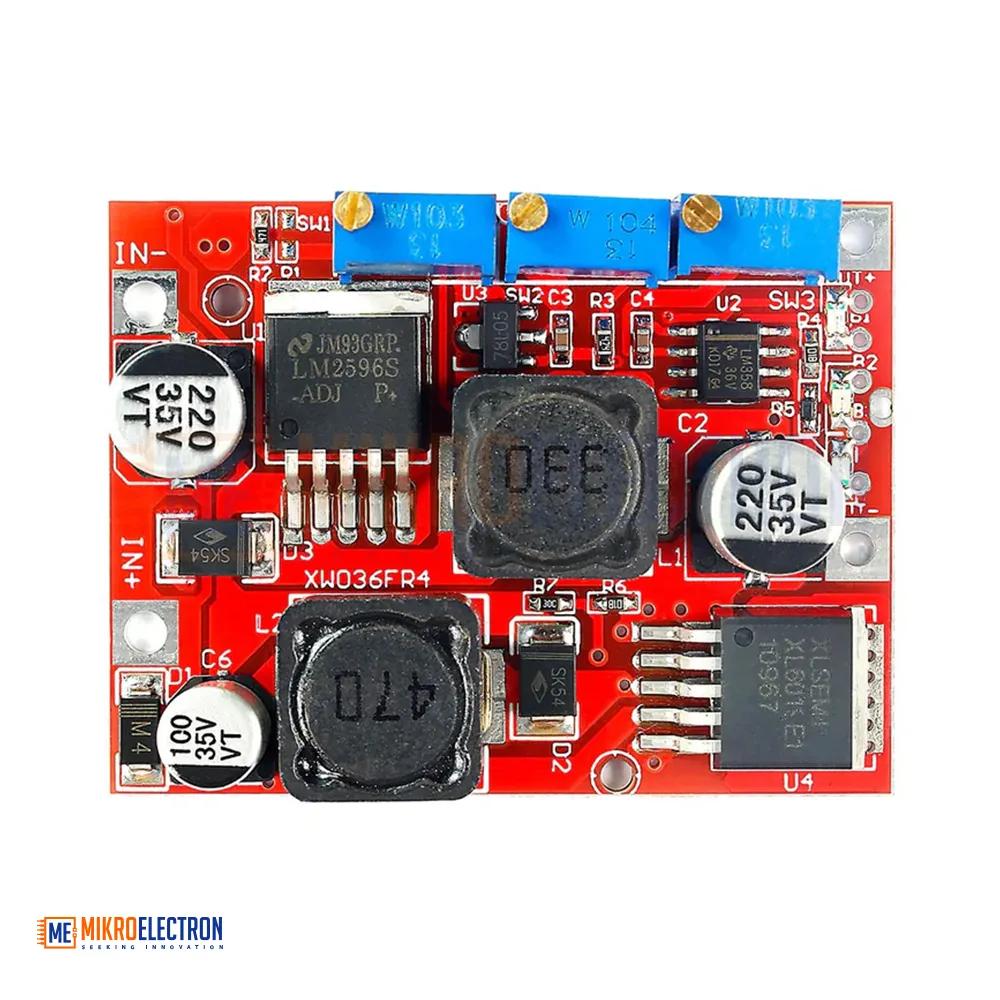

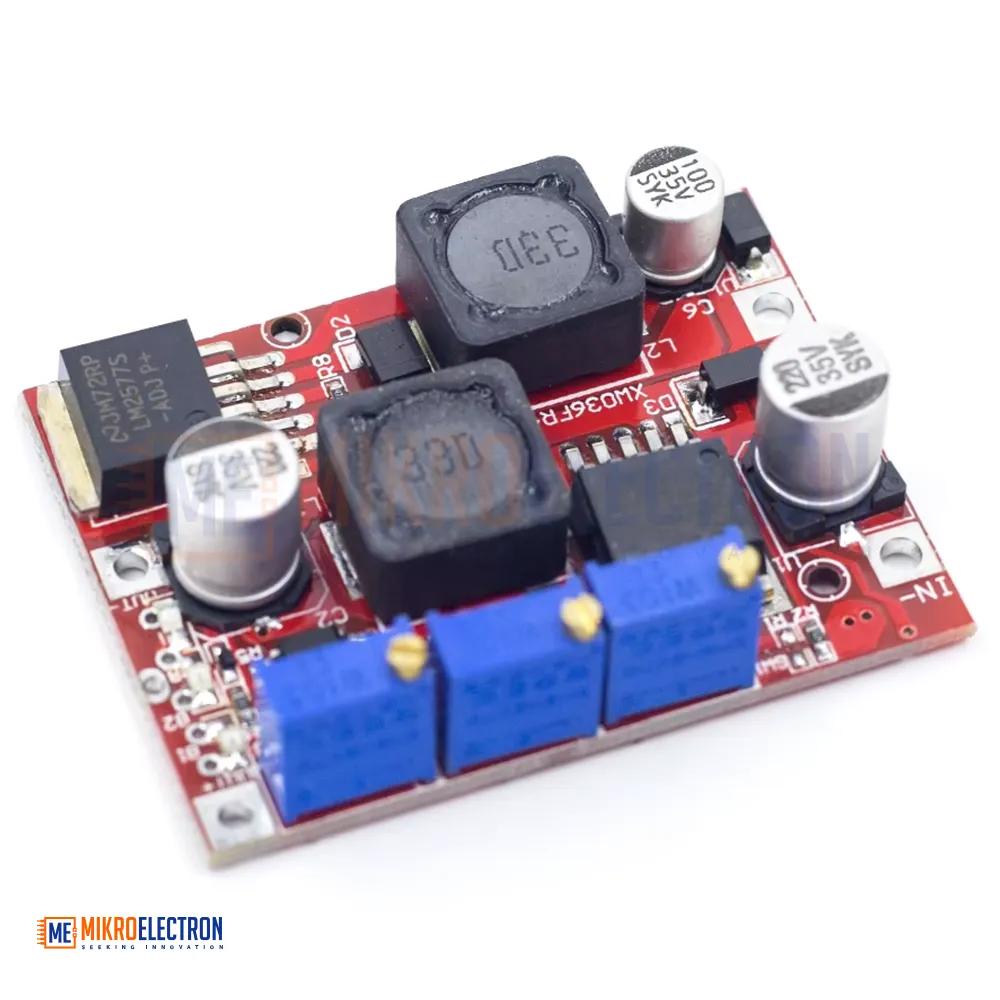

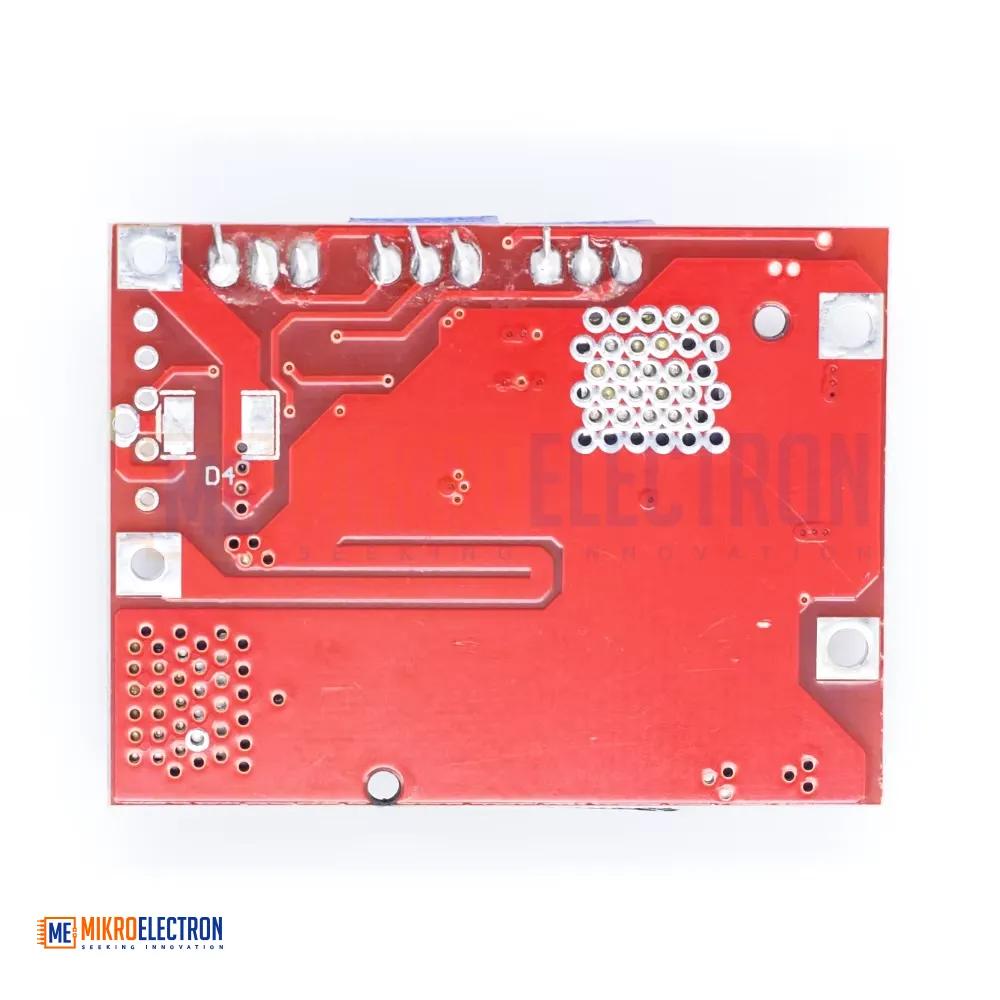

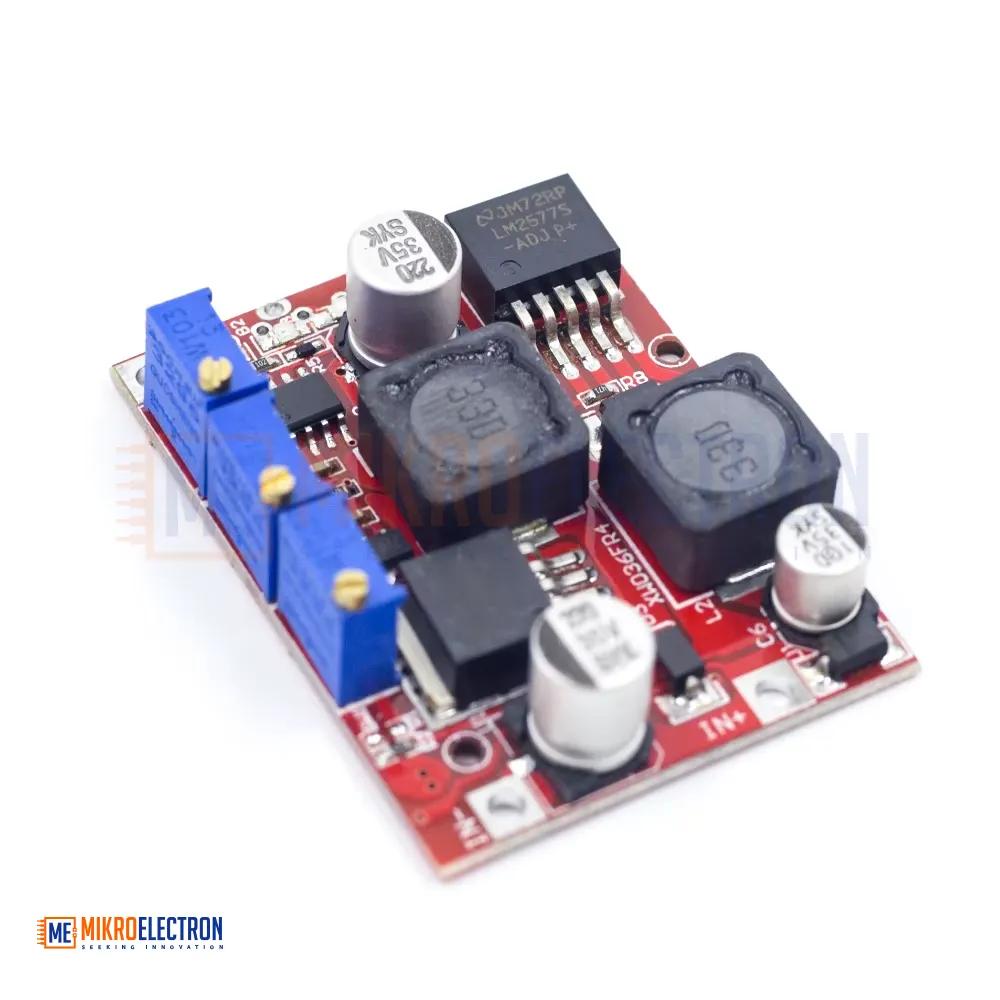

Solar Energy Wind Belt Charging Constant Current Constant Voltage Power Supply Module LM2596 6019
This versatile power supply module is designed for renewable energy applications, particularly solar and wind power systems. Combining the LM2596 buck converter and 6019 constant current/voltage control IC, it ensures stable and efficient charging performance for batteries and devices.
Input voltage: 4-35V. Continuous adjustable output voltage (1.25-25V adjustable).
Module properties: the isolation step-down constant current, constant voltage module (CC CV) charging module.
Indicator light: constant current indicator light red, charging indicator light in red, charging indicator light blue.
Scope of application: the high-power LED constant current drive. Lithium battery (including ferroelectric), 4 v, 6 v, 12 v, 14 v,
24 v battery rechargeable nimh battery, nickel cadmium battery charging.
Also suitable for solar panels, wind generator voltage regulator circuit, vehicle-mounted regulated power supply, such as
automatic lifting pressure regulating circuit.
Specification:
Materials: Metal, Plastic, Electric Parts.
Size: 50*37*13mm.
Color: show as pictures.
The input voltage: 4-35 v.
Continuous adjustable output voltage (1.25-25 v adjustable).
