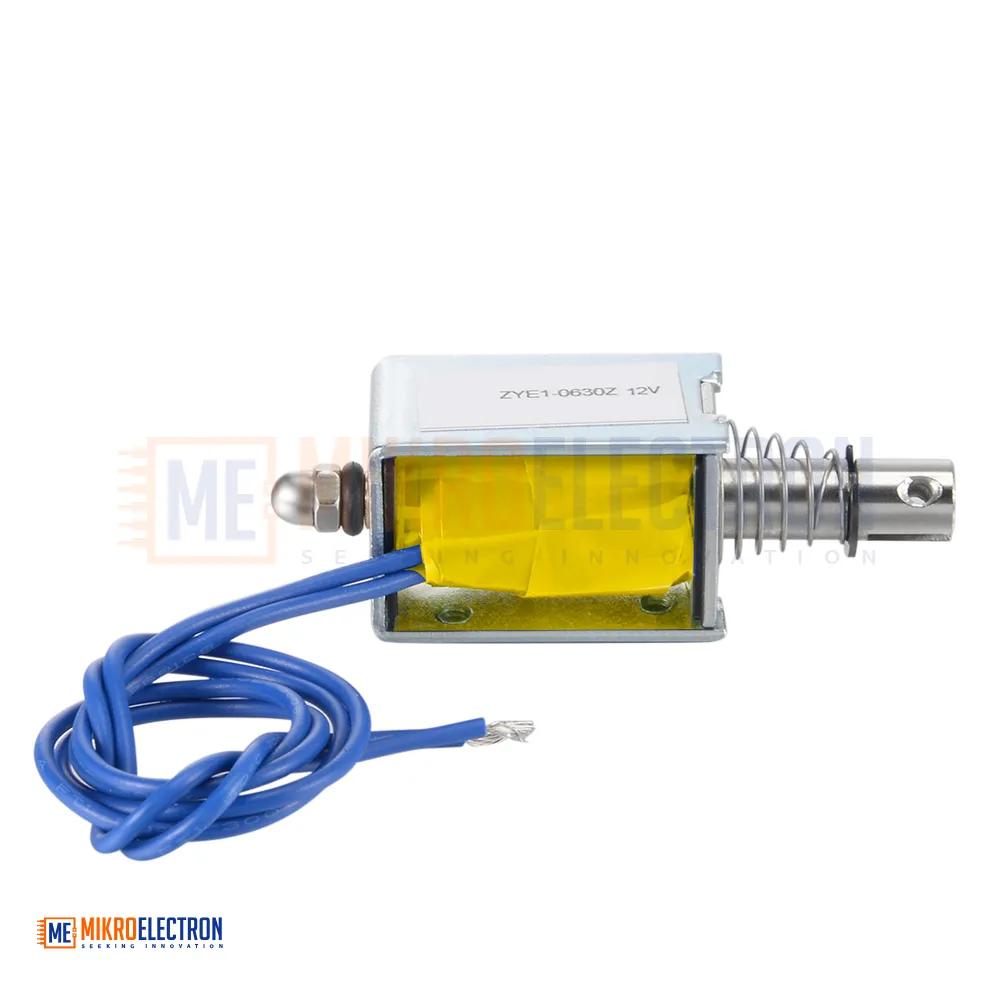

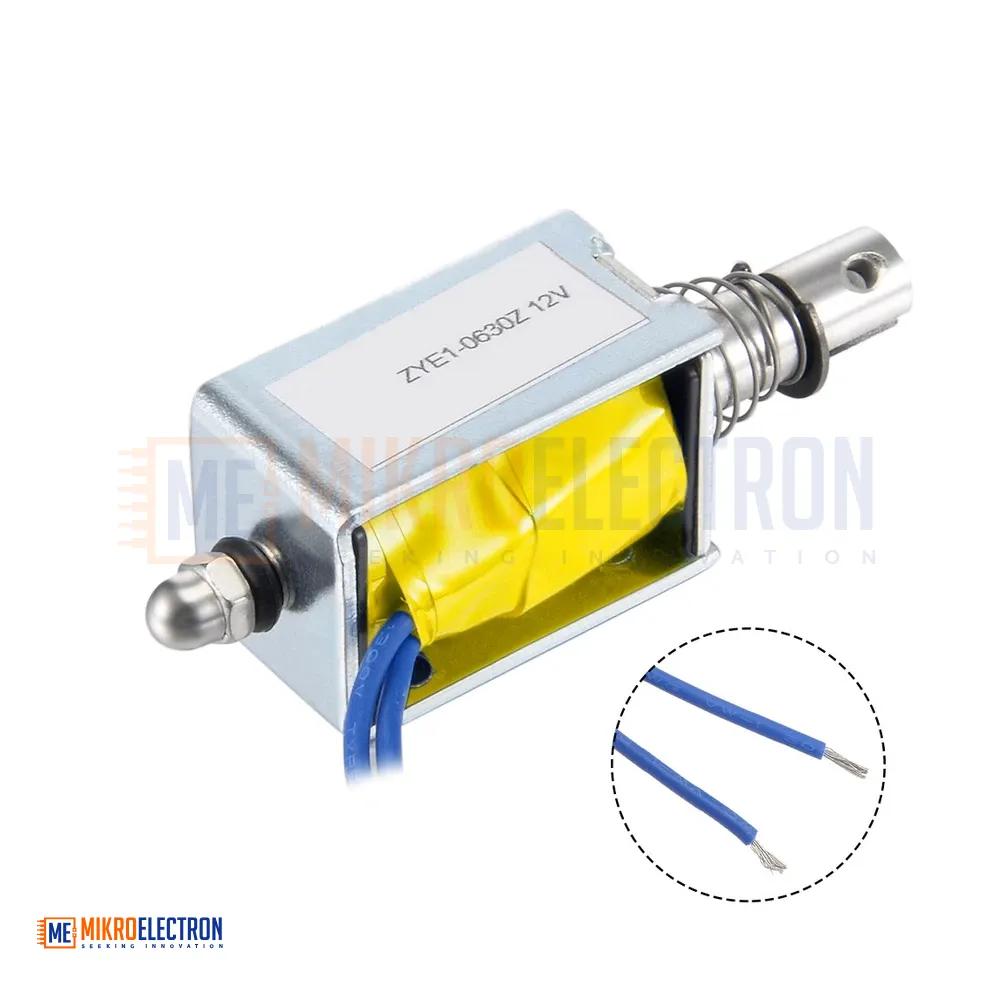

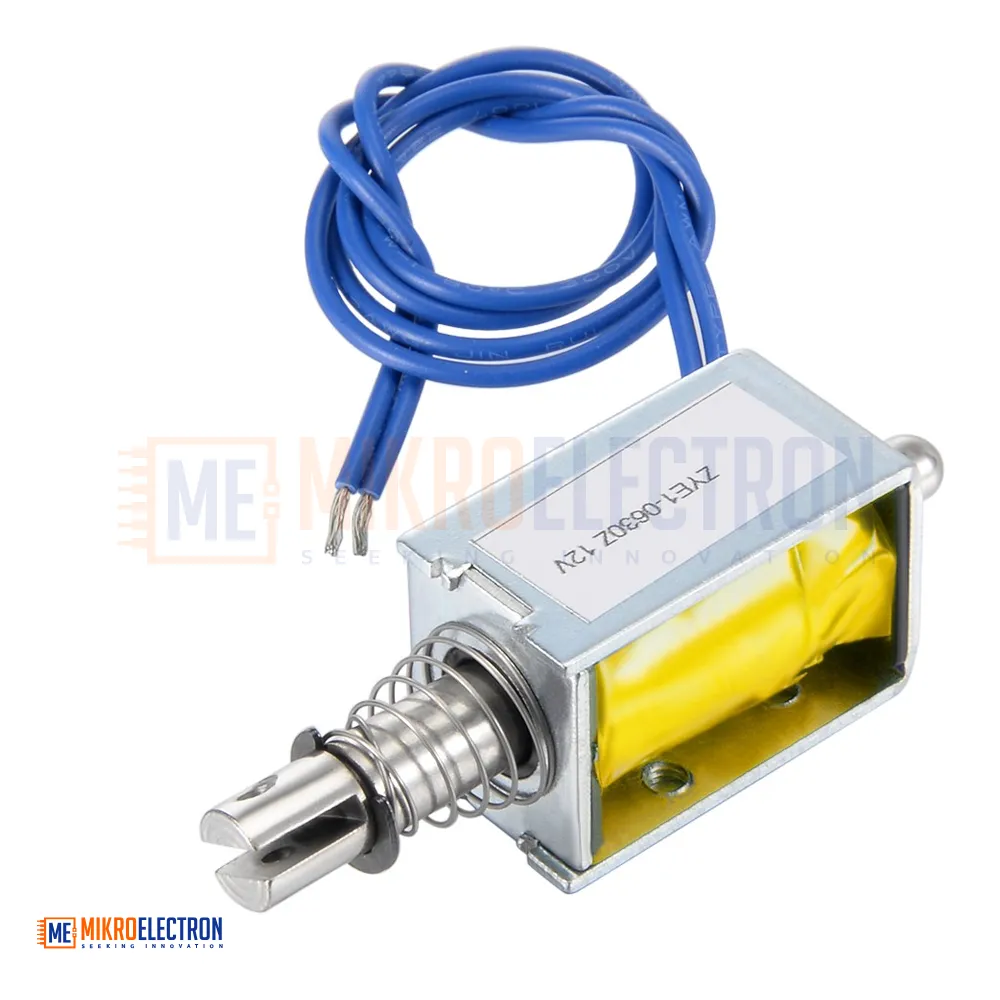

Solenoid Actuator Electromagnet 12v ZYE1-0630Z
The ZYE1-0630Z 12V Solenoid Actuator Electromagnet is a compact open-frame linear solenoid designed for reliable push-pull motion applications. Operating on DC 12V with a 10mm stroke, it delivers stable performance, long service life, and efficient operation. Its durable metal frame and compact size make it suitable for automation systems, vending machines, smart locks, DIY electronics, and industrial control equipment requiring precise electromagnetic actuation.
يُعد مغناطيس التشغيل الكهربائي ZYE1-0630Z بجهد 12 فولت سولينويد خطي بإطار مفتوح مصمم لتطبيقات الحركة والدفع والسحب الموثوقة. يعمل بجهد 12V DC وبمشوار حركة 10 مم لتقديم أداء ثابت وعمر تشغيلي طويل. يتميز بهيكل معدني متين وحجم مدمج يجعله مناسبًا لأنظمة الأتمتة، ماكينات البيع، الأقفال الذكية، المشاريع الإلكترونية، ومعدات التحكم الصناعية التي تتطلب تشغيلًا كهرومغناطيسيًا دقيقًا.
The ZYE1-0630Z Solenoid Actuator Electromagnet is a high-performance open-frame linear solenoid engineered for compact and efficient electromagnetic motion control applications. Designed to operate with a DC 12V power supply, this actuator provides smooth and reliable push-pull movement with a 10mm stroke length and 1.5N holding force.
Its robust metal frame construction ensures durability and long operational life even under continuous use. The compact dimensions allow easy integration into limited spaces, making it ideal for automation systems, electronic locking mechanisms, vending machines, medical devices, office equipment, and DIY engineering projects.
The actuator operates with low noise and stable performance while maintaining reliable functionality in a temperature range of -5°C to 40°C and humidity levels from 45% to 85% non-condensing. Pre-attached lead wires simplify installation and electrical connection.
Specifications
- Model: ZYE1-0630Z
- Type: Open Frame Solenoid Actuator
- Operating Voltage: DC 12V
- Current Consumption: 2.5A
- Stroke Length: 10mm
- Holding Force: 1.5N
- Frame Material: Metal
- Push Bar Diameter: Approx. 0.7 cm
- Push Bar Length: Approx. 3 cm

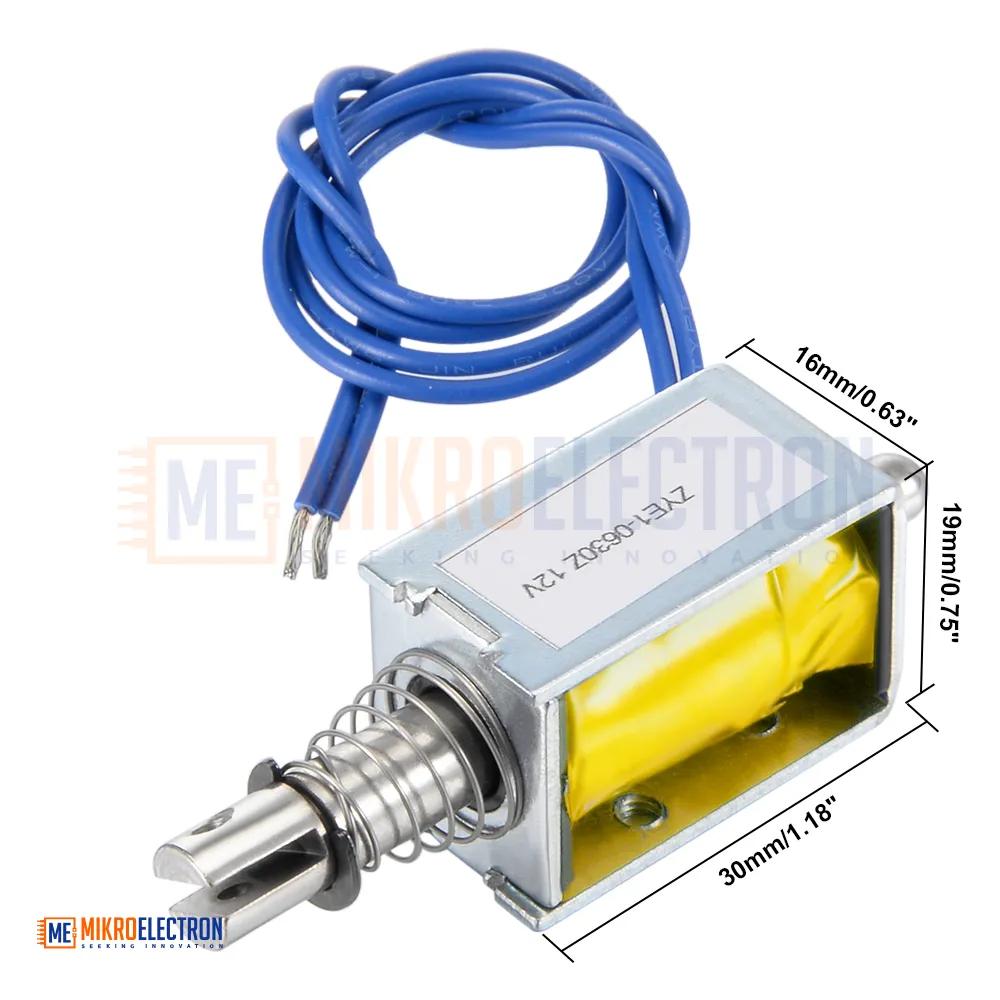

- Frame Dimensions (L × W × H): Approx. 2.8 × 1.6 × 1.9 cm
- Lead Wire Length: Approx. 22 cm
- Operating Temperature: -5°C to 40°C
- Operating Humidity: 45% to 85% non-condensing
Applications
- Industrial automation systems
- Electronic door locks
- Vending machines
- Smart home devices
- Medical equipment
- Office automation equipment
- DIY electronic projects
- Mechanical control systems
- Robotics and motion control applications
- Electrical switching mechanisms
