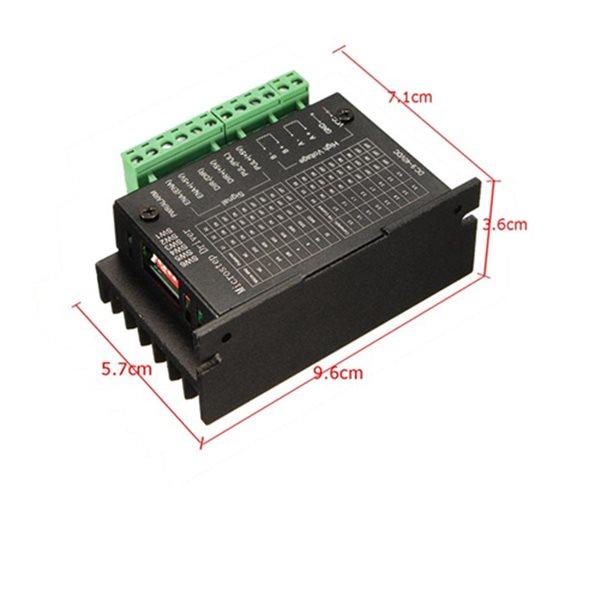

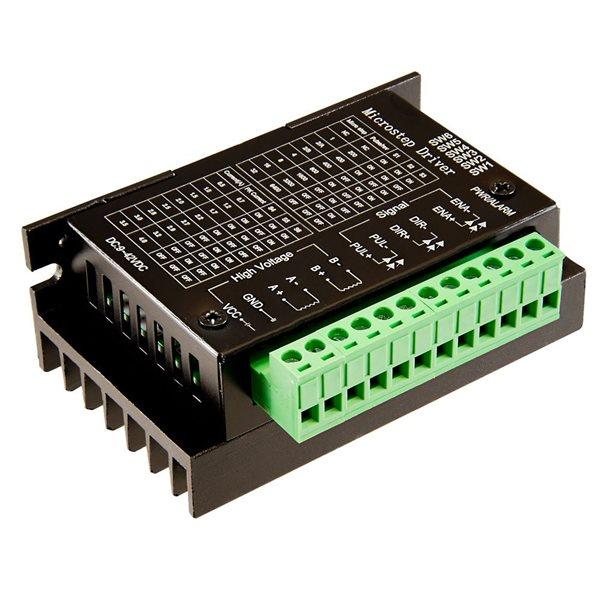

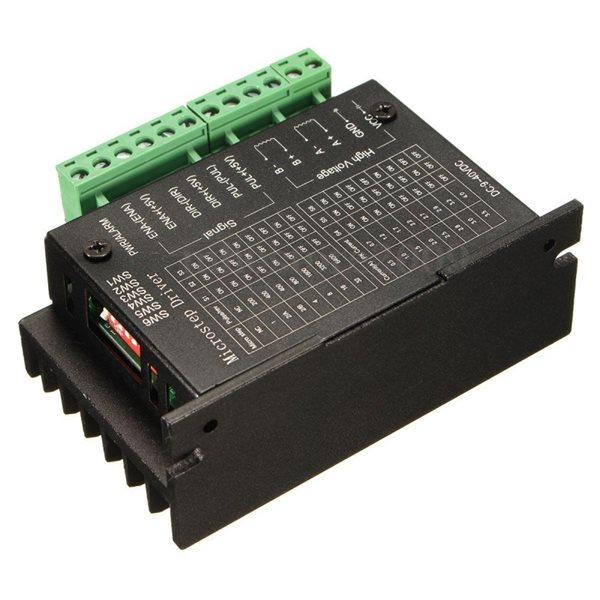

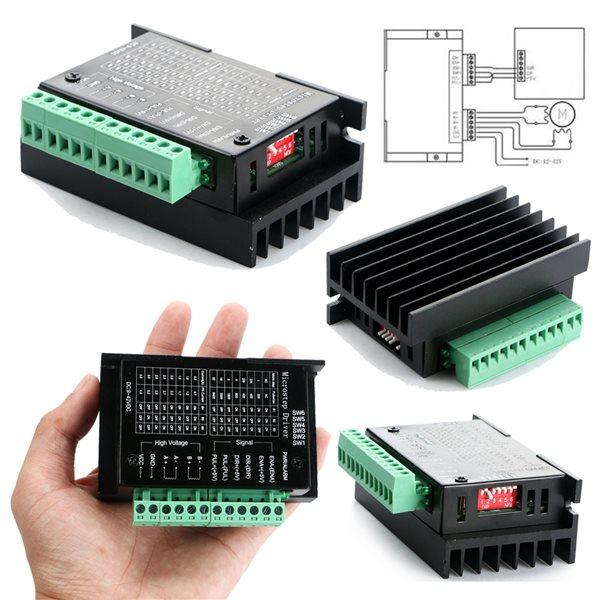

TB6600 Stepper Motor Driver Controller 9~42V TTL 16 Micro-Step CNC 1 Axis 4A

TB6600 Stepper Motor Driver Controller 9~42V TTL 16 Micro-Step CNC 1 Axis  4A

 This drive is an upgraded version   TB6600, the highest segments to 32, fit for high subdivision applications.

Applicable stepper motor:

42,57 type 2   phase 4-phase (4-wire 6 wire line 8)

1, 9V-42V DC supply;

2, H-bridge bipolar constant phase flow driven;

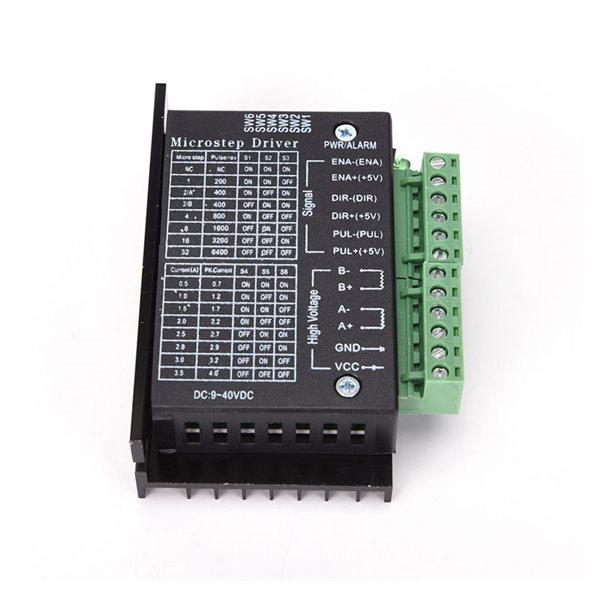

3,  eight output current optional, the maximum output current: 4.0A;

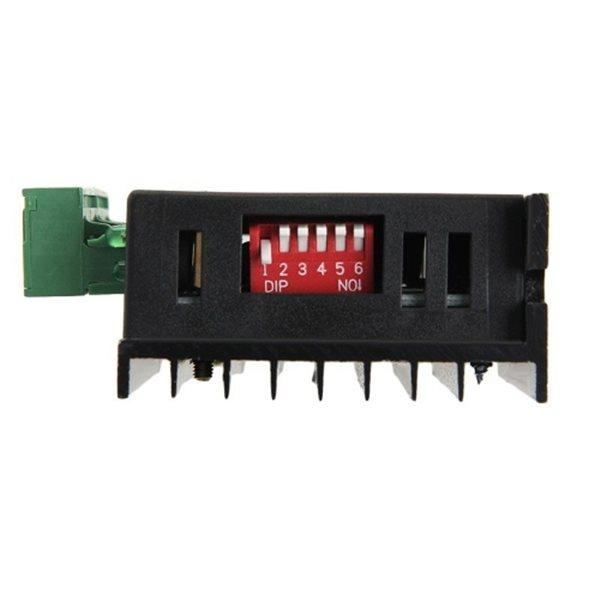

4, 6 subdivision modes available,up to 32 segmentse;

5, the input signal high-speed optical isolation;

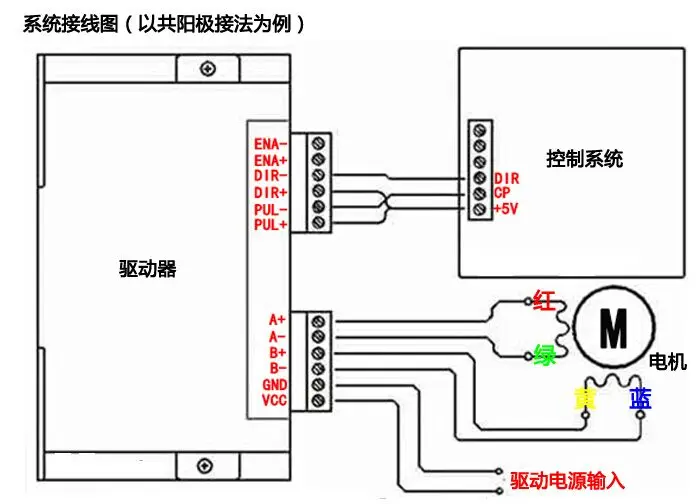

6, common anode single pulse interface standard;

7, offline hold function;

8, semi-enclosed chassis can adapt to more hard environment;

9, provide energy-efficient semiautomatic current lock function;

10, built-in temperature protection and overcurrent protection.
