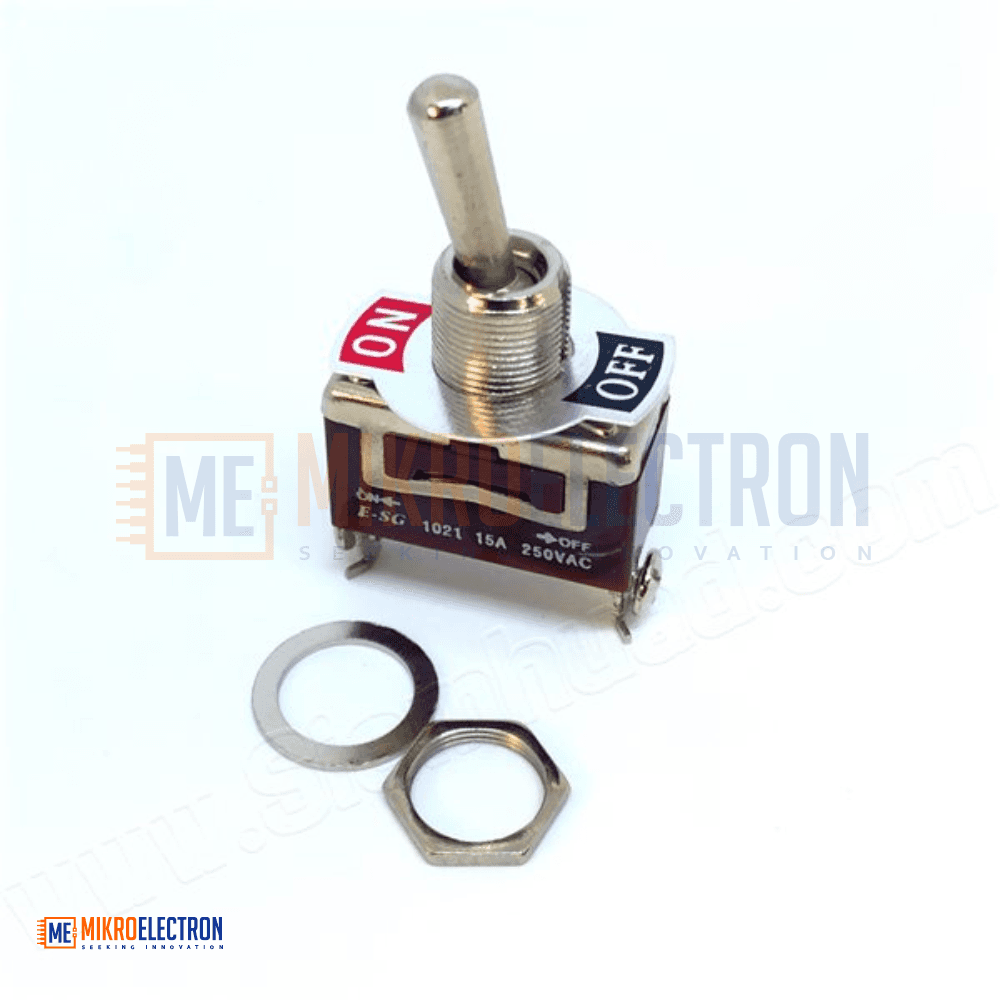

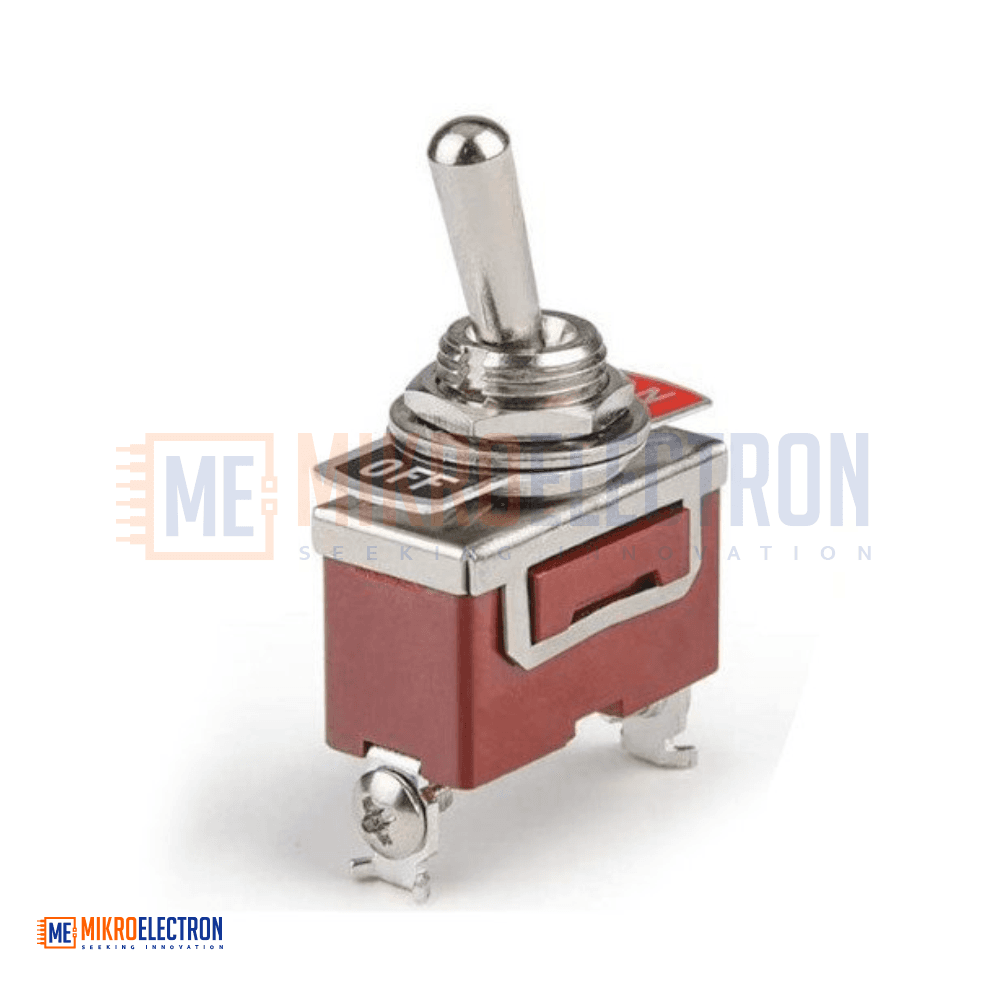

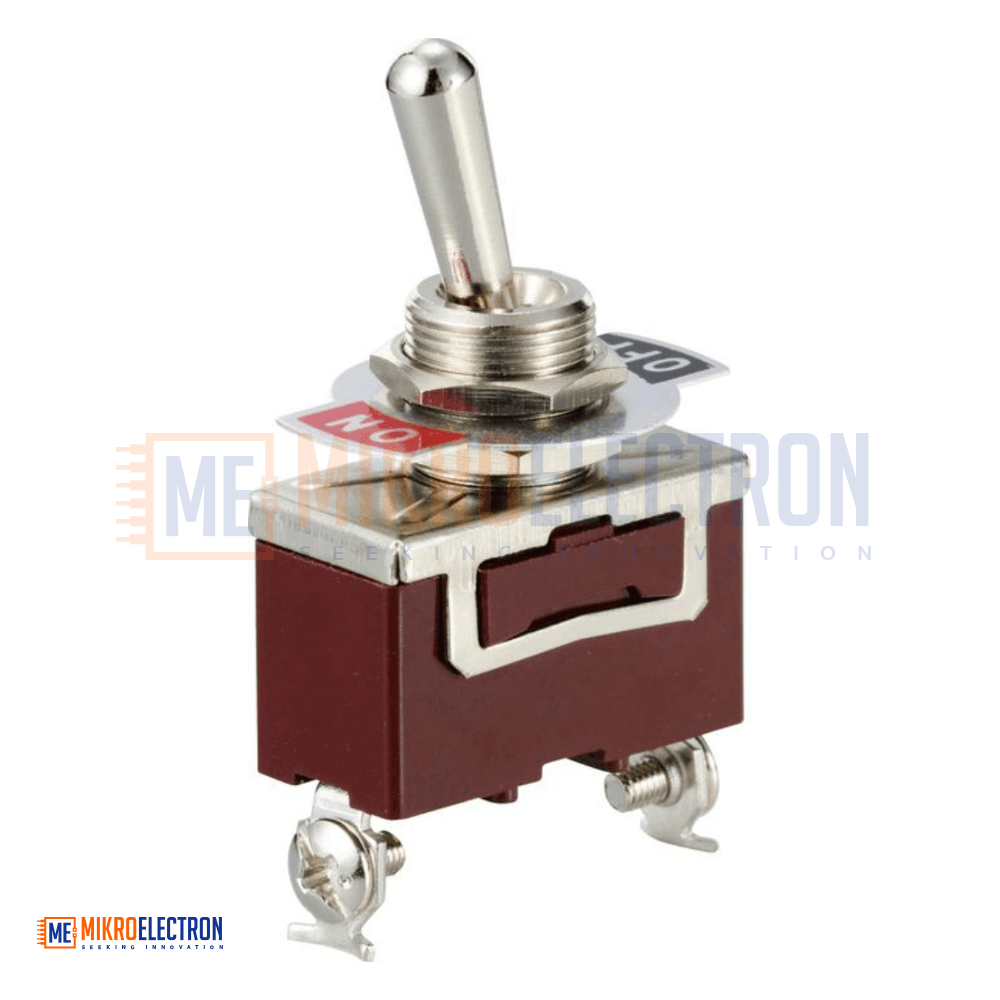

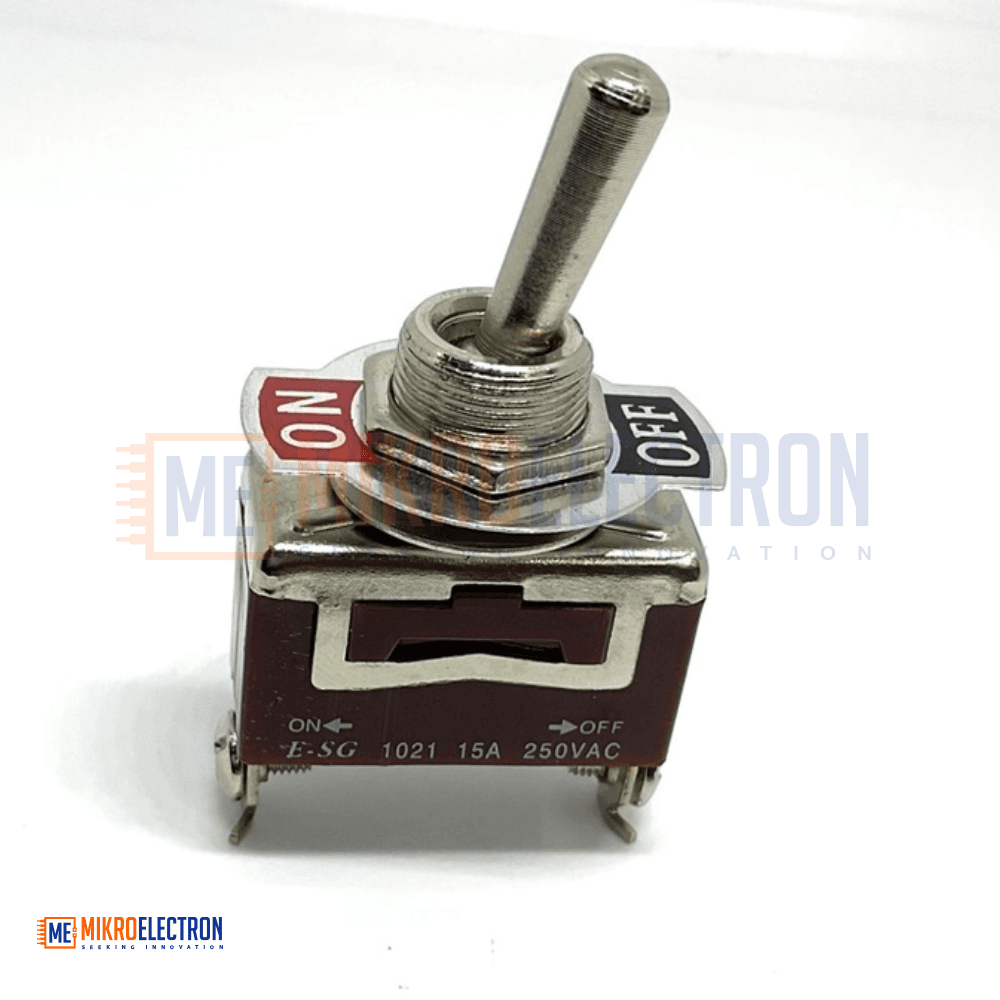

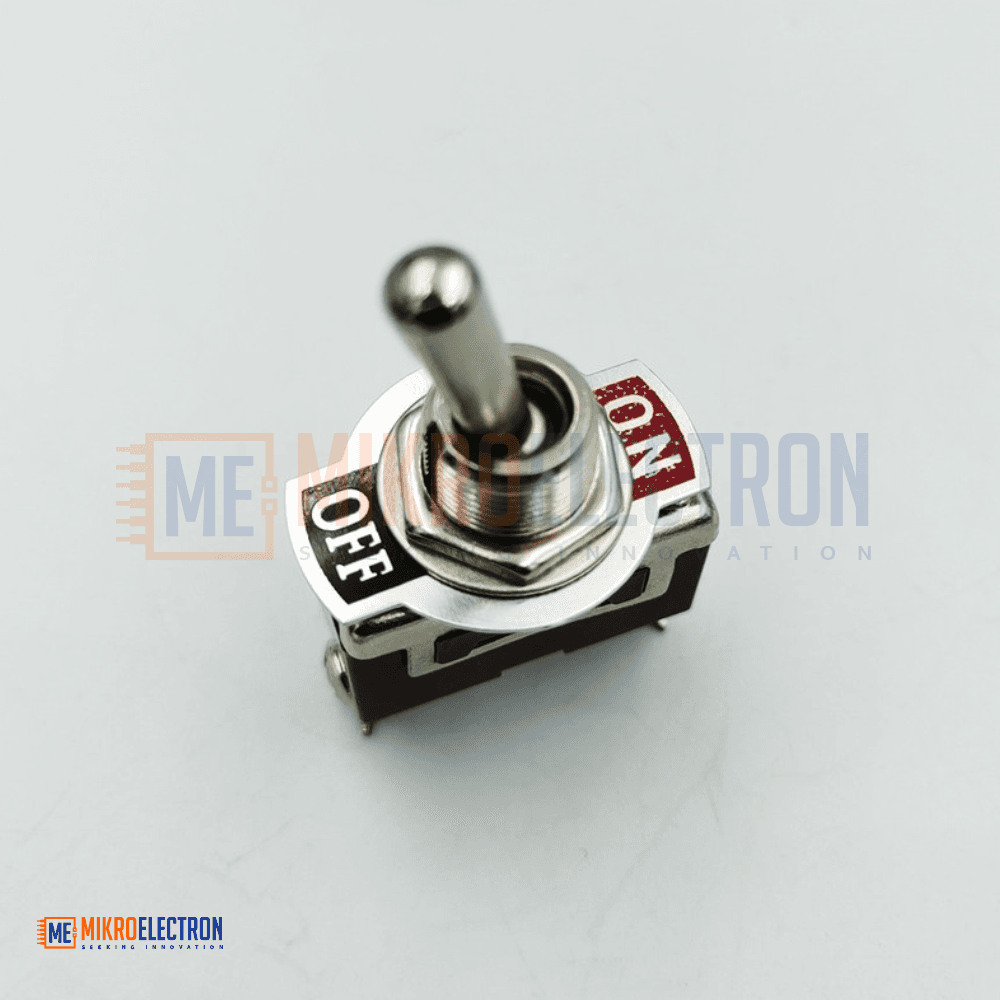

Toggle Switch E-SG 1021
The E-SG 1021 Toggle Switch is a durable and reliable ON-OFF control switch designed for electrical and electronic applications requiring dependable manual operation. Rated at 15A 250VAC and 20A 125VAC, it is suitable for medium to high-current circuits in industrial equipment, power distribution systems, control panels, and DIY projects. The switch features low contact resistance (≤50mΩ) for efficient conductivity and high insulation resistance (≥100MΩ) for enhanced electrical safety. With a dielectric strength of 1500VAC/min, an operating temperature range of -55°C to +85°C, and a life expectancy exceeding 10,000 cycles, it ensures long-lasting performance.
يُعد مفتاح التبديل E-SG 1021 مفتاح تحكم يدويًا موثوقًا ومتينًا من نوع تشغيل/إيقاف (ON-OFF)، مصممًا للاستخدام في التطبيقات الكهربائية والإلكترونية المختلفة. يتميز بقدرة تشغيل تصل إلى 15 أمبير عند 250 فولت متردد و20 أمبير عند 125 فولت متردد، مما يجعله مناسبًا للدوائر ذات التيارات المتوسطة والعالية. يوفر مقاومة تلامس منخفضة لا تتجاوز 50 ملي أوم ومقاومة عزل لا تقل عن 100 ميجا أوم لضمان الأداء الآمن والفعال. كما يتمتع بقدرة تحمل جهد 1500 فولت متردد لمدة دقيقة واحدة وعمر تشغيلي يزيد عن 10,000 دورة ضمن درجات حرارة من -55°C إلى +85°C.
The E-SG 1021 Toggle Switch is a high-quality manual electrical switch designed to provide reliable ON-OFF control in a wide range of electrical systems. Its robust construction and high current rating make it suitable for industrial machinery, control panels, power supplies, automotive systems, and general electrical equipment.
The switch is engineered to maintain stable electrical performance through its low contact resistance and high insulation resistance. It can safely handle demanding operating conditions, including wide temperature variations from -55°C to +85°C.
With a dielectric strength of 1500VAC for one minute and a mechanical operating life exceeding 10,000 cycles, the E-SG 1021 offers dependable long-term performance in both commercial and industrial environments.
Specifications
| Parameter | Specification |
|---|---|
| Model | E-SG 1021 |
| Switch Type | Toggle Switch |
| Function | ON-OFF |
| Rated Voltage & Current | 15A 250VAC / 20A 125VAC |
| Contact Resistance | ≤ 50mΩ |
| Insulation Resistance | ≥ 100MΩ |
| Dielectric Strength | ≥ 1500VAC/Min (50Hz) |
| Operating Temperature | -55°C to +85°C |
| Mechanical Life | ≥ 10,000 Cycles |
Applications
- Industrial control panels
- Power distribution equipment
- Electrical machinery
- Automotive electrical systems
- Laboratory and testing equipment
- Power supplies and battery systems
- DIY electronics projects
- Marine electrical installations
- Lighting control systems
- General-purpose ON/OFF switching
