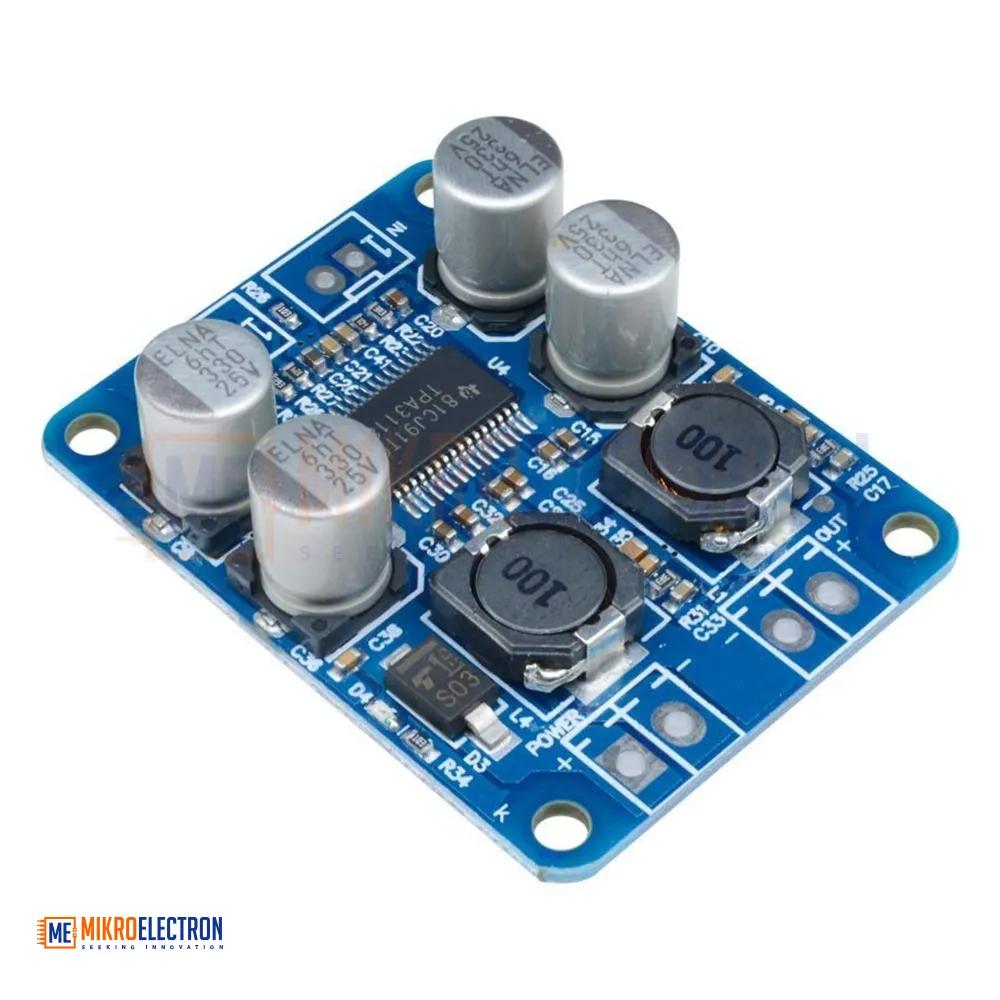

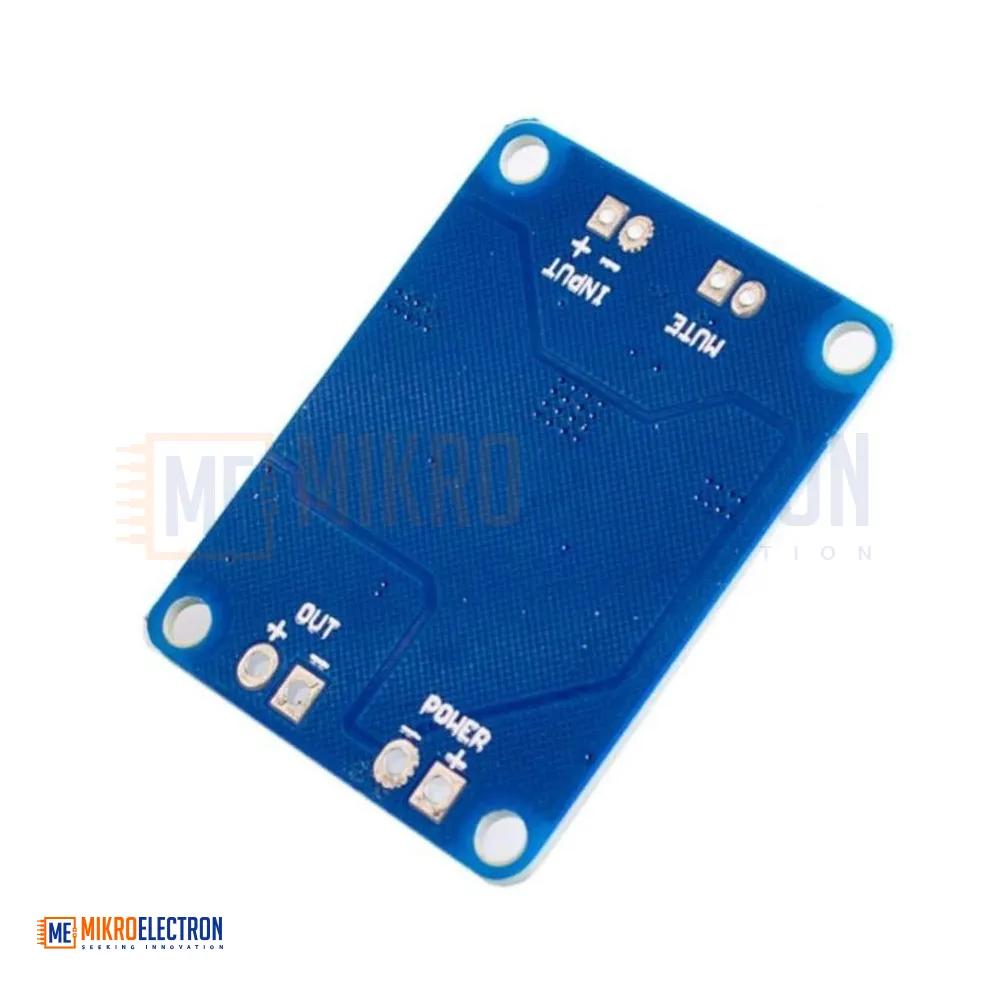

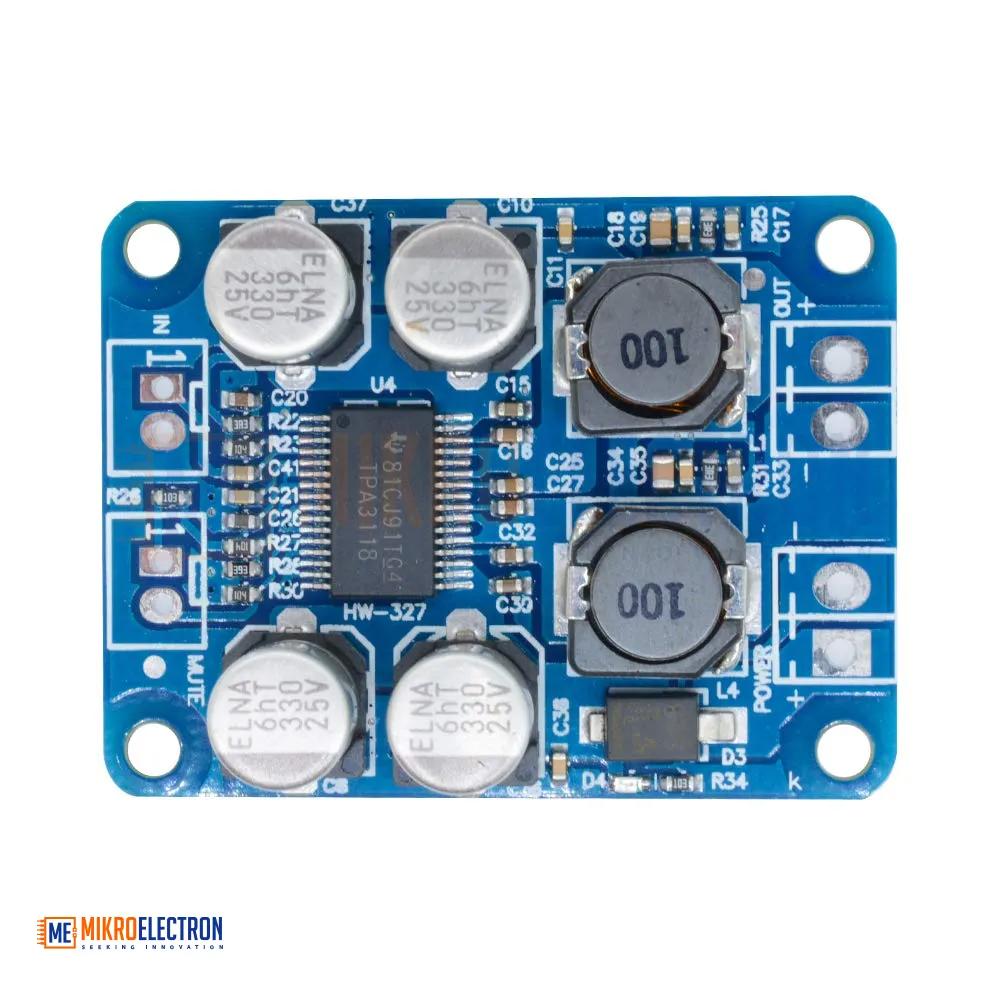

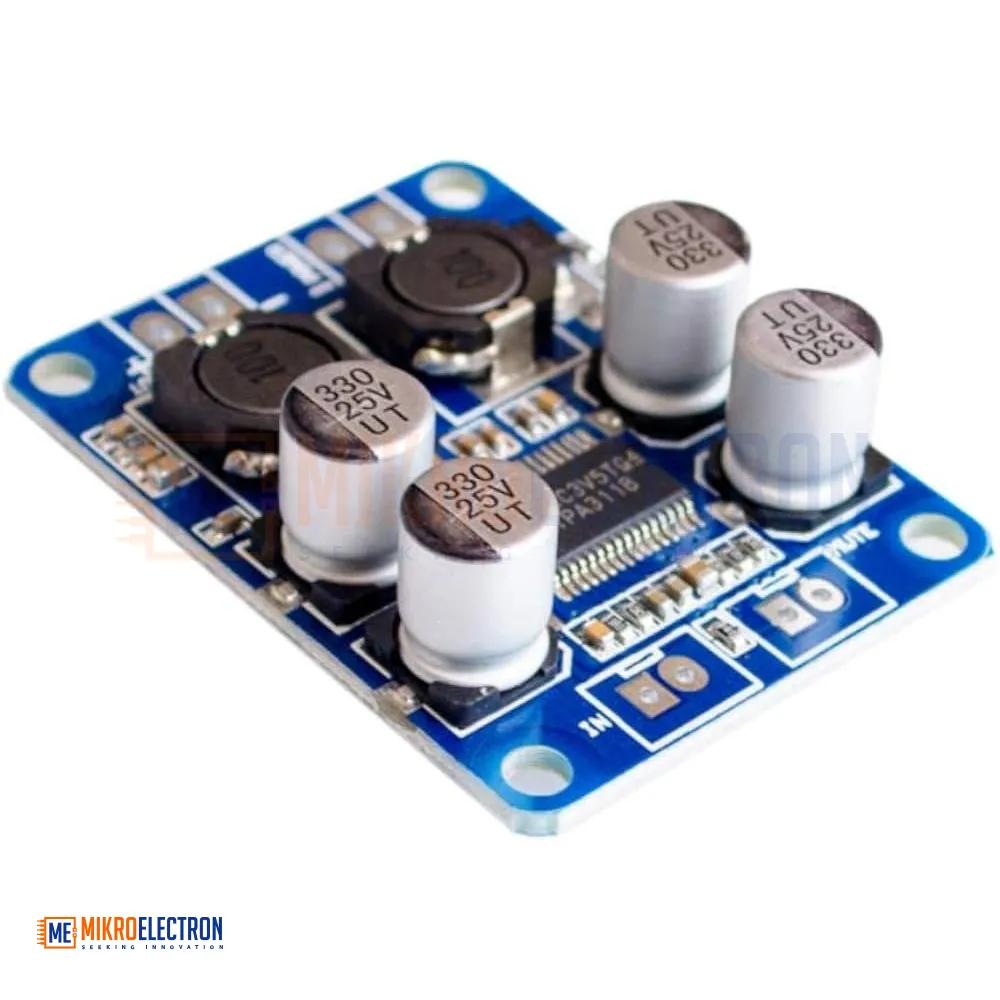

TPA3118 PBTL Single Digital Amplifier Board 1X60W

If you want to make a device where you can control the volume of any sound system then this TPA3118 PBTL Mono Digital Amplifier Board 1X60W 12V 24V Power Amplifier Module board is essential for you. In this module, you will get a specification of 60 w and this board can operate in both 12 v or 24 v.

This power amplifier board is gaining so much popularity because of  good sound quality and you can make simple but best projects and Students are like these types of the board because of its effective cost. It has high output and low power consumption.

• Operating Voltage: The module can operate within a wide voltage range, from DC 8V to 24V. This flexibility allows it to be powered by various sources, making it versatile for different setups.
• Chipset: It utilizes the TPA3118 chipset, a reputable choice for achieving high-quality audio amplification.
• Material: The board is constructed from FR4 material, known for its durability and reliability.

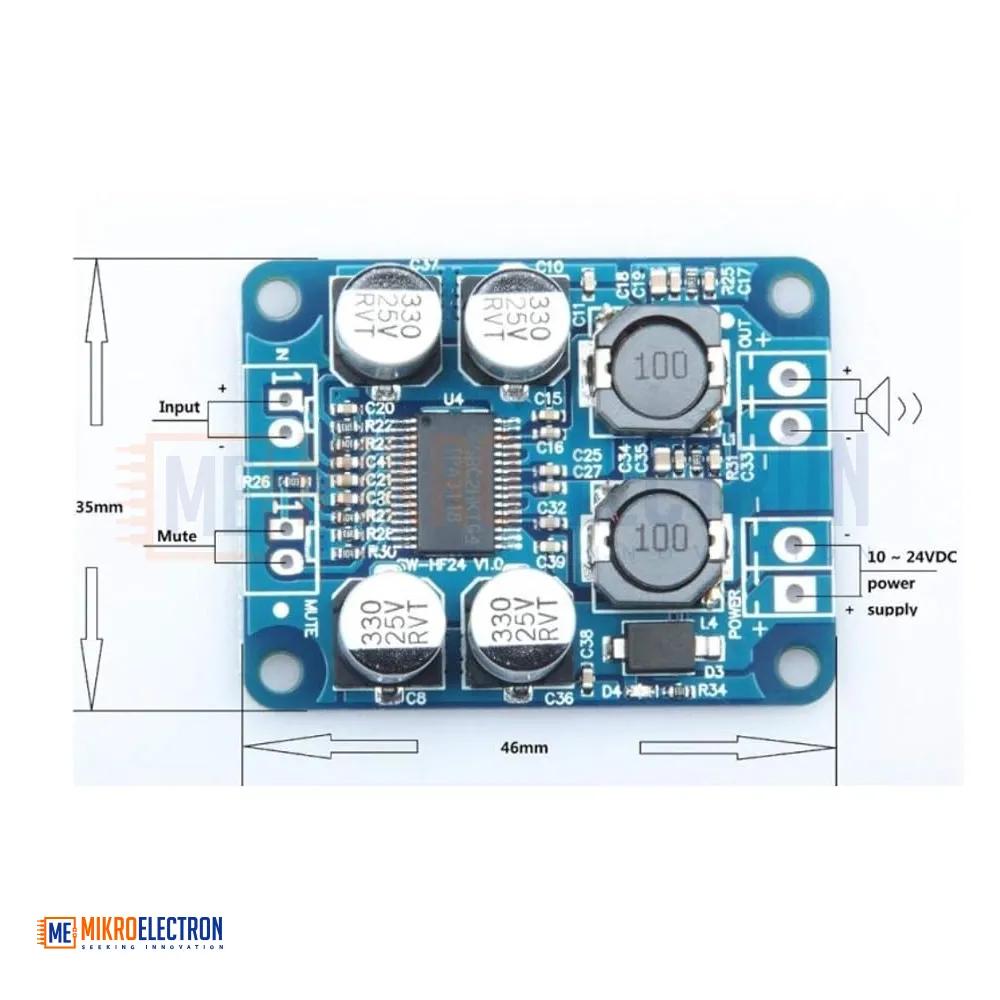

• Dimensions: The module’s compact size ensures it can fit into tight spaces. It measures 47mm in length, 35.5mm in width, and 12mm in height.
• Weight: The module is lightweight, weighing only 12 grams, which is advantageous for portable and space-constrained applications.
