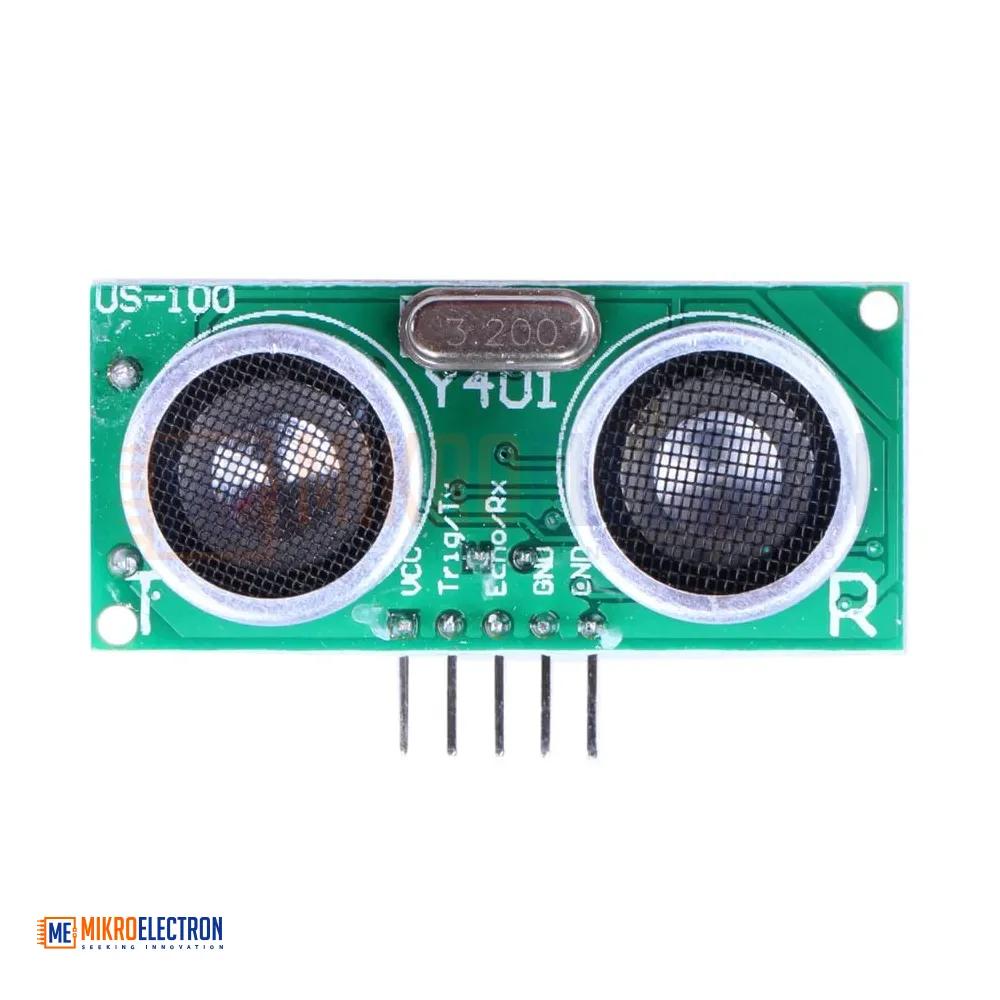

US-100 Ultrasonic Sensor Module Temperature Compensation Distance Measuring

This is the US-100 Ultrasonic Sensor Distance Measuring Module with Temperature Compensation. The US-100 Ultrasonic Sensor can measure or detect the object in the range of 2 cm to 450 cm distance.

This US-100 has 2.4V to 4.5V wide voltage input range, the static function GPIO, a serial variety of communication methods, within the band watchdog, stable and reliable.

The US-100 Ultrasonic Distance Sensor Module operates from a wide voltage range and provides both digital and serial data output modes.

The US-100 features accurate temperature corrected range detection. It can output the distance in millimeters using a serial data output mode. Alternatively, the distance can be calculated by measuring the amount of time that a digital output is held high.

This sensor can be used with both 3.3V and 5V microcontrollers and only consumes 2mA when idle.

Voltage: DC 2.4V – 5V

1. Average Current Consumption: < 2mA
2. Output mode: level or UART
3. Detection distance: 2cm – 450cm
4. Working temperature: -20°C to +70°C
5. It features temperature compensation.
6. Provides two output modes level or UART.
