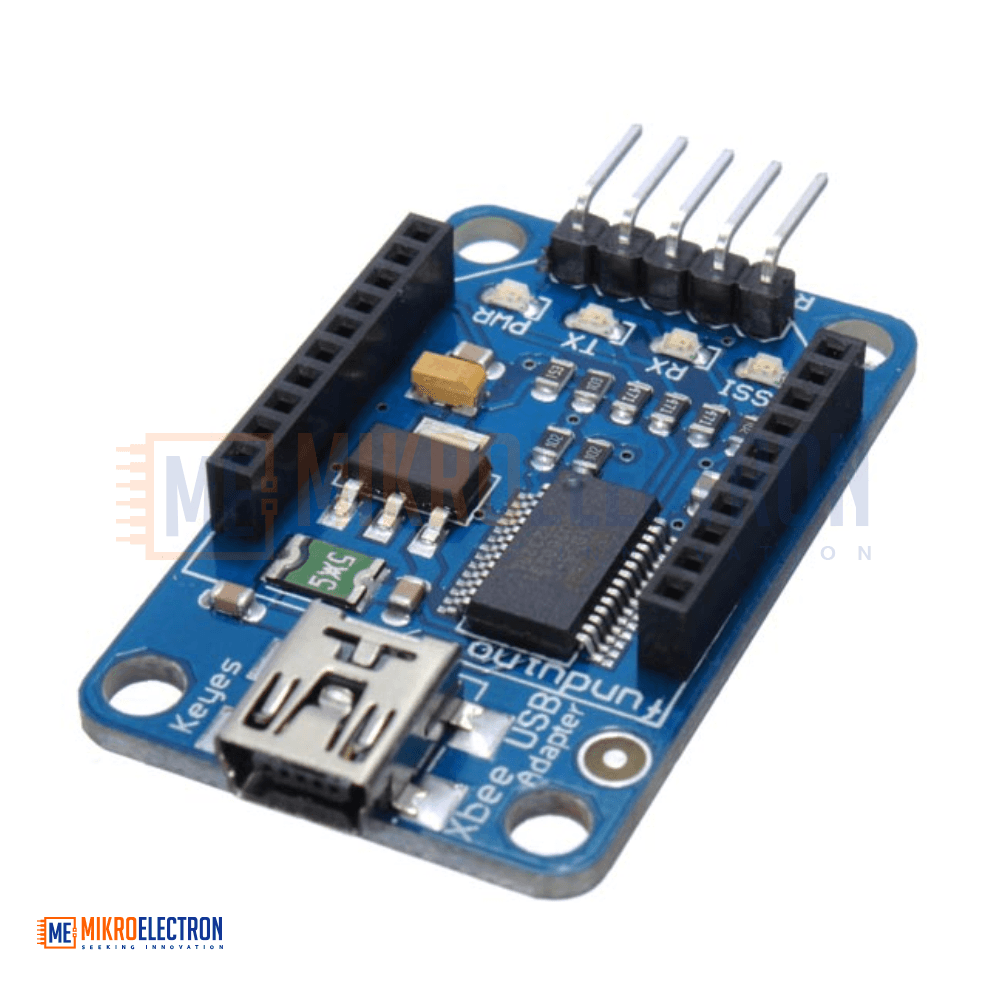

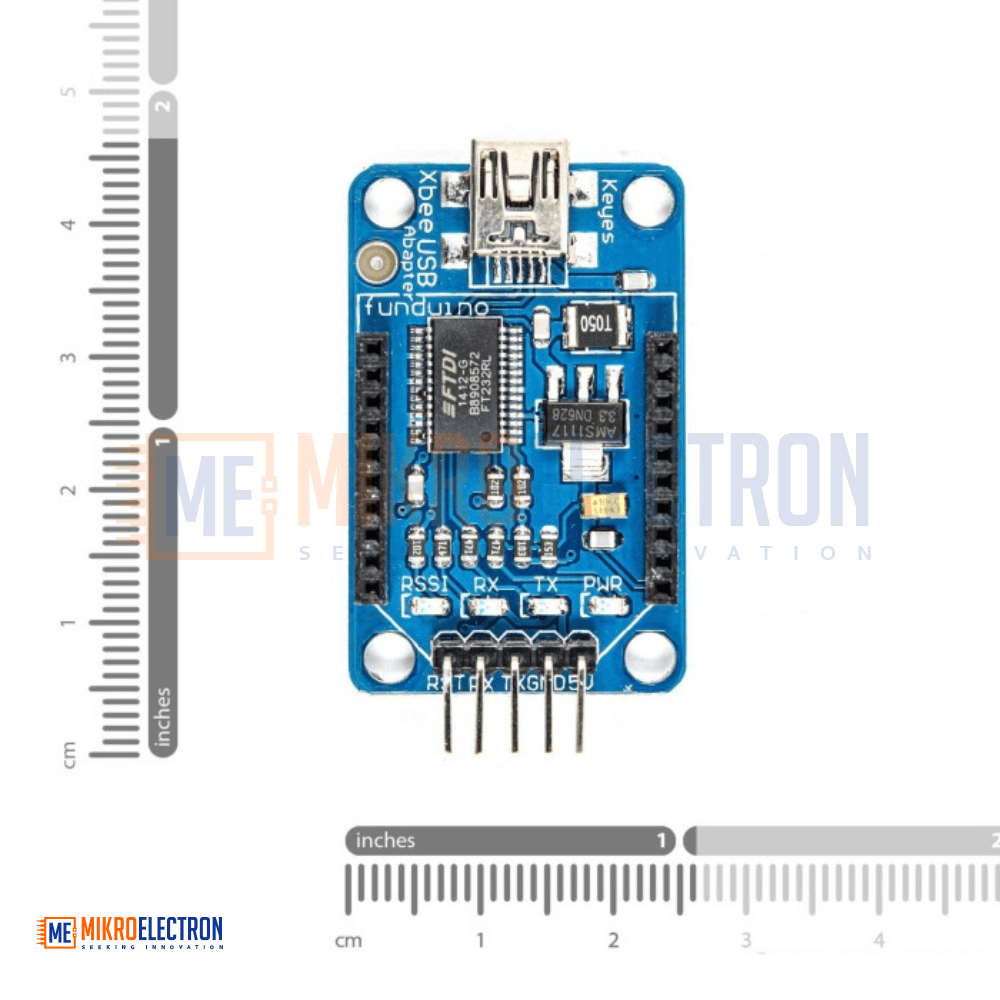

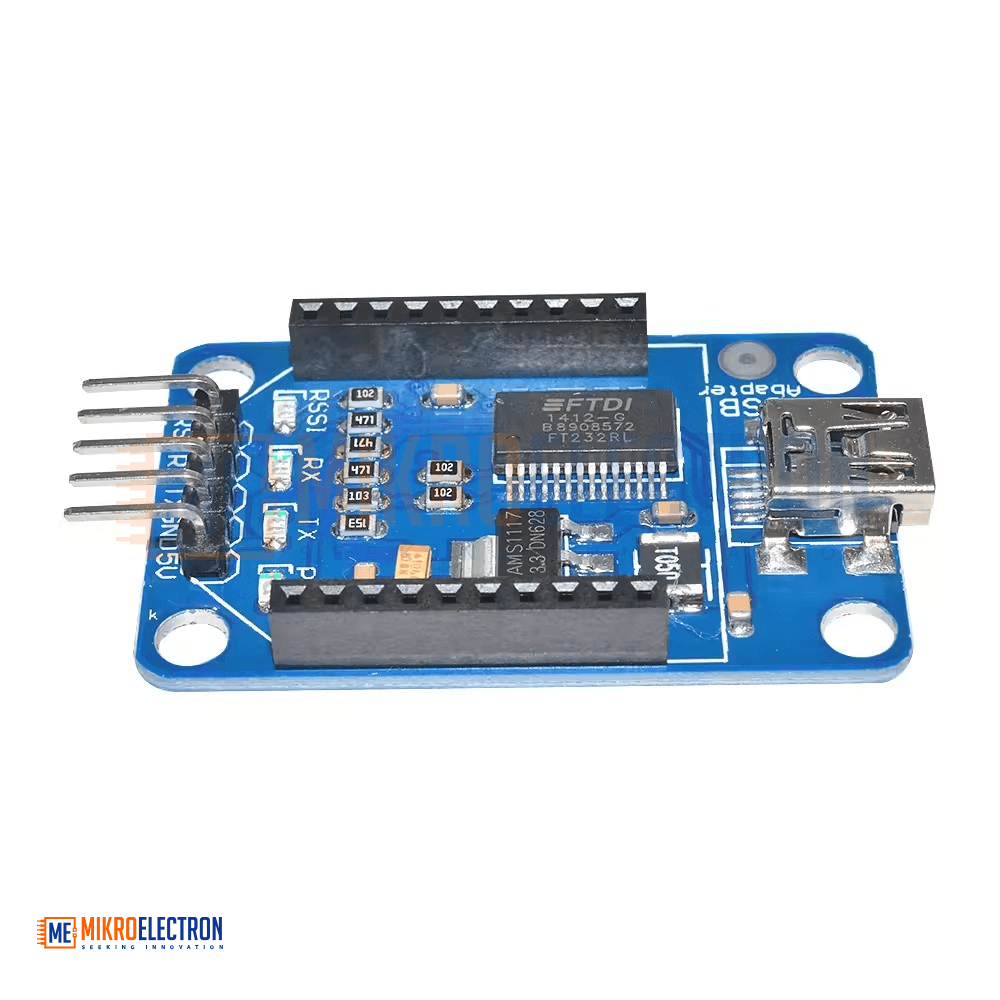

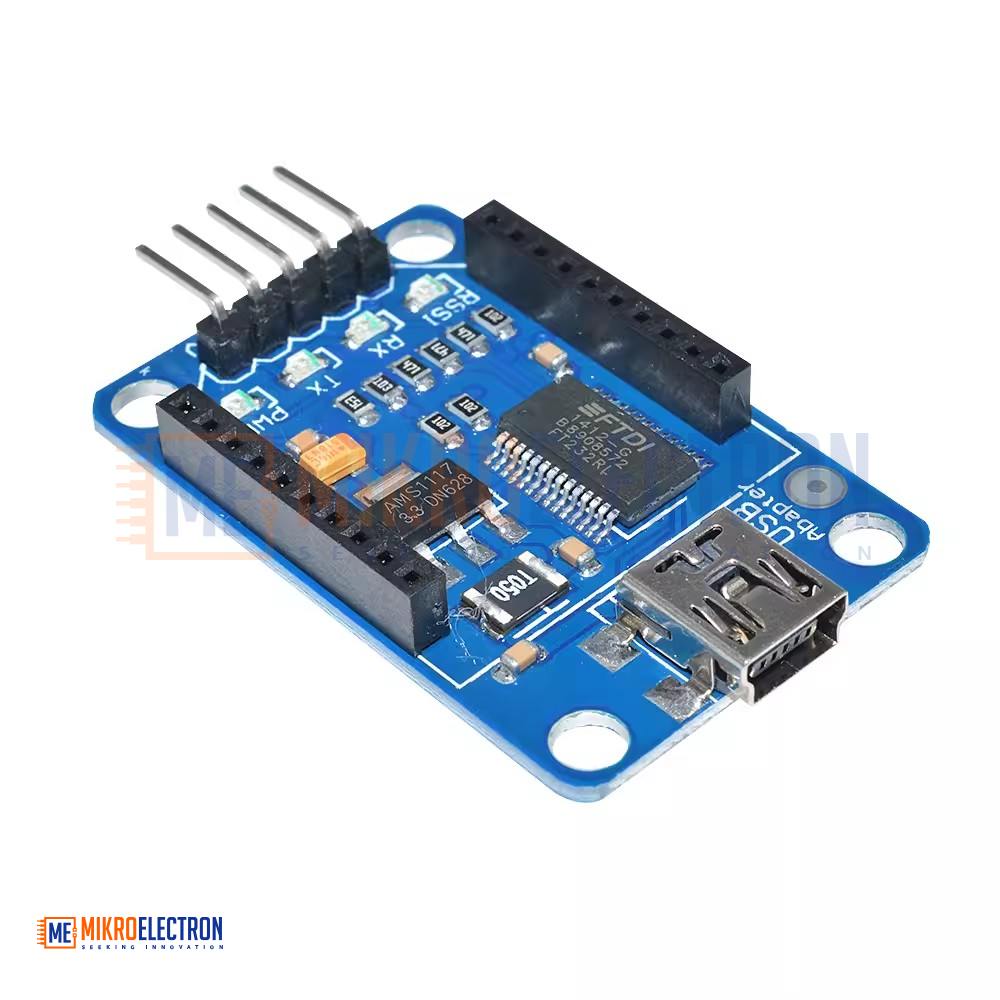

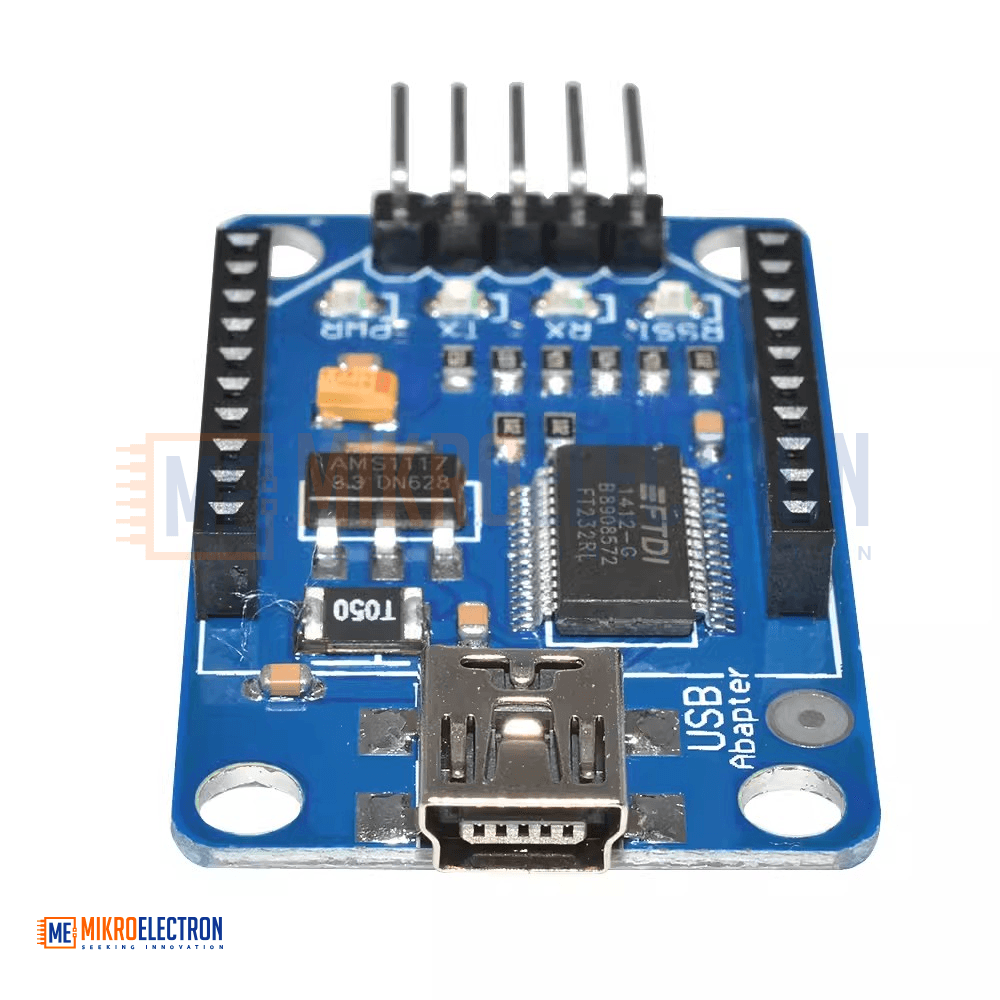

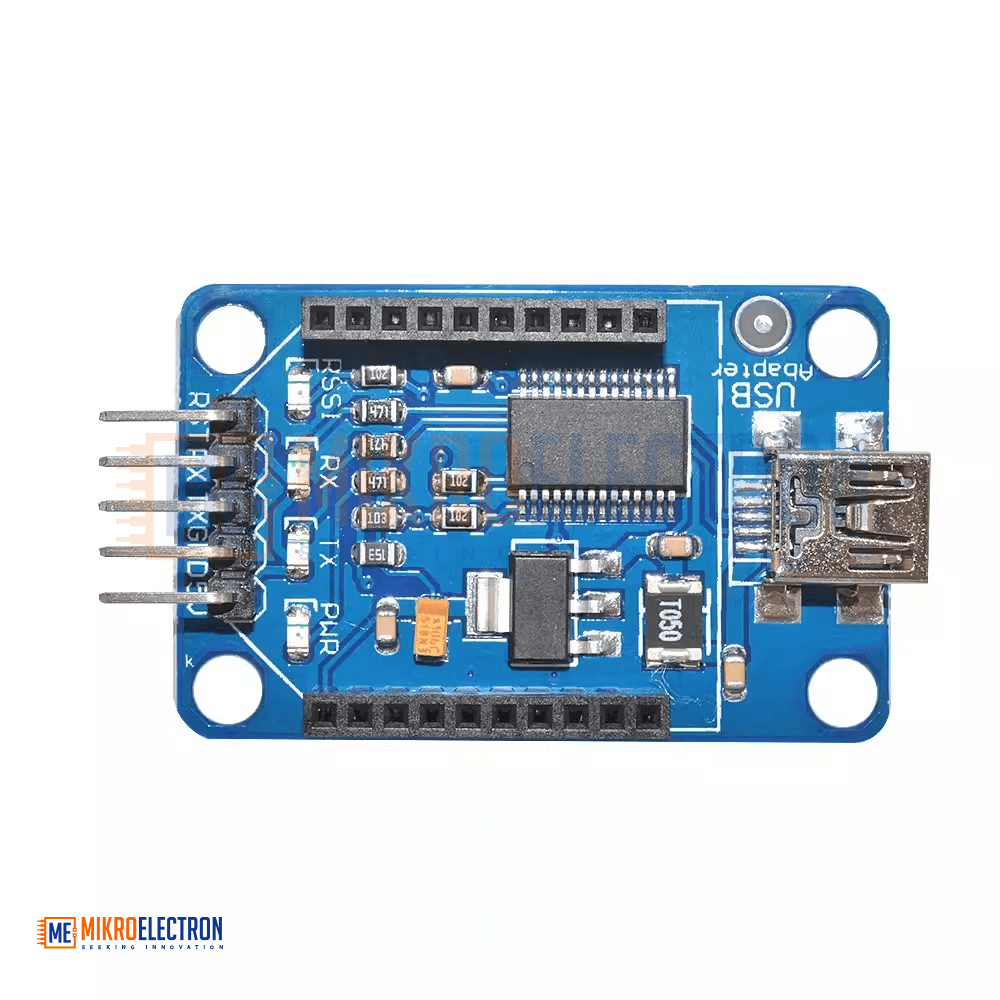

Xbee USB adapter
The XBee USB Adapter is a compact USB-to-Serial converter built around the reliable FT232RL chip, featuring a 20-pin 2.0mm BEE socket. It allows you to easily program or communicate with XBee, Bluetooth Bee, and Arduino Pro Mini modules through any PC. With dual 3.3V/5V power output and USB 2.0 support, it works seamlessly with X-CTU configuration software. Ideal for wireless module setup, data transmission, and Arduino programming, this adapter is a must-have tool for makers and engineers.
محوّل XBee USB هو محوّل USB إلى منفذ تسلسلي مدمج، مبني على شريحة FT232RL الموثوقة، ويحتوي على مقبس BEE بـ20 دبوس بمسافة 2.0 مم. يُتيح لك بسهولة برمجة أو الاتصال مع وحدات XBee و Bluetooth Bee و Arduino Pro Mini عبر الحاسوب. يدعم خرج جهد مزدوج 3.3 و 5 فولت وبروتوكول USB 2.0، ويعمل بسلاسة مع برنامج الإعداد X-CTU. مثالي لإعداد الوحدات اللاسلكية ونقل البيانات وبرمجة Arduino، وأداة أساسية للمطورين.
The XBee USB Adapter (Bee Adapter) is a versatile USB-to-Serial interface module designed to bridge the gap between your computer and a wide range of wireless and embedded modules. Built around the high-performance FT232RL USB-to-UART chip from FTDI, this adapter delivers stable, driver-supported communication on Windows, macOS, and Linux platforms.
Equipped with a standard 20-pin 2.0mm BEE socket, the adapter is compatible with popular wireless modules such as XBee, Bluetooth Bee, WiFi Bee, and Zigbee modules, making it an essential tool for wireless network development, IoT prototyping, and embedded communication systems. It also functions as a reliable USB programmer for boards lacking a built-in USB interface, including the Arduino Pro Mini and Sniffer Nano.
The adapter supports both 3.3V and 5V logic levels with dual voltage output, allowing safe interfacing with a wide variety of devices. Connecting it to a PC is as simple as plugging in a mini USB cable. With full support for Digi's X-CTU configuration software, configuring and updating XBee modules becomes straightforward and intuitive.
Whether you're configuring wireless modules, transferring data between devices, or programming microcontrollers, the XBee USB Adapter offers a compact, reliable, and easy-to-use solution.
Specifications
- USB-to-Serial Chip: FT232RL (FTDI)
- Socket Type: 20-pin 2.0mm BEE compatible socket
- Power Output: Dual 3.3V and 5V
- I/O Logic Compatibility: 3.3V and 5V
- USB Protocol: USB 2.0
- BitBang Mode: Supported
- Connection Type: Mini USB cable (PC interface)
- Software Support: X-CTU (XBee configuration tool)
- Compatible Modules: XBee, Bluetooth Bee, WiFi Bee, Zigbee modules, Arduino Pro Mini
- Operating System Support: Windows, macOS, Linux (via FTDI drivers)
Applications
- XBee Module Configuration — direct programming and firmware updates via X-CTU
- Bluetooth Bee Setup — configuring and pairing Bluetooth Bee modules
- Wireless Data Transmission — using BEE-compatible modules for serial-over-wireless links
- Arduino Pro Mini Programming — uploading sketches to boards without USB
- Sniffer Nano Communication — interfacing with sniffer and analyzer boards
- IoT Prototyping — quick connection between PC and wireless sensor nodes
- Zigbee Network Development — building mesh networks with XBee modules
- Robotics & Automation Projects — wireless control and telemetry systems
- Educational & Research Use — learning serial communication and wireless protocols
- Embedded Firmware Debugging — reading serial logs from microcontrollers
