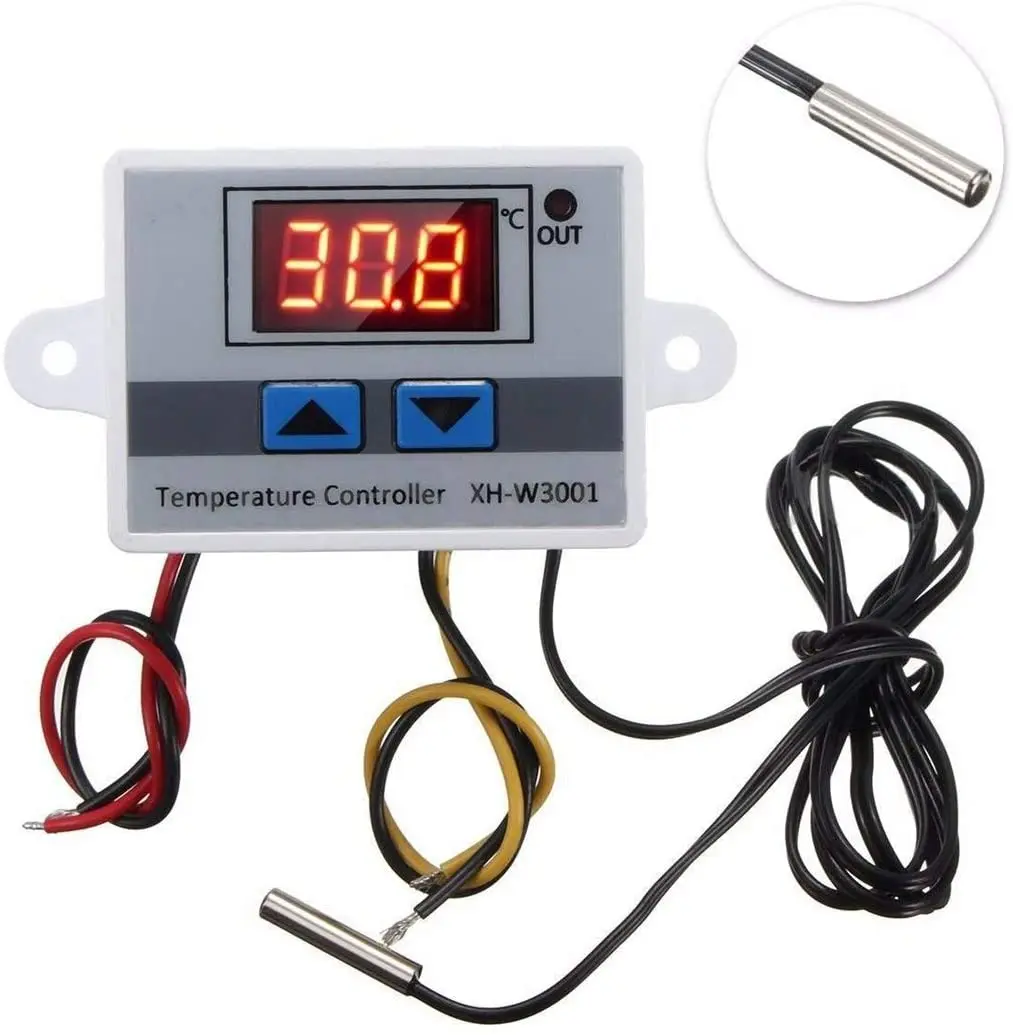

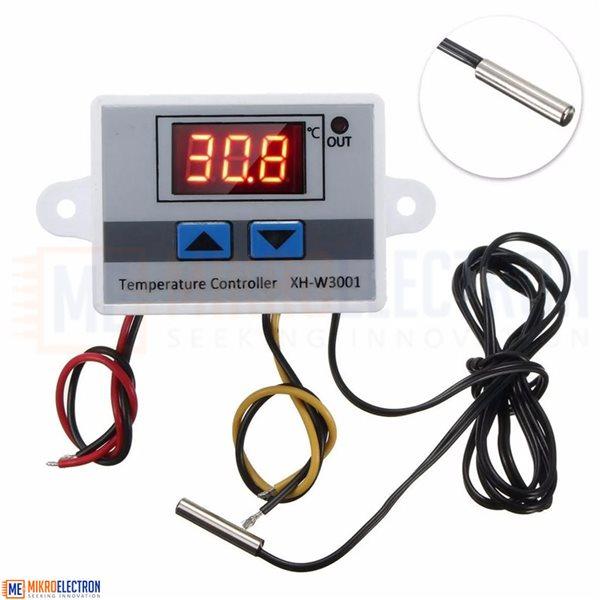

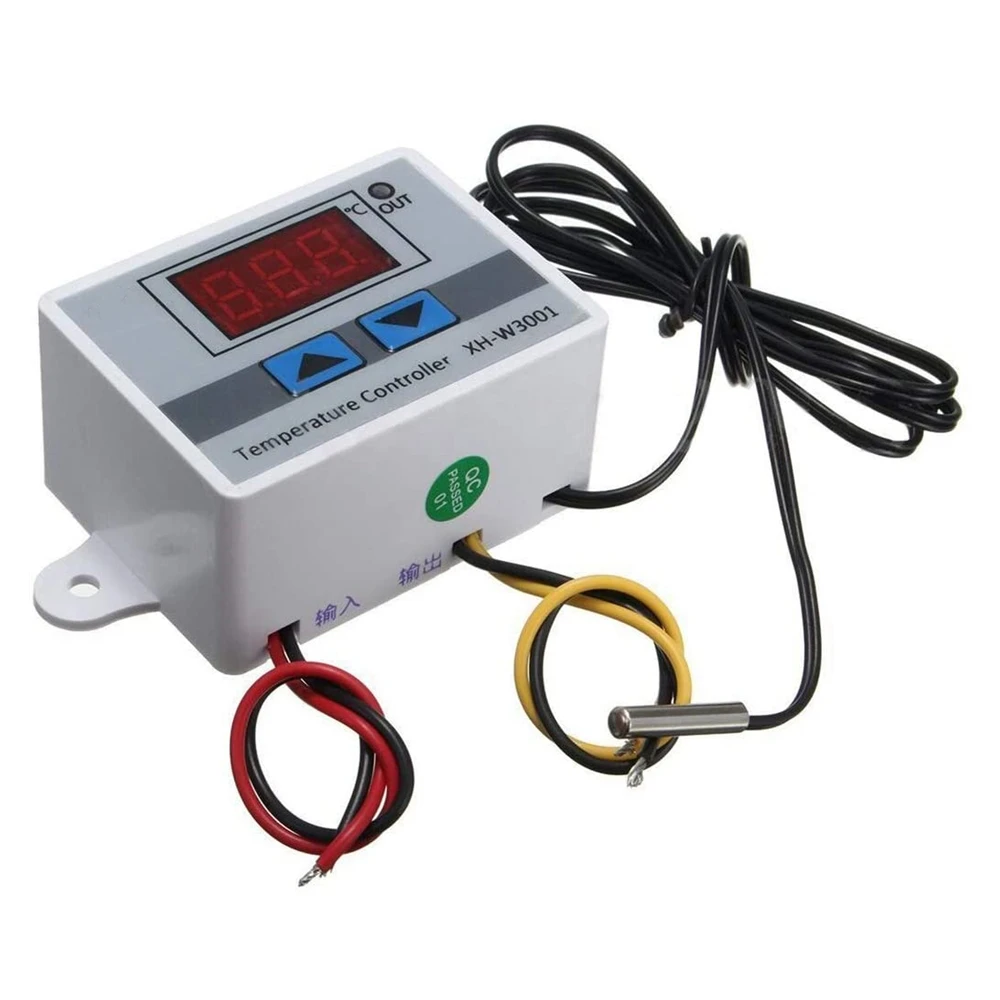

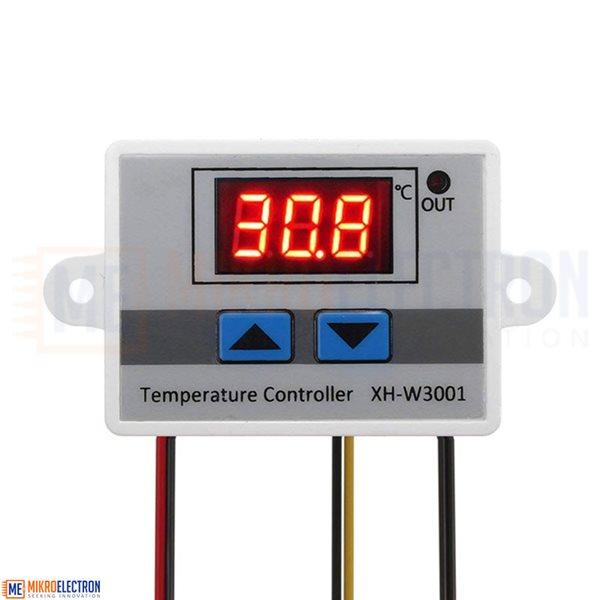

XH-W3001 AC 220V 1500W DIGITAL TEMPERATURE CONTROLLER MICROCOMPUTER THERMOSTAT SWITCH

This delicate digital display temperature controller can set start and stop temperature. The display and control temperature can be set to 0.1℃ with wide temperature control range from -50℃ to 110℃. It is convenient to install and wiring is simple. Widely used in the hatching area, equipment case, air conditioning system, temperature control protection and other fields.

Digital temperature controller

Model: XH-W3001
Output Type: Direct Output
Output capacity:10A max
Power Supply: DC12V,DC 24V,DC 220V
Load power:120/240/1500W
Temperature Measurement Range: -50° C~110° C
Temperature Control Range: -50° C~110° C
Temperature Control Precision: 0.1° C
Input measurement: NTC10K waterproof probe L = 1 meter waterproof

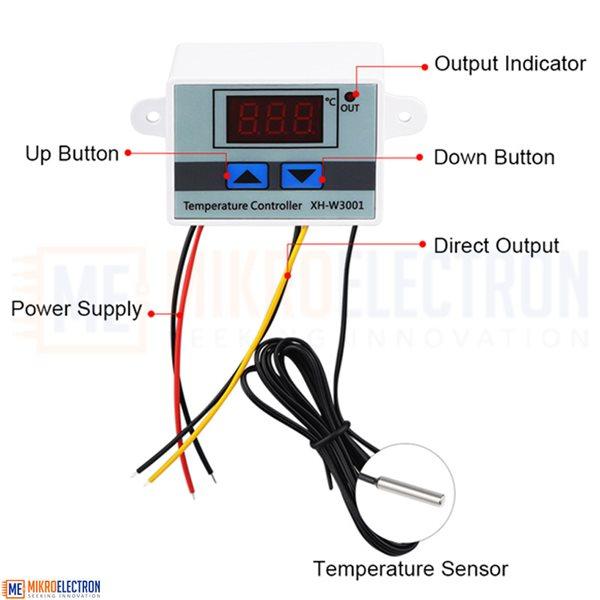

How to set:
1. Press up button show the starting temperature.
2. Long press UP button the temperature display Flashing , Press the UP or Down button.
3. Set the start temperature value.
4. Press Down button show the Stop temperature.
5. Long press Down button the temperature display Flashing , press the UP or Down.
6. Button Set the stop temperature value
