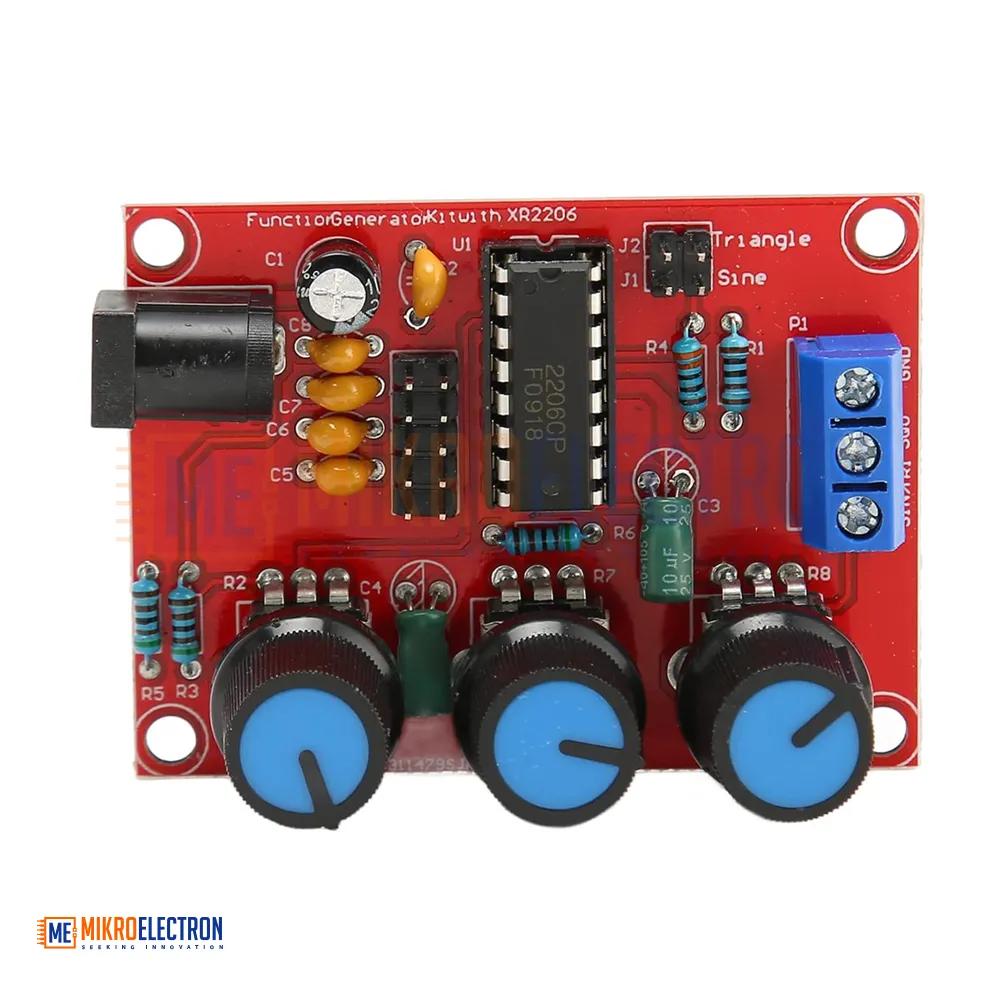

XR2206 Signal Function Generator Sine Triangle Square Wave Output 1Hz-1MHz
The XR2206 function generator module produces sine, triangle, and square waves from 1 Hz to 1 MHz. It’s ideal for testing, waveform analysis, and electronics experimentation in labs, education, and DIY projects requiring adjustable frequency signal output.
وحدة مولد الوظائف XR2206 تنتج موجات جيبية، مثلثية، ومربعة بتردد من 1 هرتز إلى 1 ميجاهرتز. وهي مثالية للاختبار، تحليل الموجات، والتجارب الإلكترونية في المختبرات، التعليم، والمشاريع الشخصية التي تتطلب خرج إشارة بتردد قابل للتعديل.
The XR2206 function generator module is a compact, versatile signal source capable of generating sine, triangle, and square waveforms. Operating over a frequency range of 1 Hz to 1 MHz, it uses the XR2206 IC to deliver stable, adjustable signals. Amplitude and frequency can be tuned via onboard potentiometers, making it suitable for audio testing, circuit debugging, and educational applications.
Specifications:
- Color:red
- Model:XR2206
- Voltage Supply: 9-12V DC Input
- Waveforms: Square, Sine & Triangle
- Impedance: 600 Ohm + 10%
- Frequency: 1Hz - 1MHz
- Sine Wave
- Amplitude: 0 - 3V at 9V DC input
- Distortion: Less than 1% (at 1kHz)
- Flatness: +0.05dB 1Hz - 100kHz
- Square Wave
- Amplitude: 8V (no load) at 9V DC input
- Rise Time: Less than 50ns (at 1kHz)
- Fall Time: Less than 30ns (at 1kHz)
- Symmetry: Less than 5% (at 1kHz)
- Triangle Wave
- Amplitude: 0 - 3V at 9V DC input
- Linearity: Less than 1% (up to 100kHz) 10mA

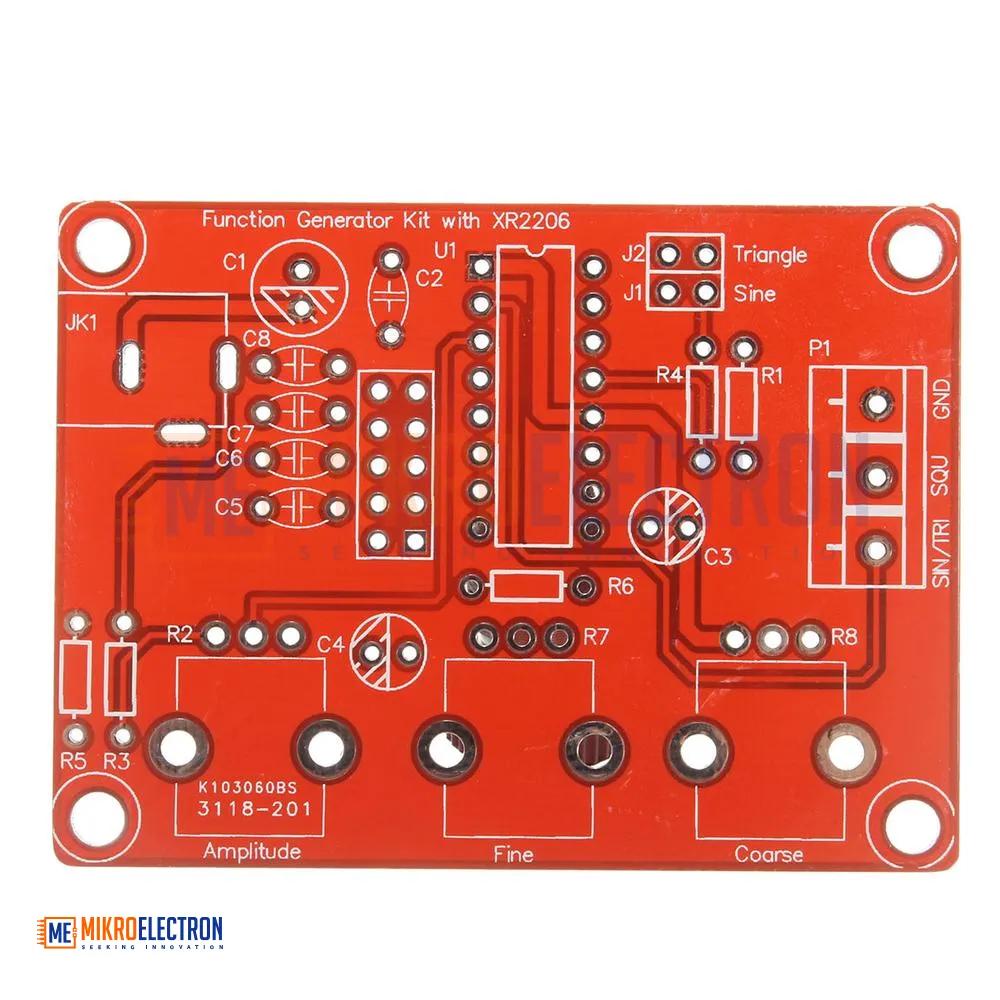

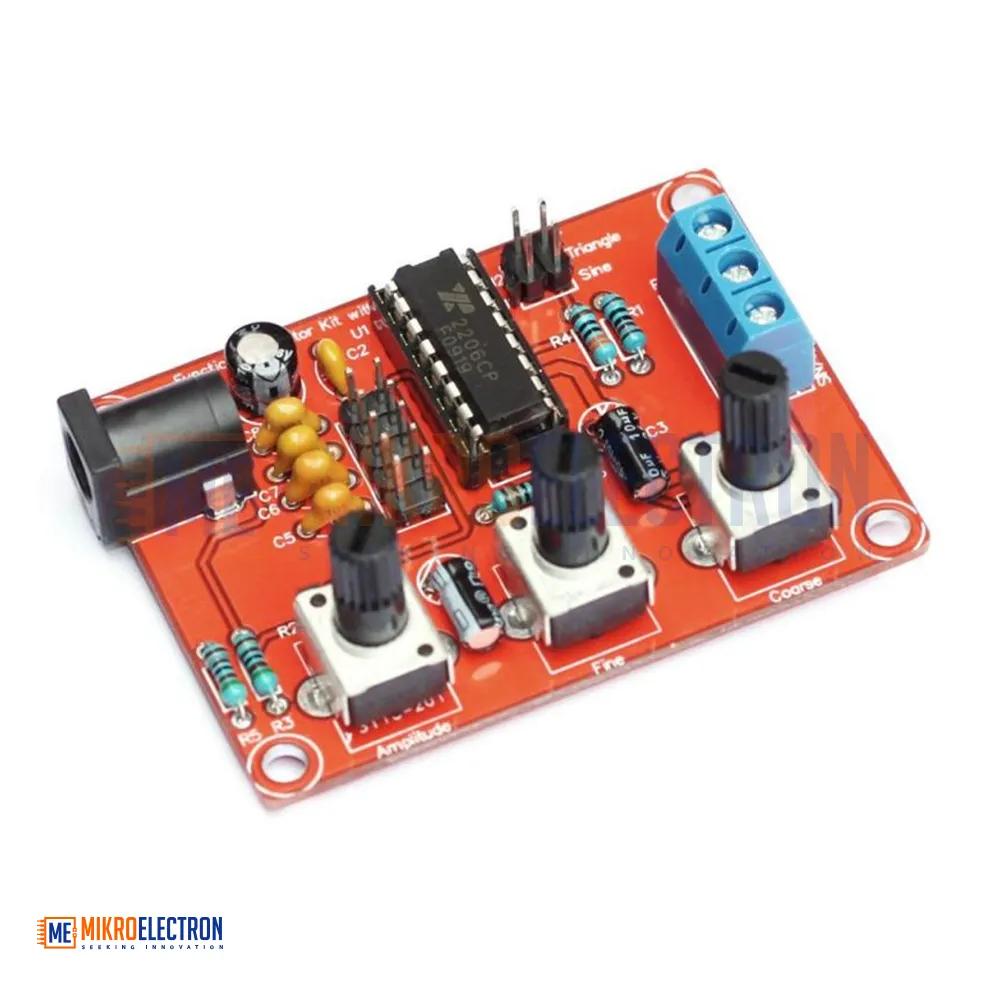

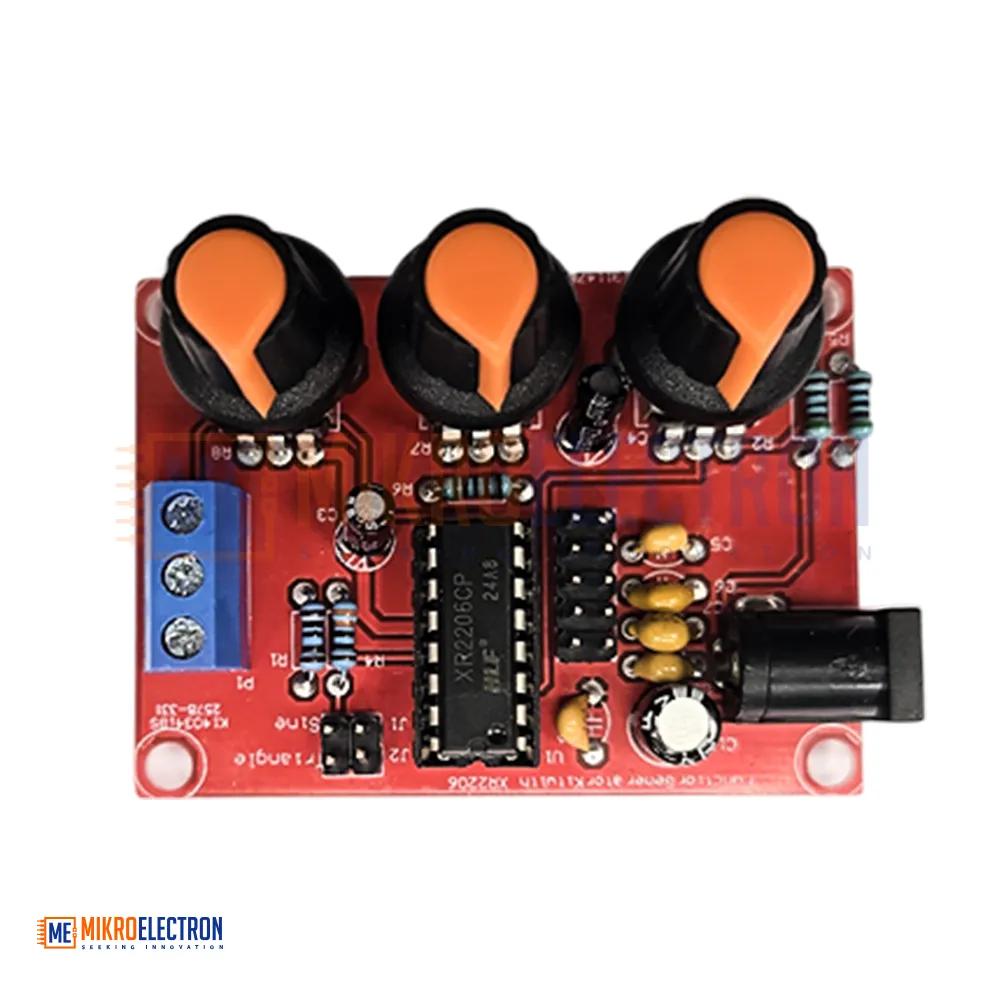

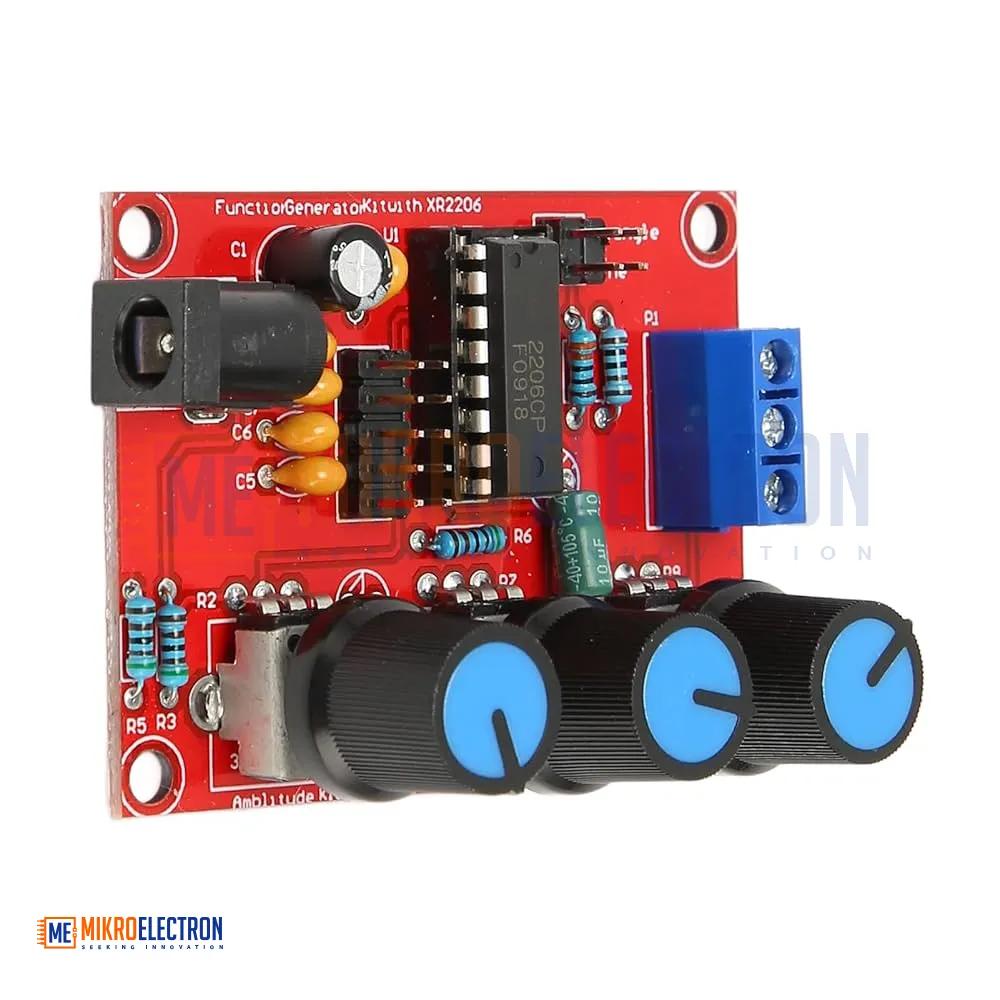

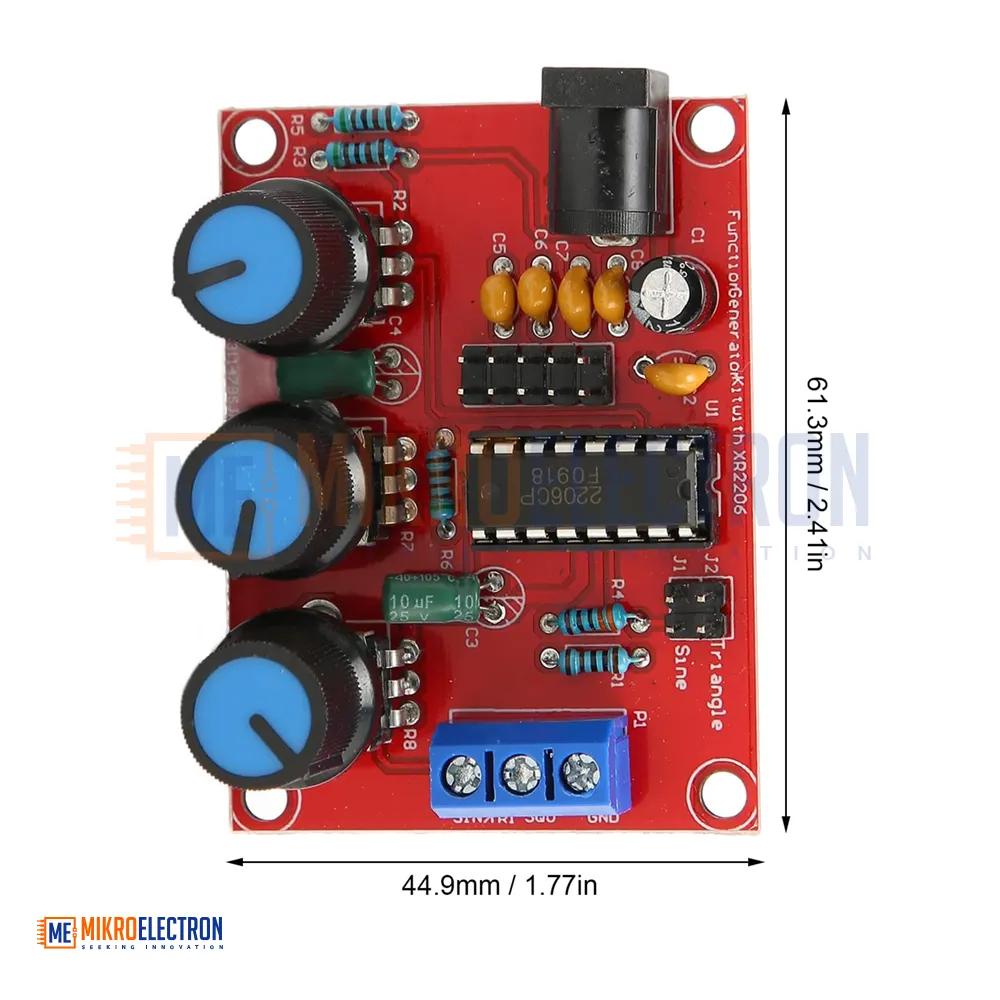

DimensionsLength: 6.3cmWidth: 4.5cmHeight: 1cm
