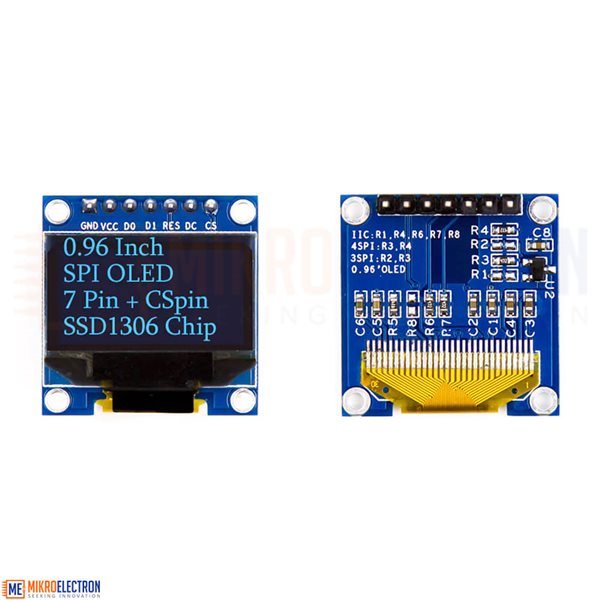

0.96 Inch Blue SPI OLED LCD Module 7 Pins

Description:

0.96 Inch OLED LCD LED Display Module For Arduino SPI Communicate With Cs Pin



OLED Technology:

OLED display technology has self-illuminating properties, using a very thin coating of organic materials and a glass substrate. When there is current, these organic materials will emit light, and the OLED display screen has a large viewing angle and can save power. This display device was introduced on the MP3 player in the beginning of the year.


The OLED and driver require a 3.3V power supply and 3.3V logic levels for communication. To make it easier for our customers to use, we've added a 3.3v regulator and level shifter on board! This makes it compatible with any 5V microcontroller, such as the Arduino.


Features:

Interface: SPI

Resolution: 128*64

Angle of view: >160 degree

Display dimension: 0.96 inch/1.3 inch

Driver IC: SSD1306/SSH1106

Power supply: 3.3V~5VDC

Operating temperature: -20~70

Application: smart watch, MP3, thermometer, instruments, DIY projects, etc.


9 JD
Quantity
11 in stock
9 JD 1+ units
8.55 JD 10+ units
8.1 JD 25+ units
7.65 JD 100+ units
