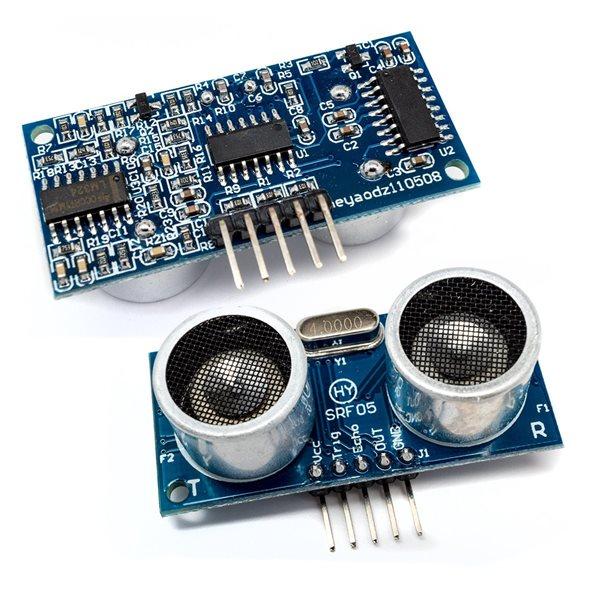

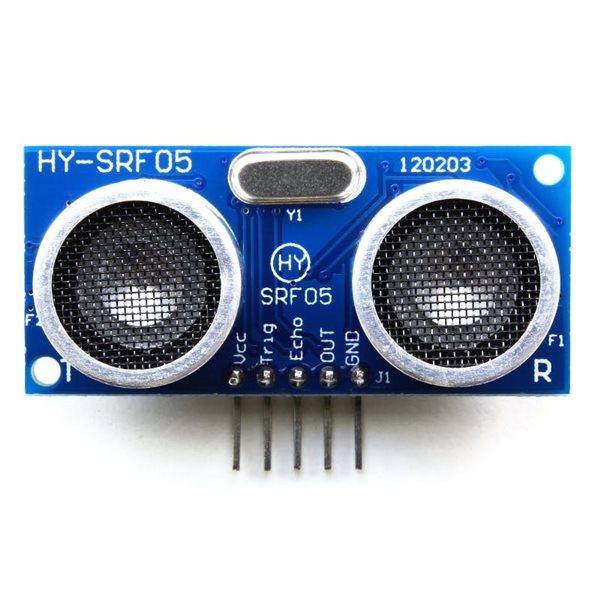

5Pin HY-SRF05 Ultrasonic Distance Sensor Module

Description:

Detecting range: 3cm-4M , Best in 30 degree angle , Electronic brick compatible interface , 5VDC power supply , Breadboard friendly , Dual transducer , Arduino library ready

  • Working Voltage: 5V (DC) , Static current: Less than 2mA. , Output signal: Electric frequency signal, high level 5V, low level 0V.
  • Sensor angle: Not more than 15 degrees. , Detection distance: 2cm-450cm. , High precision: Up to 0.3cm , Working tempter:-20C _+60C , Weight: 10g Size: 45x 21mm (L x W)
  • Connector Pin: VCC , Trig (T) , Echo? , OUT , GND

3.5 JD
Quantity
19 in stock
3.5 JD 1+ units
3.32 JD 10+ units
3.15 JD 25+ units
2.98 JD 100+ units
