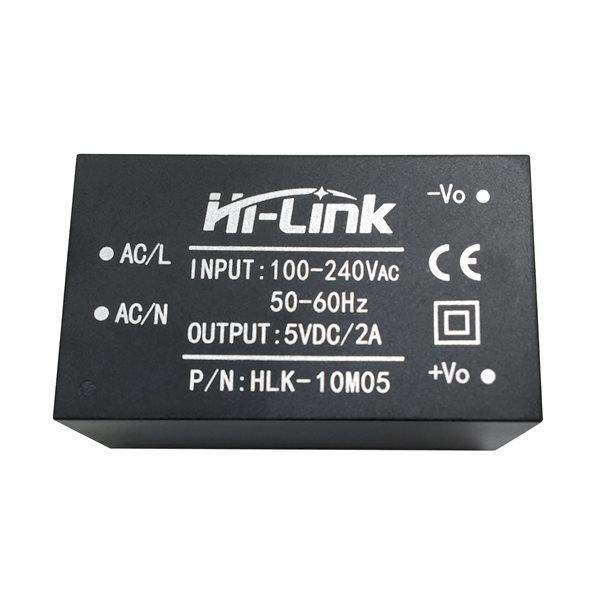

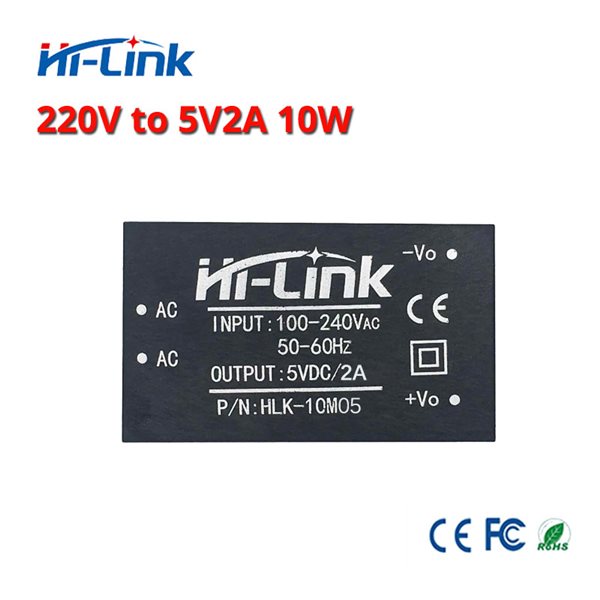

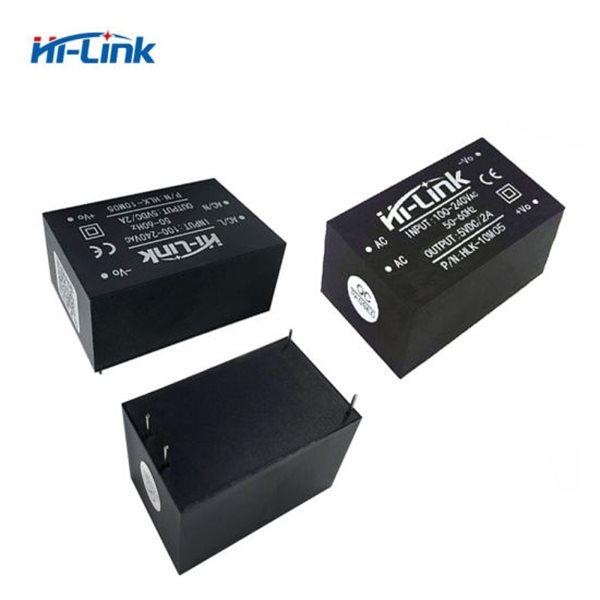

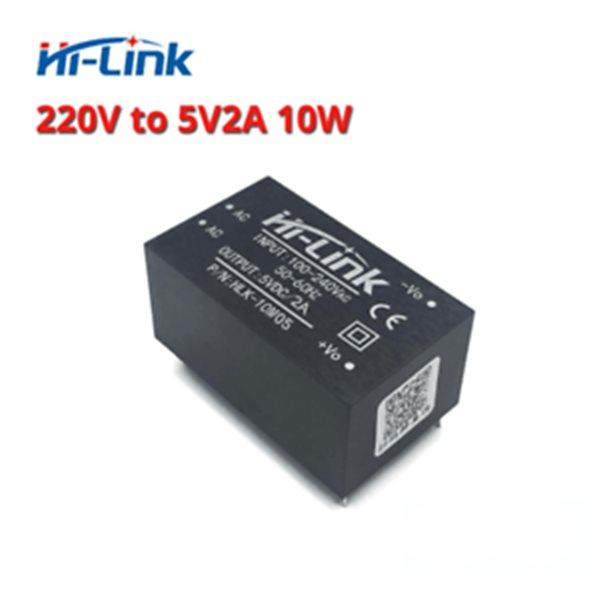

5V 2A AC-DC switching power supply module ac dc 220V to 5V isolated power module hlk HLK-10M05
Description:
5V 2A switching power supply module ac dc 220V to 5V isolated power module hlk HLK-10M05
Product features:
1. The ultra-thin, subminiature
2. The full voltage input (90 ~ 245 vac)
3. Low ripple and low noise
4. Output overload short circuit protection function
5. High efficiency and power density
6. Product design to meet the EMC and safety testing requirements
7. Low power consumption, green environmental protection, no-load loss < 0.1 W
Aging and
8.100% load test
9. Meet the requirements of UL, CE,if you want to make the certification,you need to add the external circuit ,please leave your mail address to us,we will send the schematic diagram of this part to you.
10. The quality guarantee period of 1 years.
2. Environmental conditions
Technical indicators:Single bit
Working temperature: - 20-60 +degree
Storage temperature: + 80-40 -degree
Relative humidity: 5-95.%
The cooling way: Natural cooling
The atmospheric pressure: 80-106Kpa
The altitude :2000M or less
vibration
Vibration coefficient of 10 ~ 500 hz, 2 g10min. / 1 cycle, 60 min. Each along the X, Y, Z axes
3. The electrical characteristics
The input features (test) at room temperature.
4. Safety features:
4.1 the product design as to meet the requirements of UL, CE safety certification.
4.2 safety and electromagnetic compatibility
The input design USES UL 0.5 A insurance;
PCB board made of double-sided copper-clad boards material is 94 - where V0 fire rating level;
Safety standards in accordance with UL1012 EN60950, UL60950
Insulation voltage I/P - O/P: 2500 vac
Insulation resistance I/P - O/P > 100 m Ohms / 500 VDC 25 degree 70% RH
Conduction and radiation in line with the EN55011, EN55022 (CISPR22)
Electrostatic discharge IEC/EN 61000-4-2 level 4 8 kv / 15 kv
Radiofrequency radiation immunity IEC/EN 61000-4-3 can be found in the application
4.3 safety design temperature
At normal temperature on our power capacitor, main converter so on surface temperature does not exceed 90 degree; the largest
The shell surface maximum temperature does not exceed 60 degree;
5. Demension
Kit include:
1 x HLK-10M05
