Description:

7 Inch 1024*600 TFT LCD Module Monitor Resistive Touch Screen + Driver Board HDMI for Raspberry Pi 4 B All Platform / PC

Can you imaging that you have a Raspberry Pi or banana Pi, or beagle bone development board, or you just want to make a portable media center. you can use this screen to create your own funny staff, such as making robot's face, making Ironman helmet and so on. you just need a good monitor screen to finish your design. the following one is your best choice.

Compatibility:

LCD screen parameters:

• Display size: 7 inch

• Touch screen: Optional
• Dimensions: 165 (W) × 100 (H) × 5 (D) mm
• Viewing area: 154.08 (H) × 85.92 (V)
• Resolution: 1024 × 3 (RGB) ×600
• Point distance: 0.05 (W) × 0.15 (H) mm
• Viewing angle: L70 ° R70 ° U50 ° D60
• Panel type: TFT
• Display color: 262K
• Contrast ratio: 500: 1
• Brightness: 220cd / m2
• Interface type: Digital
• The number of connection: 50 PIN Digital (TTL) TCON
• Backlight: LED
• Applications: mobile DVD, digital photo frame, car systems, multimedia applications and other audiovisual systems

Note:

Raspberry pi 7 inch touch screen calibration

Features:

• Operating voltage: 5V (current requirement 2A), 9V@1.5A(Recommended) ,12V@1A ,
• Rated power: 6-7W

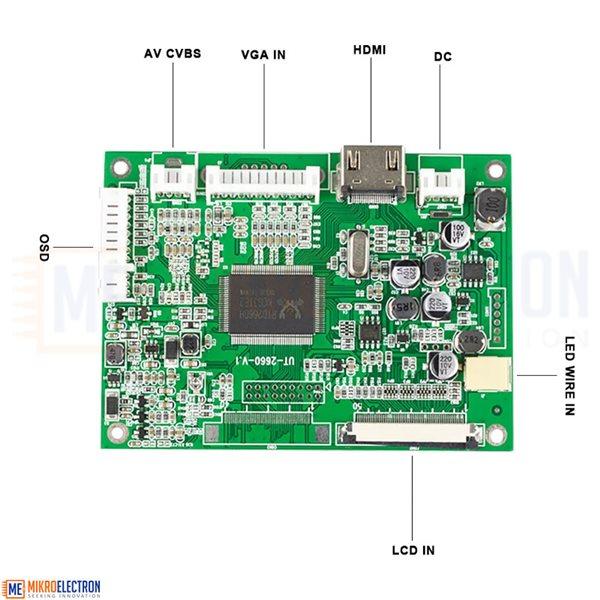

• Signal input: AV + VGA + HDMI (HDMI 1.2)
• Resolution: 1024 * 600,
• Plug and Play: Support
• OSD language: Simplified Chinese, Traditional Chinese, English, Japanese, Korean, Spanish, French, German, Italian, Portuguese
• Control: Multi-function OSD operation or potentiometer adjust the brightness and color
• Features: Using mature program, clear display
• Support image flip up and down, the image can conversion 4: 3 / 16: 9 display format
• Support 30fps.

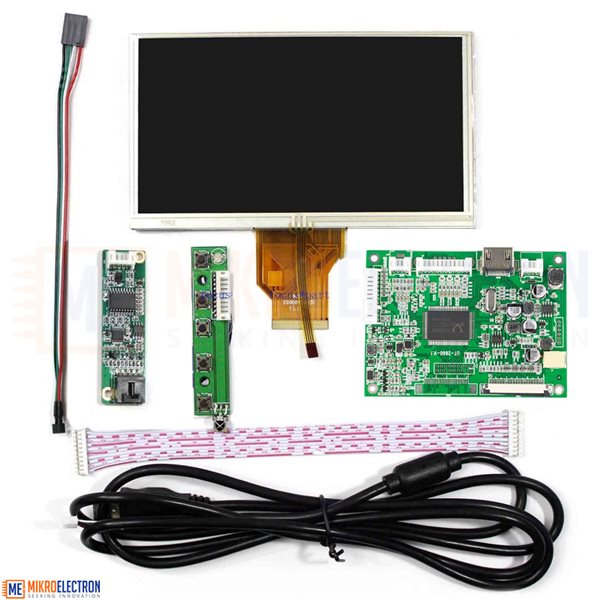

Kit include:

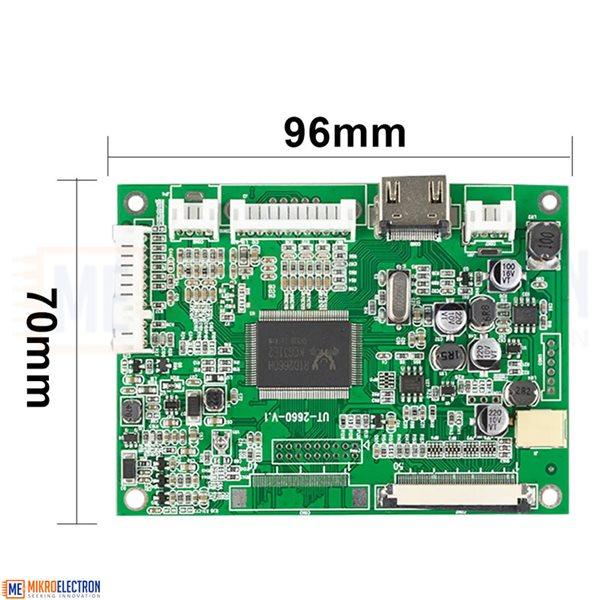

• 1 x HDMI+VGA+2AV Controller Board
• 1 x 7inch 1024*600 LCD Panel
• 1 x 5-button switch and adjustment panel
• 1 x 7 inch Touch Screen Kit
• 1 x Power Cable
