8 decade resistor board programmable resistor resistor board module 1R - 9999999R step 0.1R SMD resistor module

Description:

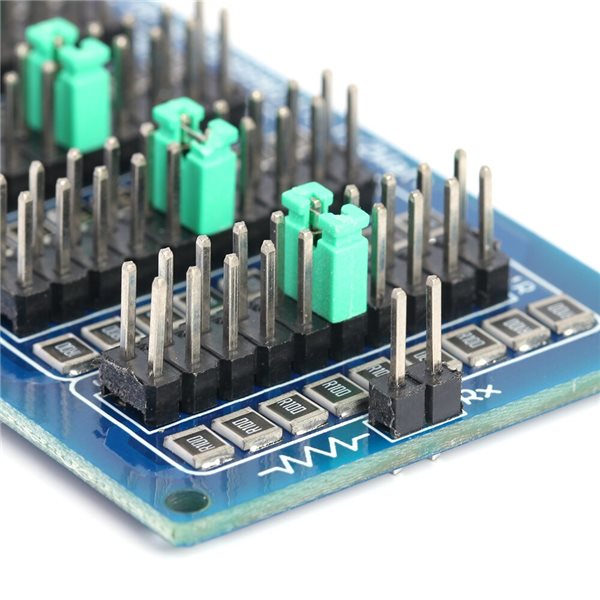

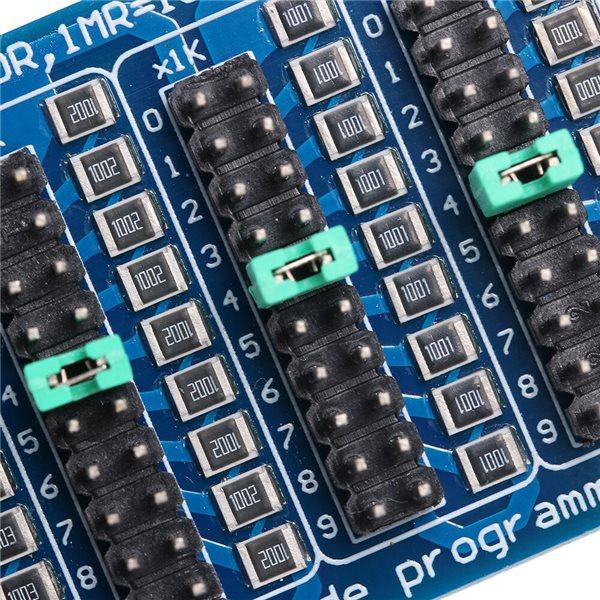

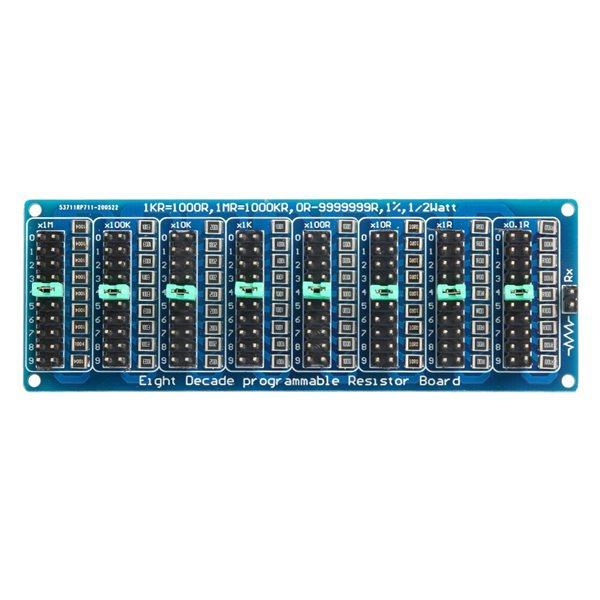

Programmable eight decade resistor board 1R-9999999R step accuracy 0.1R 1/2 Watt SMD resistor module

Description:

This "resistor substitution box" with good accuracy, wide range and 0.1R step accuracy is a good low-cost alternative solution. Electronic engineering design or test clipping are excellent applications for educational experiments. It can be flexible and fast tuning resistor range from 1R to 9999999R or 0.1-9.9999999MR (0-10MS).


Specification:

Programmable resistance: 0 to 9,999,999 ohms, 1 ohm per step.

Resistance tolerance: ±1%

Rated power: 1/2W

Item size: 100X35X10mm/3.94X1.38X0.39"


Note:

1. Due to the different monitor and light effect, the actual color of the item may be slightly different from the color shown on the pictures. Thank you!

2. Due to manual measurement, 1-3mm allow measurement deviation.Packages

Features:

  • Design based on "resistors series" theorem.
  • 1/2 watt tolerance +/-1% SMD resistors.
  • High quality FR4 glass fiber PCB.
  • 8pcs jumper caps with spare part

5.5 JD
Quantity
3 in stock
5.5 JD 1+ units
5.22 JD 10+ units
4.95 JD 25+ units
4.67 JD 100+ units
