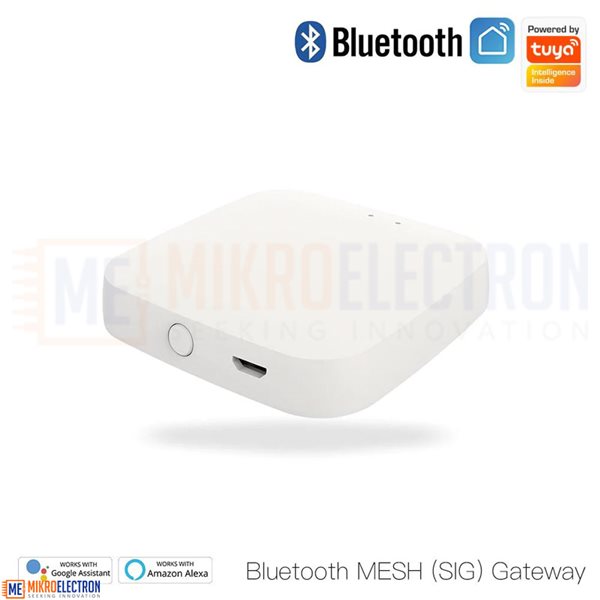

Bluetooth Gateway Smart WiFi Hub Smart Home Bluetooth MESH (SIG) Gateway


Product Description:

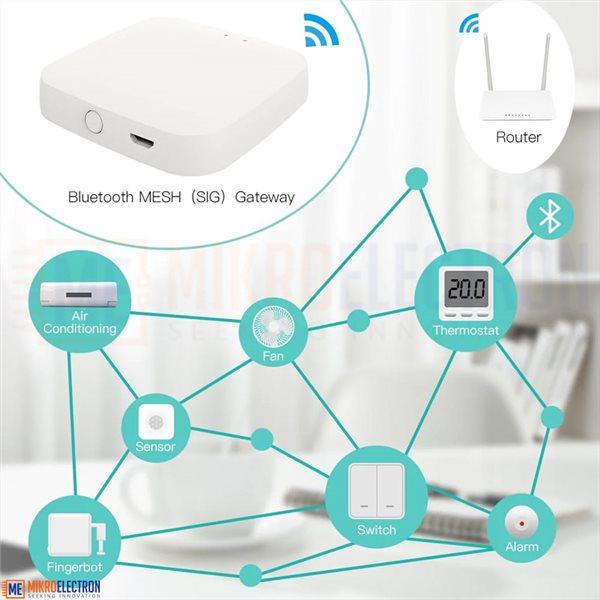

Bluetooth MESH (SIG) gateway is composed of highly integrated wireless Wi-Fi module, Low energy wireless Bluetooth module and main board. Through the Tuya Smart APP, users can implement device addition, device reset, third-party control, and Bluetooth (single point & mesh) group control to meet smart home and other applications, featured as an extremely powerful smart home bridge for Bluetooth devices.

Main Features:

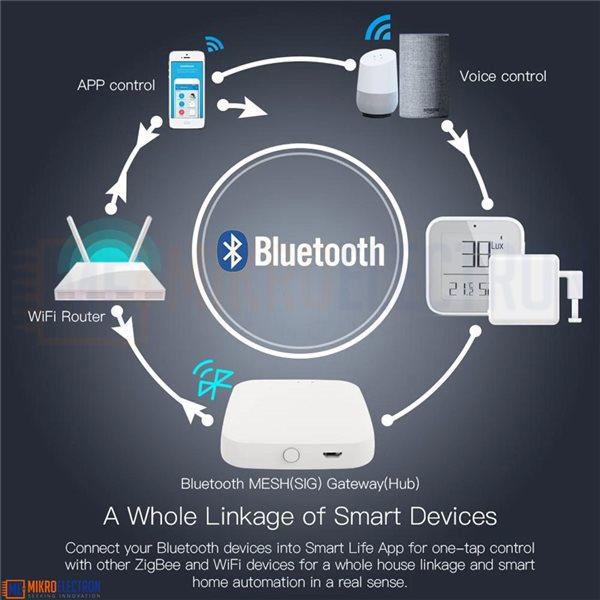

  1. Multi-network Integration: free switching's integrating Wi-Fi and Bluetooth single-point & Mesh communication methods, which can be remotely controlled by Wi-Fi and local Bluetooth. It can also be handled normally for intelligent control even there is no network.
  2. Extremely stable and reliable signal: Wi-Fi signal and Bluetooth single point & Mesh signal are steady enough with a wide coverage and strong wall penetration ability, strong anti-interference ability as well, even featured as low heat generation and low power consumption.
  3. High-level encryption method: The Bluetooth hubuses the industry's high-level encryption method to transmit information on the Wi-Fi and Bluetooth terminals to ensure network communication security and prevent malicious intrusion.

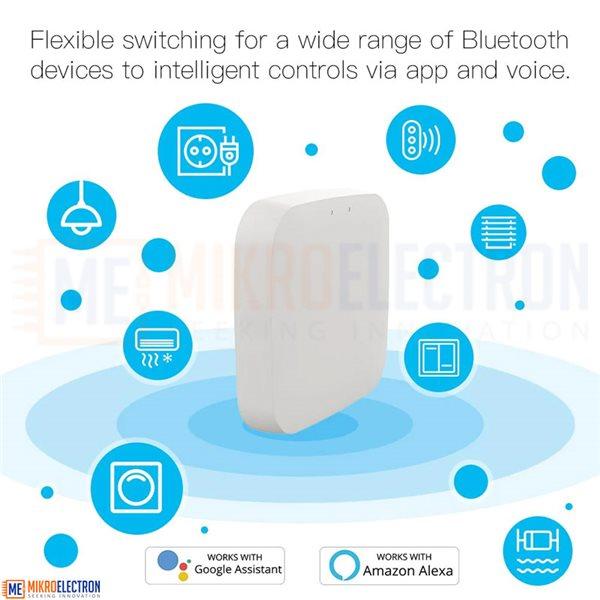

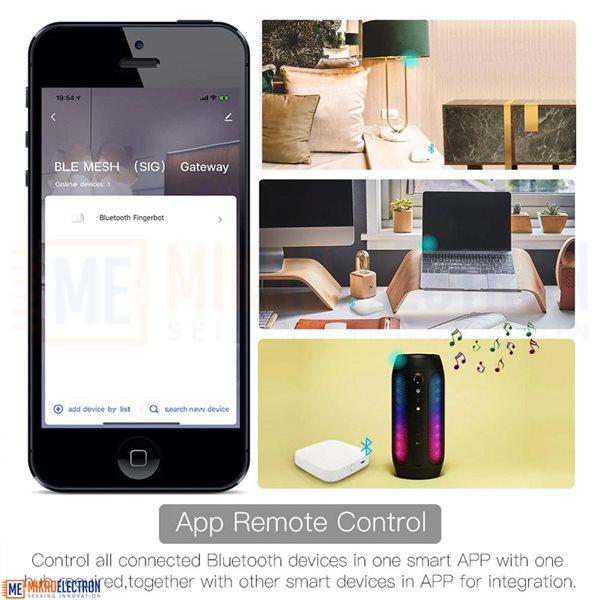

  4. Multiple devices available: The same network supports multiple devices to work at the same time to improve network reliability; Compatible with Tuya Smart APP ensures its intelligent controls for Bluetooth devices on smart phones anywhere from anytime;USB Plug charged and easy to use.
  5. Alexa and Google voice assistants integrated for Tuya Smart APP enables free voice control to your connected devices for added convenience; Designed with small size for quick and easy set-up with absolutely no wiring or technical skills required; maximum number of 128 devices that can be connected to the hub; includes full 2-year warranty and 60-day refund guarantee for complete satisfaction.

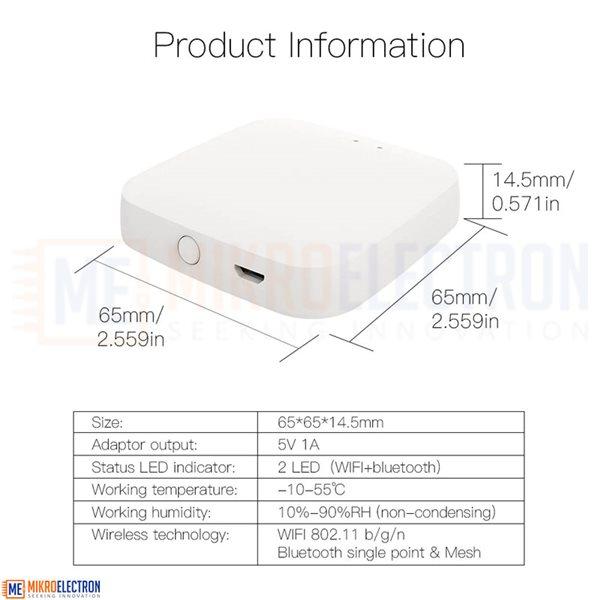

  • Size :65*65*14.5mm

  • Net weight:29g

  • Status LED indicator:2 LED  (WIFI + Bluetooth)

  • Button:1 (reset)

  • Power: Micro USB DC5V

  • Working current:<1A

  • Adaptor output:5V 1A

  • Working temperature:-10-55℃

  • Working humidity:10%-90%RH (non-condensing)

  • Storage temperature :-20-60℃

  • Storage humidity:5%-90%RH (non-condensing)

  • Hardware interface:1 Micro-USB

  • Wireless technology: Wi-Fi 802.11 b/g/n

  • Bluetooth single point & Mesh

  • Maximum sub-device: Max Node = 128

Kit include:

1 x Bluetooth Gateway Smart WiFi Hub Smart Home Bluetooth MESH (SIG) Gateway

30 JD
In stock
