Description:

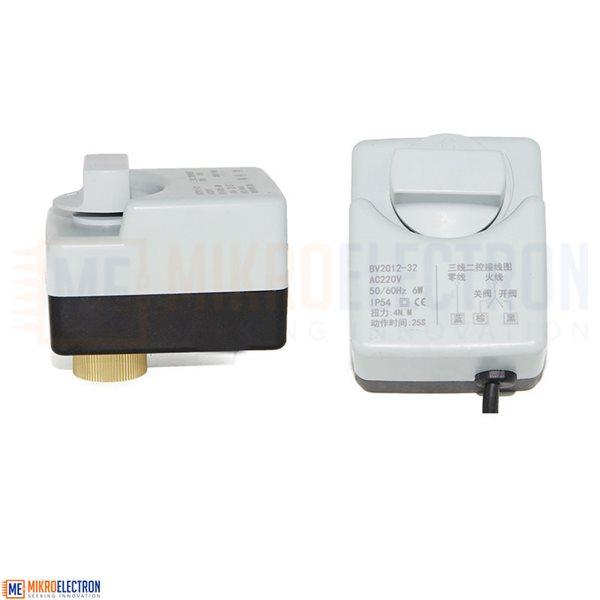

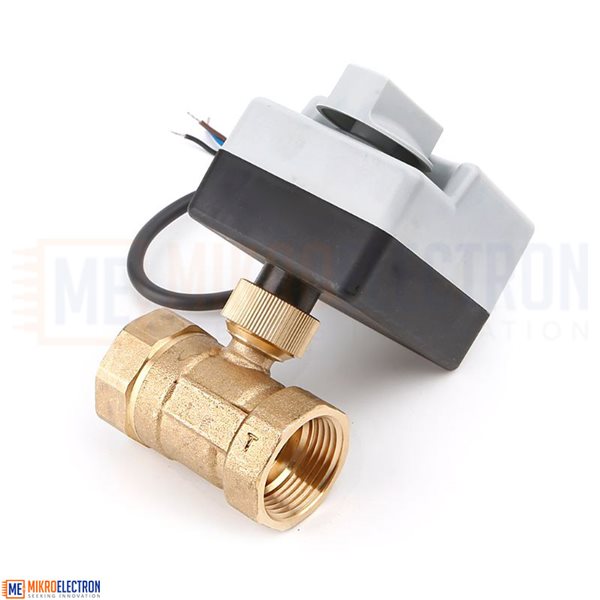

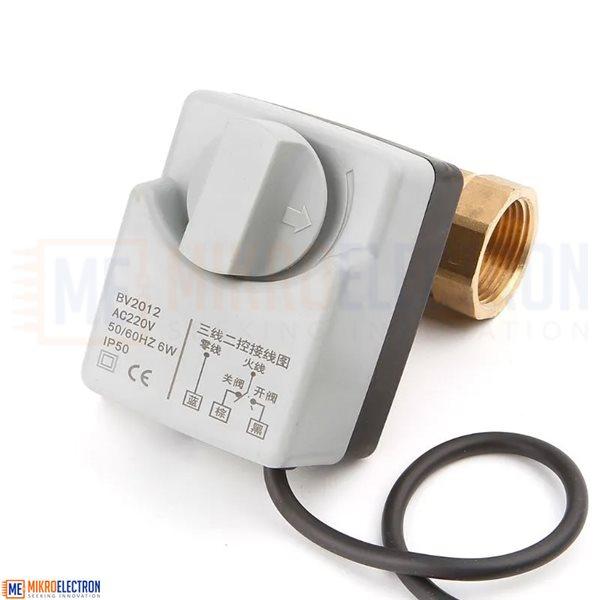

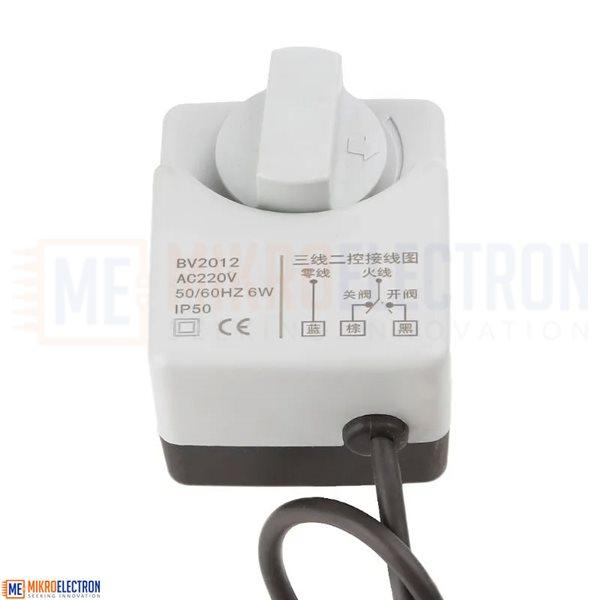

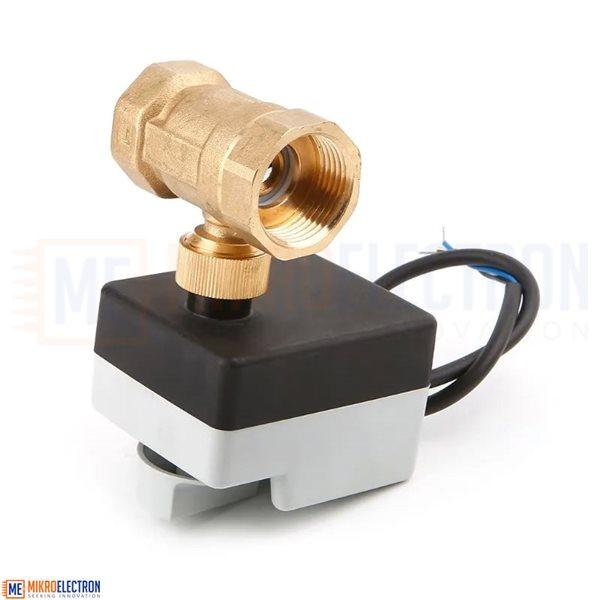

AC220V DN15 2 Way 3 Wires Brass Motorized Ball for Valve Electric Actuator

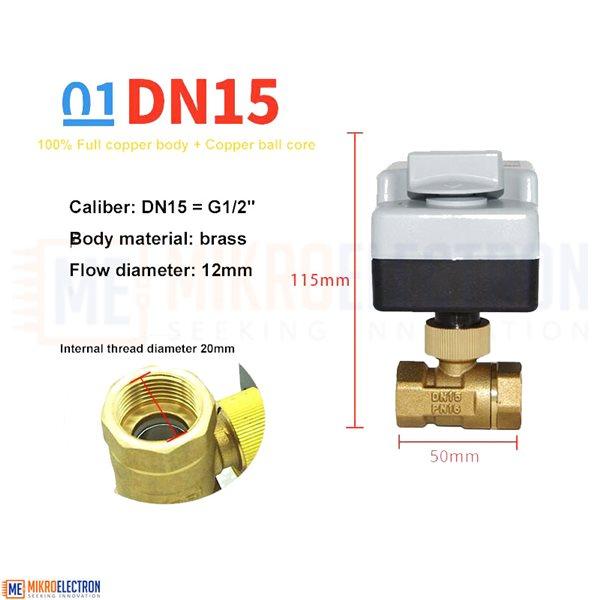

Dimension：DN15

Maximum Working Pressure: 1.6 MPa / 232psi;

Medium: Water, Air, Oil;

Voltage:AC220V 50/60 Hz

Power: Max is 6W

Operation: Motor and hand (with manual switch function)

Cable Length:0.5 Meters

Life Time: 100000 times;

Material: Brass, ABS plastic

Seal Material: EPDM & PTFE;

Environment Temperature :-15°~50° in Celsius;

Flüssigkeits Temperature: -5°~100° in Celsius

Protect Class: IP 50

Application: This brass motorized ball for valve applicable to air conditioning fan coil system and heating system in the off control, by the ball for valve and the actuator composition, Actuator using synchronous motor drive, built-in limit contacts, the for valve can be fully open or full off when the power, stable action.

Work principle: This for Valve used for heating systems and air-conditioning fan coil systems on-off controlled by the for valve and actuator components,actuators driven by a rotary for valve ball 90 percent of movement.Synchronous motor driven actuator, Built-in limit contacts, enabling the for valve in the fully open or fully closed off, the action and stability
