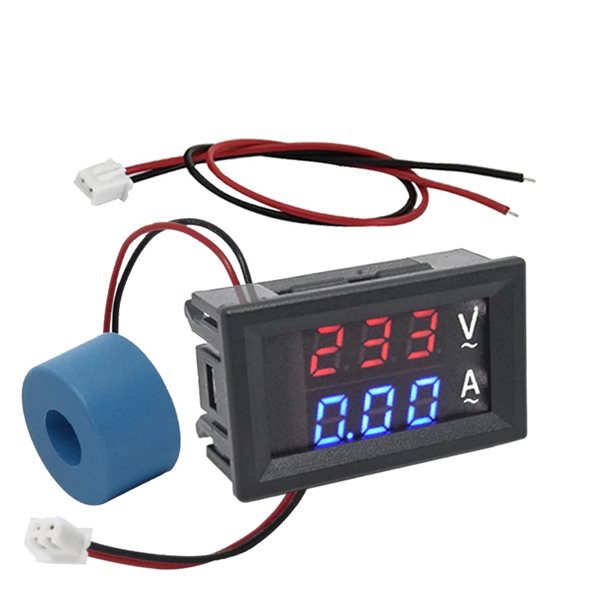

DIGITAL LCD VOLTMETER AMMETER AC 60-500V 50A WITH CURRENT TRANSFORMER

Description:

  • Mounting Hold Size: 46 x 27mm

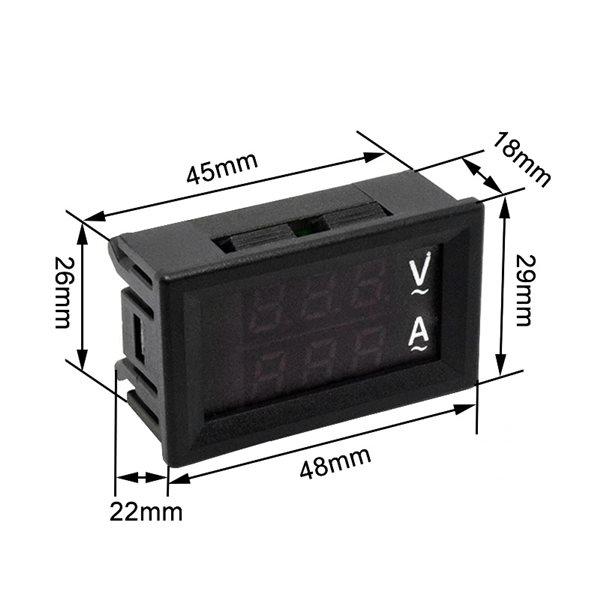

  • Dimension: 0.56inch  48 x 29 x 22 mm
  • Input Voltage: AC 60-500V
  • Detection Voltage: AC 60-500V
  • Detection Current: 10A: 0.00-9.99A / 50A: 0.0-50.0A
  • Refresh Rate: 500mS/Time
  • Accuracy Class: ±1%
  • Working Current: <20mA
  • Working Temperature: -10~65℃
  • Current Diverter: 75mΩ
  • LED color: Red+Blue
  • Cable Length: 15-20cm


Current Transformer Specification:

  • One Input Voltage: 0 - 50A
  • Senondary Output Voltage: 0 - 50mA
  • Accuracy level:  0.2
  • Ratio: 1000/1
  • Load ≥ 50Ω
  • Phase shift (δ): <20′

Kit include:

  • 1 pc voltemter ammeter
  • 1 pc cable
  • 1set current transformer

13 JD
Quantity
4 in stock
13 JD 1+ units
12.35 JD 10+ units
11.7 JD 25+ units
11.05 JD 100+ units
