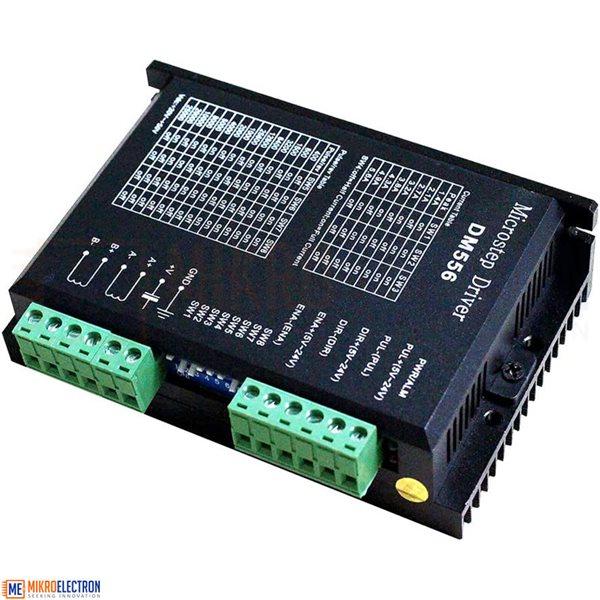

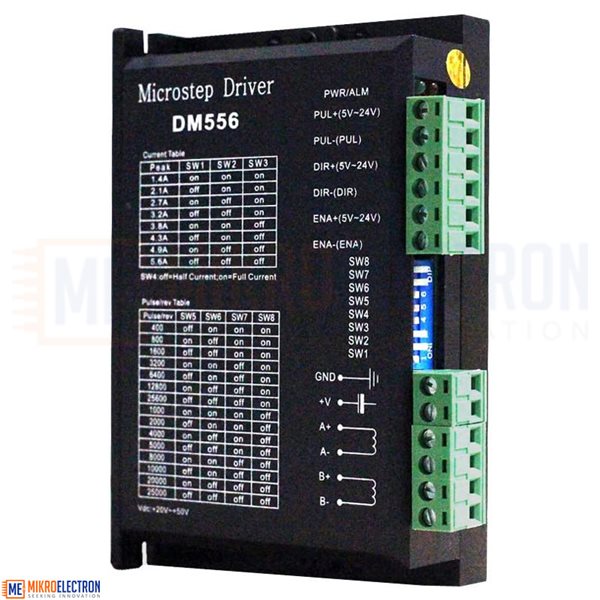

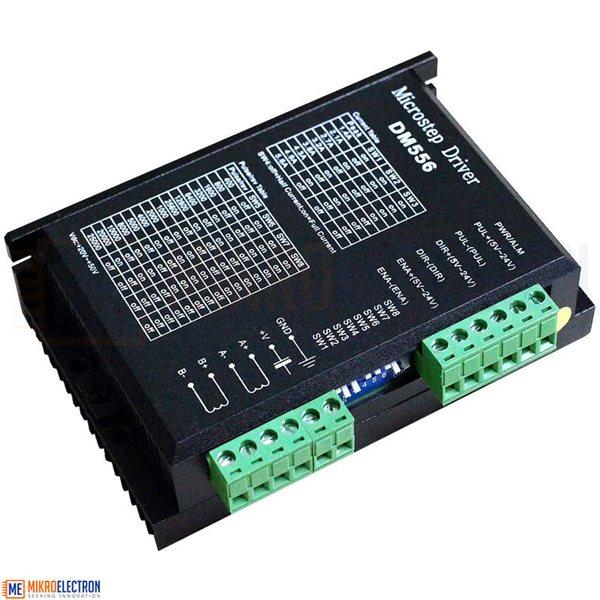

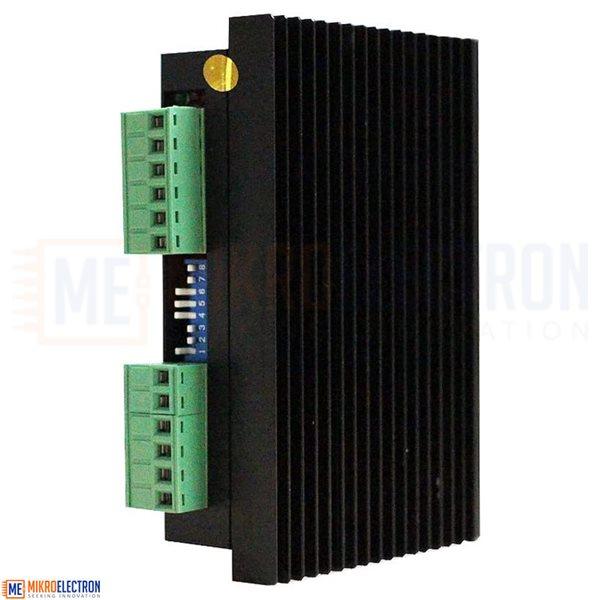

DM556 5.6A Digital Stepper Motor Driver for CNC Drivers Controller 3D Printer

Description:

CNC Digital Stepper Driver DM556 Stepper Motor Controller 2-phase Stepper Motor Driver 20-50V DC Max 5.6A 128 subdivision For Nema 23, 24 and Nema 34 stepper motor

Suitable for Nema 23 ,Nema 24 and Nema34 Stepper Motor, 2-phase hybrid stepper motors (Outer diameter: 57, 60,86mm).
This high subdivision driver is suitable for high subdivision motor. Suitable for stepper motor: 57,60,86 type 2-phase (4-wire, 6-wire, 8-wire)
Anti-Resonance for optimal torque, extra smooth motion, low motor heating and noise

Specification:
5-24 V universal to control signal, without series resistance; TTL compatible and optically isolated inputs to 5.6A; Input voltage 20-50VDC; Up to 128 subdivision, 16 selectable micro-step resolutions of 400-25,600 via DIP switches; 8 selectable output current settings of 1.4A to 5.6A via DIP switches; Pulse input frequency up to 200 KHz; Protections for over-voltage and over-current. Electrical Specifications: Output Peak Current: 1.4~5.6A ; Input Voltage: +20~50VDC (Typical 24-48VDC); Logic Signal Current: 7~16mA (Typical 10mA); Pulse Input Frequency: 0~200kHz; Isolation Resistance: 500MΩ; Vibration: 10-55Hz/0.15mm; Weight: Approx.260g.


Item Weight 9.2 ounces (260.82 grams)
Package Dimensions 5.55 x 3.66 x 1.46 inches (14.1 x 9.3 x 3.7 cm)
Material Aluminum, PCB
Voltage 24 Volts
Batteries Included? No
Batteries Required? No
Voltage 24 Volts
Material Aluminum, PCB
Item Weight 260 Grams

Kit include:

1 x DM556 Driver


19 JD
22 JD
Quantity
In stock
