Description:

Note: The receiver's antenna is mainly used to receive signals. Please do not pull or cut the antenna during use. The receiver's antenna will receive stronger signals when it is in an upright state.

Receiver function setting instructions

Model Description This remote control has a variety of models of receivers to choose from and supports customization.

1. 【CH6 Receiver】
2. 【4+2 Receiver】
3. There is an integrated receiver with brushed version power

Function Description

• 【CH6 Receiver】：The 6 Channels are all PWM signals.
• 【4+2 Receiver】：CH1 direction PWM signal, CH2 throttle PWM signal.（CH3 and CH5 can only use one channel at the same time, CH3 is the PWM servo signal, CH5 is the power signal, which is mainly used to control lights or trawl hooks, etc.; CH4 and CH6 can only choose one channel to use at the same time, and CH4 is the PWM servo Signal, CH6 is the power signal, which is mainly used to control lights or trawl hooks.）
• 【There is an integrated receiver with brushed version power】：This receiver integrates the receiver and the power controller. The receiver can be customized according to customer needs.

Specifications

Kit include:

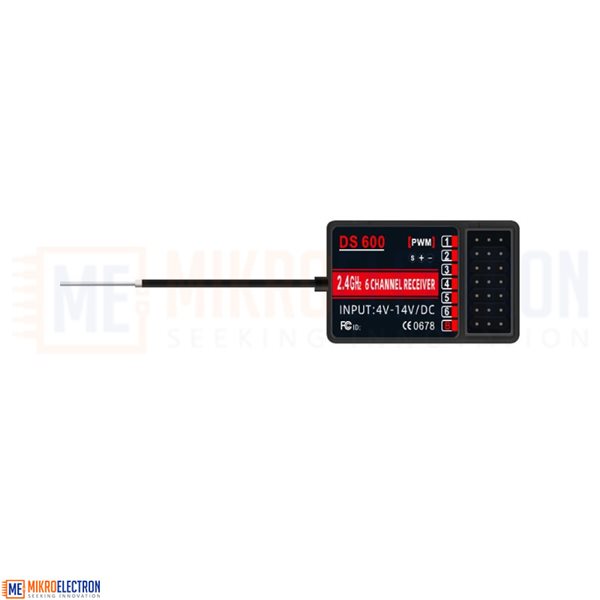

1 x HOTRC DS 600 2.4GHz PWM 6 Channel Receiver
